OSG Spiral Flute Tap: 9/16-18 UNF 3 Fl Modified Bottoming 1650503808
OSG Spiral Flute Tap: 9/16-18 UNF 3 Fl Modified Bottoming 1650503808
Regular price
$37.74 USD
Regular price
$80.00 USD
Sale price
$37.74 USD
Shipping calculated at checkout.
BRAND OSG
Item
MSRP: $80.00
- specs
Thread Size (Inch) 9/16-18
Thread Standard UNF
Chamfer Modified Bottoming
Material Powdered Metal
Coating/Finish V
Thread Direction Right Hand
Coolant Through No
Class Of Fit 2B
Thread Limit H5
Number Of Flutes 3
Flute Direction Right Hand
Helix Angle 45
Threads per Inch 18
Thread Length (Decimal Inch) 0.6650
Thread Length (mm) 16.90
Overall Length (Decimal Inch) 3.5430
Overall Length (mm) 100.00
Material Grade PMT15
Shank Diameter (Decimal Inch) 0.3180
Neck Length (Decimal Inch) 1.3780
Tapping Depth (mm) 50.00
Square Length (Decimal Inch) 0.5000
Square Size (Decimal Inch) 0.3220
Flute Style Spiral
Material Application Cast Aluminum; High-Carbon Steel; Low-Carbon Steel; Alloy Steel; Aluminum; Stainless Steel; Cast Iron; Medium-Carbon Steel; Hardened Steel
Series 16505
UNSPSC Code 27112806
(Description).

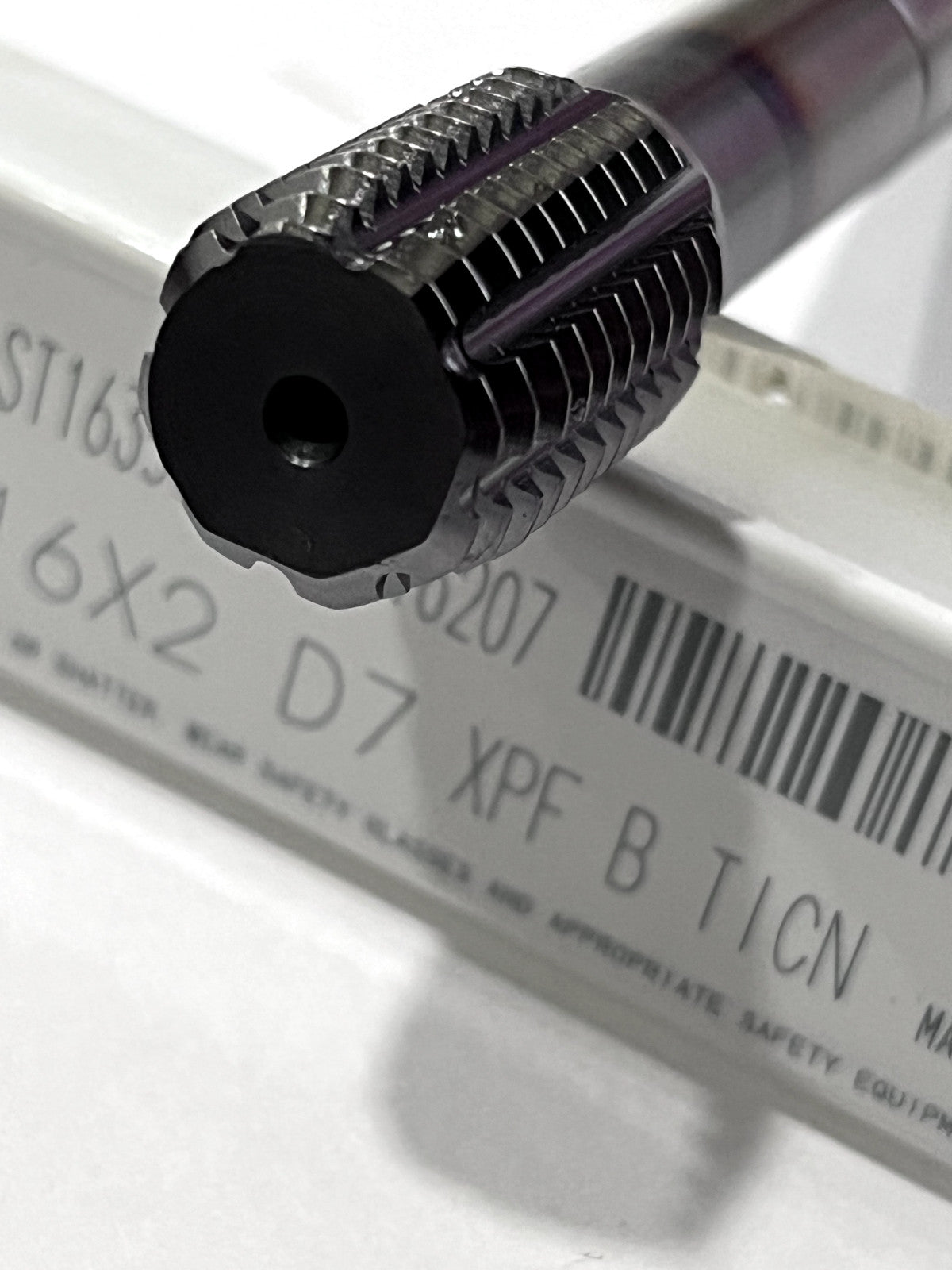

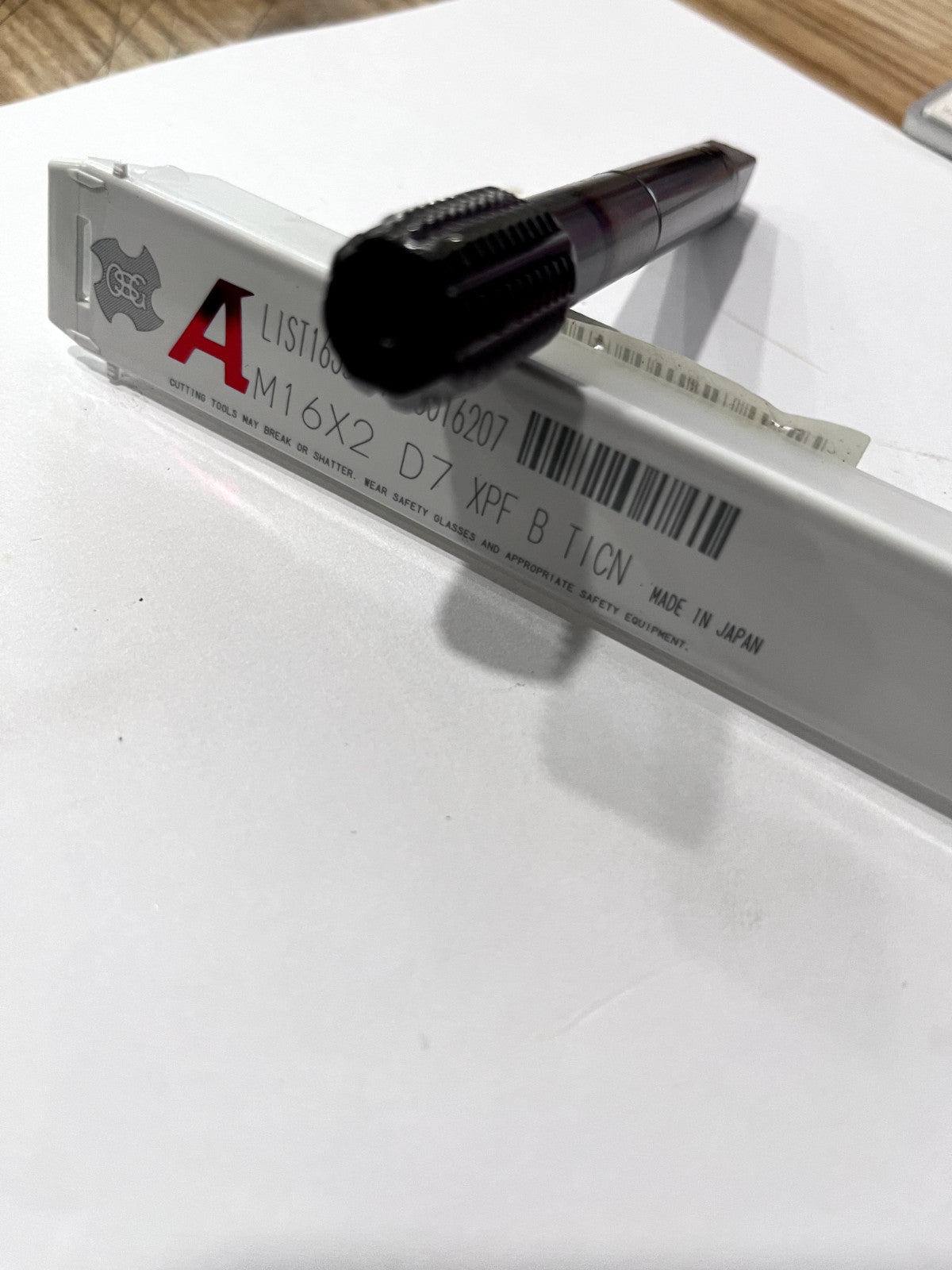

Please review photos, comes as shown.
