OSG Corner Radius End Mill: 0.6 mm Dia, 0.48 mm LOC 3100602

OSG Corner Radius End Mill: 0.6 mm Dia, 0.48 mm LOC 3100602

MSRP: $50

•

• Mill Diameter (Decimal Inch) 0.0236
• Mill Diameter (mm) 0.60
• Number Of Flutes 2
• Length of Cut (mm) 0.48
• Single Or Double End Single
• End Mill Material Solid Carbide
• Coating/Finish WXS
• Centercutting Yes
• Flute Direction Right Hand
• Corner Radius (Decimal Inch) 0.0039
• Variable Index No
• Variable Helix No
• Cutting Direction Right Hand
• Corner Radius (mm) 0.10
• Overall Length (mm) 50.00
• Coolant Through No
• Pitch Coarse
• Chipbreaker No
• End Type Corner Radius
• Length Of Cut (Decimal Inch - 4 Decimals) 0.0189
• Length Type Stub
• Flute Type Spiral
• Extended Reach Yes
• Shank Type Straight-Cylindrical
• Material Removal Type Roughing
• Shank Diameter (mm) 4.00
• Neck Diameter (mm) 0.56
• Neck Diameter (Decimal Inch) 0.5600
• Reach Length (mm) 4.00
• Corner Radius Tolerance 5 to -5 um
• Mill Diameter Tolerance 0.00/-0.01 mm
• Primary Workpiece Material Hard Material; Stainless Steel; Steel
• Primary Workpiece Material Code P; H; M
• UNSPSC Code 27112803
• Series 4592
• Material Application Hard Material; Stainless Steel; Steel
• Coating Classification PVD
• For Use With. Toolholders
• Helix Style Medium

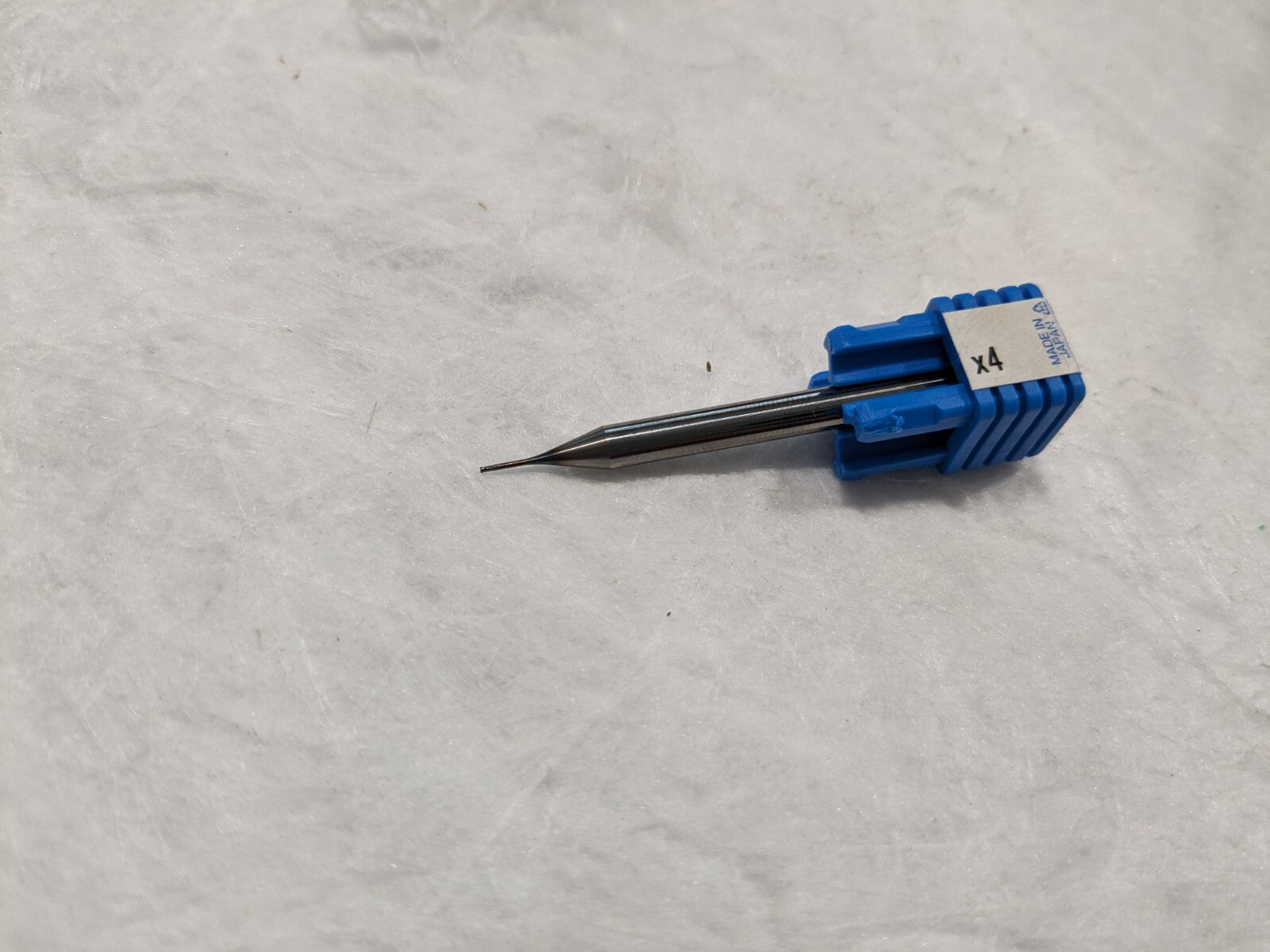

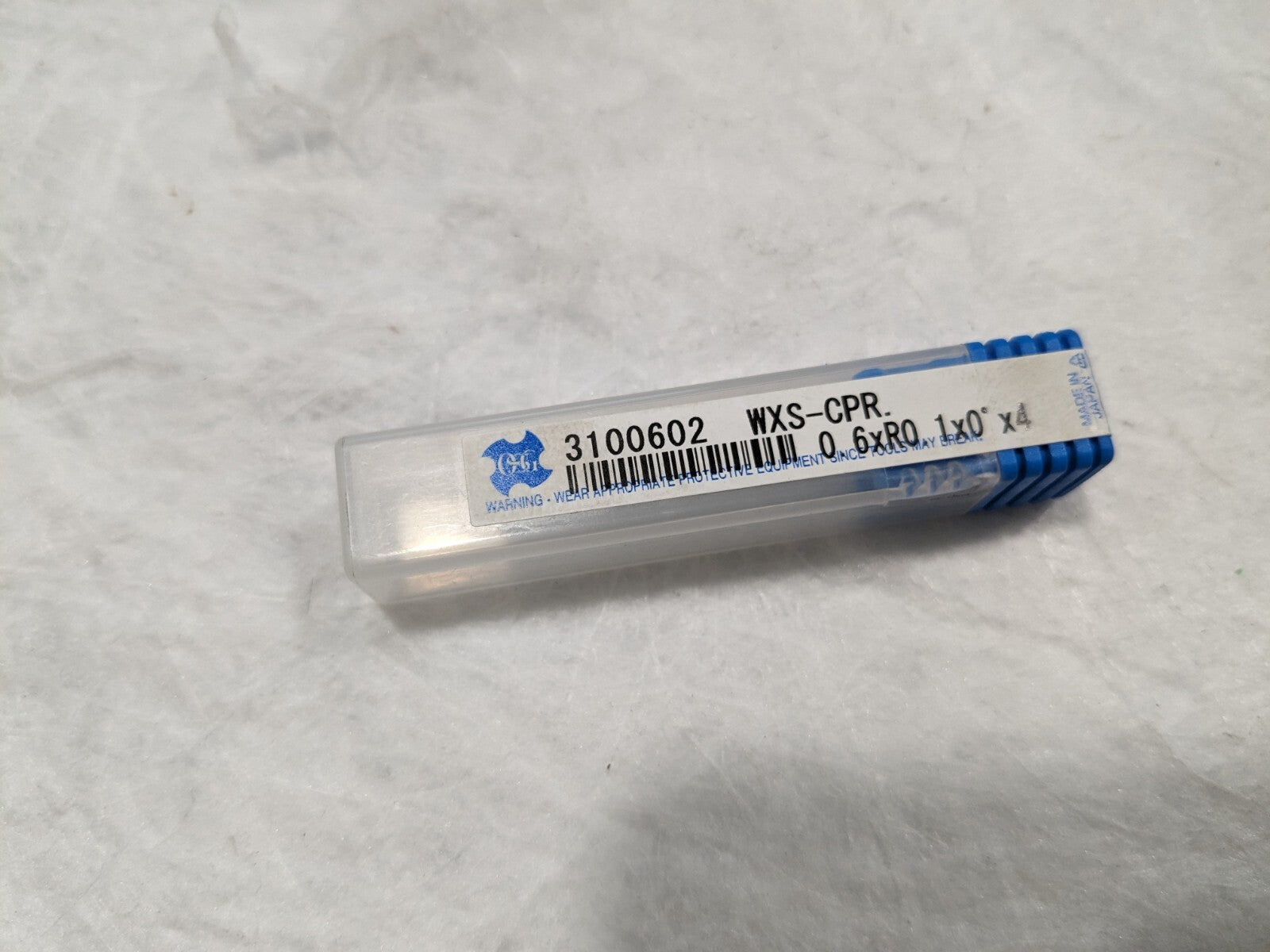

Please review photos, comes as shown.
