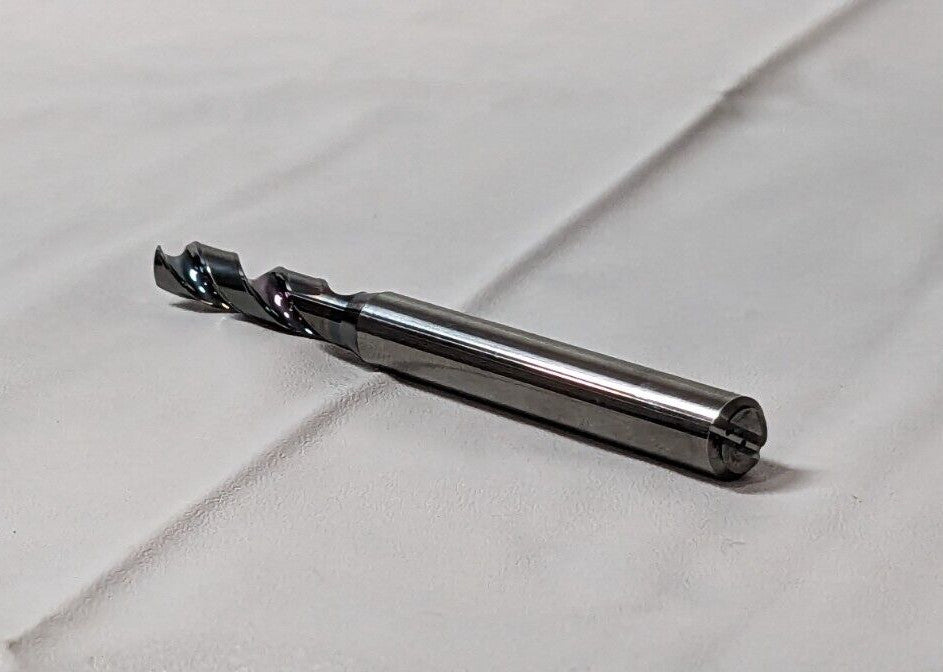

OSG Carbide Screw Machine Length Drill Bit Letter F (0.2570") 140 deg 650025611

OSG
Screw Machine Length Drill Bit

MSRP:$120

• Drill Bit Size (Letter) F
• Drill Bit Size (mm) 6.53
• Drill Bit Size (Decimal Inch) 0.2570
• Tool Material Solid Carbide
• Cutting Direction Right Hand
• Coating/Finish Multi-layer
• Number Of Flutes 2
• Spiral Type Regular
• Flute Type Regular Spiral
• Flute Length (mm) 33.00
• Drill Point Angle 140
• Coolant Through Yes
• Point Type R-Thinned
• Primary Workpiece Material High-Temp Alloy; Cast Iron; Steel; Hardened Materials
• Shank Type Straight
• Shank Diameter (Decimal Inch) 0.3150
• Overall Length (mm) 88.00
• Overall Length (Decimal Inch) 3.4646
• Shank Diameter (mm) 8.00
• Series 6500
• Web Thinning R-Thinned
• Web Configuration Tapered
• Proprietary Coating/Finish EgiAs
• Drill Length Type Screw Machine
• Flute By Diameter Ratio 3xD
• Tool Performance High Performance
• Drill Bit Diameter Tolerance +0 to -0.022 mm
• Drill Bit Size Range (Decimal Inch) 0.2500 to 0.3000
• Drill Bit Size Range (mm) 6.50 - 8.00
• UNSPSC Code 23241635
