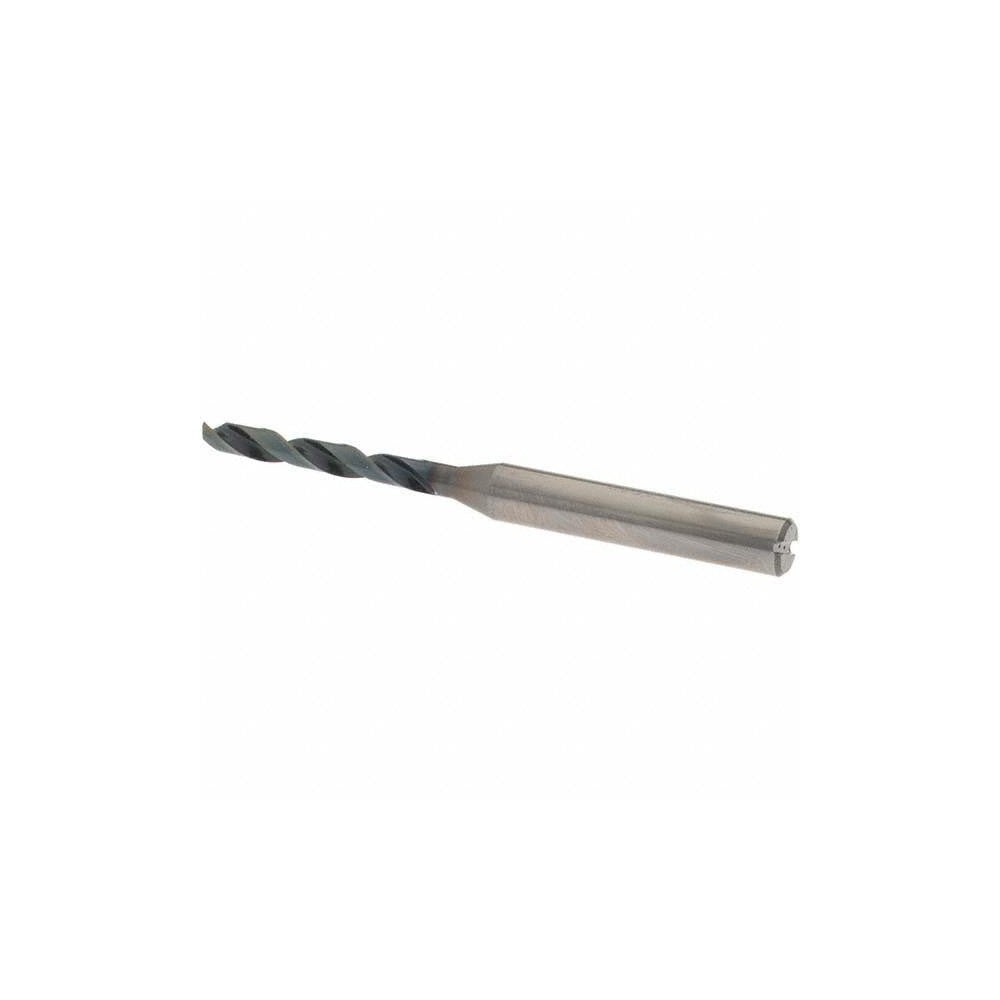

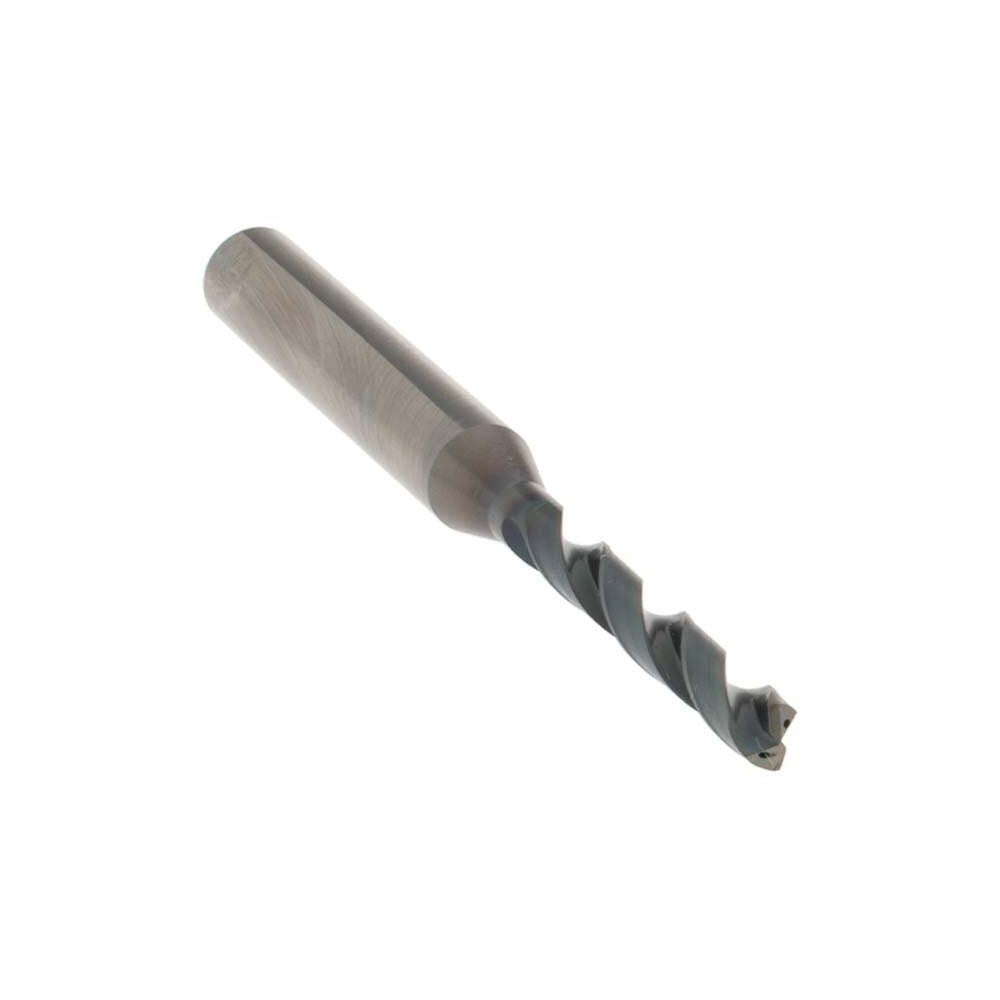

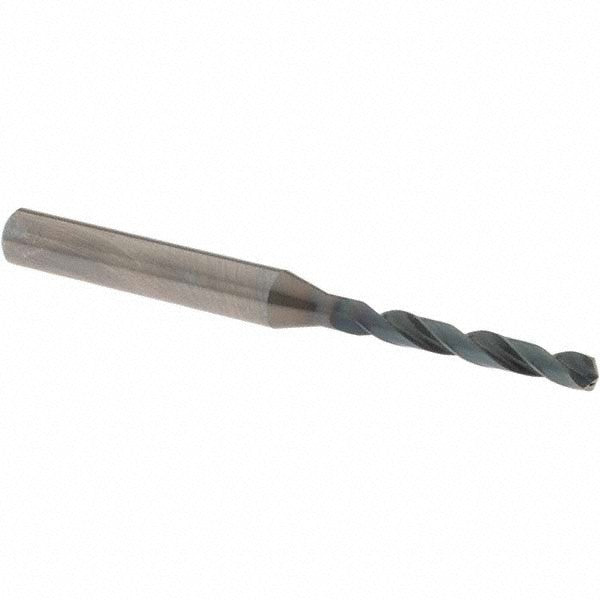

OSG Carbide Jobber Length Drill Bit HP255-1378

OSG
Carbide Jobber Length Drill Bit

MSRP: $90.00

• Drill Bit Size (Decimal Inch): 0.1378
• Drill Bit Material: Solid Carbide
• Drill Point Angle (Degrees): 140
• Coating/Finish: Multi-layer
• Flute Type: Regular Spiral
• Cutting Direction: Right Hand
• Point Type: R-Thinned
• Primary Workpiece Material: Cast Iron; Steel; Hardened Materials
• Coolant Through: Yes
• Number of Flutes: 2
• Flute Length (mm): 28.00
• Flute Length (Decimal Inch): 1.1024
• Primary Workpiece Material Code: P; K
• Overall Length (mm): 66.00
• Spiral Type: Regular
• Overall Length (Decimal Inch): 2.5984
• Proprietary Coating/Finish: EgiAs
• Series: HP255
• Tool Application: Drilling; Cross Hole; Blind Hole; Self-Centering
• Flute By Diameter Ratio: 5xD
• Shank Diameter (mm): 6.00
• Drill Bit Diameter Tolerance: +0.004 to +0.016 mm
• Web Thinning: R-Thinned
• Web Configuration: Tapered
• Shank Type: Straight
• Tool Performance: High Performance
• Drill Bit Grade: High Performance
• Drill Bit Size Range (Decimal Inch): 0.1000 - 0.1500
• Drill Bit Size Range (mm): 3.00 - 4.00

(Description).

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
