OSG Ball End Mill: 11/64" Dia, 9/16" LOC, 4 Fl Solid Carbide HP441-1719-BN

OSG

Ball End Mill: 11/64" Dia, 9/16" LOC, 4 Fl Solid Carbide HP441-1719-BN
MSRP: $35

• Mill Diameter (Inch) 11/64
• Mill Diameter (Decimal Inch) 0.1719
• Number Of Flutes 4
• End Mill Material Solid Carbide
• Length of Cut (Decimal Inch) 0.5625
• Length of Cut (Inch) 9/16
• Shank Diameter (Decimal Inch) 0.1875
• Shank Diameter (Inch) 3/16
• Overall Length (Decimal Inch) 2.0000
• Overall Length (Inch) 2
• Single Or Double End Single
• Coating/Finish Family TiAlN
• Centercutting Yes
• Cutting Direction Right Hand
• Flute Direction Right Hand
• Extended Reach No
• Coolant Through No
• Helix Angle 35
• Primary Workpiece Material High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials
• Primary Workpiece Material Code P; S; H; K; M
• Secondary Workpiece Material High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials
• Secondary Workpiece Material Code P; S; H; K; M
• Coating/Finish TiAlN
• Variable Helix No
• Variable Index No
• Chipbreaker No
• Flute Type Spiral
• Shank Type Straight-Cylindrical
• Material Grade Submicron
• Length Type Standard
• Coating Classification PVD
• Helix Style Medium
• Nose Radius (Decimal Inch) 0.0860
• Neck Length (Decimal Inch) 0.0000
• Reach Length (Decimal Inch) 0.5625
• Mill Diameter Tolerance +0.0000/-0.0015 in
• Shank Diameter Tolerance h6
• Series HP441BN
• System Of Measurement Fractional Inch
• Additional Information The Hy-Pro-Carb Is An Entire Line up of Performance End Mills Designed for Extend Tool Life.
• Manufacturers Catalog Number HP441-1719-BN
• Material Removal Type Roughing & Finishing
• UNSPSC Code 27112803
• Country of Origin UNITED STATES

(Description).

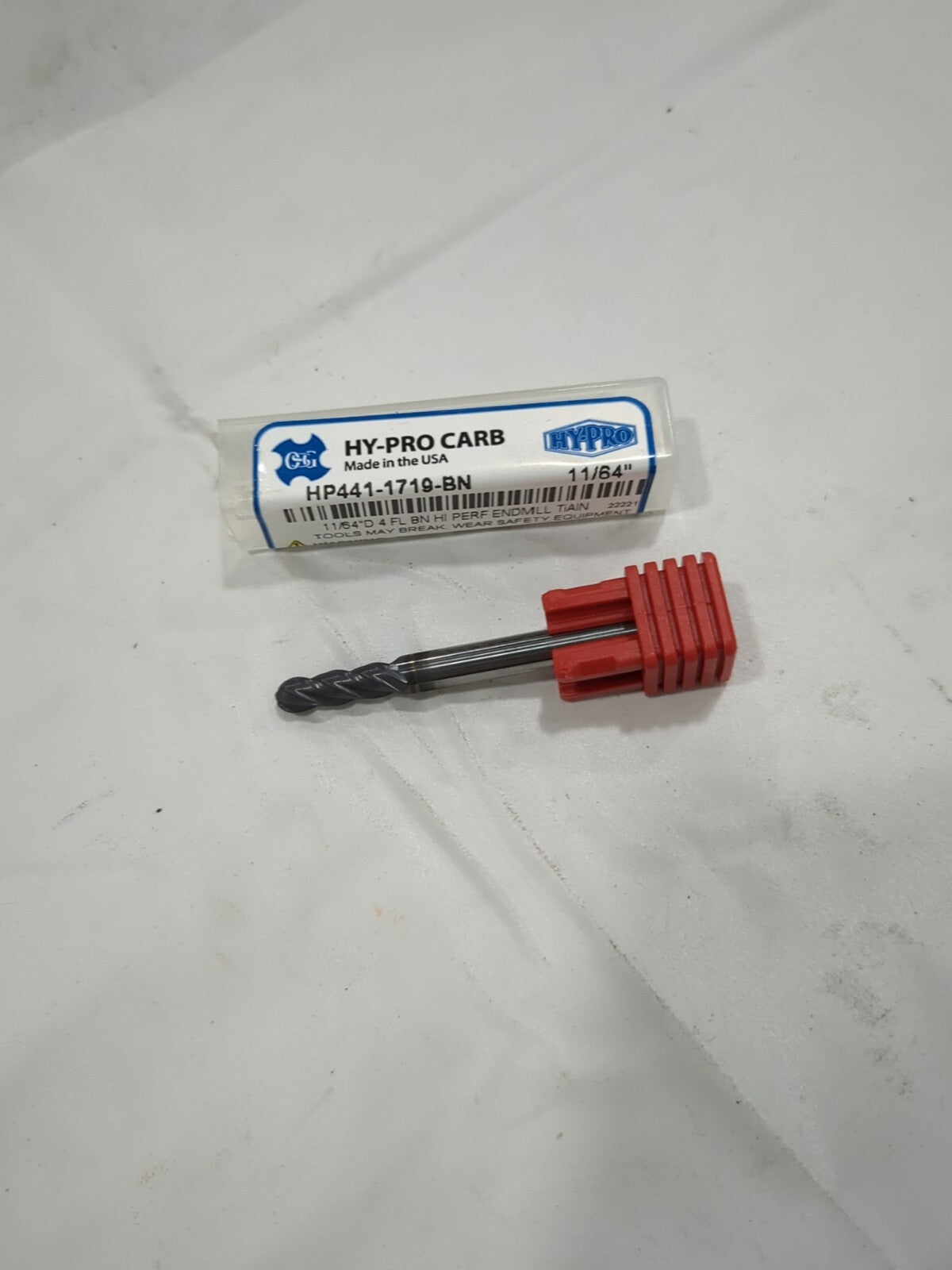

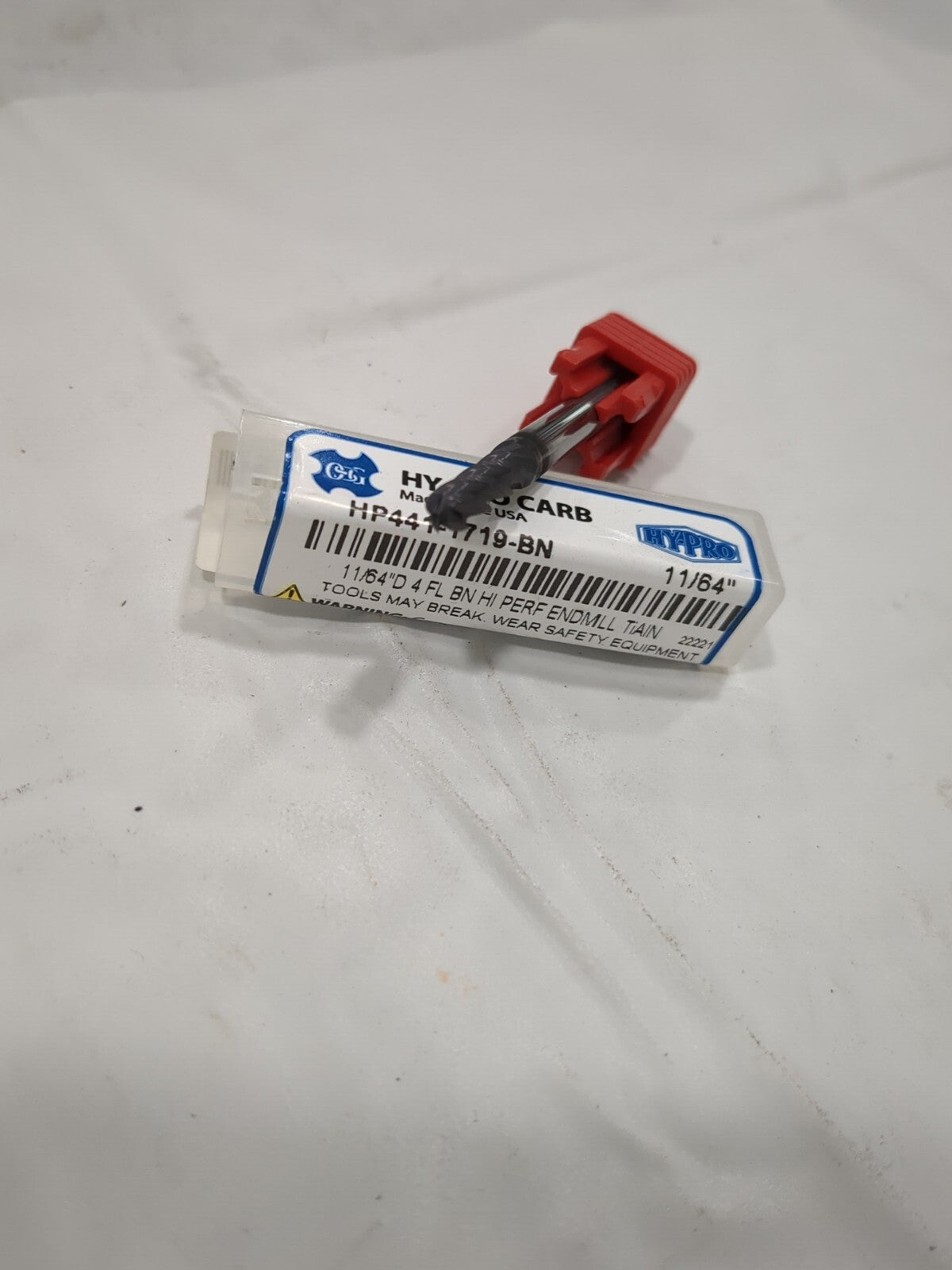

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
