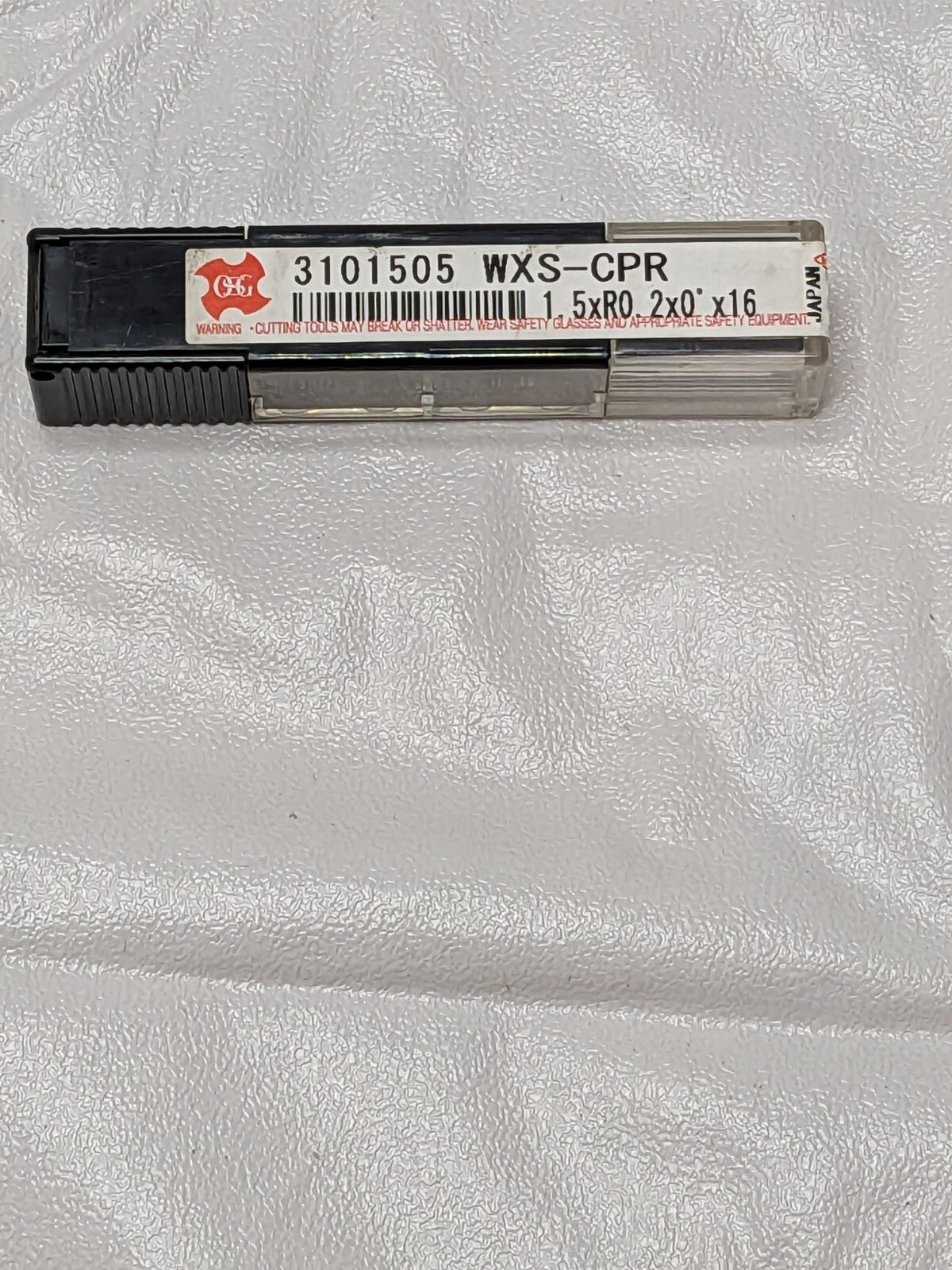

OSG 1.5mm Diam 2 Flute Solid Carbide 0.2mm Corner Radius End Mill 3101505

OSG
End Mill

MSRP: $50.00

• Corner Radius (Decimal Inch) 0.0079
• Variable Helix No
• Flute Direction Right Hand
• Corner Radius (mm) 0.20
• Pitch Coarse
• Variable Index No
• Corner Radius Tolerance 5 to -5 um
• Helix Style Medium
• End Type Corner Radius
• End Mill Material Solid Carbide
• Overall Length (mm) 50.00
• Coating Classification PVD
• Cutting Direction Right Hand
• Mill Diameter (Decimal Inch) 0.0591
• Extended Reach Yes
• Mill Diameter (mm) 1.50
• Neck Diameter (mm) 1.45
• Reach Length (mm) 16.00
• Material Application Hard Material; Stainless Steel; Steel
• Single Or Double End Single
• Shank Diameter (mm) 4.00
• Length of Cut (mm) 1.20
• For Use With. Toolholder
• Primary Workpiece Material Code P; H; M
• Mill Diameter Tolerance 0.00 to -0.01 mm
• Length Type Stub
• Series 4592
• Coolant Through No
• Centercutting Yes
• Material Removal Type Roughing
• Flute Type Helical
• Shank Type Straight-Cylindrical
• Number Of Flutes 2
• Length Of Cut (Decimal Inch - 4 Decimals) 0.0472
• Coating/Finish WXS
• UNSPSC Code 27112803
• Chipbreaker No
• Primary Workpiece Material Hard Material; Stainless Steel; Steel

This item is new and in the original sealed package. SOLD AS IS.

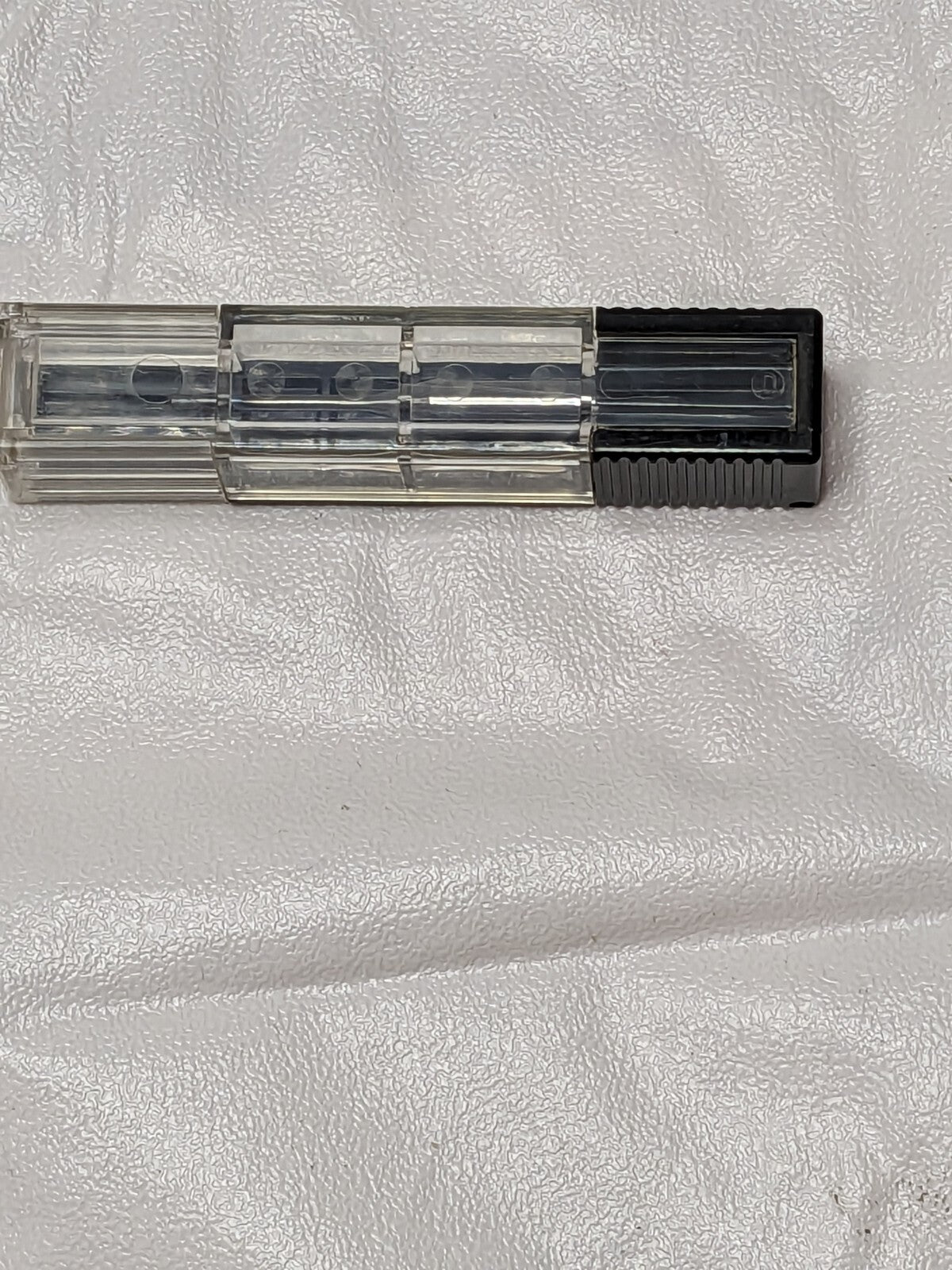

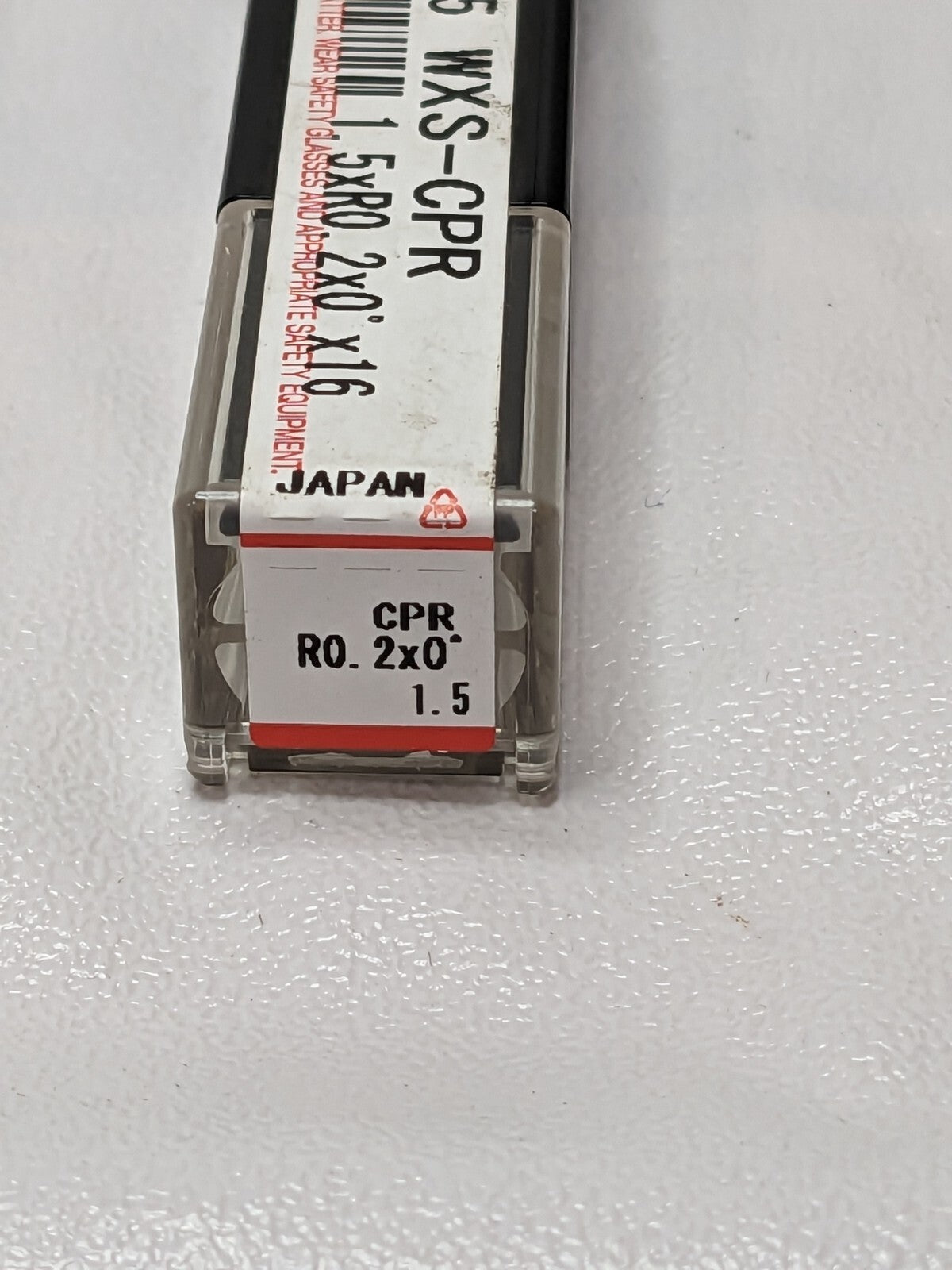

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
