Omron G7J-2A2B-B-W1 AC100/120, 100 and 120 V AC Coil Voltage Power Relay

Omron G7J-2A2B-B-W1 AC100/120, 100 and 120 V AC Coil Voltage Power Relay

$28.39 USD
$58.00 USD $28.39 USD
Sale Sold out
Shipping calculated at checkout.

BRANDOmron
Item

MSRP: $58.00

  • specs

Type

 Power Relay

Terminal Type

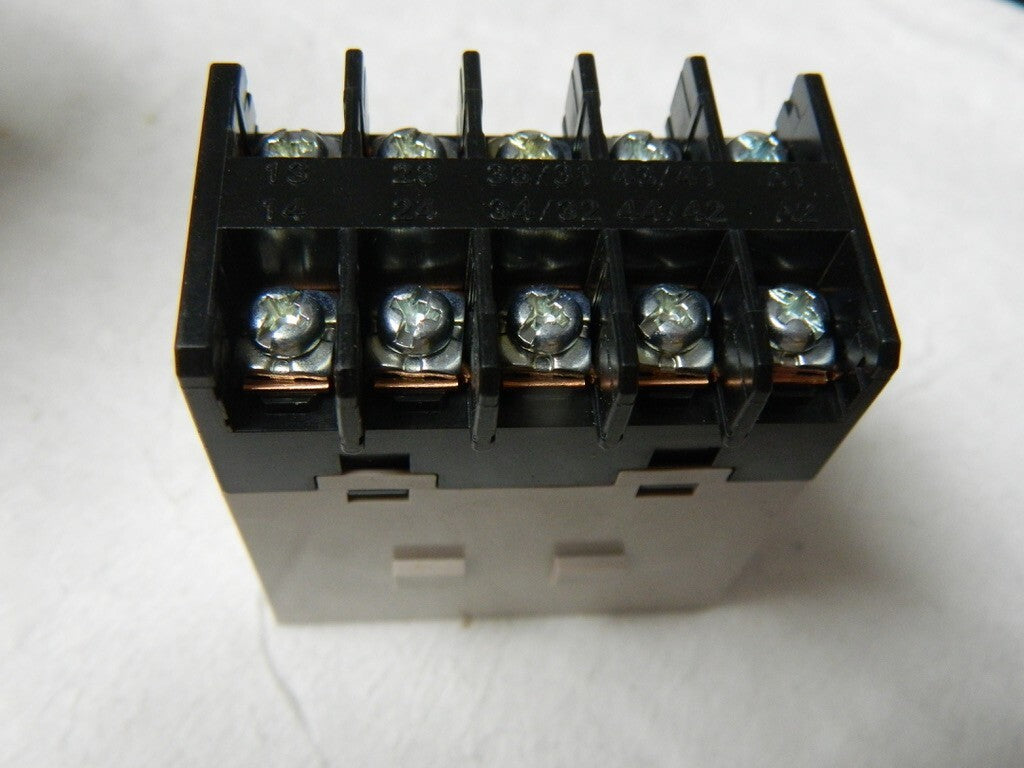

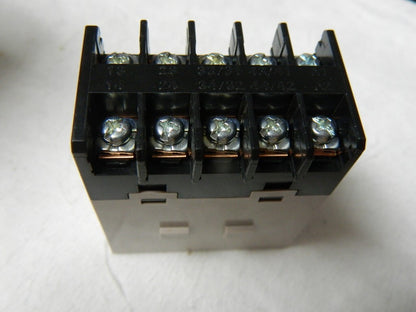

 Screw (M3.5)

Contact Configuration

 Double Pole Single Throw (DPST)-Normally Open (NO)/Double Pole Single Throw (DPST)-Normally Closed (NC)

Special Function

 Includes W-Brackets (R99-04 FOR G5F)

Test Button

 Push

RoHS Compliant

 Yes

Operating Temperature [Min]

 -25 ºC

Operating Temperature [Max]

 60 ºC

AC Coil Voltage

 100 V120 V

Rated Resistive Load Current at 220 VAC Voltage (Normally Open (NO))

 25 A

Rated Resistive Load Current at 220 VAC Voltage (Normally Closed (NC))

 8 A

Rated Resistive Load Current at 30 VDC Voltage (Normally Open (NO))

 25 A

Rated Resistive Load Current at 30 VDC Voltage (Normally Closed (NC))

 8 A

Rated Inductive Load Current at 220 VAC Voltage (Normally Open (NO))

 25 A

Rated Inductive Load Current at 220 VAC Voltage (Normally Closed (NC))

 8 A

AC Switching Voltage [Max]

 250 V

DC Switching Voltage [Max]

 125 V

Switching Current (Normally Open (NO)) [Max]

 25 A

Switching Current (Normally Closed (NC)) [Max]

 8 A

Resistive Switching Power (Normally Open (NO)) [Max]

 5500 V·A750 W

Resistive Switching Power (Normally Closed (NC)) [Max]

 1760 V·A240 W

Inductive Switching Power (Normally Open (NO)) [Max]

 5500 V·A

Inductive Switching Power (Normally Closed (NC)) [Max]

 1760 V·A

Load Current at 24 VDC Voltage [Min]

 100 mA

Approximate Power Consumption



(Description).

Please review photos, comes as shown.


Fast shipping, straight from our warehouse in sunny Florida!
