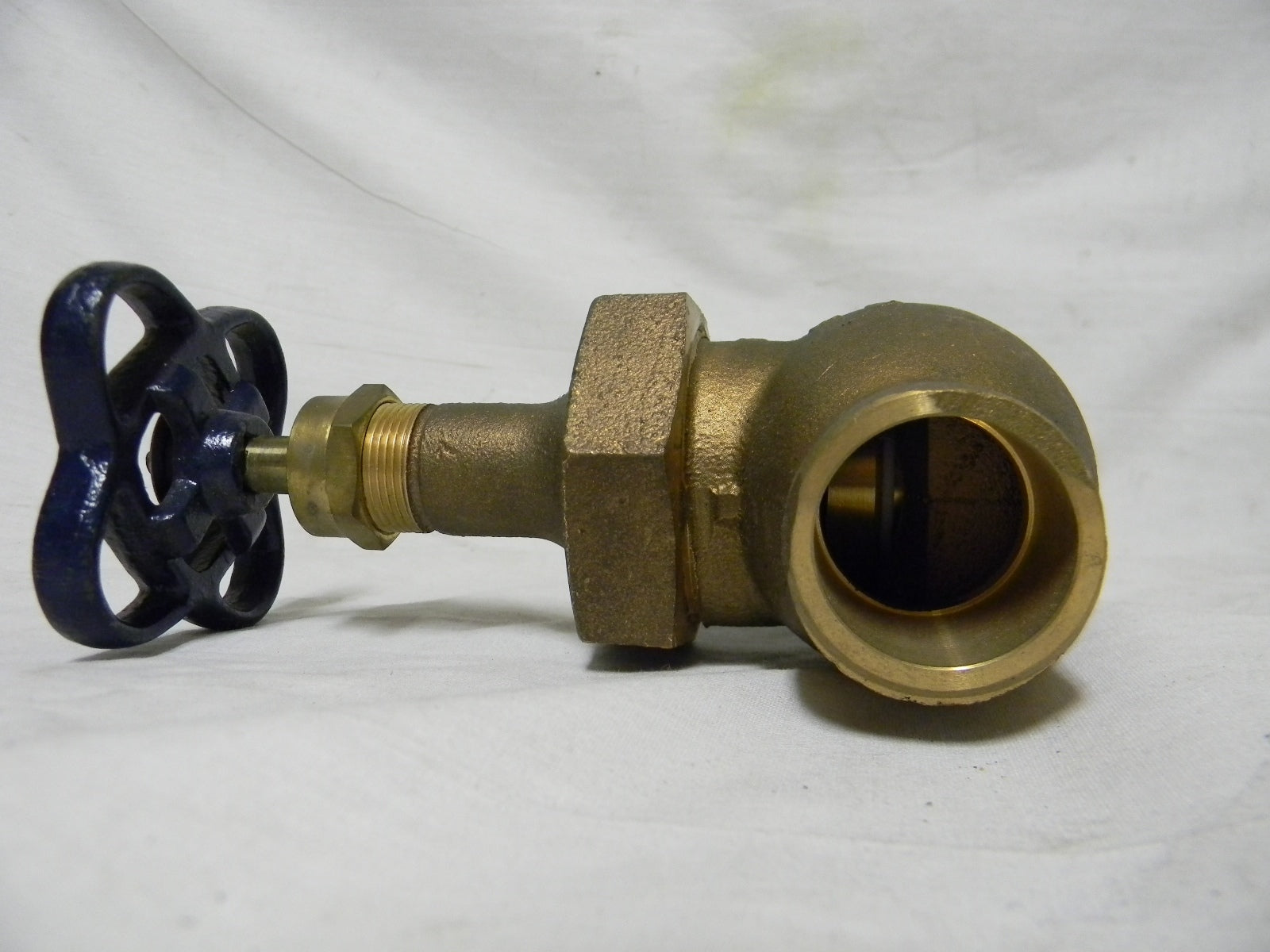

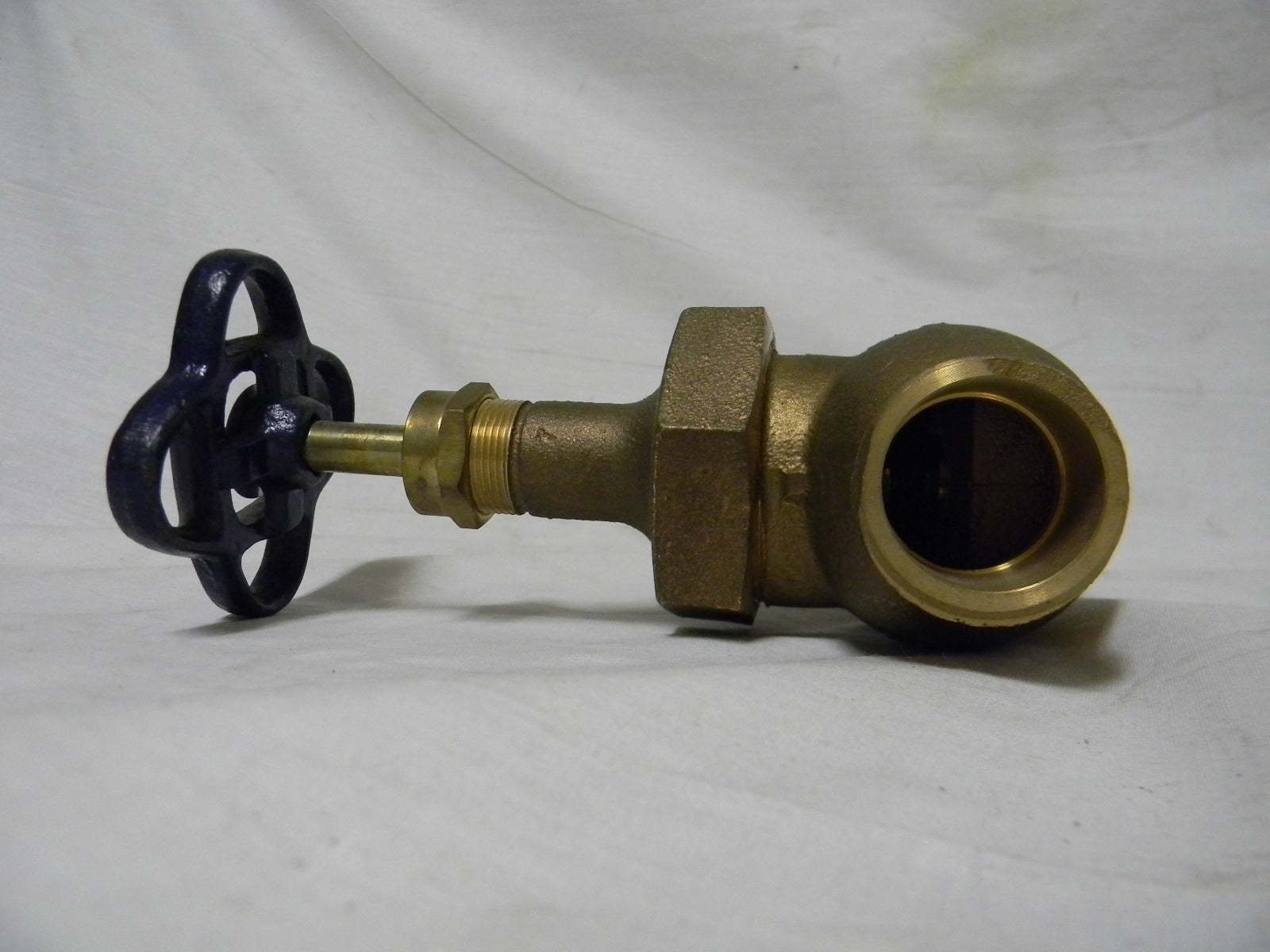

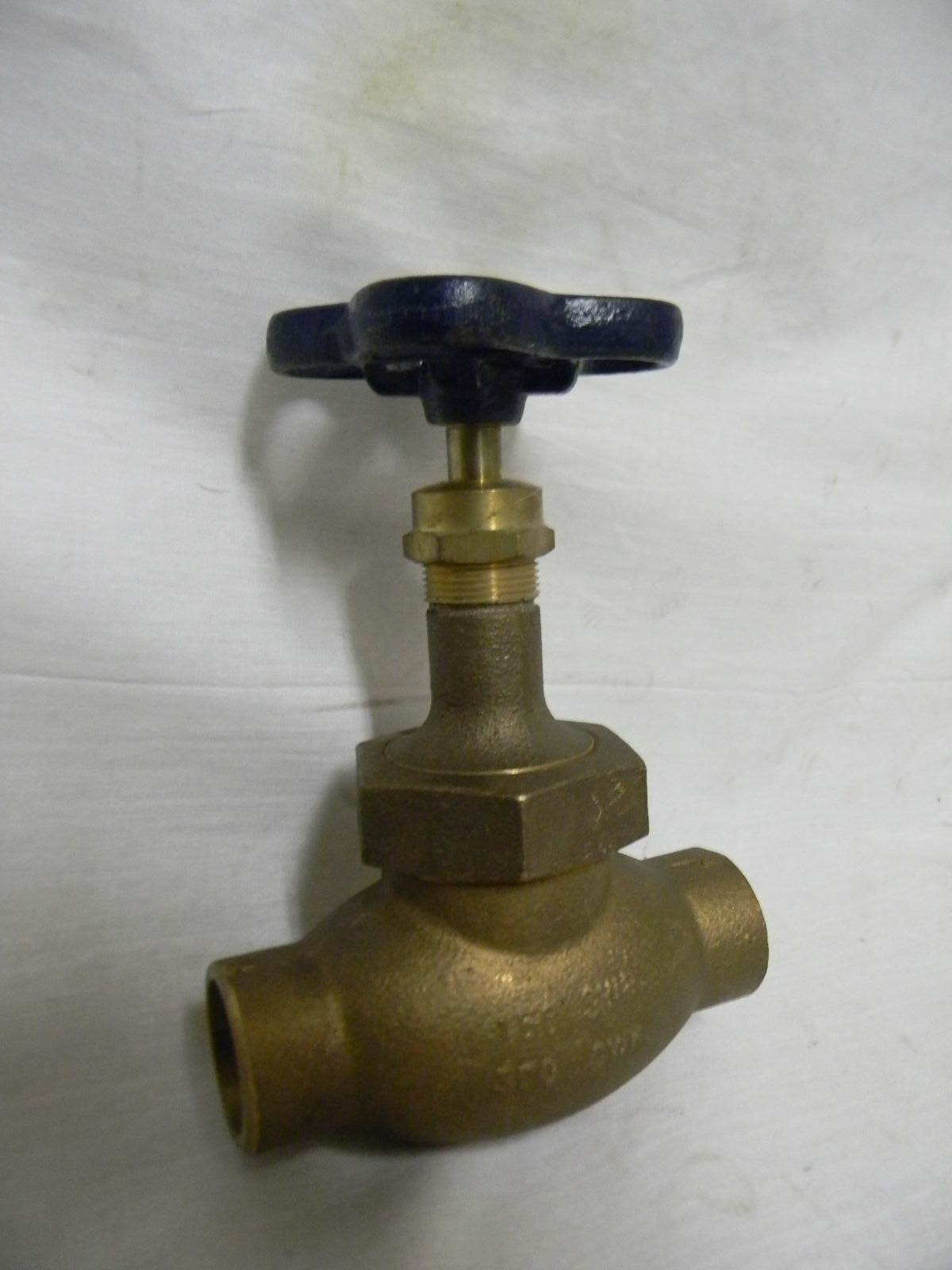

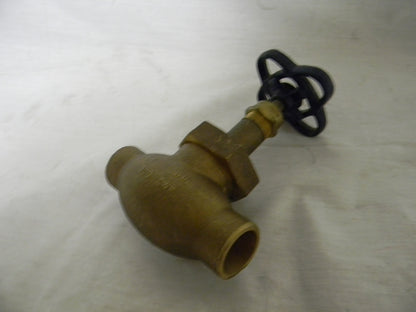

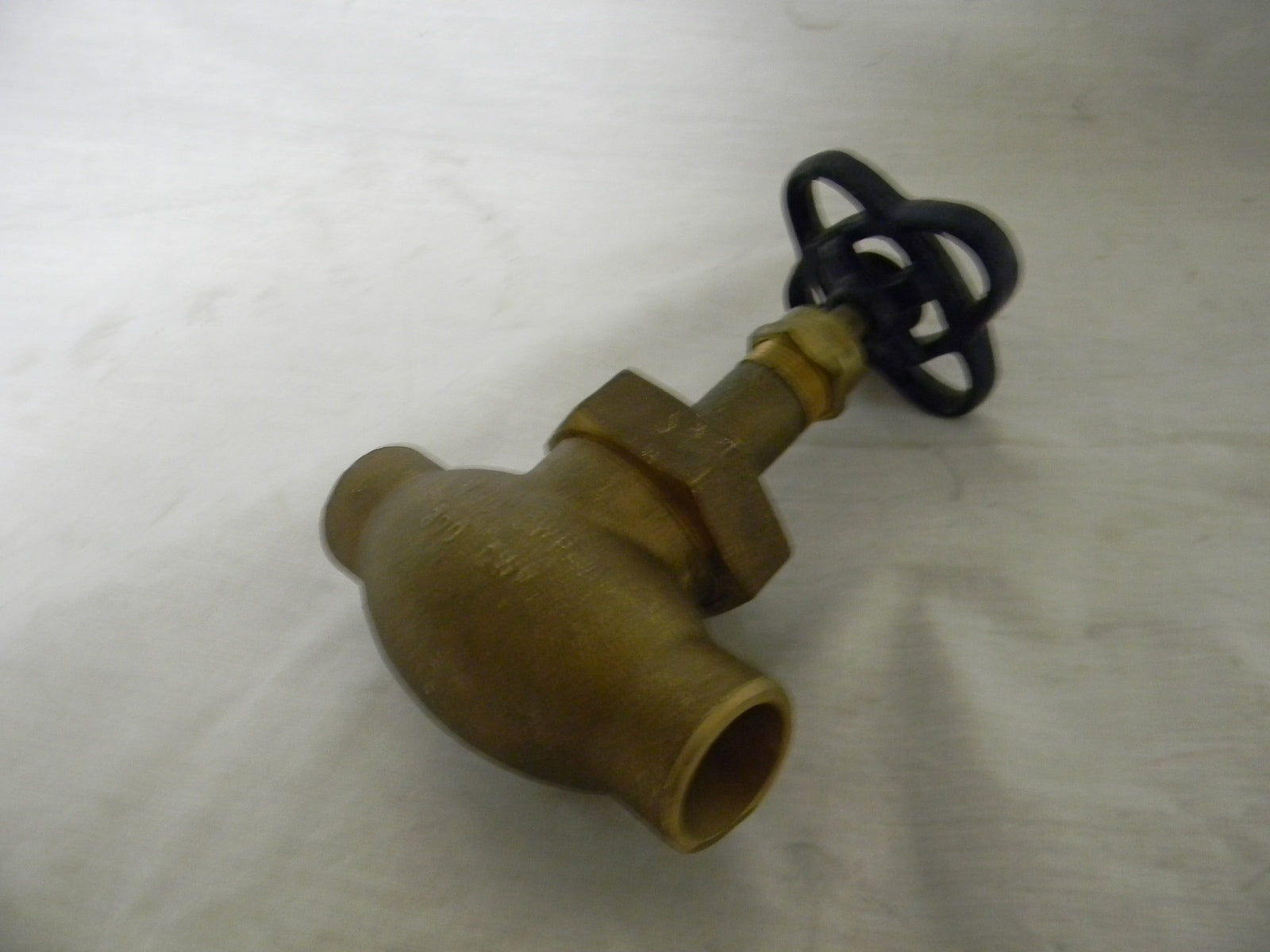

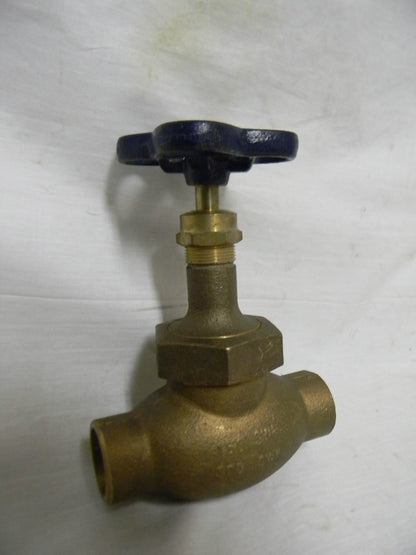

Nibco Class 150 Bronze 1" Valve #S-235-Y

NIBCO

Valve

• Nominal Size    :    3/4 IN
• Connection Type    :    Compression (Solder)
• Pressure Rating    :    300 PSI (CWP) Non-Shock, 150 PSI (SWP) At 366 DEG F
• Pressure Class    :    Class 150
• Body Material    :    Bronze
• Operator Type    :    Handwheel
• Handle Material    :    Malleable Iron
• Stem Material    :    Silicon Bronze
• Trim Material    :    PTFE Disc
• Packing Material    :    Aramid Fibers With Graphite
• Gland Material    :    Bronze Or Brass Packing
• Material Standard    :    Body: ASTM B62, Stem: ASTM B371, Gland: ASTM B62/B584/B16, Handle: ASTM A47
• Material Specification    :    Stem: UNS C69400/C69430, Gland: UNS C84400
• Industry Standards    :    MSS-SP-80 Compliant
• Lead Free    :    No
• Other Physical Dimension    :    4.88 IN Inlet Center To Top Of Handle


Fast shipping, straight from our warehouse in sunny Florida!

*Florida residents are required to pay 7% sales tax*
