NIAGARA CUTTER Square End Mill: 5/16" Dia 4 fl carbide 17005438

MSRP: $70

• Mill Diameter (Inch) 5/16
• Mill Diameter (Decimal Inch) 0.3125
• Number Of Flutes 4
• End Mill Material Solid Carbide
• End Type Double
• Length of Cut (Inch) 3/4
• Coating/Finish TiAlN
• Overall Length (Inch) 3-1/2
• Shank Diameter (Inch) 3/8
• Centercutting Yes
• Cutting Direction Right Hand
• Variable Helix No
• Variable Index No
• Helix Angle 30
• Chipbreaker No
• Extended Reach No
• Length Of Cut Range (Decimal Inch) 0.7000 - 0.8000
• Length of Cut (Decimal Inch) 0.75
• Material Grade Micrograin
• Shank Diameter (Decimal Inch) 0.375
• Overall Length (Decimal Inch) 3.5
• Flute Direction Right Hand
• Flute Type Spiral
• Shank Diameter Tolerance -0.0001/-0.0004 in
• Length Type Regular
• Mill Diameter Tolerance +0.000/-0.002 in
• Overall Length Tolerance +0.060/-0.060 in
• Through Coolant No
• TIR Maximum (Decimal Inch) 0.0005
• Series CD430
• Primary Workpiece Material Code P; S; K; M; N
• UNSPSC Code 27112803

(Description).

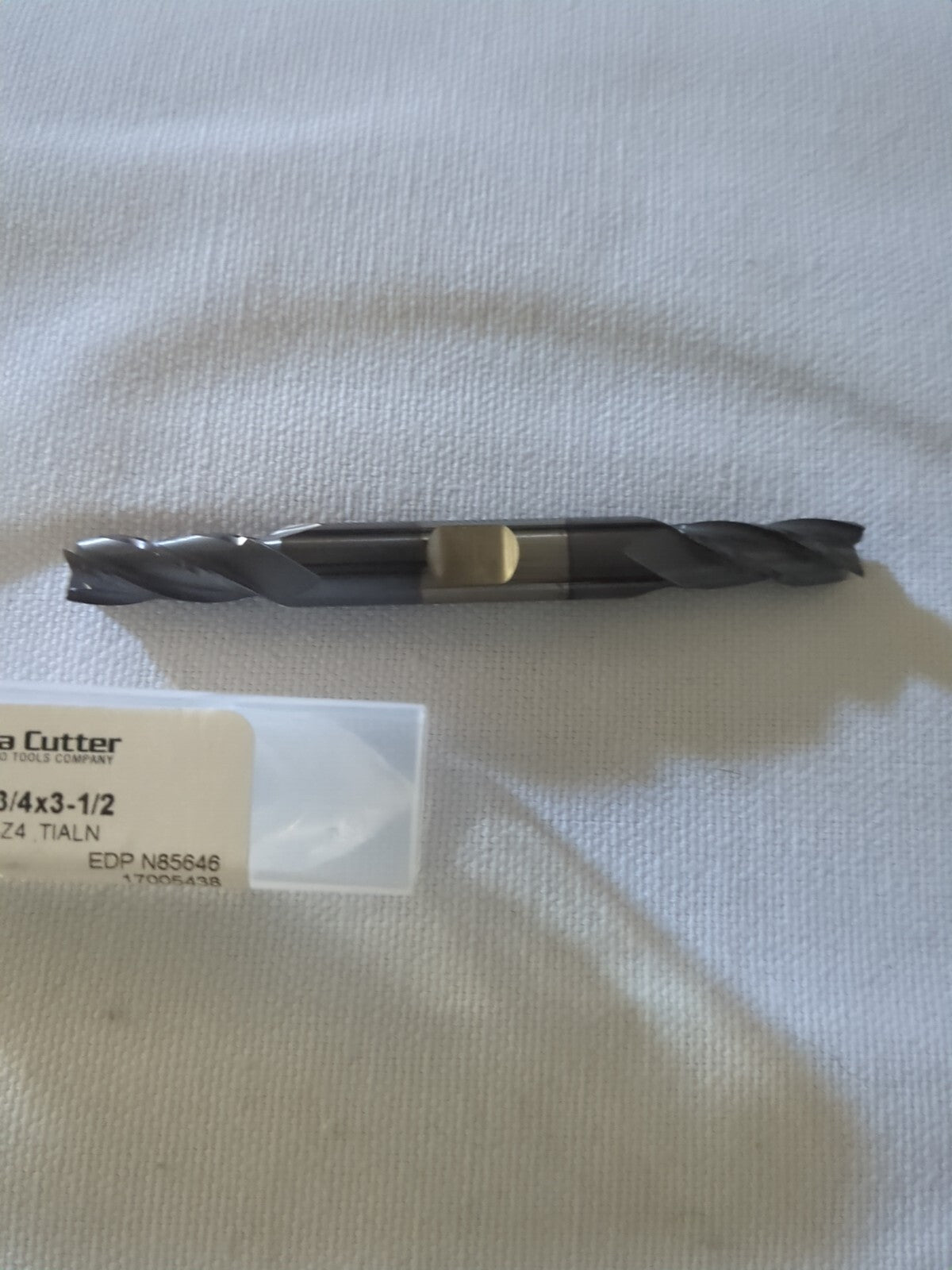

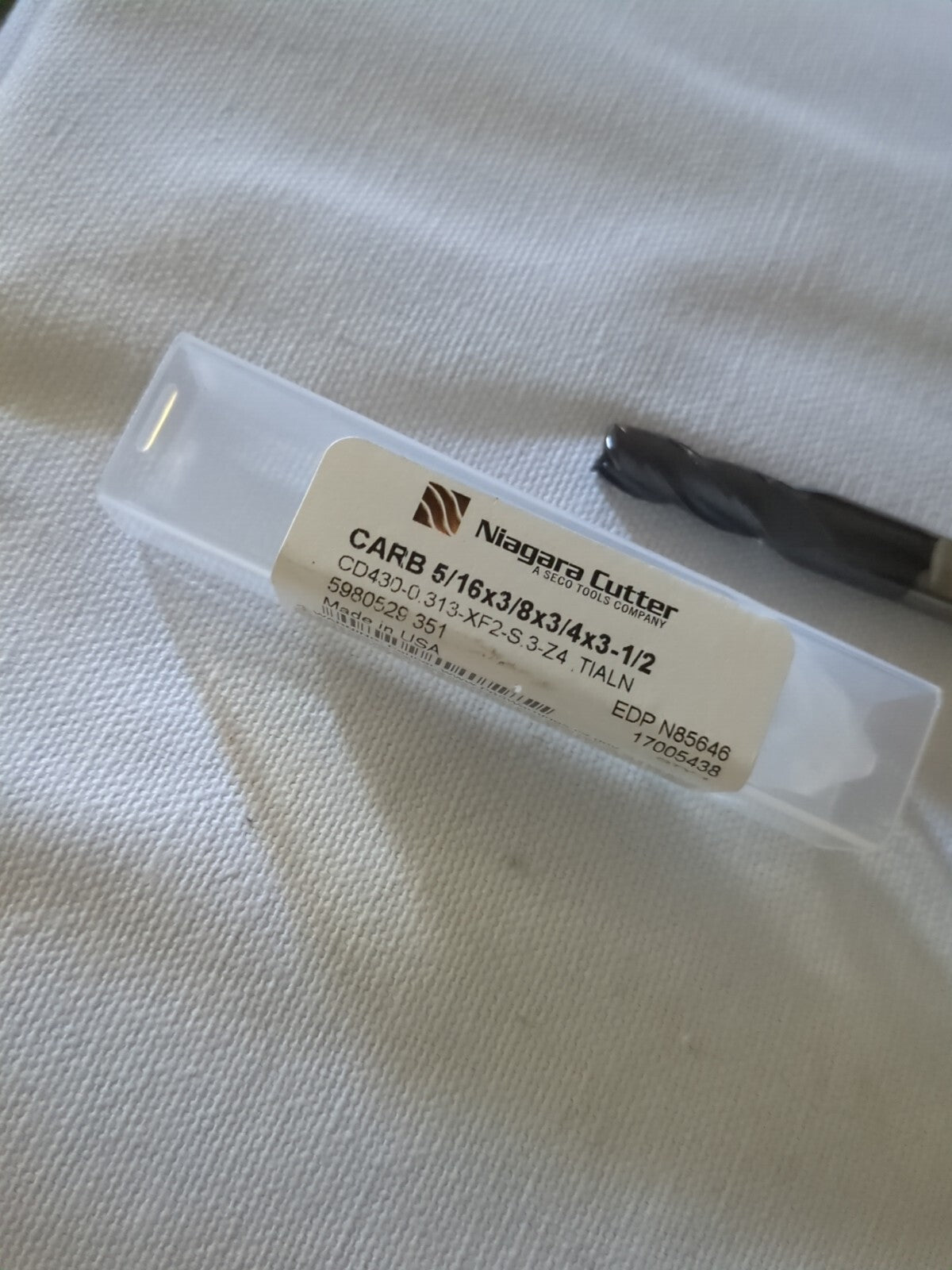

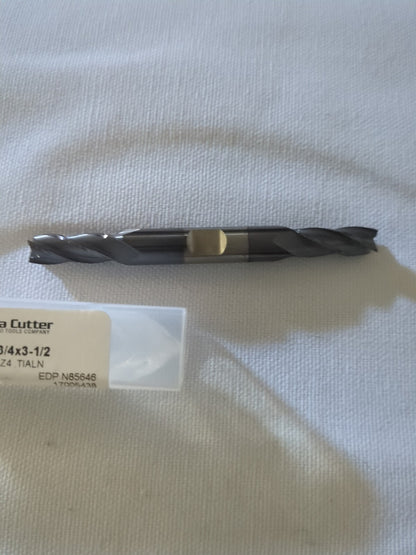

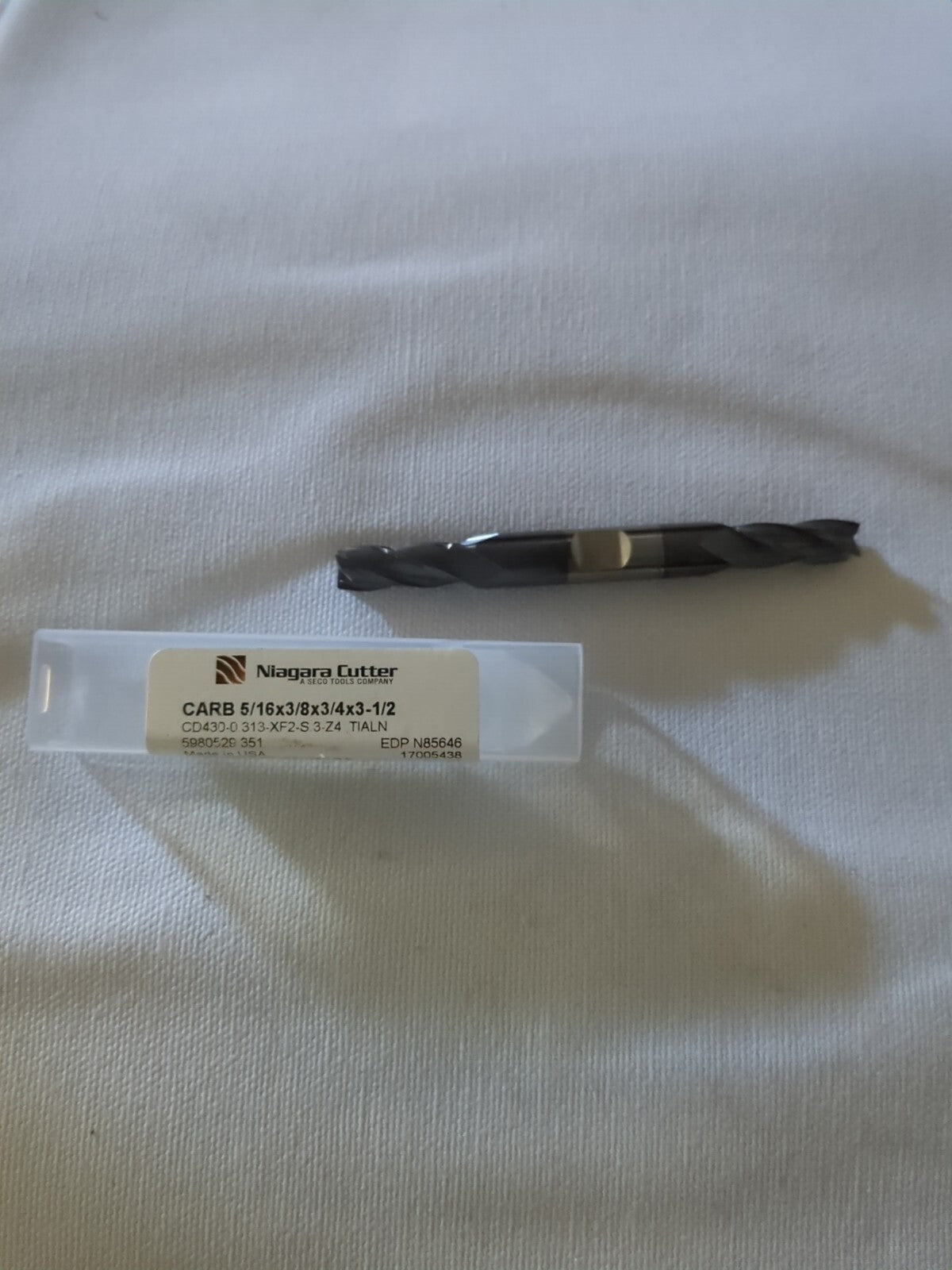

Please review photos, comes as shown.
