Niagara Cutter SC Sq End Mill 12mm 24mm LOC 12mm Shk Dia 84mm OAL 4 FL 03083969

Niagara Cutter
Solid Carbide Square End Mill

• Mill Diameter (mm) 12.00
• Mill Diameter (Decimal Inch) 0.4724
• Number of Flutes 4
• Length of Cut (mm) 24.00
• Length of Cut (Decimal Inch) 0.9449
• Material Solid Carbide
• Finish/Coating AlTiN
• Shank Diameter (mm) 12.00
• Single or Double End Single
• Overall Length (mm) 84.00
• Center Cutting Center Cutting
• Flute Direction Right Hand
• Cutting Direction Right Hand
• Helix Angle Variable
• Variable Helix Yes
• Variable Index Yes
• Flute Type Helical
• Length Type Regular
• Helix Style Medium
• Mill Diameter Tolerance (mm) +0.00 to -0.05
• Mill Diameter Tolerance (Decimal Inch) +0.000 to -0.002
• Material Grade Micrograin
• Chipbreaker No
• Extended Reach No
• Overall Length Tolerance (mm) +1.5 to -1.5
• Overall Length Tolerance (Decimal Inch) +0.060 to -0.060
• Shank Diameter Tolerance (mm) -0.0025 to -0.0100
• Shank Diameter Tolerance (Decimal Inch) -0.0001 to -0.0004
• Series/List STR440M.2

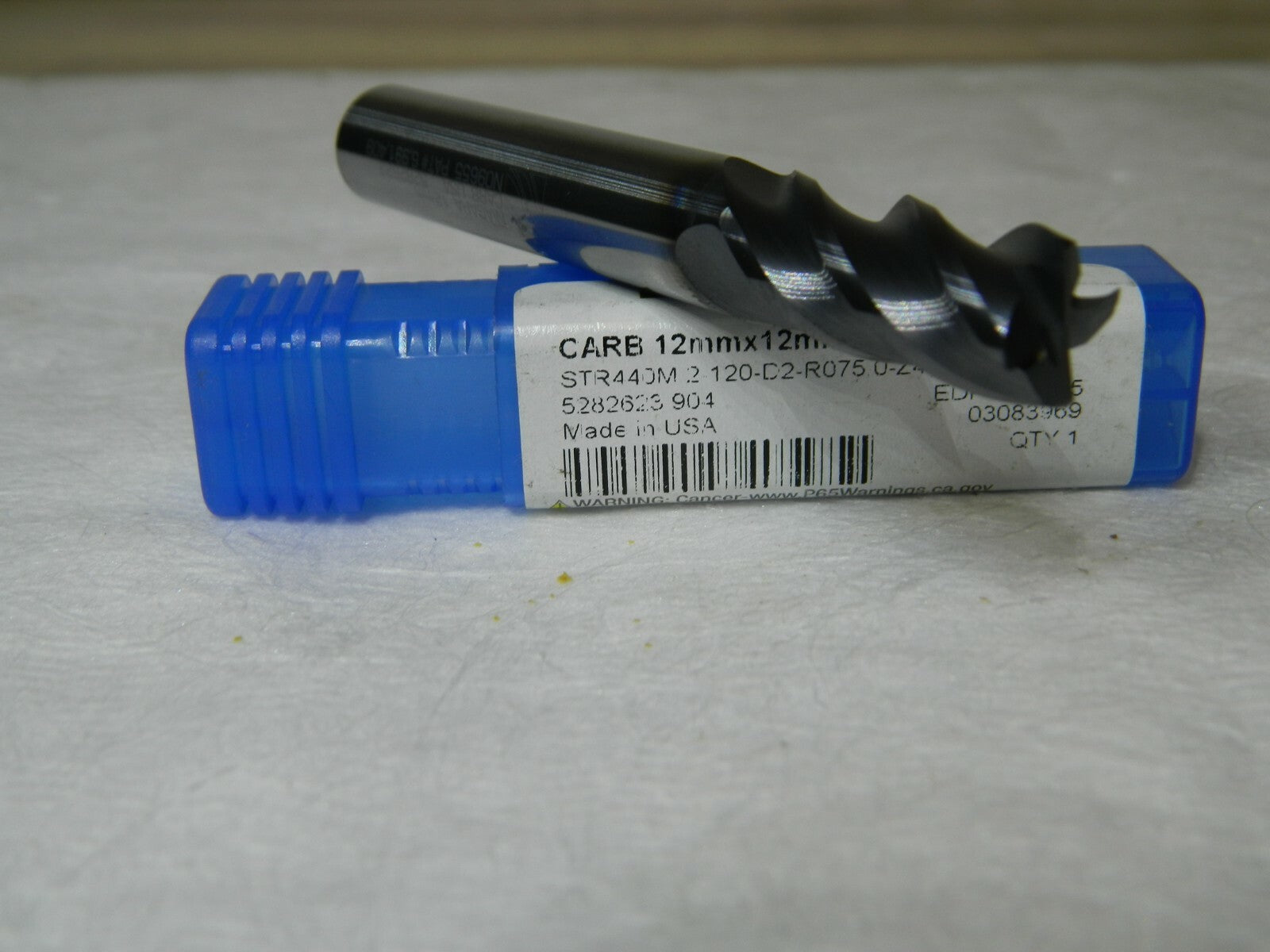

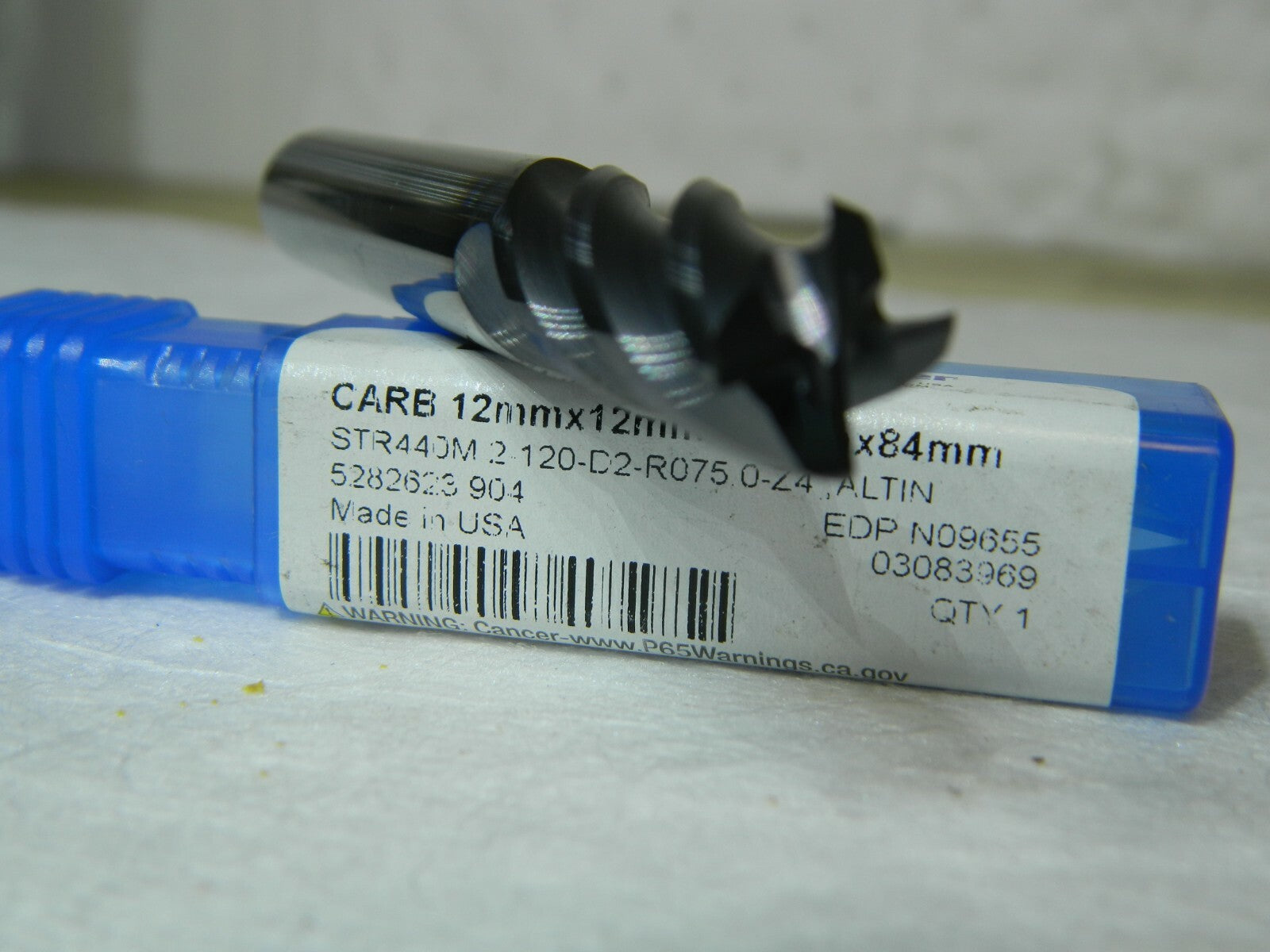

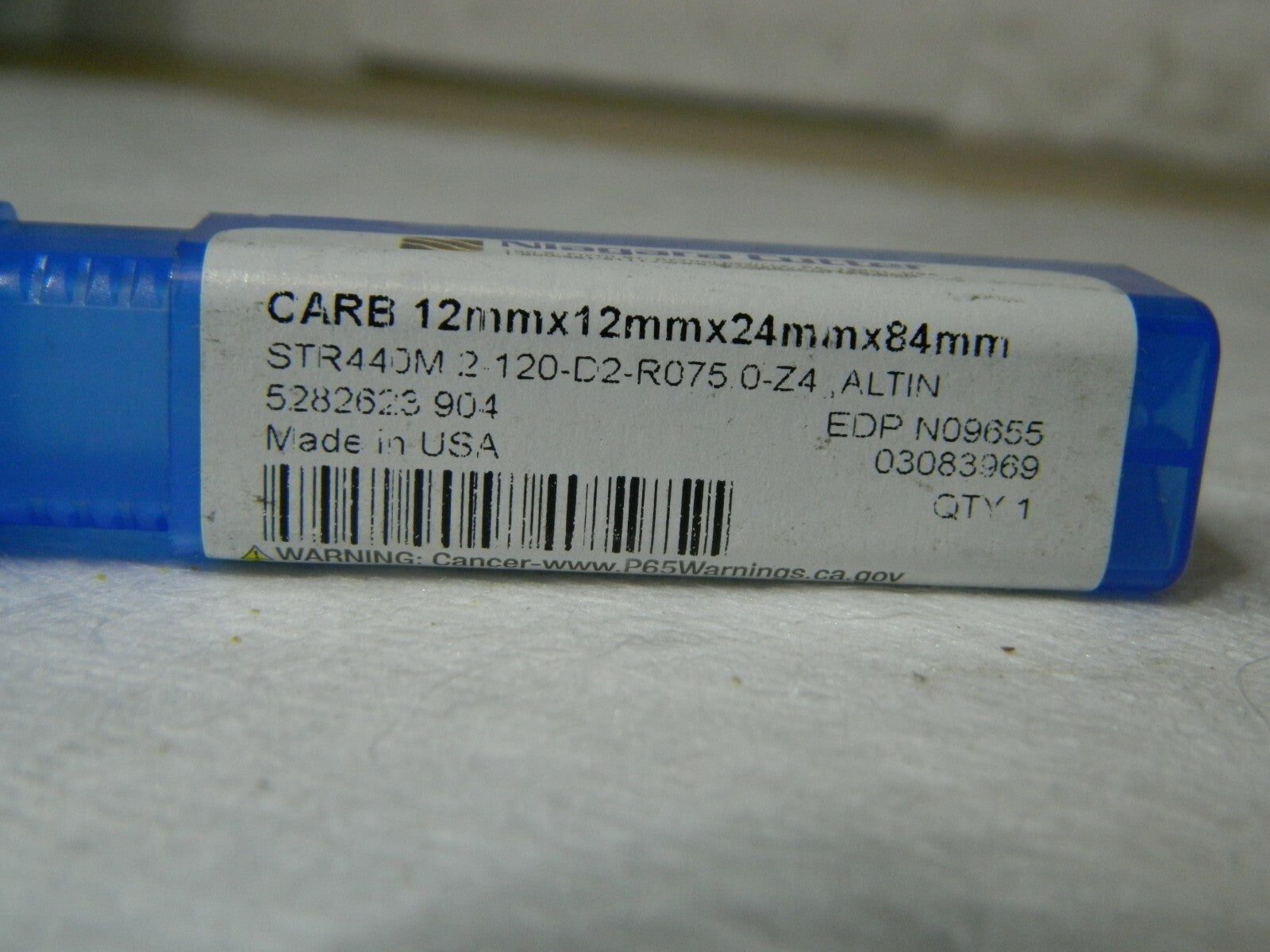

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
