NIAGARA CUTTER Corner Radius End Mill: 1/2″ Dia 6fl 03115963

NIAGARA CUTTER Corner Radius End Mill: 1/2″ Dia 6fl 03115963

MSRP: $120

• Mill Diameter (Inch) 1/2
• Mill Diameter (Decimal Inch) 0.5
• Number Of Flutes 6
• Length of Cut (Inch) 1-5/8
• Single Or Double End Single
• End Mill Material Solid Carbide
• Coating/Finish AlTiN
• Overall Length (Inch) 4
• Centercutting Yes
• Flute Direction Right Hand
• Corner Radius (Decimal Inch) 0.0150
• Variable Index No
• Variable Helix No
• Cutting Direction Right Hand
• Coolant Through No
• Pitch Close
• Overall Length (Decimal Inch) 4
• Chipbreaker Yes
• End Type Corner Radius
• Length Of Cut (Decimal Inch - 4 Decimals) 0.8125
• Length Type Standard
• Flute Type Spiral
• Extended Reach No
• Shank Type Straight-Cylindrical
• Material Removal Type Roughing
• Shank Diameter (Decimal Inch) 0.5000
• Shank Diameter (Inch) 1/2
• Corner Radius Tolerance +0.00100 to -0.00100 in
• Mill Diameter Tolerance -0.0020/0.0000 in
• Shank Diameter Tolerance -0.0001/-0.0004 in
• Overall Length Tolerance -0.0600/0.0600 in
• Primary Workpiece Material Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; K; M
• UNSPSC Code 27112803
• Material Grade Micrograin
• Series SCS638R
• TIR Maximum (Decimal Inch) 0.0005
• Material Application Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• Coating Classification PVD
• For Use With. Toolholders
• Helix Style Medium

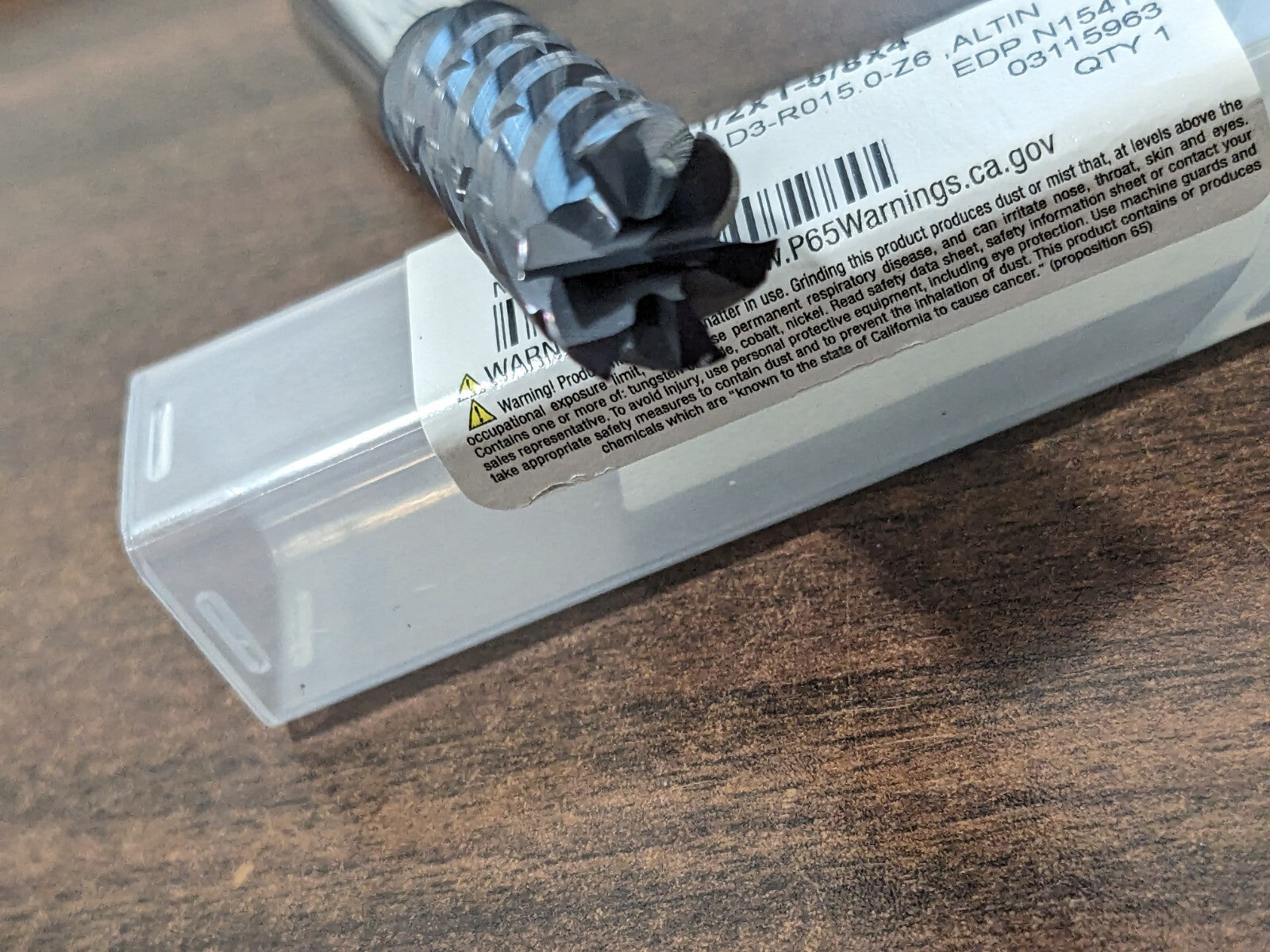

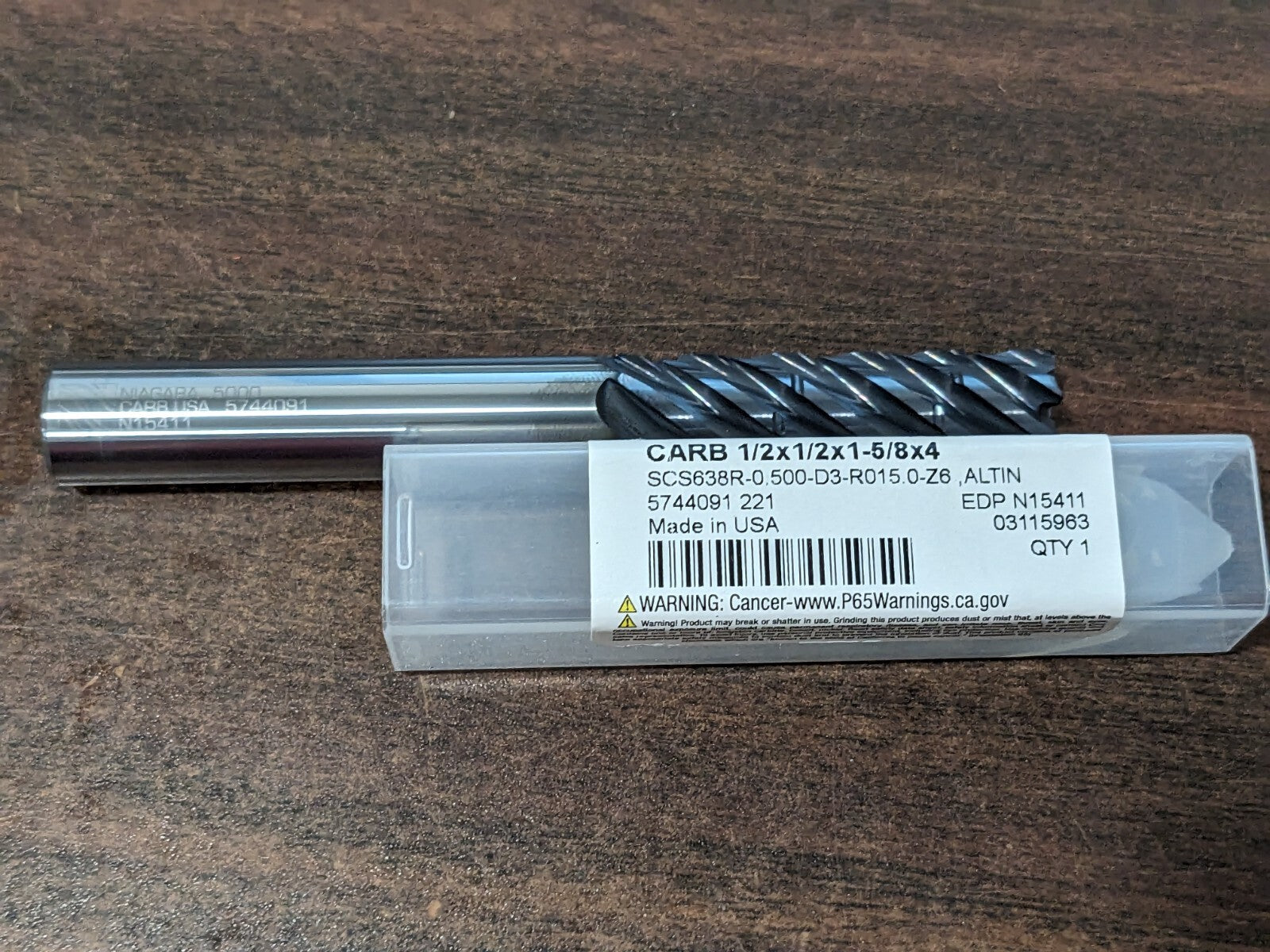

Please review photos, comes as shown.
