niagara cutter Corner Radius End Mill: 1/2" Dia 5 Fl Solid Carbide 03257910

MSRP: $200

• Mill Diameter (Inch) 1/2
• Mill Diameter (Decimal Inch) 0.5000
• Number Of Flutes 5
• Length of Cut (Inch) 5/8
• Single Or Double End Single
• End Mill Material Solid Carbide
• Chipbreaker No
• Coating/Finish AlCrN
• Overall Length (Inch) 5
• Centercutting Yes
• Flute Direction Right Hand
• Corner Radius (Decimal Inch) 0.0150
• Variable Index No
• Variable Helix No
• Cutting Direction Right Hand
• Coolant Through No
• Pitch Normal
• Overall Length (Decimal Inch) 5.0000
• End Type Corner Radius
• Length Of Cut (Decimal Inch - 4 Decimals) 0.6250
• Length Type Extra Long
• Flute Type Spiral
• Extended Reach Yes
• Shank Type Straight-Cylindrical
• Shank Diameter (Decimal Inch) 0.5000
• Shank Diameter (Inch) 1/2
• Neck Diameter (Decimal Inch) 0.4800
• Reach Length (Decimal Inch) 3.1250
• Reach Length (Inch) 3-1/8
• Corner Radius Tolerance +0.00100 to -0.00100 in
• Mill Diameter Tolerance +0.000000/-0.002000 in
• Shank Diameter Tolerance -0.0001 - -0.0004 in
• Overall Length Tolerance +0.0600/-0.0600 in
• UNSPSC Code 27112803
• Material Grade Fine Grain
• Series STRN540
• TIR Maximum (Decimal Inch) 0.0005
• Coating Classification PVD
• For Use With. Toolholders
• Helix Style High
• Country of Origin UNITED STATES

(Description).

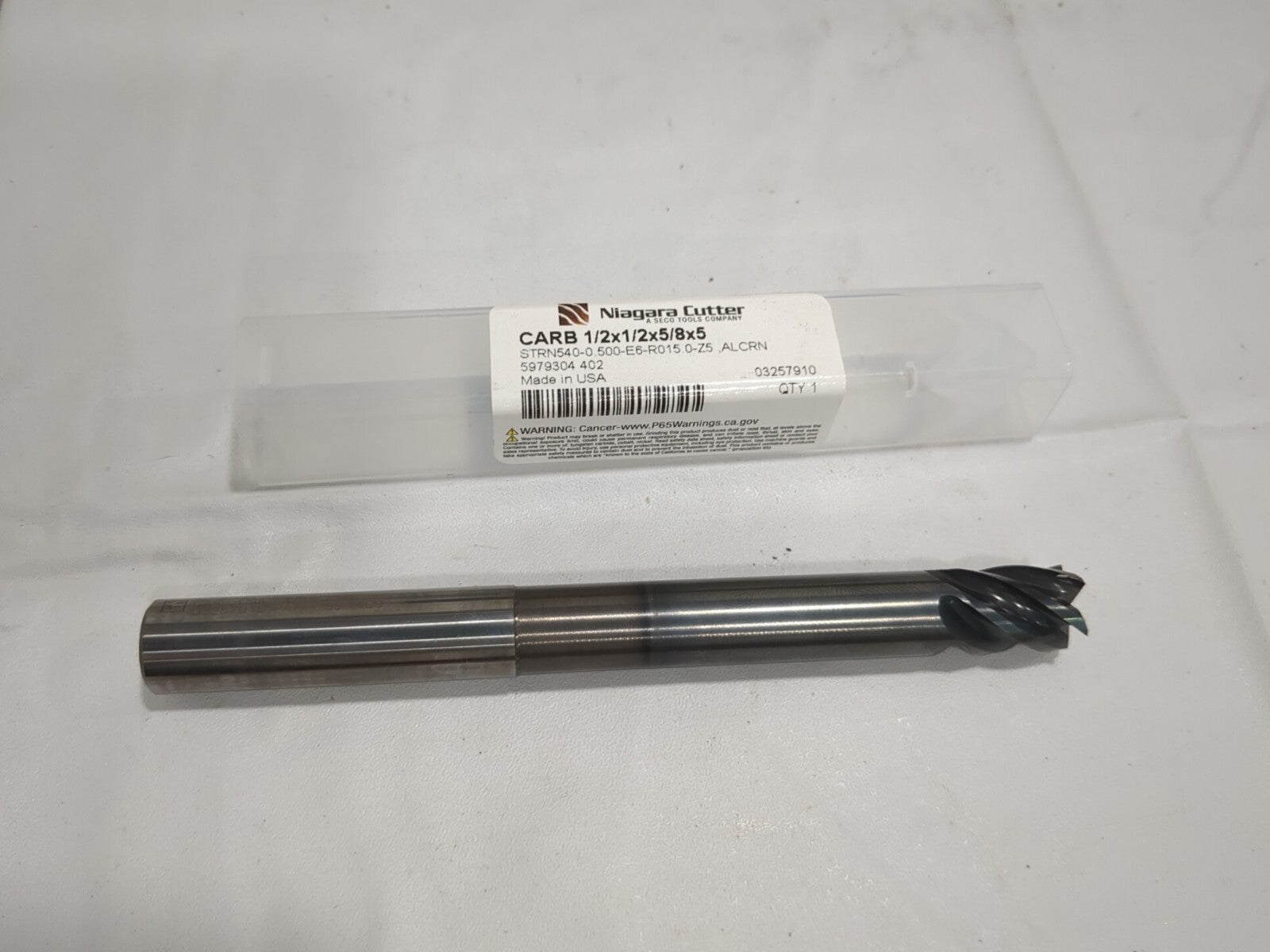

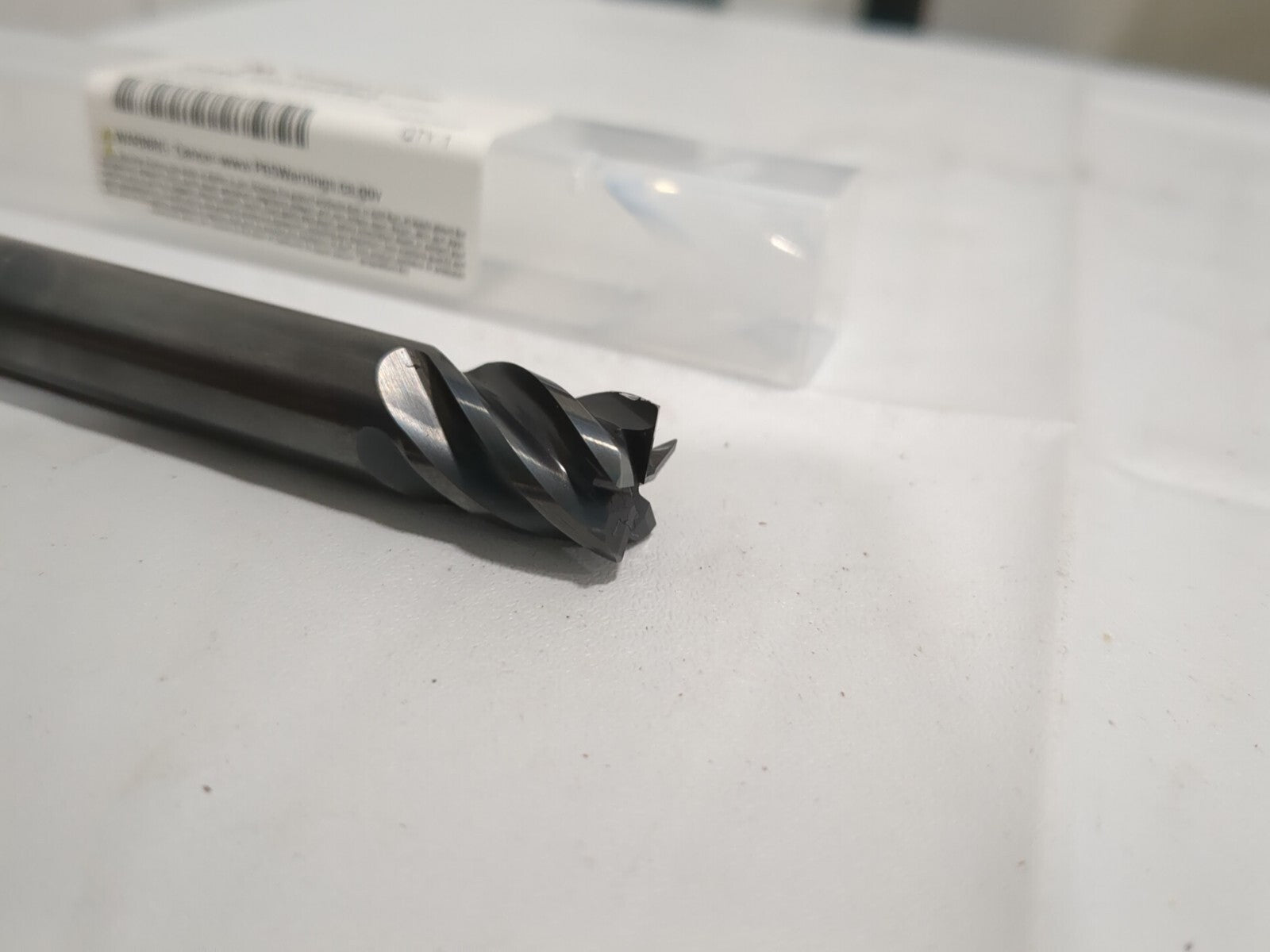

Please review photos, comes as shown.
