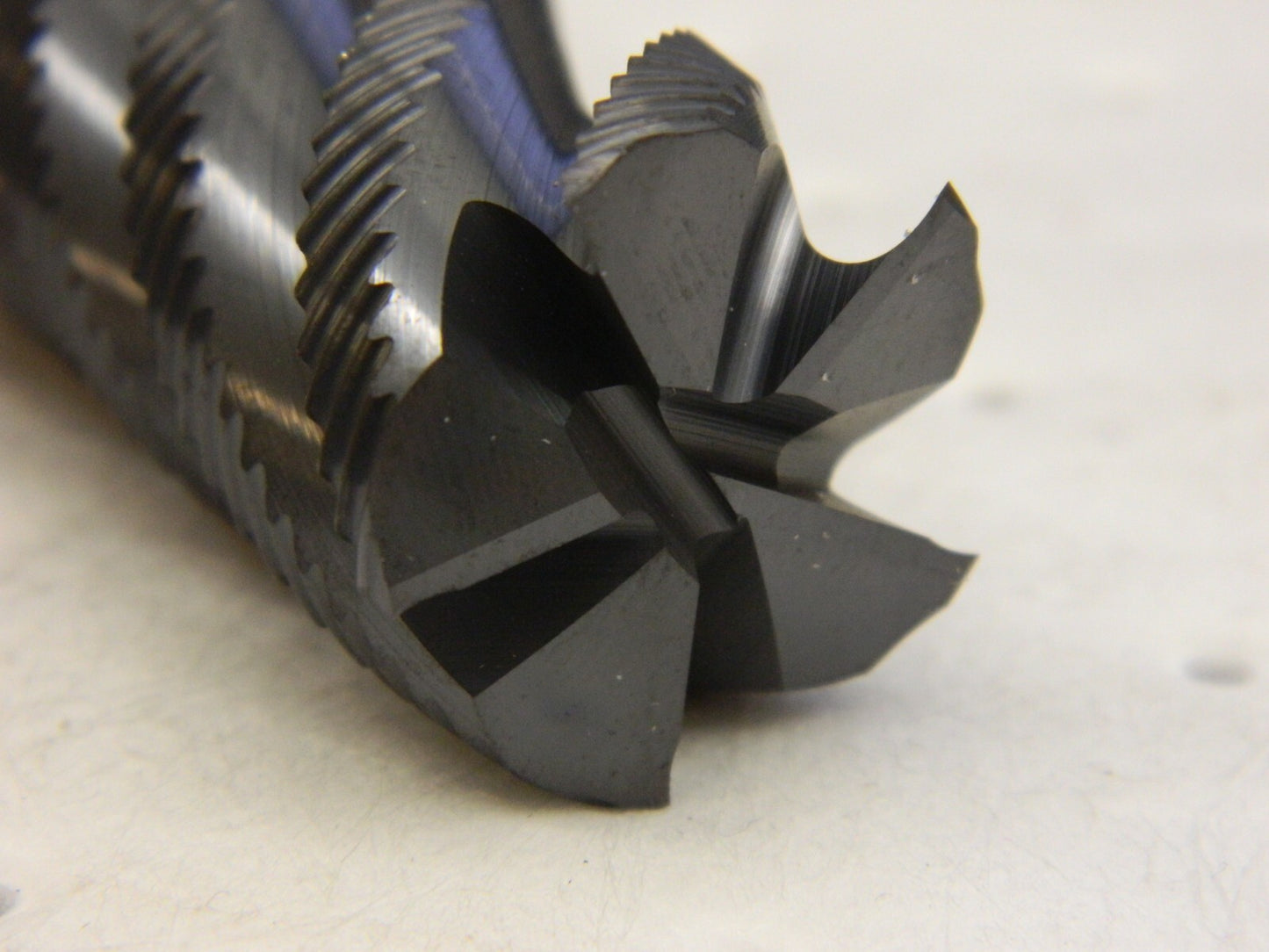

NIAGARA CUTTER Corner Chamfer End Mill 1″ 5 Fl Solid Carbide 17007614

NIAGARA CUTTER

 Corner Chamfer End Mill 1″ 5 Fl Solid Carbide 17007614
MSRP: $531

• Mill Diameter (Inch) 1
• Mill Diameter (mm) 1 in; 1.0 in
• Mill Diameter (Decimal Inch) 1.0000; 1 in; 1.0 in
• Number of Flutes 5
• Pitch Fine
• Length of Cut (Inch) 2
• Length of Cut (Decimal Inch) 2.0000
• Shank Diameter (Inch) 1; 1 in
• Shank Diameter (mm) 1 in
• Shank Diameter (Decimal Inch) 1 in
• Material Solid Carbide
• Finish/Coating AlTiN
• Overall Length (mm) 4 in
• Overall Length (Inch) 4; 4 in
• Centercutting Yes; Center Cutting
• Helix Angle 45.00
• Extended Reach No
• Chamfer Width (Decimal Inch) 0.0250 in; 0.0250
• Coolant Induced No
• Chamfer Angle 45
• Single or Double End Single
• Cutting Direction Right Hand
• Flute Direction Right Hand
• Flute Type Spiral
• Mill Diameter Tolerance (Decimal Inch) +0.000 to -0.003
• Mill Diameter Tolerance (mm) +0.000 to -0.003
• Shank Diameter Tolerance (mm) -0.0001 to -0.0004 in
• Shank Diameter Tolerance (Decimal Inch) -0.0001 to -0.0004; -0.0001 to -0.0004 in
• Overall Length Tolerance (Decimal Inch) ?0.060 in; ?0.060
• Overall Length (Decimal Inch) 4.0000; 4 in
• Series/List SR545

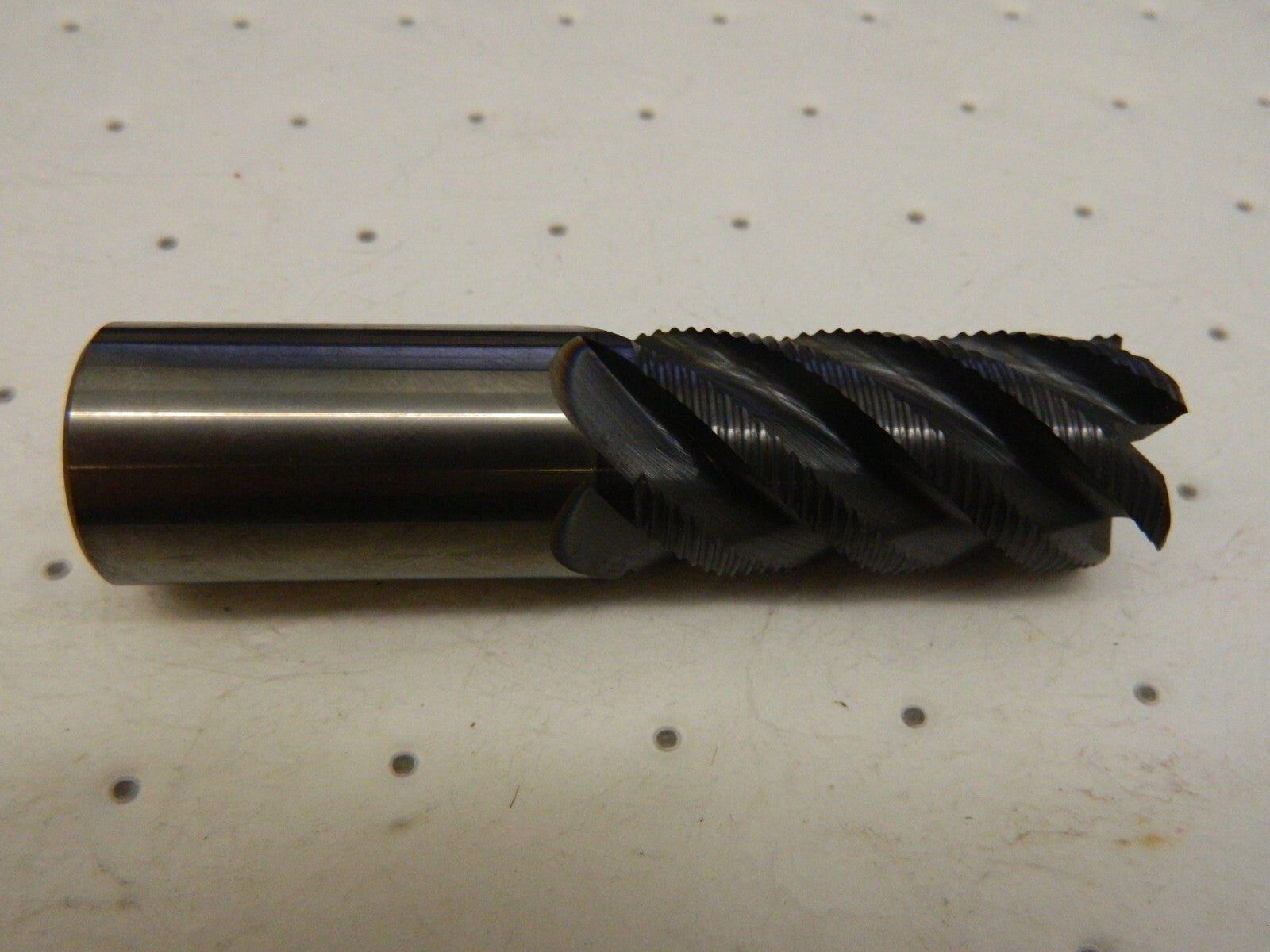

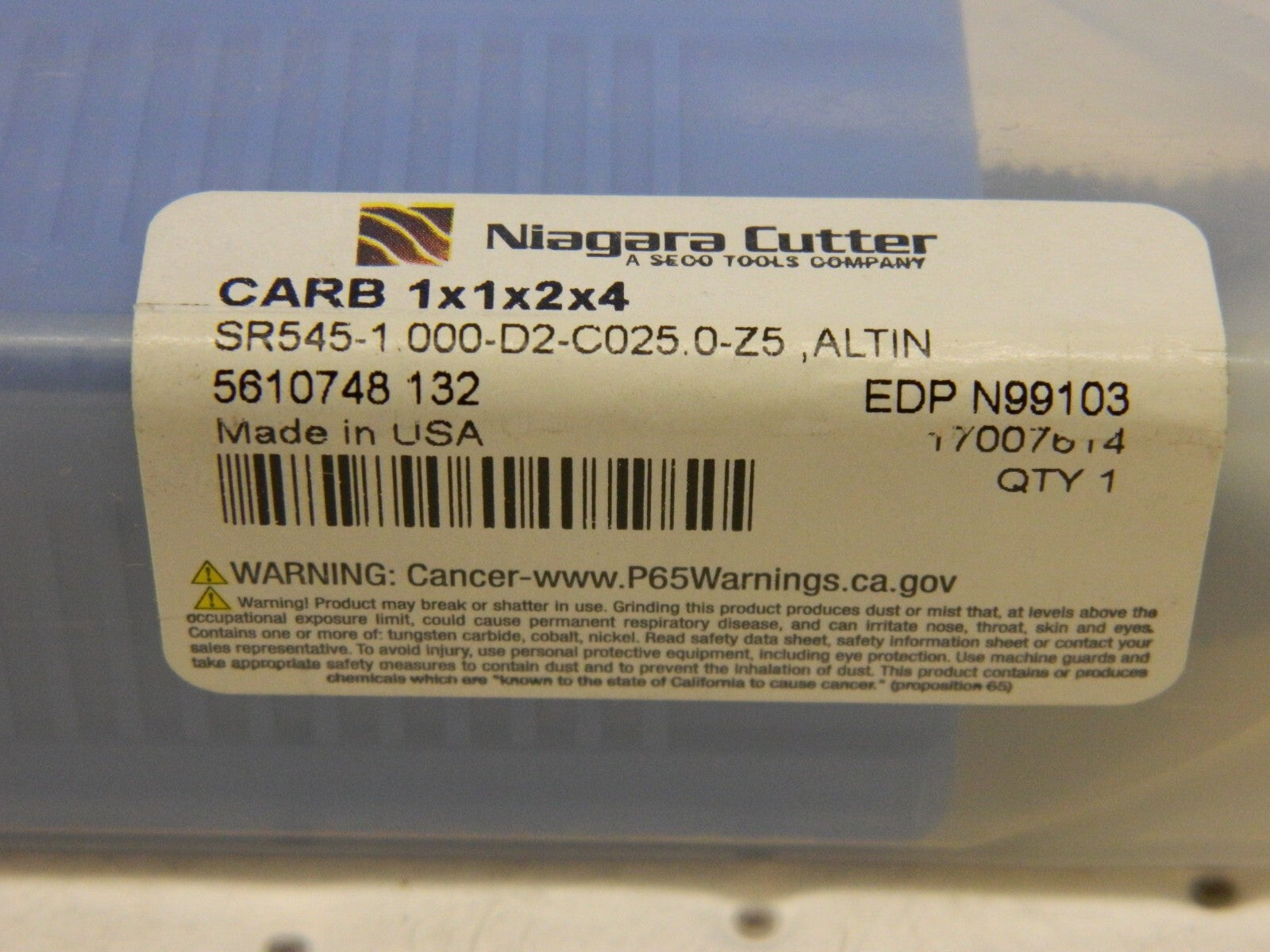

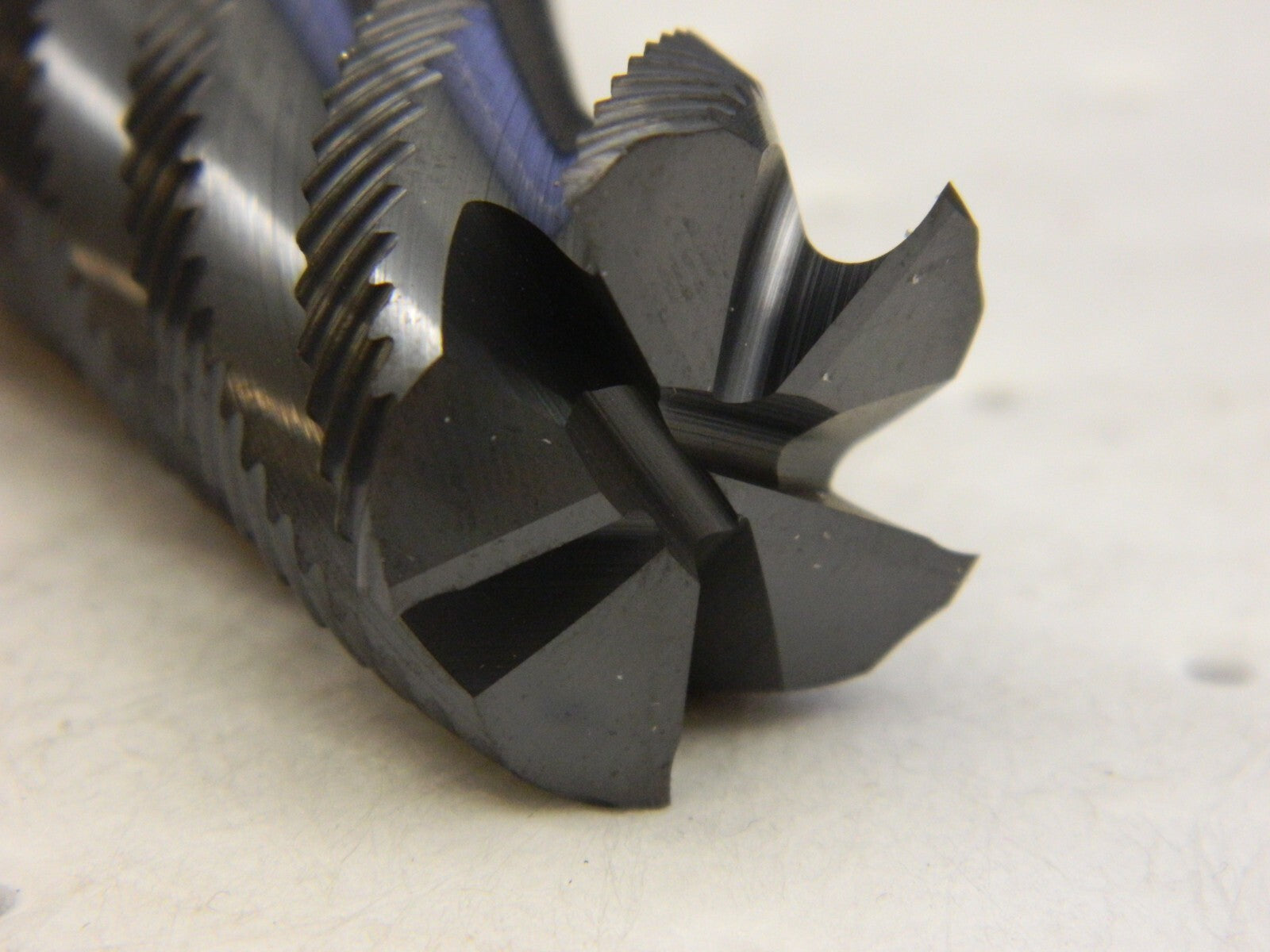

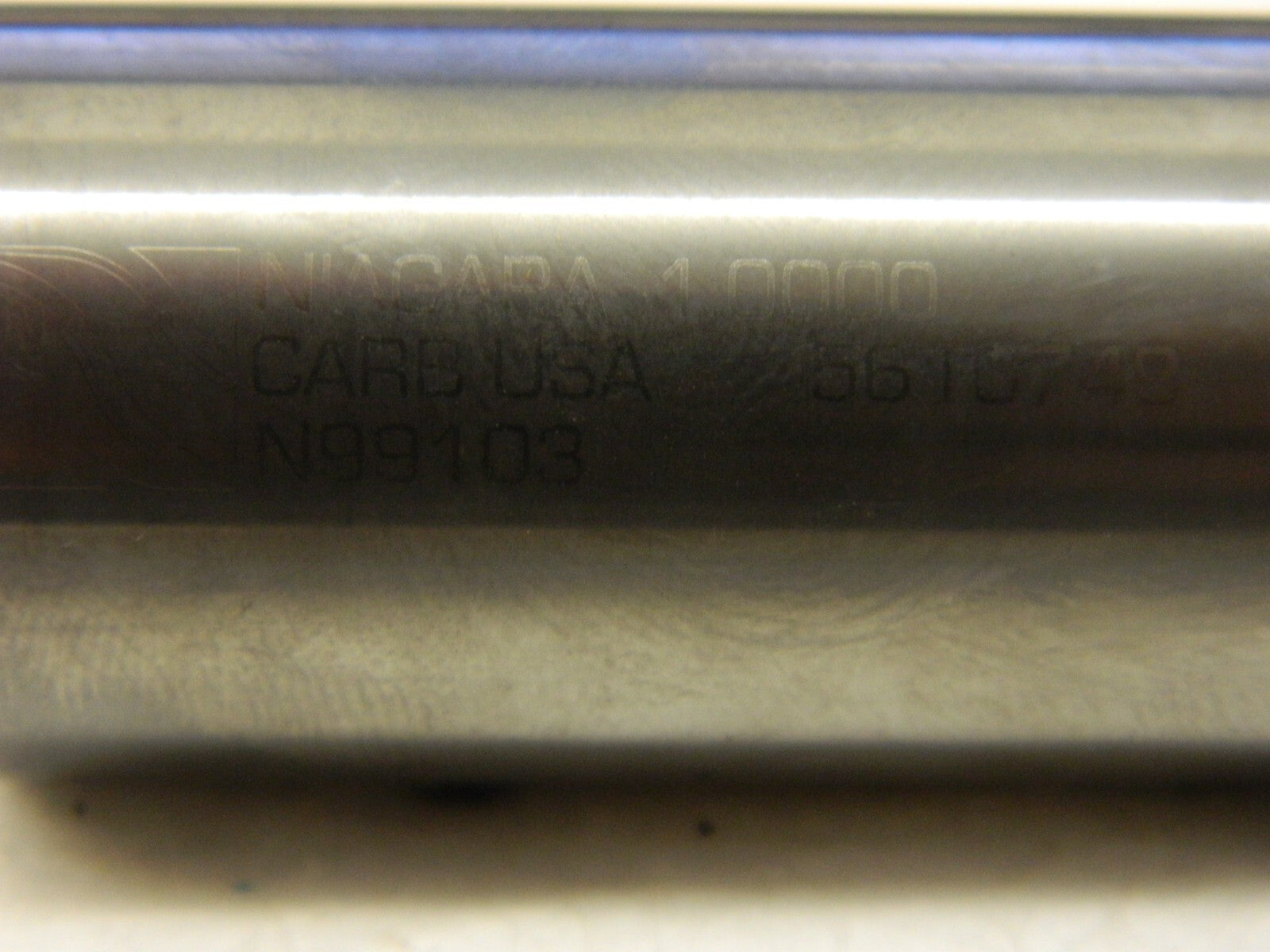

 Please review photos, comes as shown.
