Niagara Cutter Carbide Corner Radius/Chamfer End Mill 1/2" Diam 3FL 10023161

Niagara Cutter
Carbide Corner Radius/Chamfer End Mill

• Mill Diameter (Inch) 1/2
• Mill Diameter (Decimal Inch) 0.5000
• End Type Corner Radius
• Corner Radius (Inch) 0.125
• Number of Flutes 3
• Material Solid Carbide
• Finish/Coating ANF
• Length of Cut (Inch) 5/8
• Shank Diameter (Inch) 1/2
• Overall Length (Inch) 6
• Flute Type Helical
• Cutting Direction Right Hand
• Helix Angle 45
• Variable Index No
• Variable Helix No
• Reach Length (Inch) 4-1/8
• Neck Diameter (Decimal Inch) 0.4800
• Single or Double End Single
• Length Type Long
• Centercutting Centercutting
• Flute Direction Right Hand
• Mill Diameter Tolerance (Decimal Inch) +0.0020
• Extended Reach Yes
• Shank Type Straight
• TIR Maximum (Decimal Inch) 0.0005
• Series/List AN345R
• Material Application Aluminum

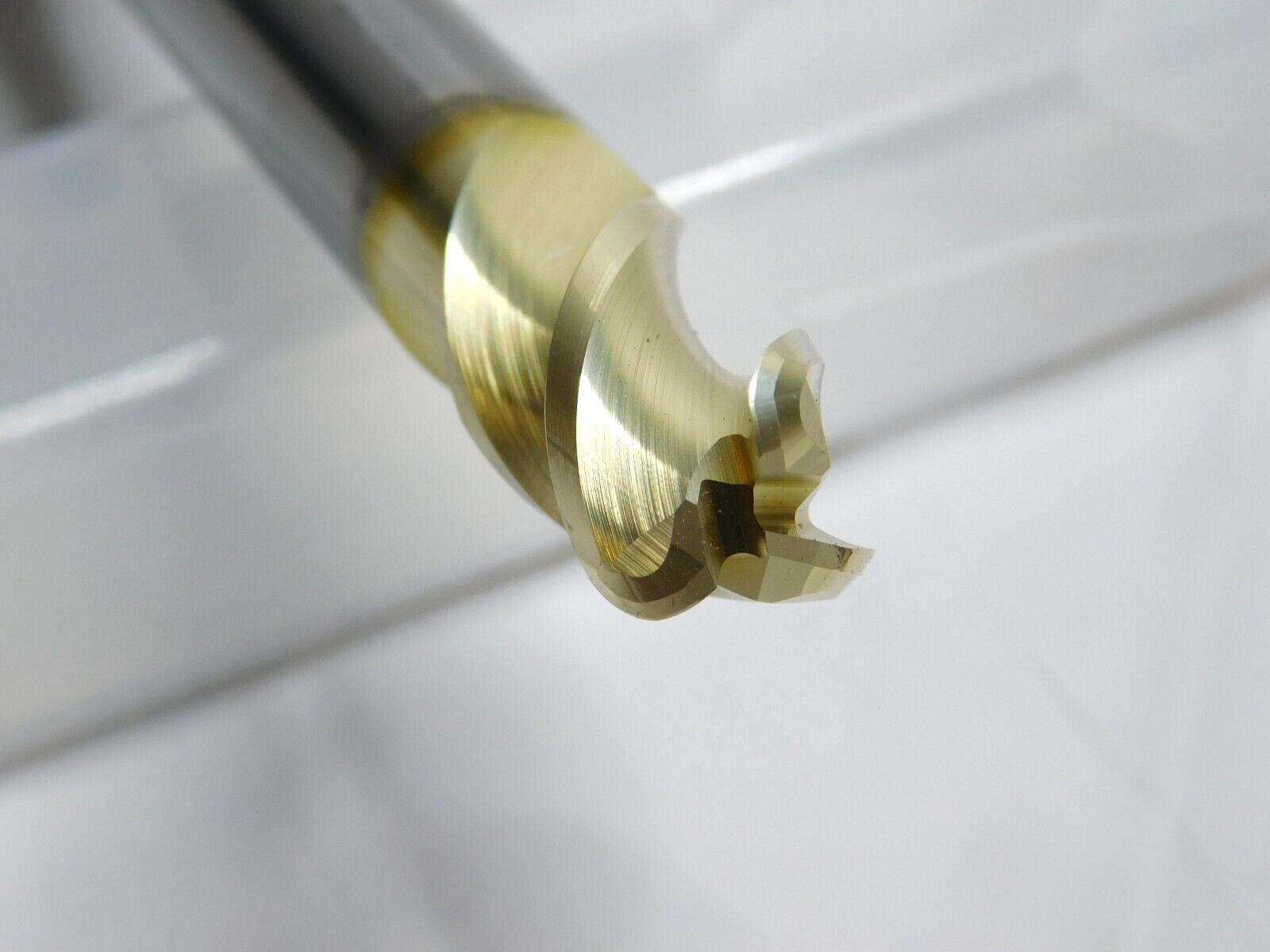

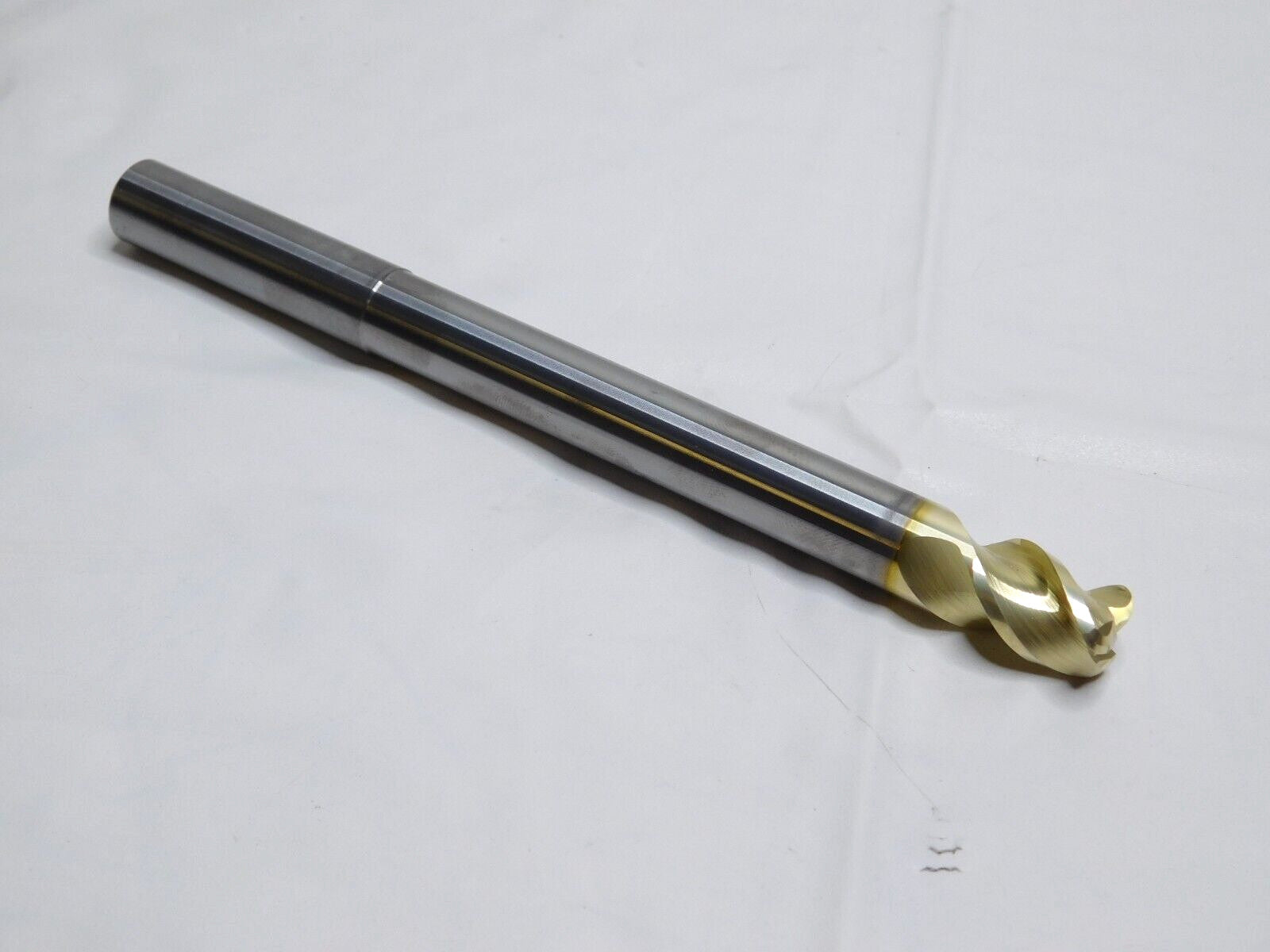

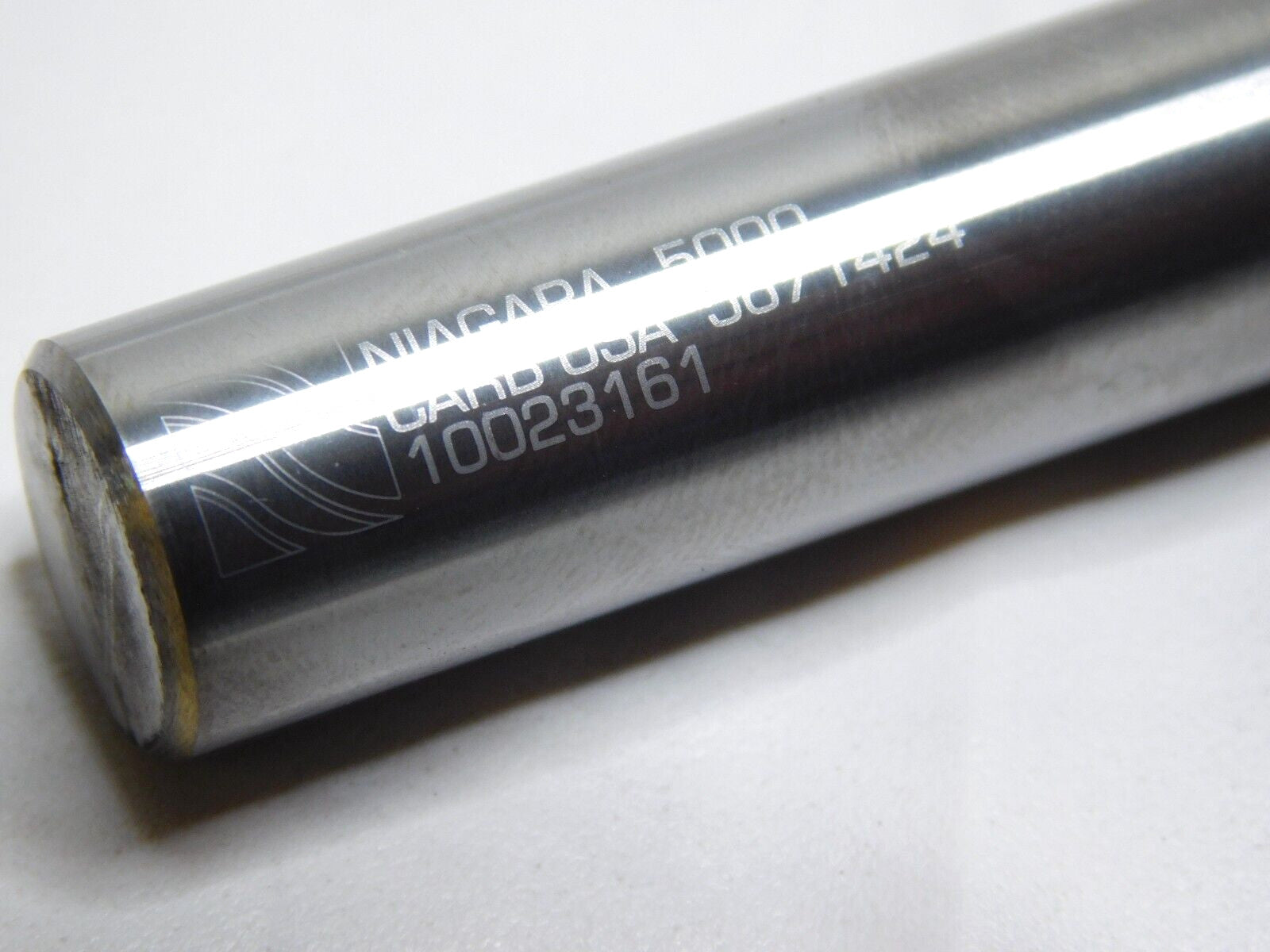

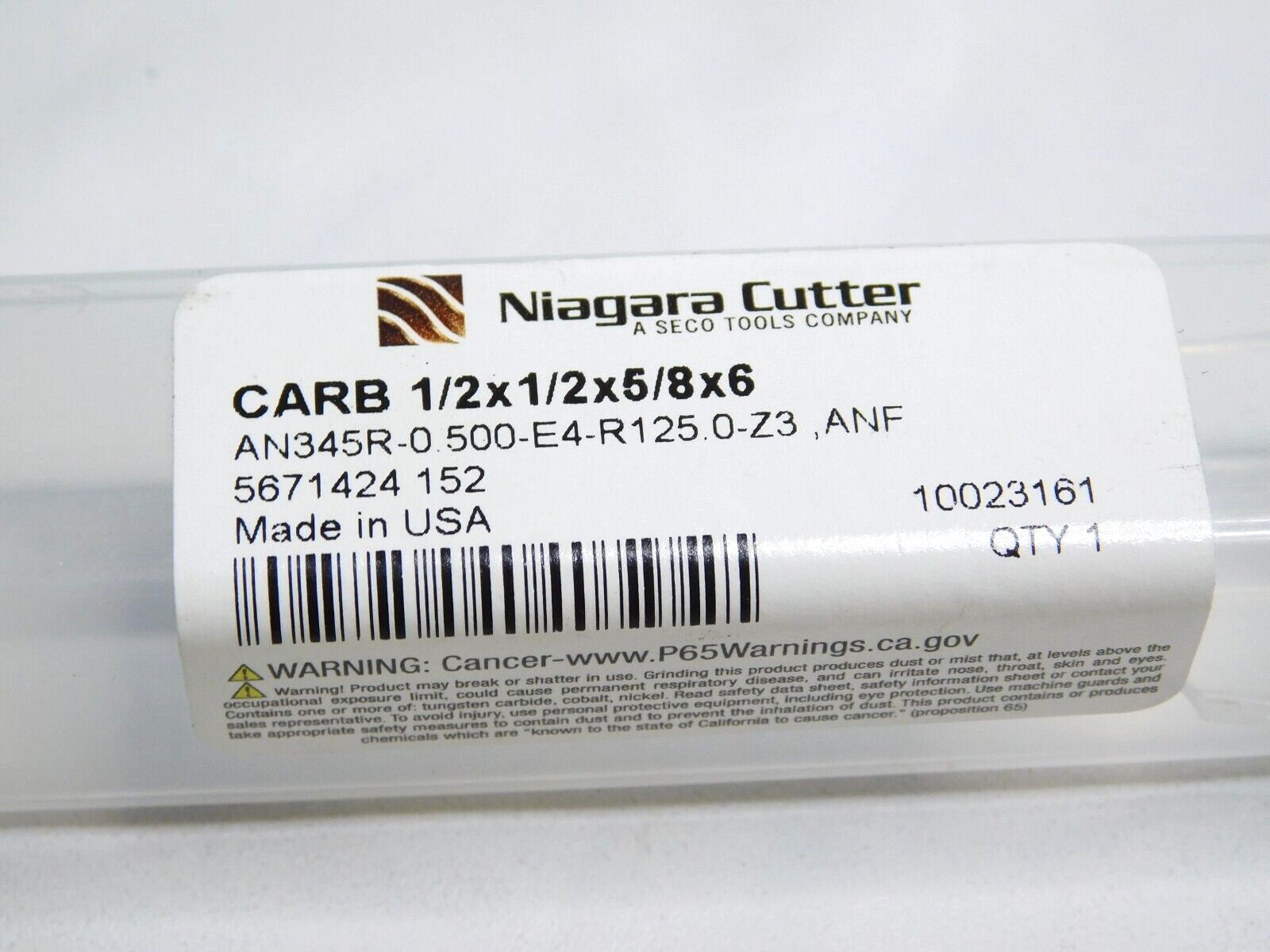

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
