Niagara Cutter Carbide Ball End Mill Diamond Finish 1/4" x 1/4" x 4" 4FL N77218
Niagara Cutter Carbide Ball End Mill Diamond Finish 1/4" x 1/4" x 4" 4FL N77218
Regular price
$97.90 USD
Regular price
$200.00 USD
Sale price
$97.90 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Niagara Cutter
MSRP: $200
Model: N77218
Description:
Mill Diameter (Inch) 1/4
Mill Diameter (Decimal Inch) 0.2500
Number of Flutes 4
Length of Cut (Inch) 1/4
Length of Cut (Decimal Inch) 0.2500
Material Solid Carbide
Overall Length (Inch) 4
Shank Diameter (Inch) 1/4
Finish/Coating Diamond
Single or Double End Single
Helix Angle 30.00
Variable Index No
Variable Helix No
Extended Reach Yes
Mill Diameter Tolerance (Decimal Inch) ±0.001
Flute Type Spiral
Undercutting No
Shank Diameter Tolerance (Decimal Inch) -0.0001 to -0.0004
Length Type Stub
Overall Length Tolerance (Decimal Inch) ±0.060
Reach Length (Inch) 3/4
Series/List DIAXSB430
Cutting Direction Right Hand
Flute Direction Right Hand

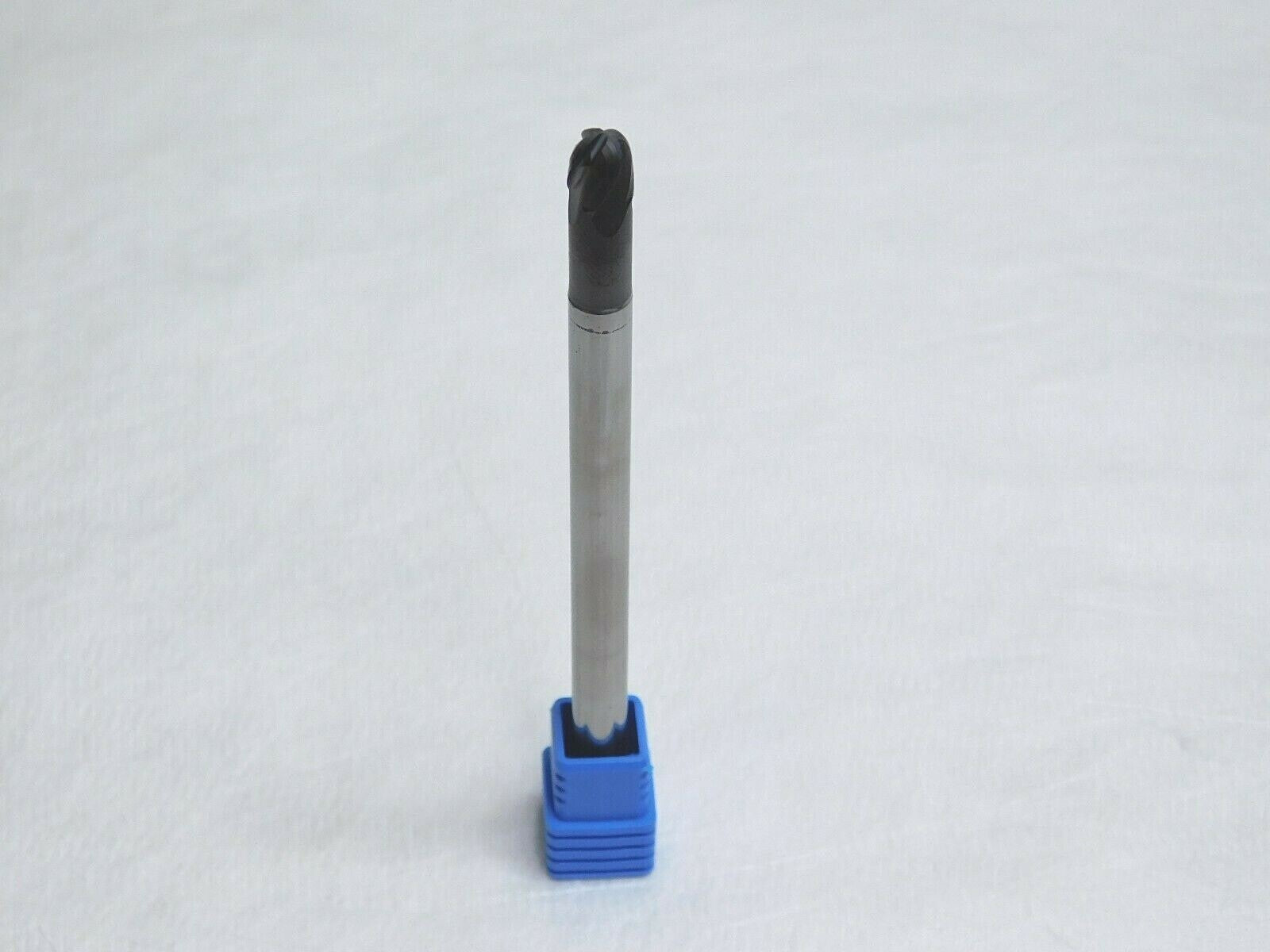

This listing is for One Carbide Ball End Mill that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
