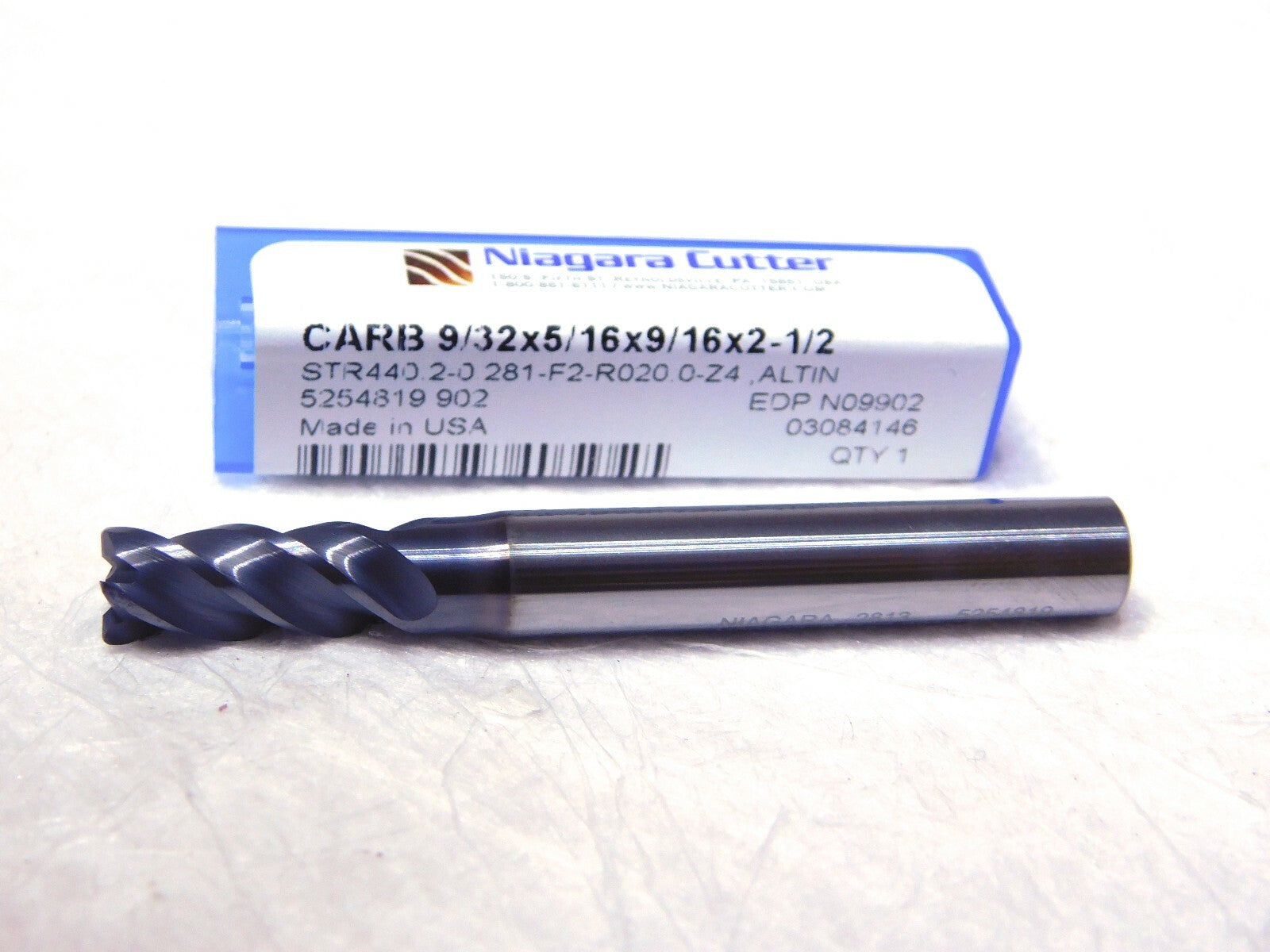

Niagara Cutter Carbide 0.02” Corner Radius End Mill 9/32” Dia 4Fl 2.5”L N09902
Niagara Cutter Carbide 0.02” Corner Radius End Mill 9/32” Dia 4Fl 2.5”L N09902
Regular price
$24.48 USD
Regular price
$50.00 USD
Sale price
$24.48 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Niagara Cutter
MSRP: $50.00
Model:N0992
Description:
Mill Diameter (Inch) 9/32
Mill Diameter (Decimal Inch) 0.2813
End Type Corner Radius
Corner Radius (Decimal Inch) 0.0200
Number of Flutes 4
Material Solid Carbide
Finish/Coating AlTiN
Length of Cut (Inch) 9/16
Length of Cut (Decimal Inch) 0.5625
Shank Diameter (Inch) 5/16
Overall Length (Inch) 2-1/2
Flute Type Spiral
Cutting Direction Right Hand
Helix Angle Variable
Variable Index Yes
Variable Helix Yes
Material Grade Micrograin
Single or Double End Single
Length Type Long
Centercutting Yes
Flute Direction Right Hand
Mill Diameter Tolerance (mm) +0.00 to -0.05
Mill Diameter Tolerance (Decimal Inch) +0.000 to -0.002
Corner Radius Tolerance (mm) +0.025/-0.025
Corner Radius Tolerance (Decimal Inch) +/-0.001
Shank Diameter Tolerance (mm) -0.0025 to -0.0100
Shank Diameter Tolerance (Decimal Inch) -0.0001 to -0.0004
Extended Reach No
Overall Length Tolerance (mm) +1.5 to -1.5
Overall Length Tolerance (Decimal Inch) +0.060 to -0.060
Series/List STR440.2
This listing is for One End Mill that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
Tina Jan 31 2020
TB 3797
BW 1 Bin 5
