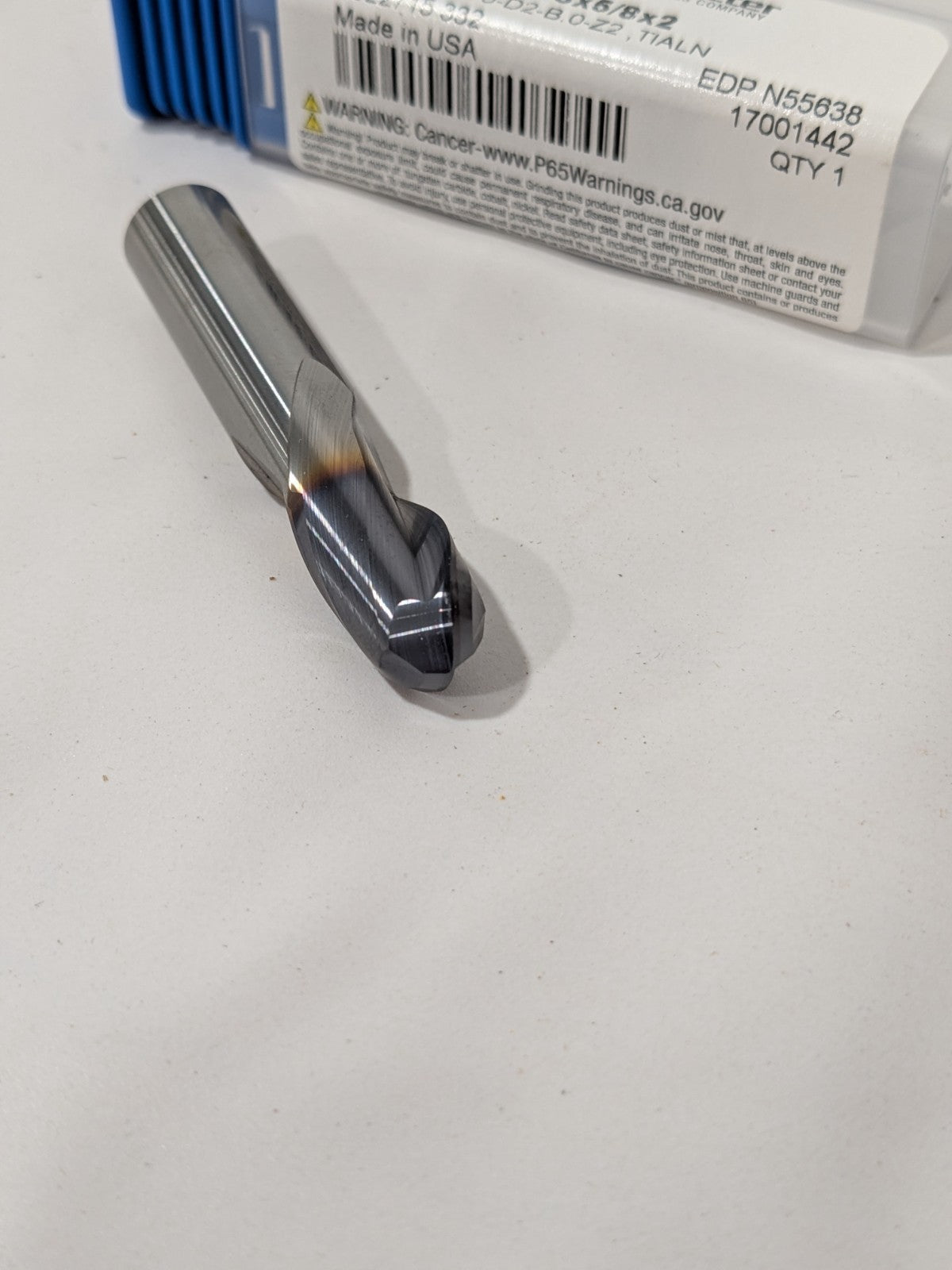

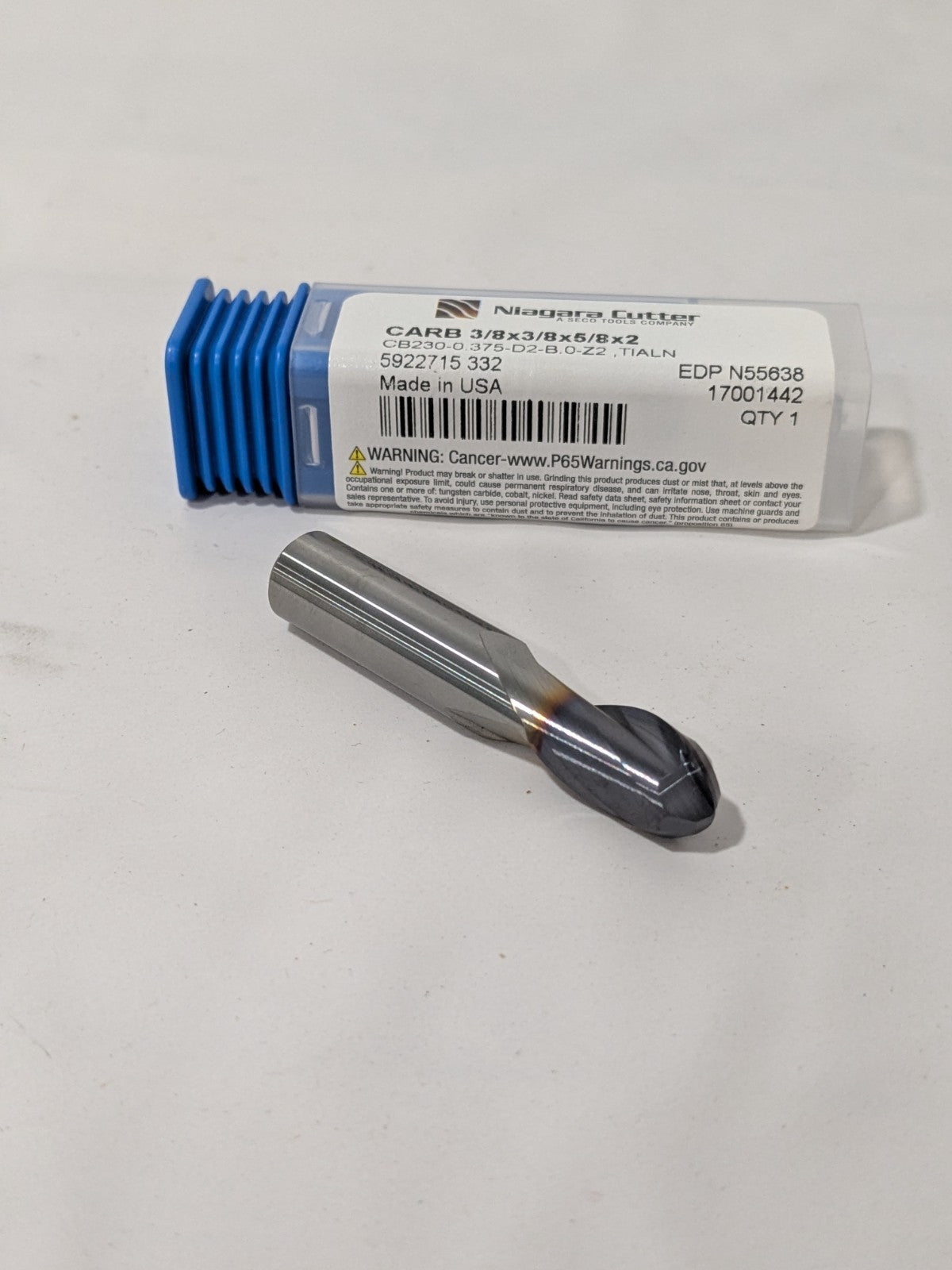

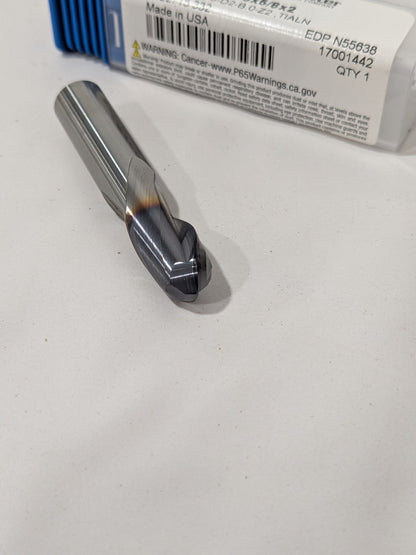

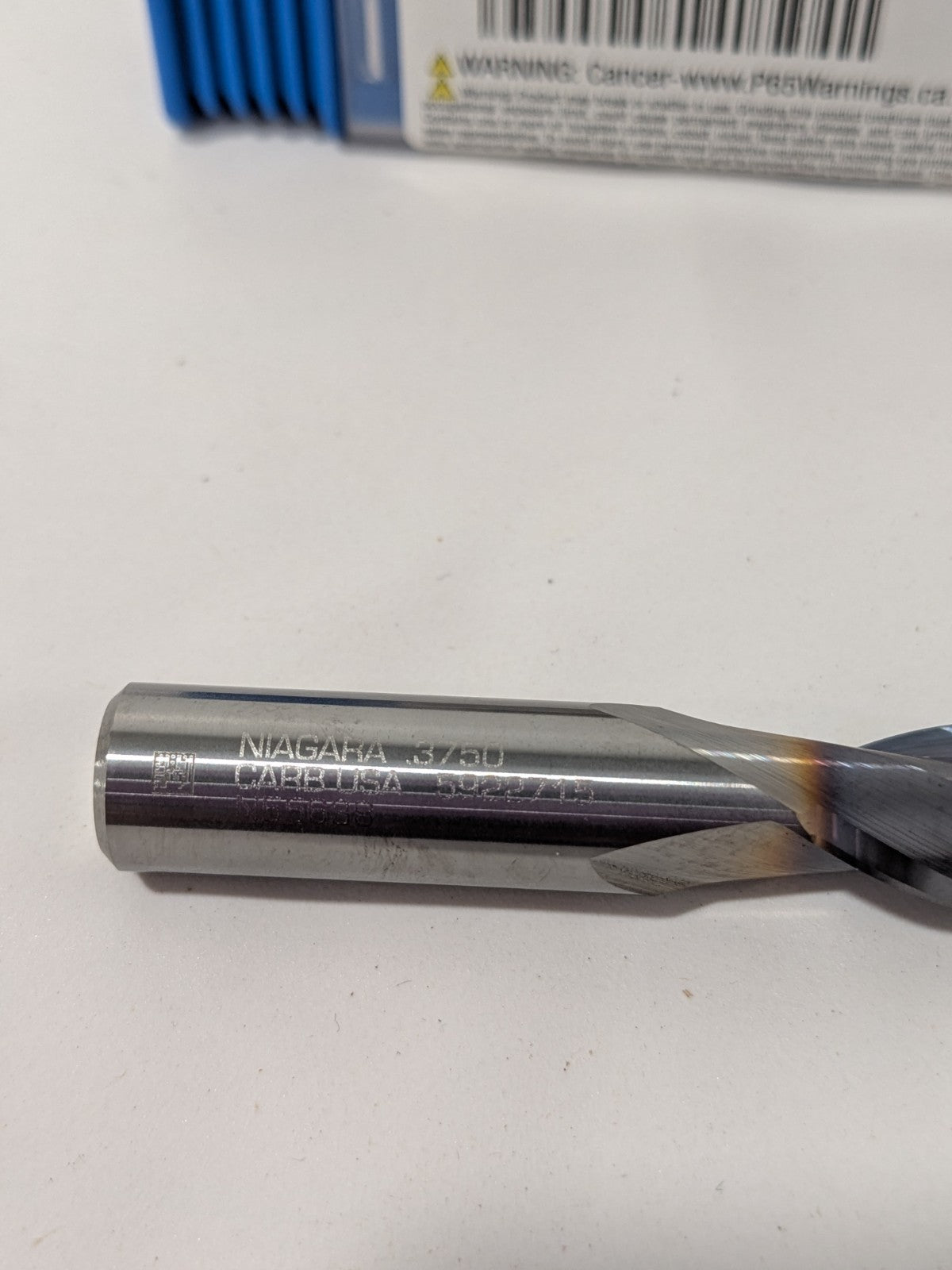

Niagara Cutter Ball End Mill 3/8" Dia, 5/8" LOC, 2 Flute, Solid Carbide 17001442

Niagara Cutter
Ball End Mill

MSRP: $40.00

• Mill Diameter (Decimal Inch): 0.3750
• Mill Diameter (Inch): 3/8
• Number Of Flutes: 2
• End Mill Material: Solid Carbide
• Length of Cut (Decimal Inch): 0.6250
• Length of Cut (Inch): 5/8
• Shank Diameter (Decimal Inch): 0.37
• Shank Diameter (Inch): 3/8
• Overall Length (Inch): 2
• Overall Length (Decimal Inch): 2.0000
• Single Or Double End: Single
• Coating/Finish Family: TiAlN
• Centercutting: Yes
• Cutting Direction: Right Hand
• Flute Direction: Right Hand
• Extended Reach: No
• Coolant Through: No
• Helix Angle: 30
• Primary Workpiece Material: Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials
• Primary Workpiece Material Code: P; S; H; K; M; N
• Coating/Finish: TiAlN
• Variable Helix: No
• Variable Index: No
• Chipbreaker: No
• Flute Type: Spiral
• Shank Type: Straight-Cylindrical
• Material Grade: TiAlN
• Length Type: Short
• Coating Classification: PVD
• Helix Style: Medium
• Nose Radius (Decimal Inch): 0.1875
• Neck Length (Decimal Inch): 0.0000
• Reach Length (Decimal Inch): 0.6250
• Mill Diameter Tolerance: +0.0000/-0.0020 in
• Overall Length Tolerance: +0.0600/-0.0600 in
• Shank Diameter Tolerance: -0.0001/-0.0004 in
• TIR Maximum (Decimal Inch): 0.0005
• Series: CB230
• System Of Measurement: Fractional Inch

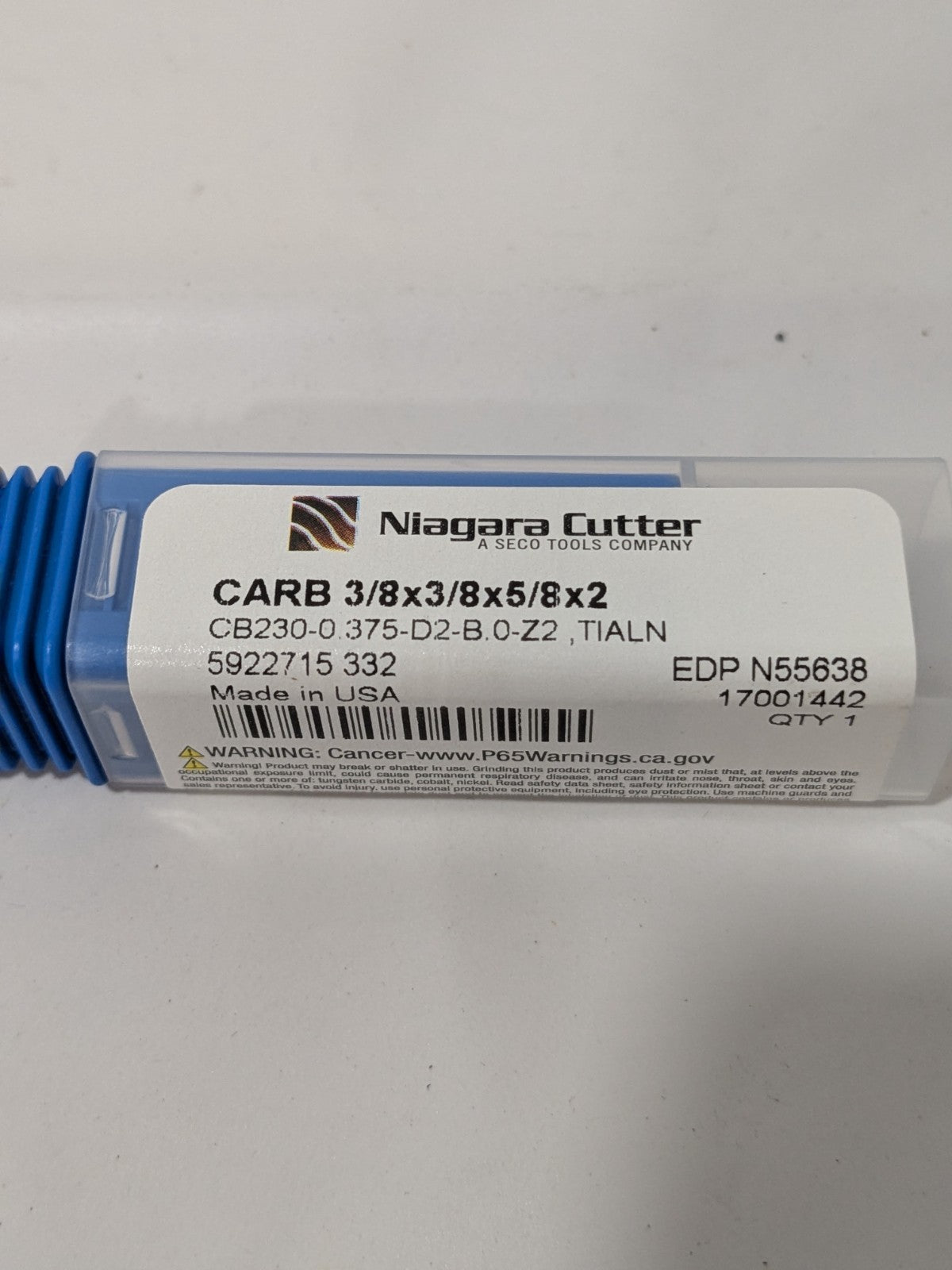

• Manufacturers Catalog Number: CB230-0.375-D2-B.0-Z2
• Material Removal Type: Roughing & Finishing
• UNSPSC Code: 27112803
• Country of Origin: UNITED STATES

This item appears to be new and in good condition. SOLD AS IS.

Please review photos, comes as shown.
