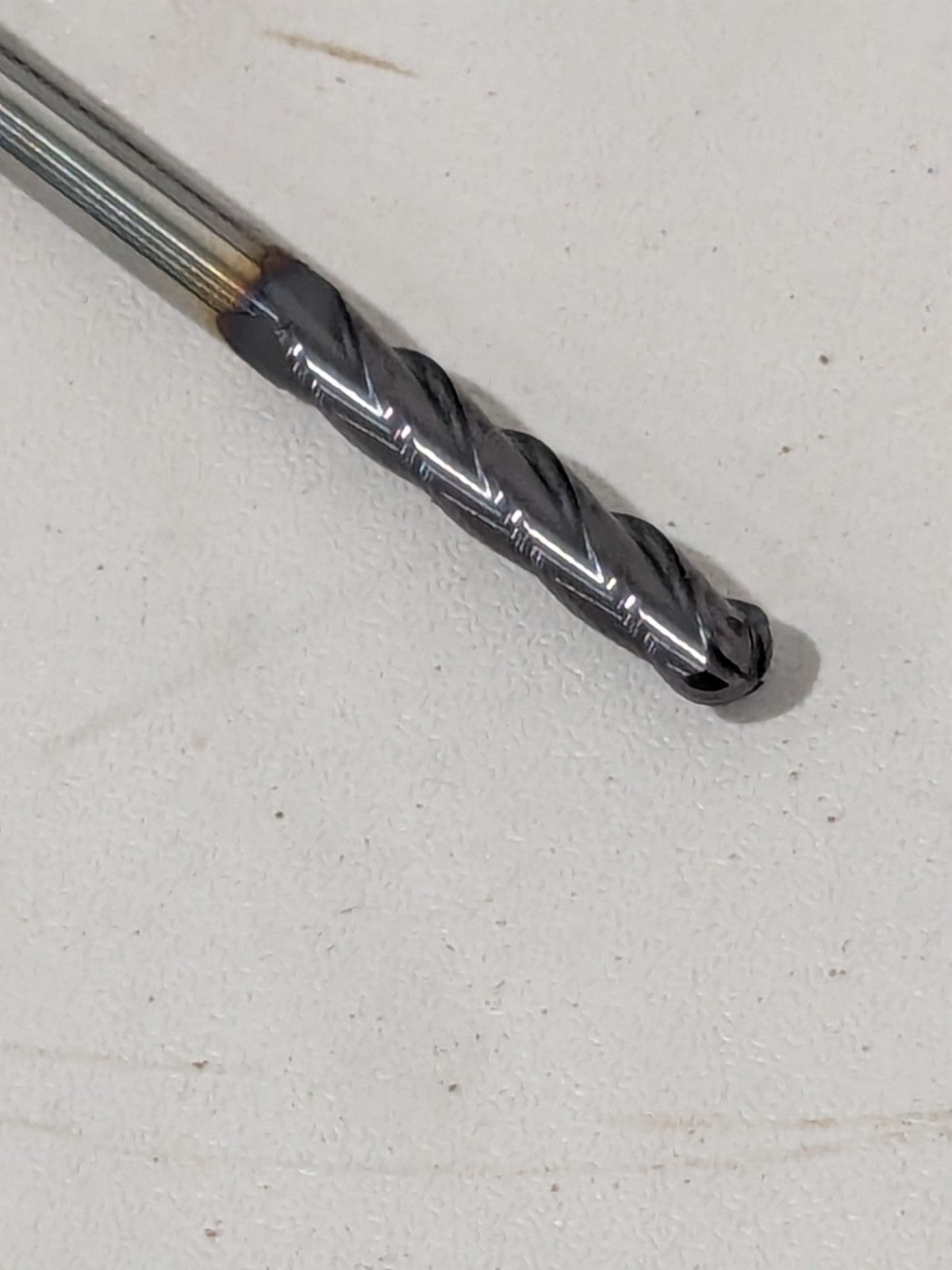

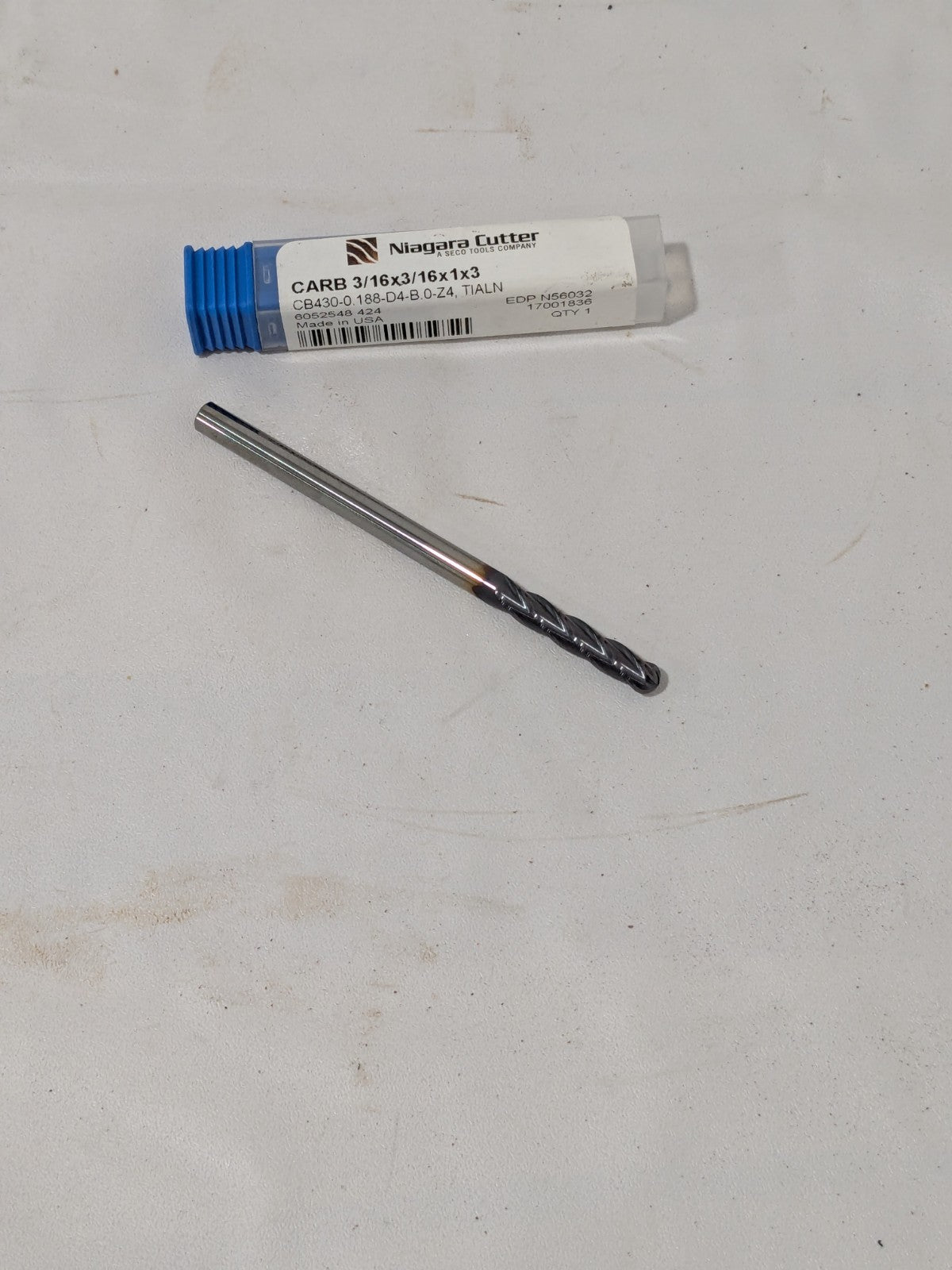

Niagara Cutter Ball End Mill: 3/16" Dia, 1" LOC, 4 Flute 17001836

Niagara Cutter
Ball End Mill

MSRP: $30.00

• Mill Diameter (Inch) 3/16
• Mill Diameter (Decimal Inch) 0.1875
• Number Of Flutes 4
• End Mill Material Solid Carbide
• Length of Cut (Decimal Inch) 1.0000
• Length of Cut (Inch) 1
• Shank Diameter (Decimal Inch) 0.1875
• Shank Diameter (Inch) 3/16
• Overall Length (Decimal Inch) 3.0000
• Overall Length (Inch) 3
• Single Or Double End Single
• Coating/Finish Family TiAlN
• Centercutting Yes
• Cutting Direction Right Hand
• Flute Direction Right Hand
• Extended Reach No
• Coolant Through No
• Helix Angle 30
• Primary Workpiece Material Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Cast Iron; Steel
• Primary Workpiece Material Code P; S; K; M; N
• Coating/Finish TiAlN
• Variable Helix No
• Variable Index No
• Chipbreaker No
• Flute Type Spiral
• Shank Type Straight-Cylindrical
• Material Grade TiAlN
• Length Type Long
• Coating Classification PVD
• Helix Style Medium
• Nose Radius (Decimal Inch) 0.0938
• Neck Length (Decimal Inch) 0.0000
• Reach Length (Decimal Inch) 1.0000
• Mill Diameter Tolerance +0.0000/-0.0020 in
• Overall Length Tolerance +0.0600/-0.0600 in
• Shank Diameter Tolerance -0.0001/-0.0004 in
• TIR Maximum (Decimal Inch) 0.0005
• Series CB430
• System Of Measurement Fractional Inch

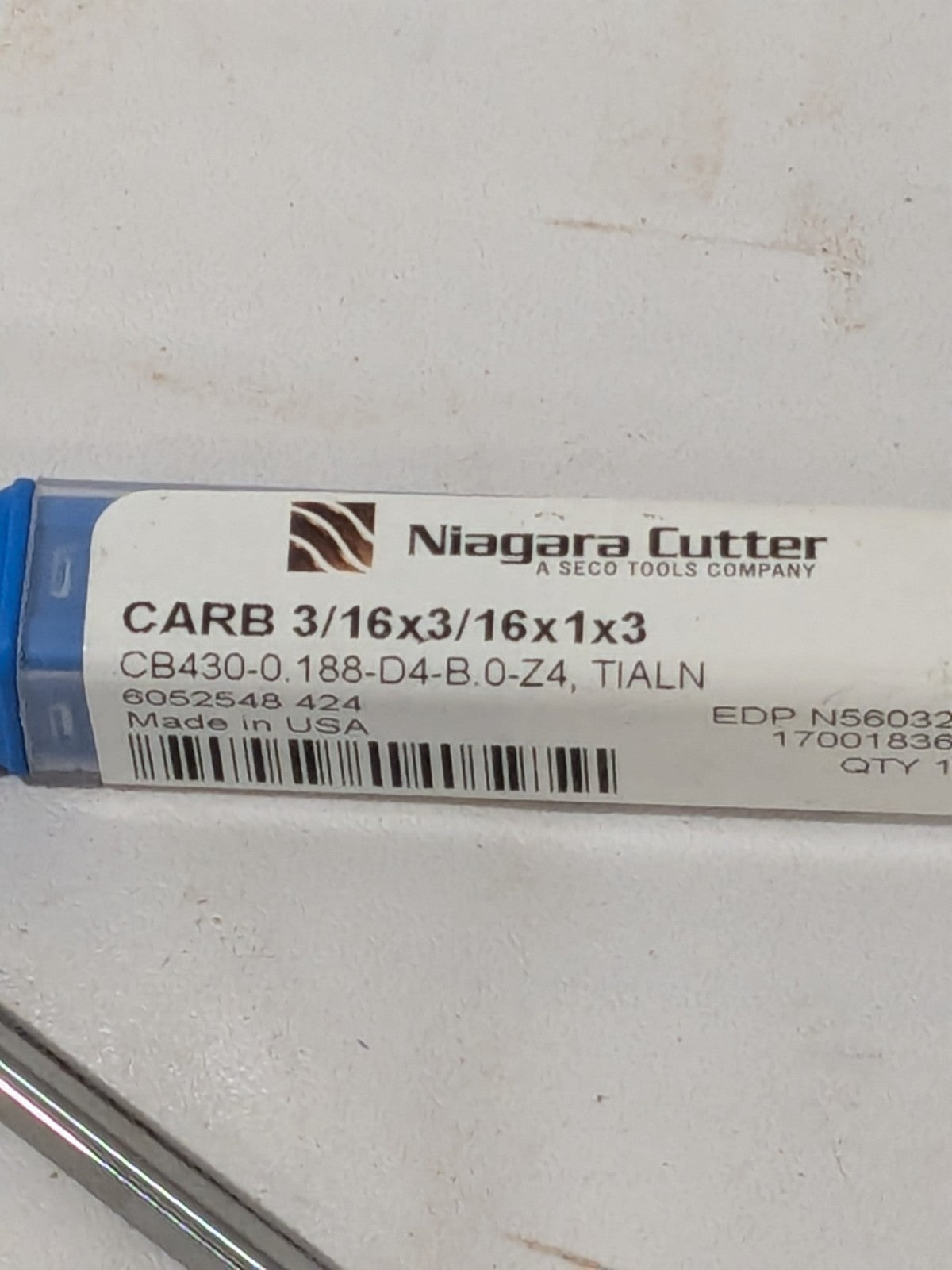

• Manufacturers Catalog Number CB430-0.188-D4-B.0-Z4
• Material Removal Type Roughing & Finishing
• UNSPSC Code 27112803
• Country of Origin UNITED STATES

This item appears to be new and in good condition. SOLD AS IS.

Please review photos, comes as shown.
