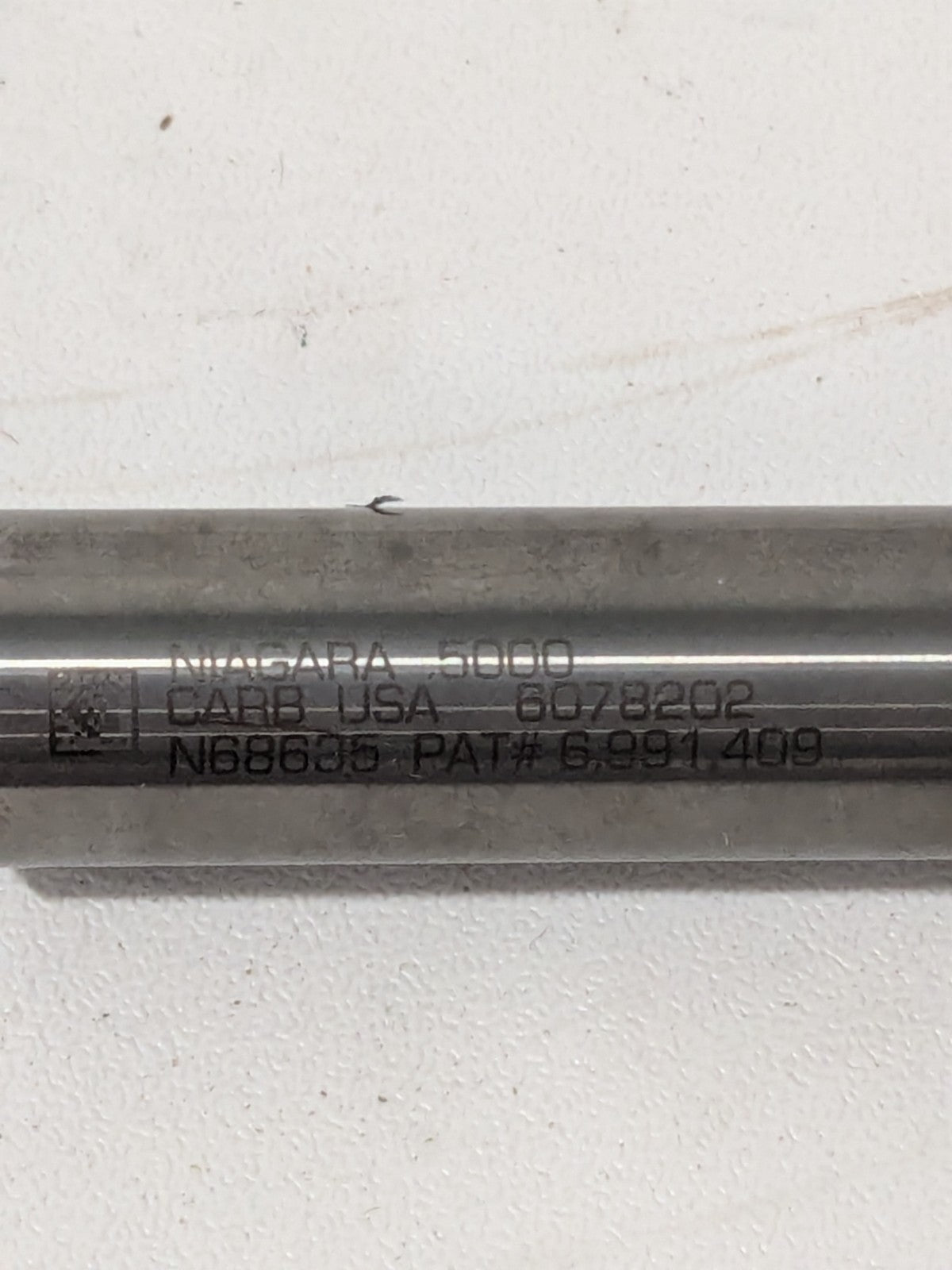

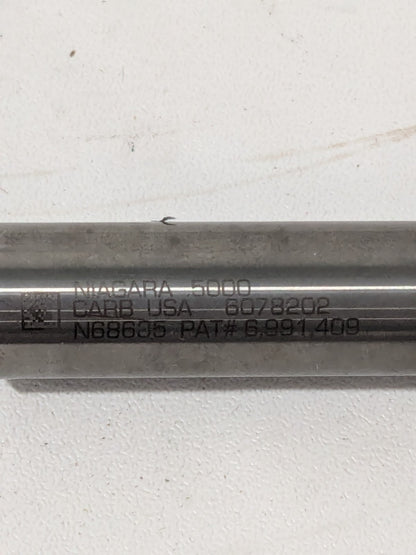

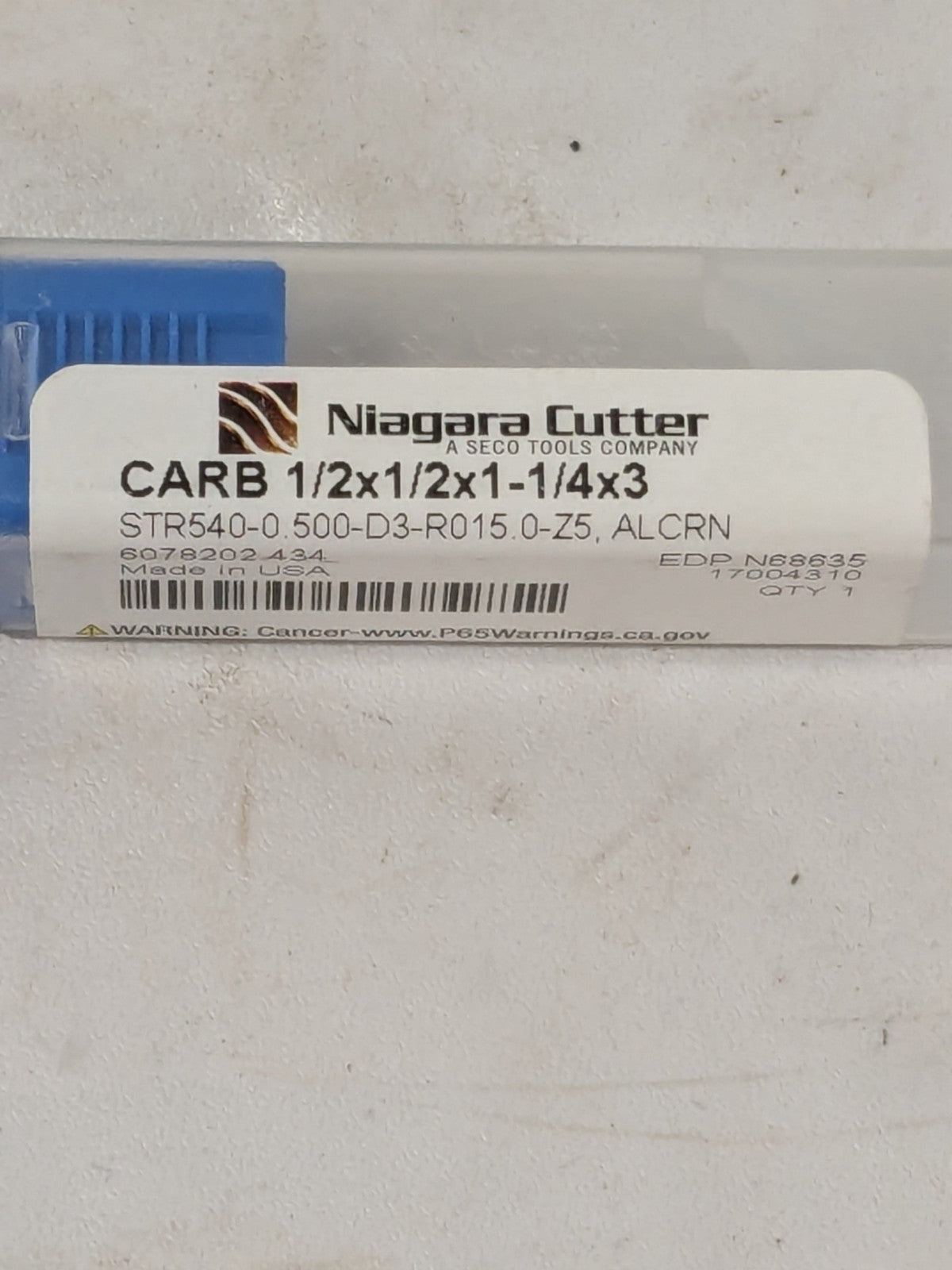

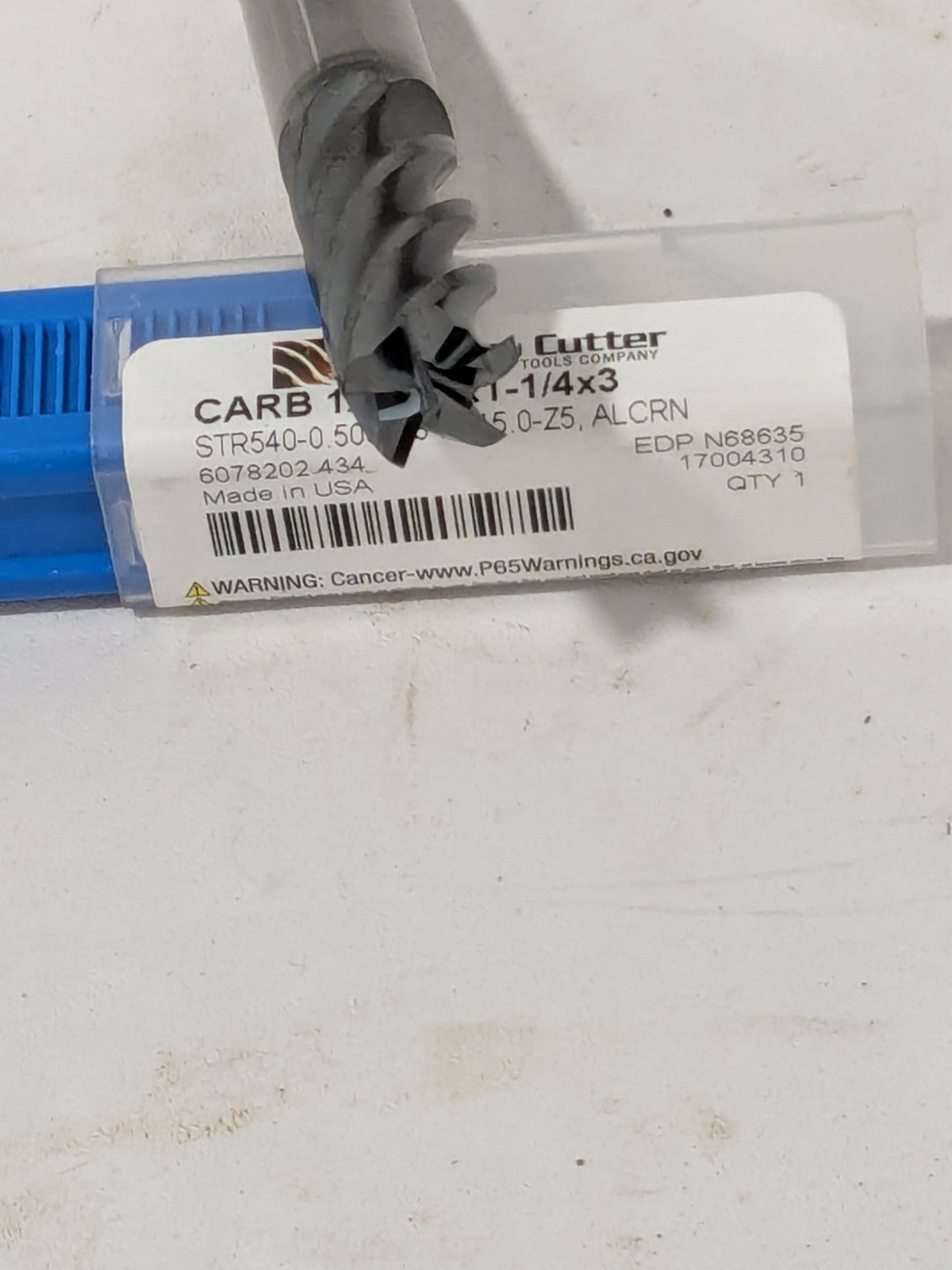

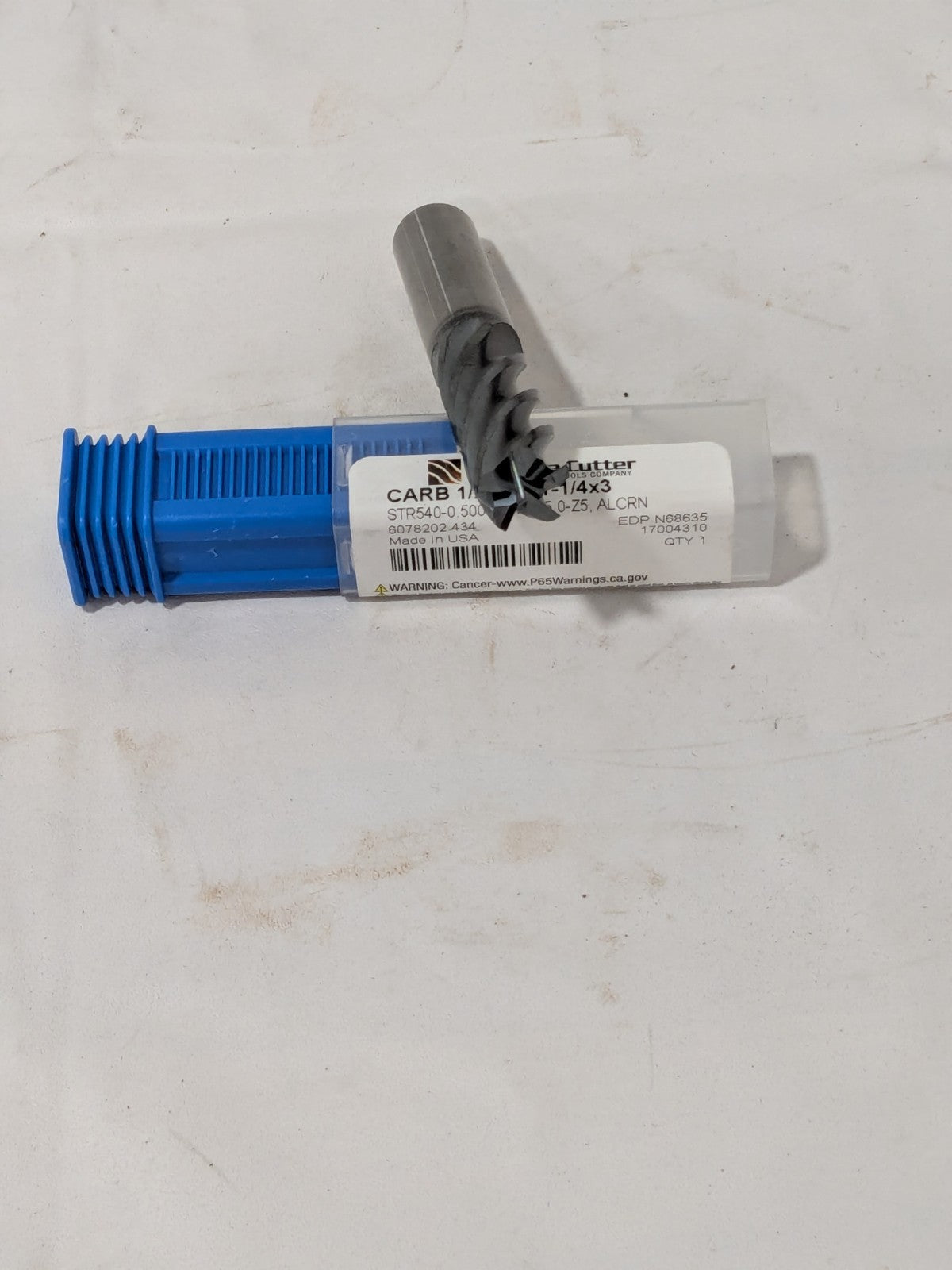

Niagara Corner Radius End Mill: 1/2" Dia, 1-1/4" LOC, 5 FL N68635

Niagara Cutter
Corner Radius End Mill

MSRP: $80.00

• Mill Diameter (Inch) 1/2
• Mill Diameter (Decimal Inch) 0.5000
• Number Of Flutes 5
• Length of Cut (Inch) 1-1/4
• Single Or Double End Single
• End Mill Material Solid Carbide
• Chipbreaker No
• Coating/Finish AlCrN
• Overall Length (Inch) 3
• Centercutting Yes
• Flute Direction Right Hand
• Corner Radius (Decimal Inch) 0.0150
• Variable Index No
• Helix Angle 40
• Cutting Direction Right Hand
• Coolant Through No
• Pitch Normal
• Overall Length (Decimal Inch) 3.0000
• End Type Corner Radius
• Length Of Cut (Decimal Inch - 4 Decimals) 1.2500
• Length Type Standard
• Flute Type Spiral
• Extended Reach No
• Shank Type Straight-Cylindrical
• Material Removal Type Roughing & Finishing
• Shank Diameter (Decimal Inch) 0.5000
• Shank Diameter (Inch) 1/2
• Corner Radius Tolerance +0.00100 to -0.00100 in
• Mill Diameter Tolerance -0.0020/0.0000 in
• Shank Diameter Tolerance -0.0001/-0.0004 in
• Overall Length Tolerance -0.0600/0.0600 in
• Primary Workpiece Material Hard Material; Stainless Steel; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; H; M
• UNSPSC Code 27112803
• Series STR540
• TIR Maximum (Decimal Inch) 0.0005
• Material Application Hard Material; Stainless Steel; Superalloys & Titanium; Steel
• Coating Classification PVD
• For Use With. Toolholders
• Helix Style High
• Country of Origin UNITED STATES

This item appears to be new and in good condition. SOLD AS IS.

Please review photos, comes as shown.
