Niagara Ball End Mill: 1/4″ Dia, 19/64″ LOC, 2 Flute(s), Solid Carbide N66071

Niagara Cutter
Ball End Mill

MSRP: $40.00

• Mill Diameter (Inch) 1/4 in
• Mill Diameter (Decimal Inch) 0.25
• Number Of Flutes 2
• End Mill Material Solid Carbide
• Length of Cut (Inch) 3/4 in
• Coating/Finish Bright/Uncoated
• Overall Length (Inch) 2-1/2
• Shank Diameter (Inch) 1/4 in
• Extended Reach No
• Variable Helix No
• Variable Index No
• Helix Angle 45
• Overall Length (Decimal Inch) 2.5
• Chipbreaker No
• Undercutting No
• Length Of Cut Range (Decimal Inch) 0.7000 to 1.0000
• Length Type Standard
• Helix Style High
• Material Removal Type Roughing & Finishing
• Shank Diameter (Decimal Inch) 0.2500
• Nose Radius (Decimal Inch) 0.1250
• Neck Length (Decimal Inch) 0.0000
• Reach Length (Decimal Inch) 0.7500
• Mill Diameter Tolerance +0.0000/-0.0020 in
• Shank Diameter Tolerance -0.0001/-0.0004 in
• Overall Length Tolerance +0.0600/-0.0600 in
• Maximum Helix Angle 45
• Minimum Helix Angle 45 °
• Primary Workpiece Material Non-Ferrous Metal
• Primary Workpiece Material Code N
• Flute Direction Right Hand
• Cutting Direction Right Hand
• Series AB245
• Flute Type Helical
• TIR Maximum (Decimal Inch) 0.0005
• UNSPSC Code 27112803
• Centercutting Yes
• Coating Classification Uncoated
• Single Or Double End Single
• Shank Type Straight-Cylindrical
• Pitch Coarse
• Coolant Through No
• Length Of Cut (Decimal Inch - 4 Decimals) 0.7500 in

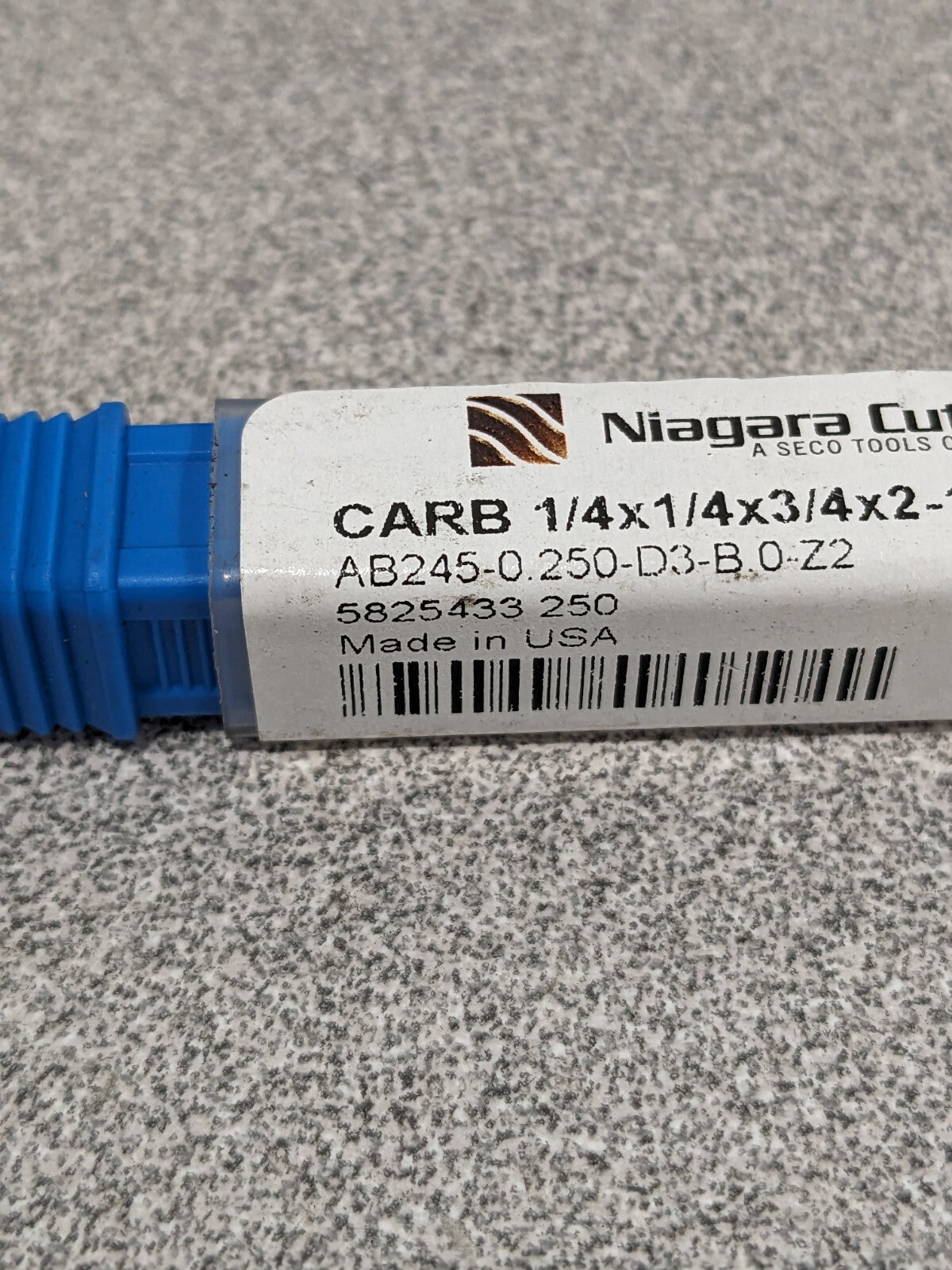

• Manufacturers Catalog Number AB245-0.250-D3-B.0-Z2
• System Of Measurement Fractional Inch

This item appears to be new and in good condition. SOLD AS IS.

Please review photos, comes as shown.
