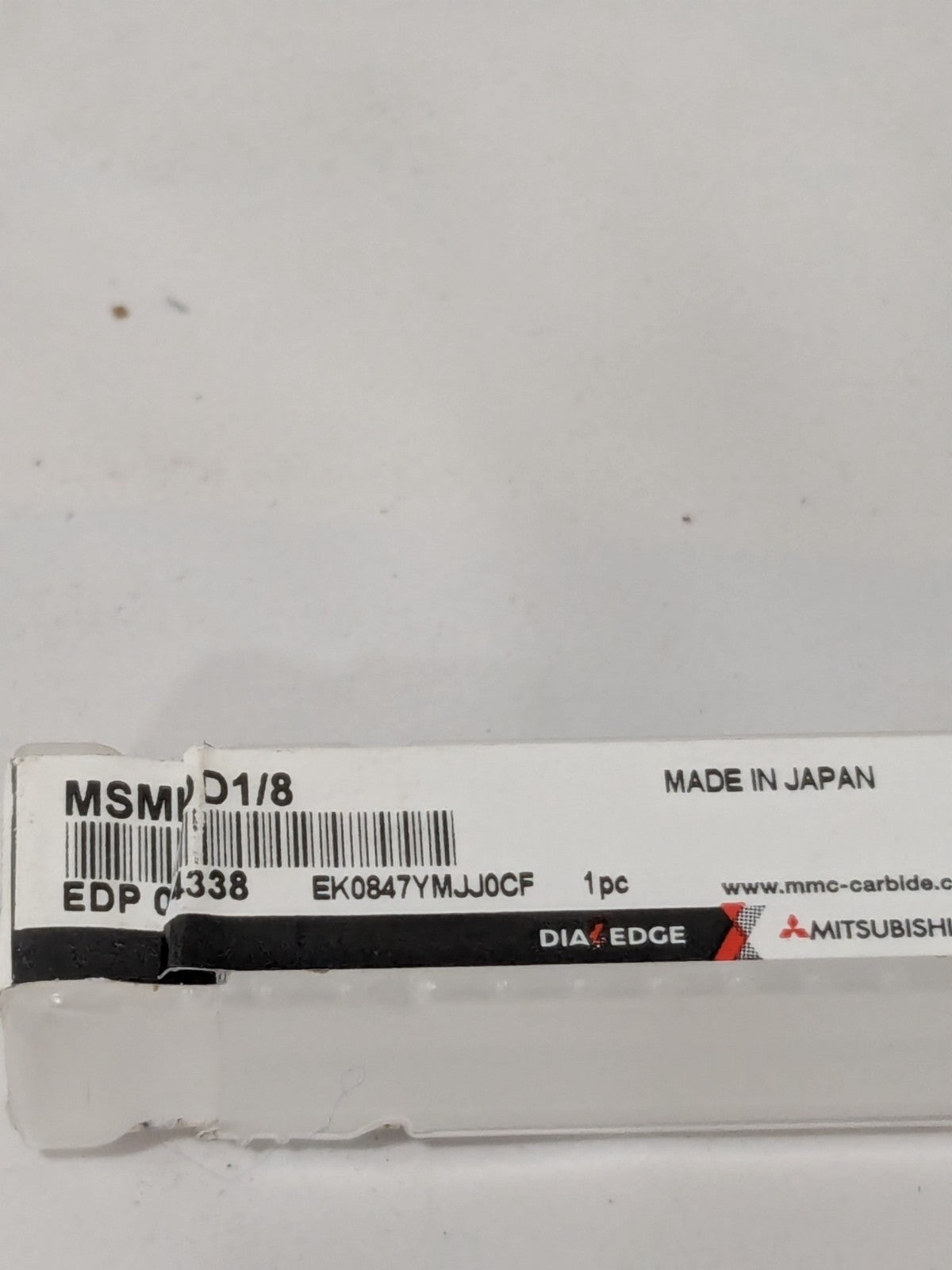

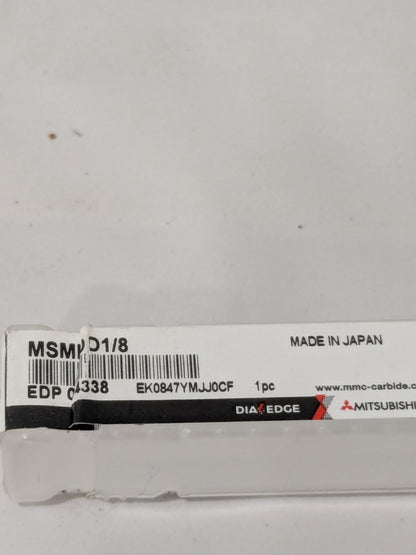

Mitsubishi Square End Mill: 1/8" Dia, 5/16" LOC, 3 Flute, Solid Carbide 494338

Mitsubishi
Square End Mill

MSRP: $75.00

• Mill Diameter (Decimal Inch): 0.1250
• Mill Diameter (mm): 3.18
• Mill Diameter (Inch): 1/8
• Number Of Flutes: 3
• End Mill Material: Solid Carbide
• Length of Cut (mm): 7.95
• Length of Cut (Decimal Inch): 0.3130
• Length of Cut (Inch): 5/16
• Shank Diameter (Decimal Inch): 0.2500
• Shank Diameter (mm): 6.3500
• Shank Diameter (Inch): 1/4
• Overall Length (Decimal Inch): 2.0000
• Overall Length (mm): 50.8000
• Overall Length (Inch): 2
• Single Or Double End: Single
• Coating/Finish Family: AlTiN
• Centercutting: No
• Cutting Direction: Right Hand
• Flute Direction: Right Hand
• Extended Reach: No
• Coolant Through: No
• Helix Angle: 45
• Primary Workpiece Material: High-Temp Alloy; Stainless Steel; Cast Iron; Steel
• Primary Workpiece Material Code: P; S; K; M
• Secondary Workpiece Material: Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Hardened Materials
• Secondary Workpiece Material Code: S; H; M; N
• Coating/Finish: AlTiN
• Variable Helix: No
• Variable Index: No
• Chipbreaker: No
• Flute Type: Helical
• Shank Type: Straight-Cylindrical
• Material Grade: Carbide
• Length Type: Medium
• Neck Length (Decimal Inch): 0.3130
• Neck Length (mm): 7.95
• Mill Diameter Tolerance: 0; -0.008
• Shank Diameter Tolerance: h6
• Series: M-Star Endmill MSMHZD
• System Of Measurement: Fractional Inch
• UNSPSC Code: 27112803

This item appears to be new and in good condition. SOLD AS IS.

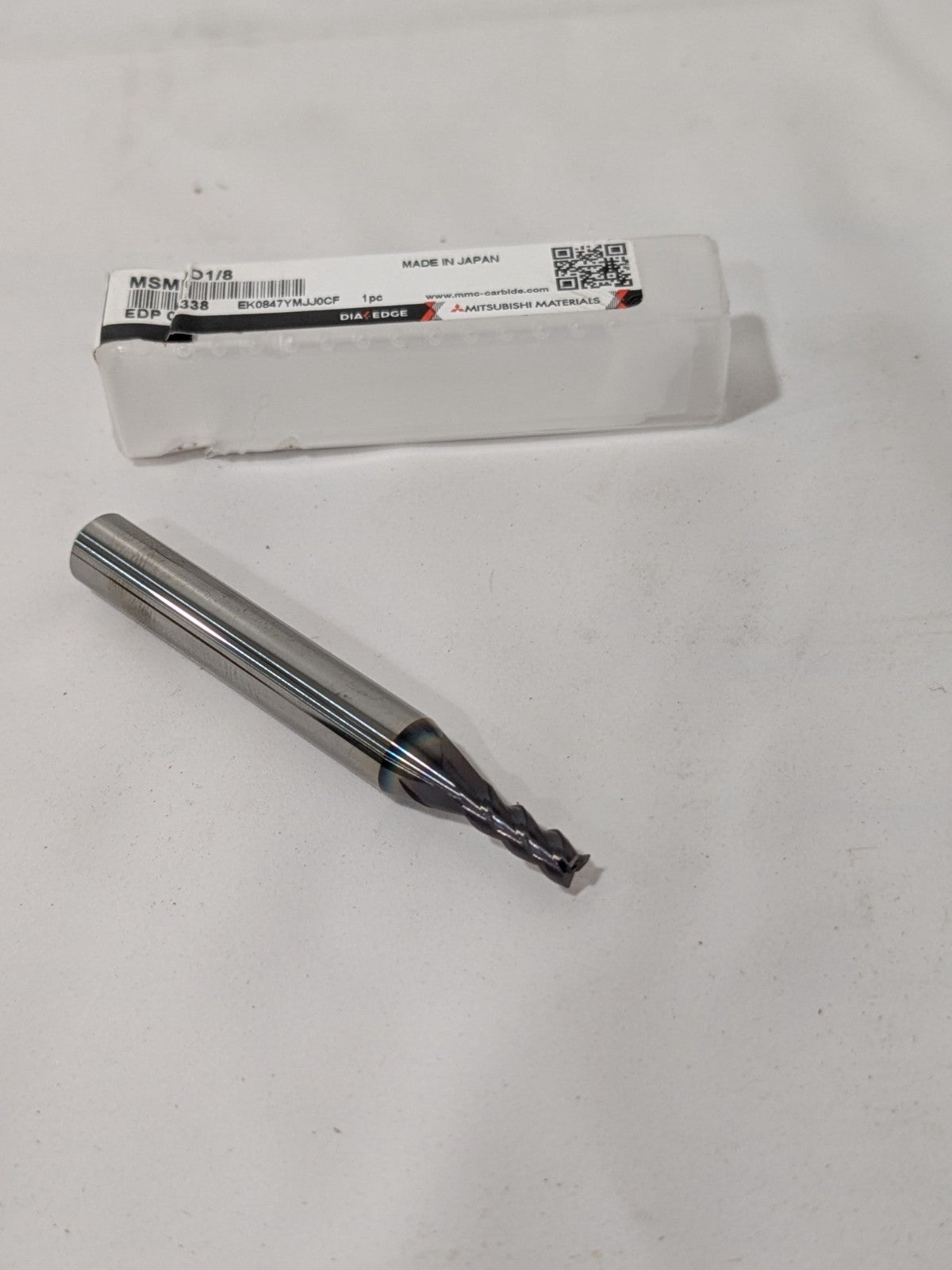

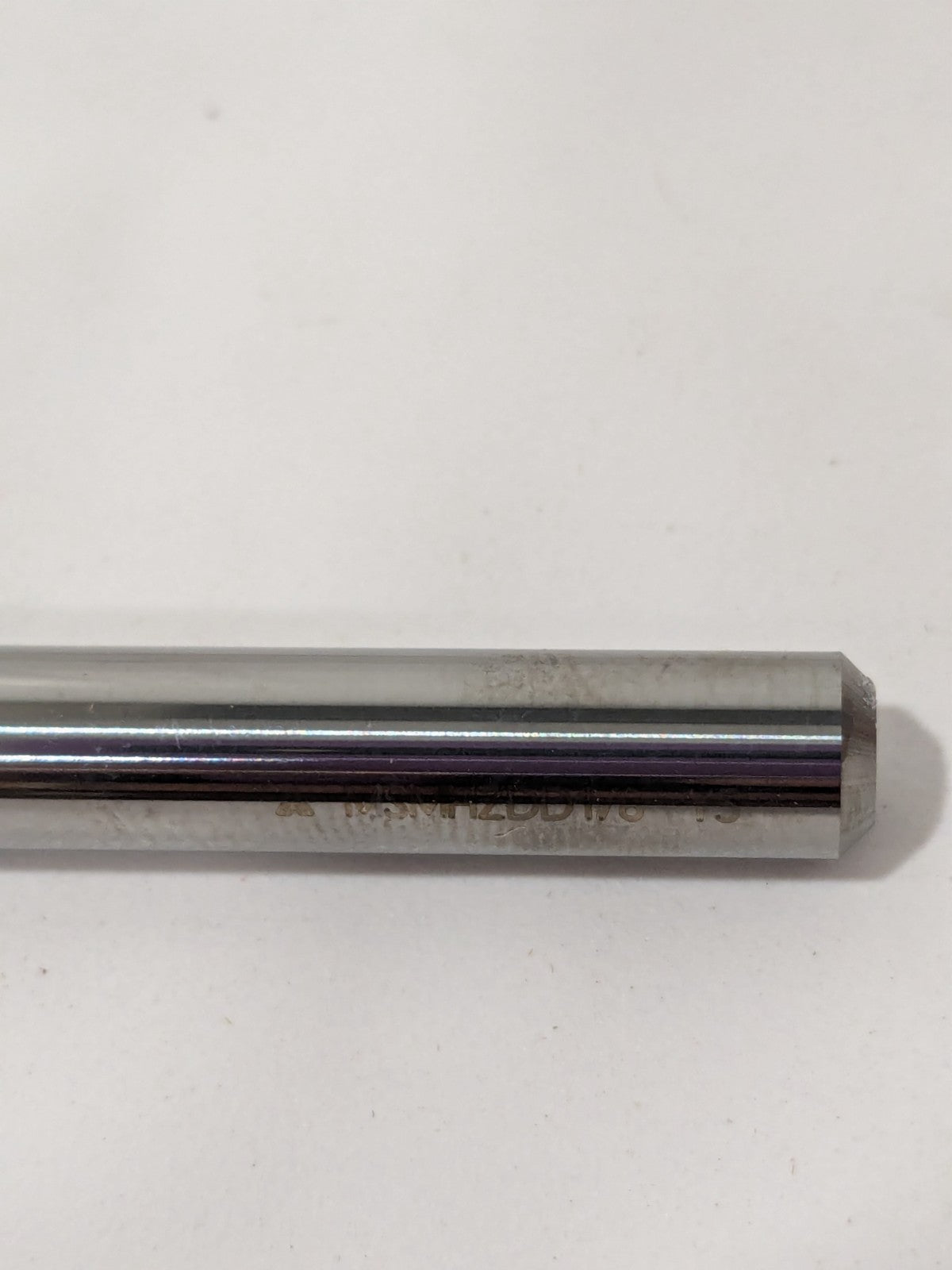

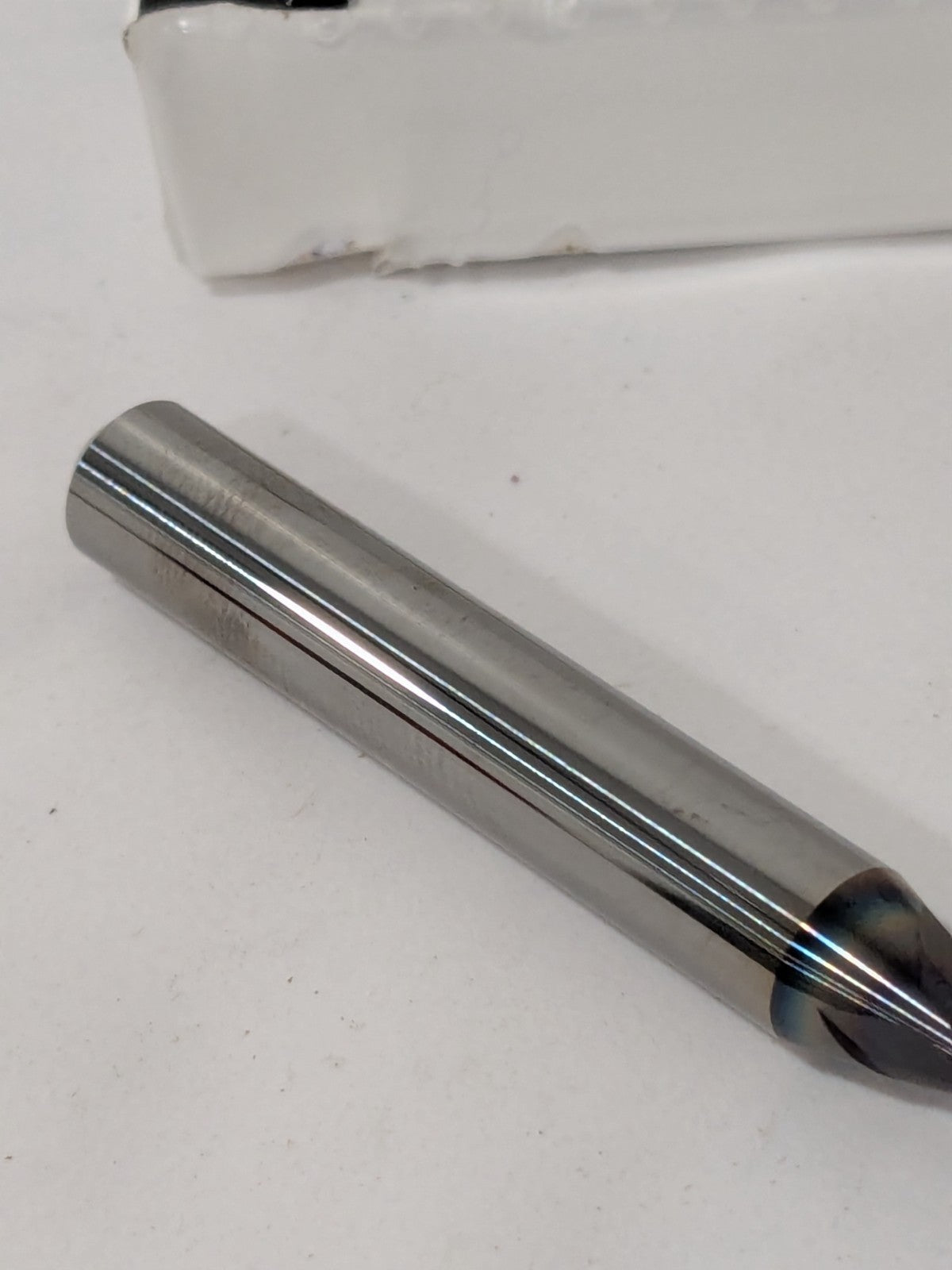

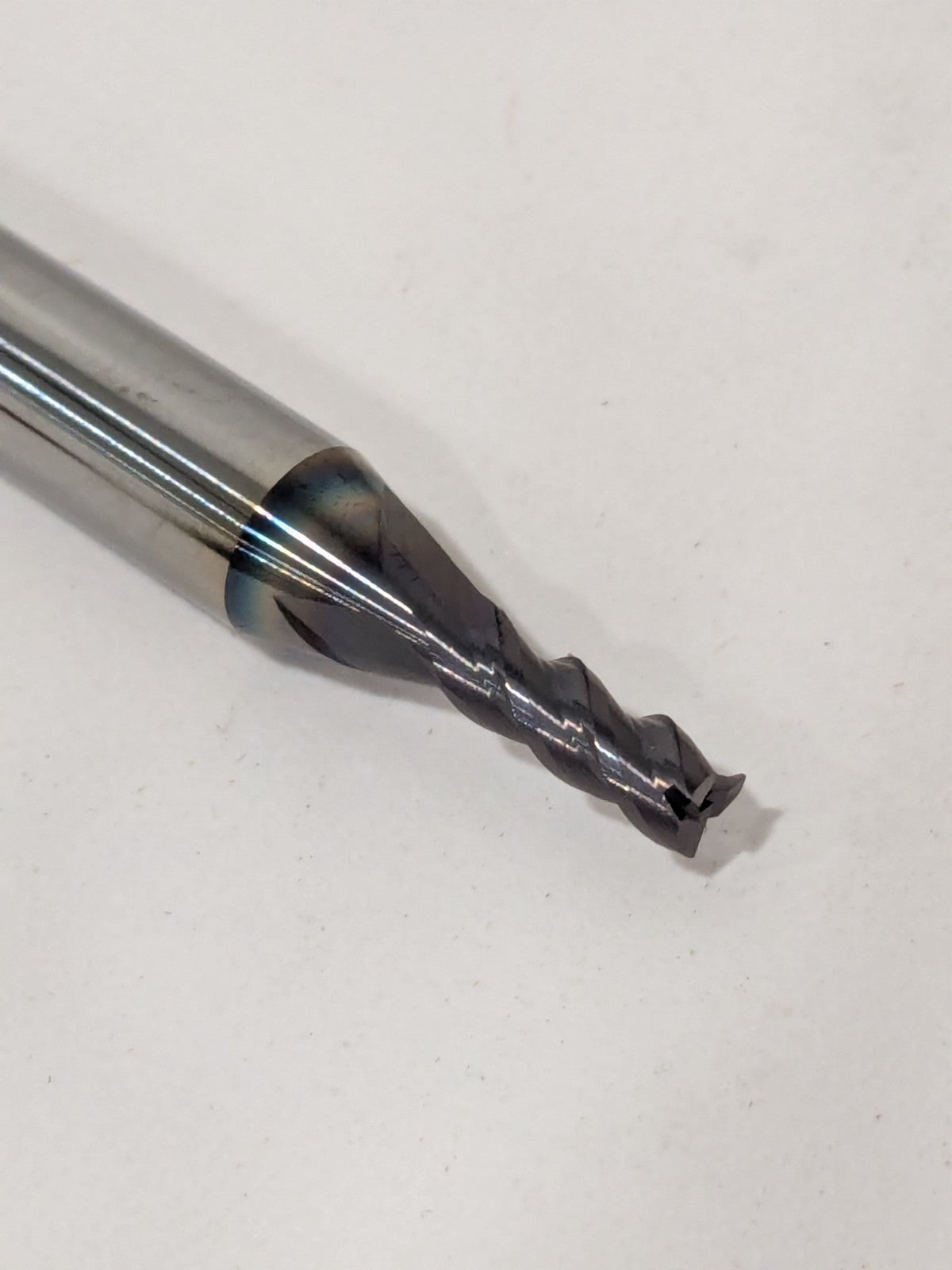

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
