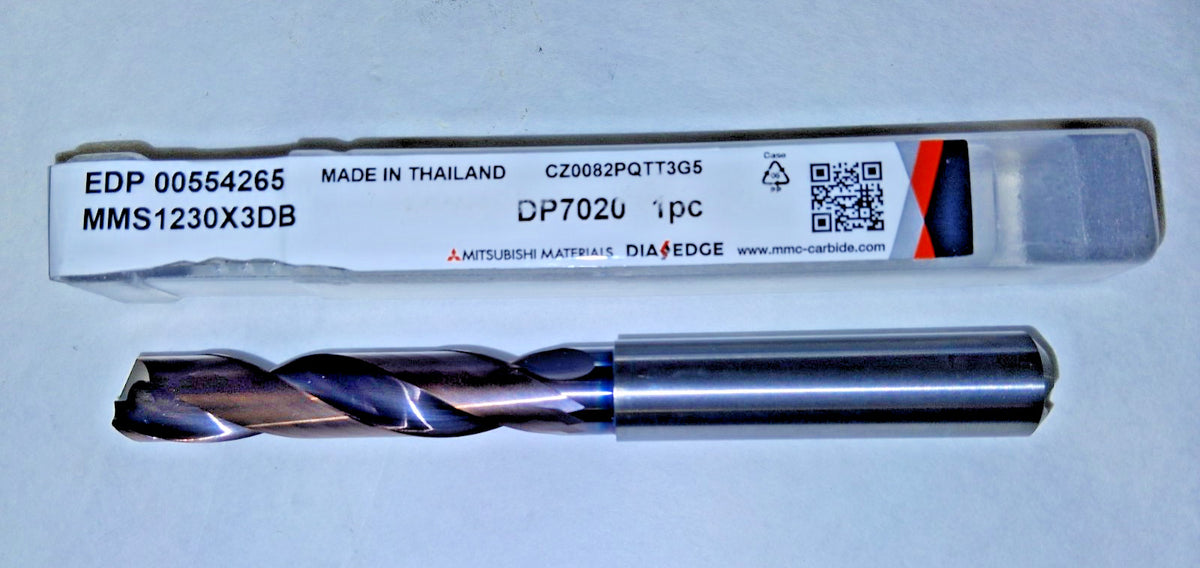

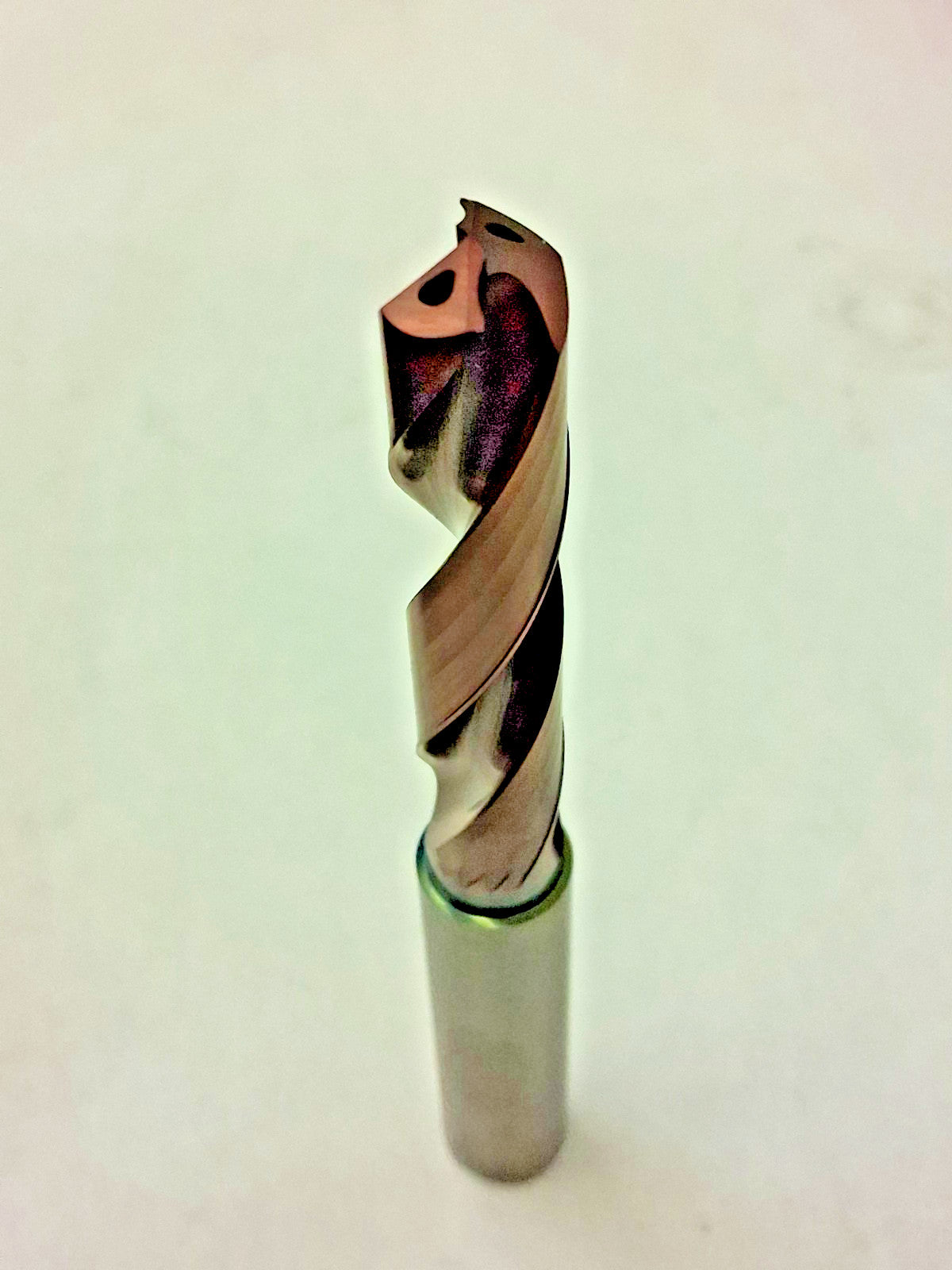

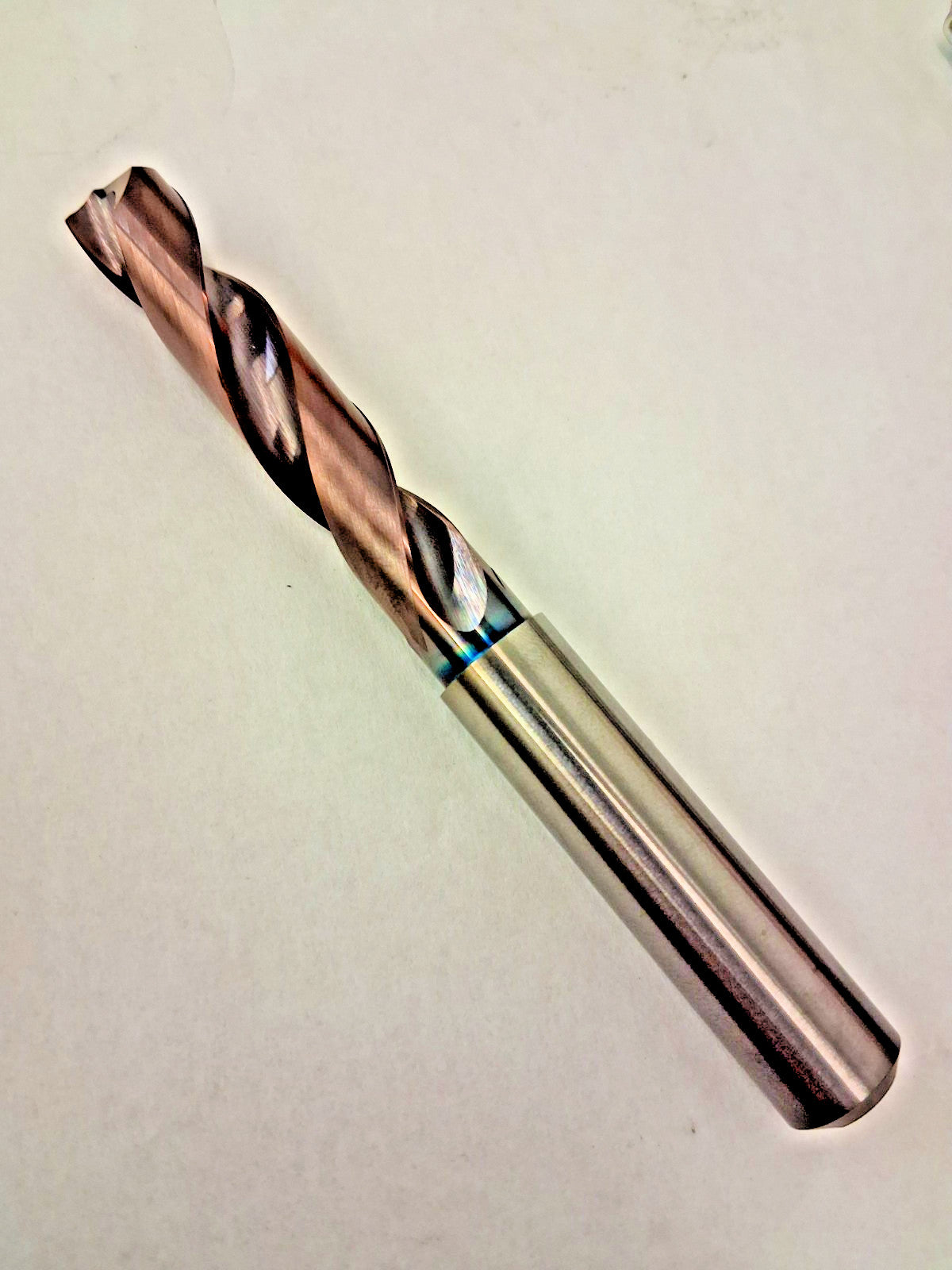

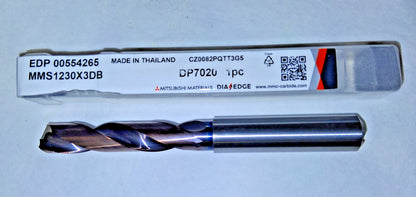

Mitsubishi Extra Length Drill Bit MMS1230X3DB Carbide Coolant Through 554265

Mitsubishi
Extra Length Drill Bit

MSRP: $530.00

• Drill Bit Size (mm): 12.30
• Overall Length (mm): 124.20
• Tool Material: Solid Carbide
• Coating/Finish: TiAlN
• Coolant Through: Yes
• Flute Type: Helical
• Shank Type: Cylindrical
• Drill Point Angle: 140
• Flute Length (Decimal Inch): 2.5669
• Flute Length (mm): 65.20
• Point Type: X-Thinning
• Series: MMS
• Cutting Direction: Right Hand
• Tool Application: Drilling; Cross Hole; Stack Drilling
• Spiral Type: Right Hand
• Number Of Flutes: 2
• Web Thinning: X-Thinned
• Web Configuration: Parallel
• Primary Workpiece Material: Stainless Steel Primary Workpiece Material Code: M
• Secondary Workpiece Material: Stainless Steel
• Secondary Workpiece Material Code: M
• Drill Bit Grade: High Precision; High Performance
• Drill Bit Size (Decimal Inch): 0.4843
• Drill Point Length (mm): 2.20
• Drill Point Length (Decimal Inch): 0.0866
• Overall Length (Decimal Inch): 4.8898
• Shank Diameter (Decimal Inch): 0.5512
• Shank Diameter (mm): 14.00
• Shank Length (Decimal Inch): 2.2047
• Shank Length (mm): 56.00
• Flute By Diameter Ratio: 3xD
• Maximum Drilling Depth (Decimal Inch): 1.5394
• Maximum Drilling Depth (mm): 39.10
• Specification Designation: ISO
• UNSPSC Code: 23241637

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
