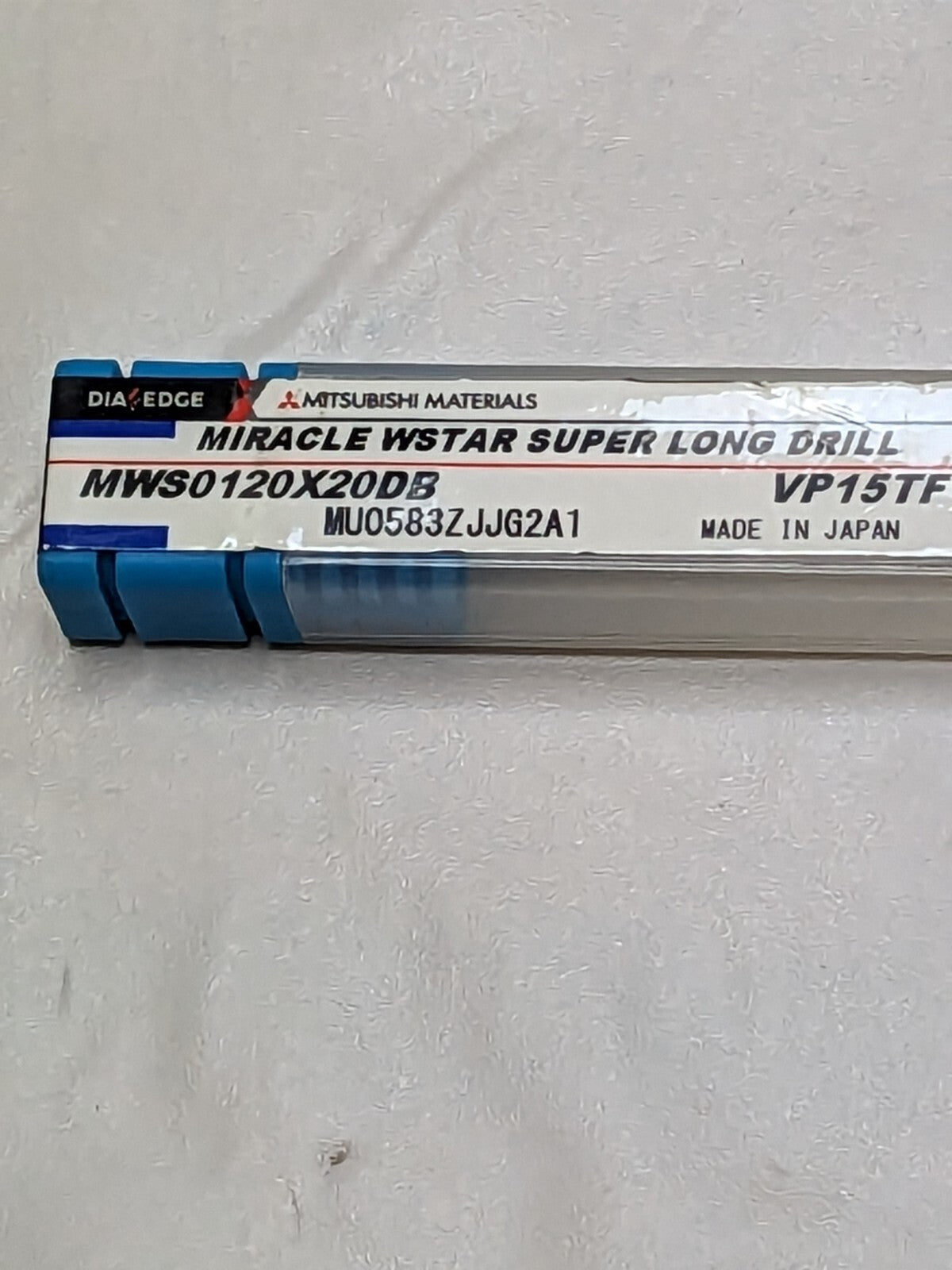

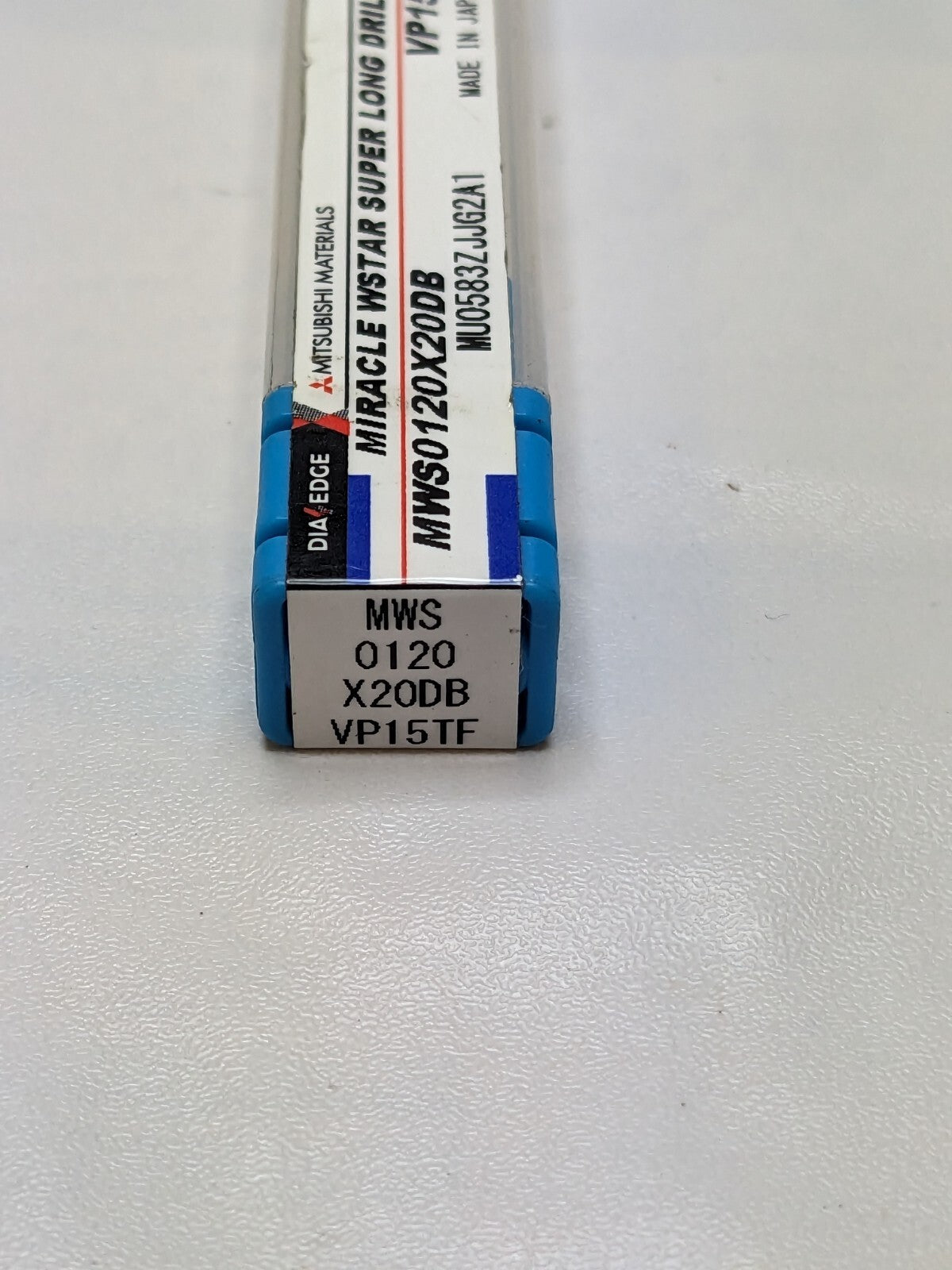

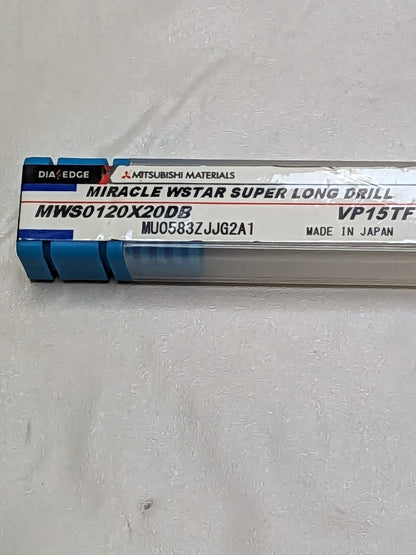

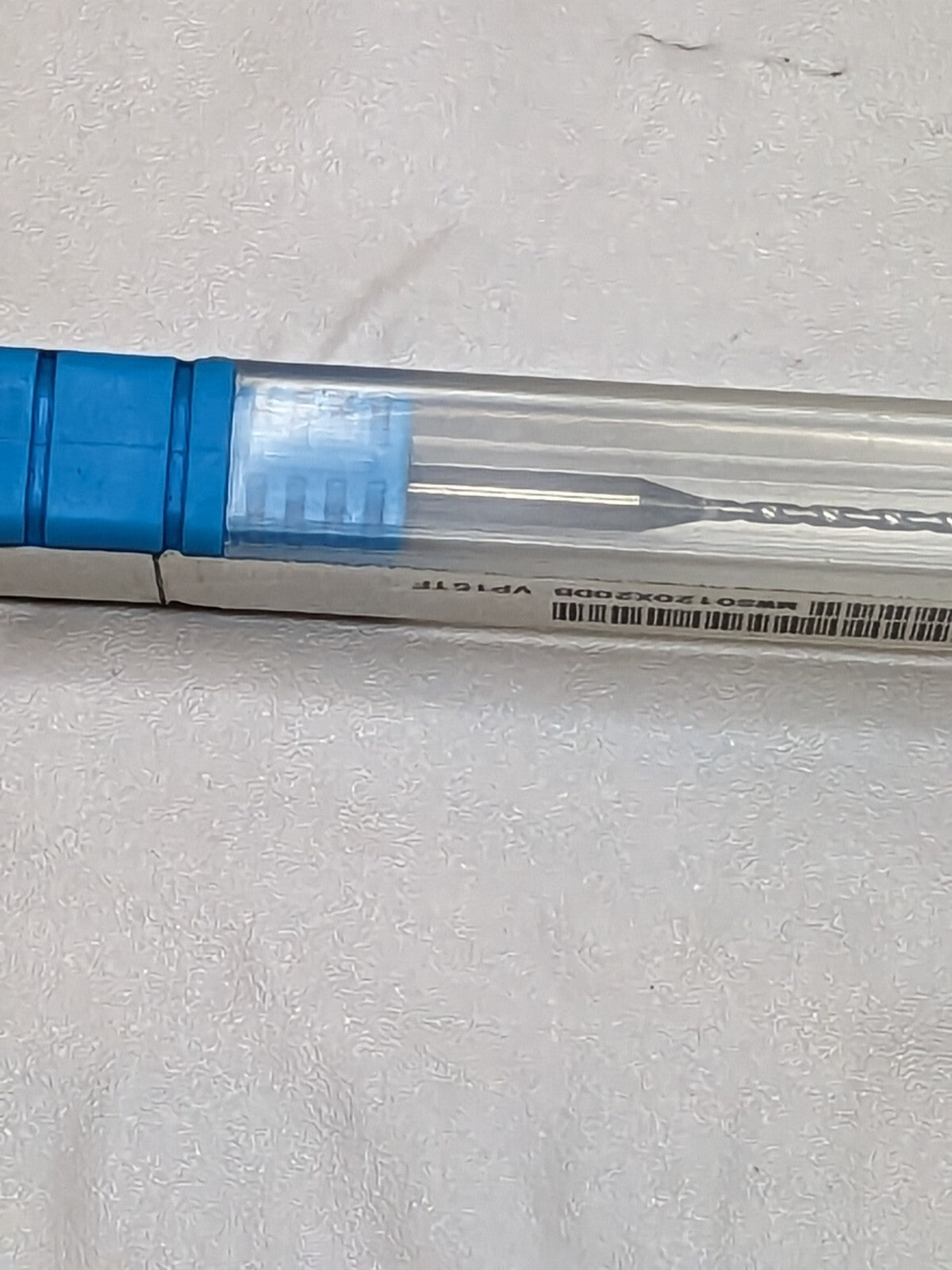

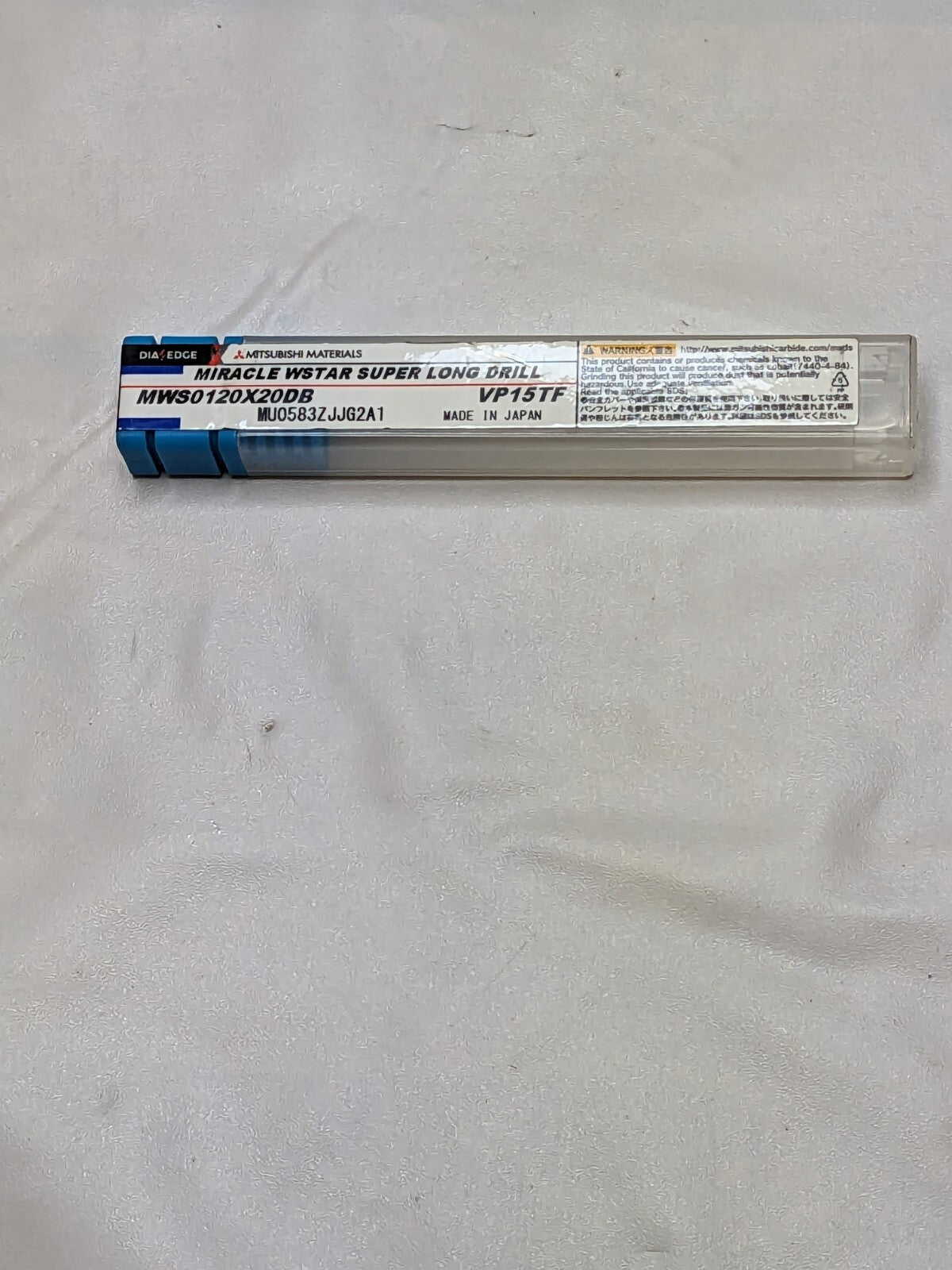

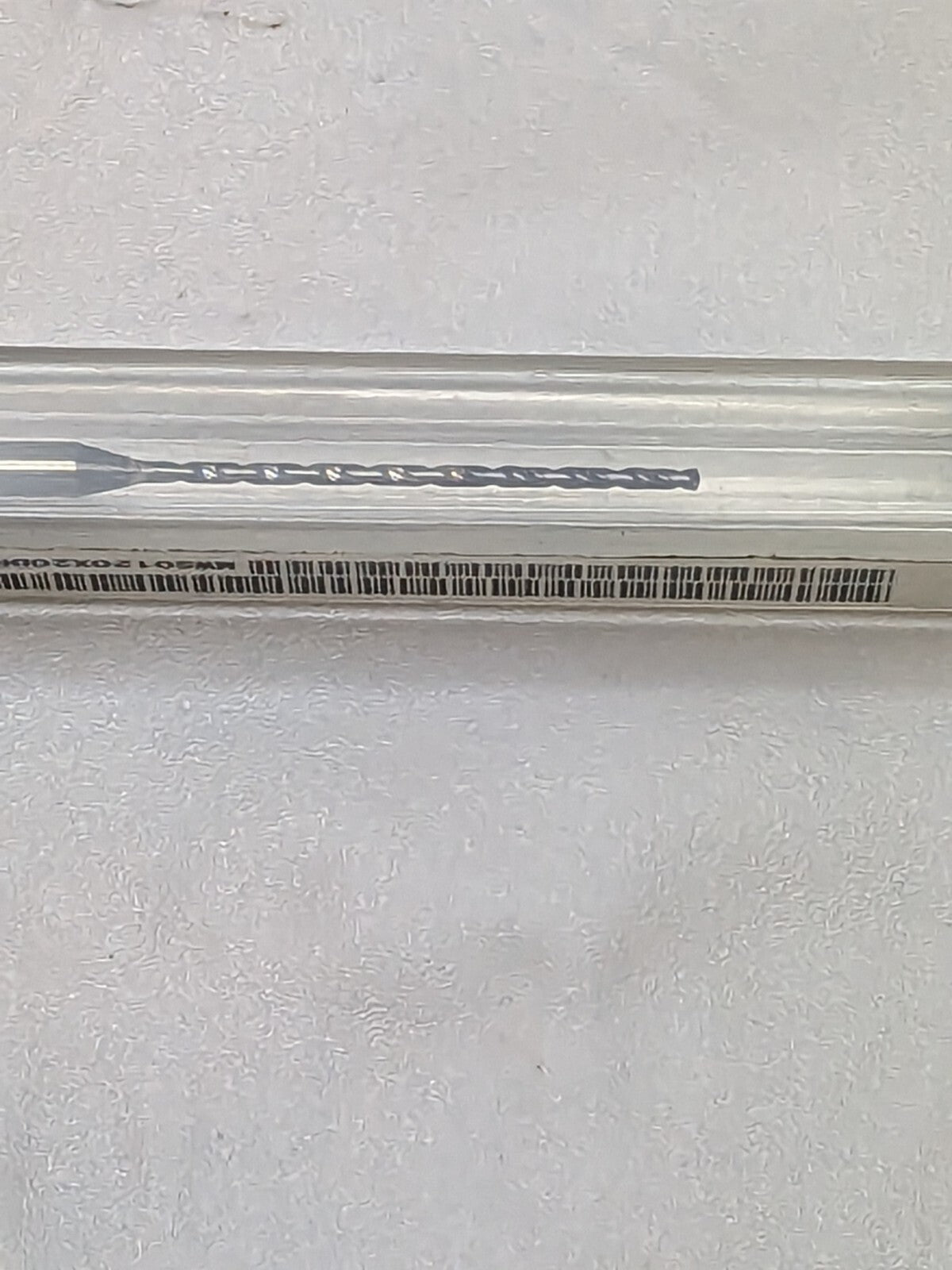

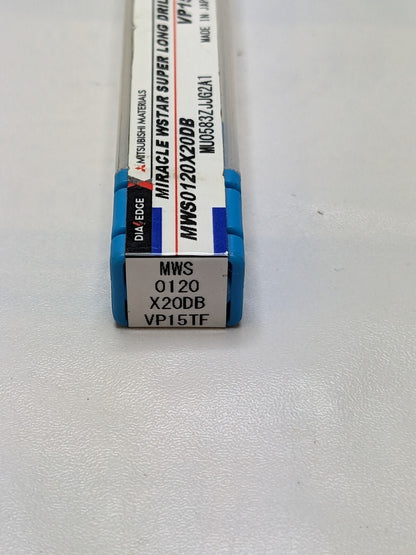

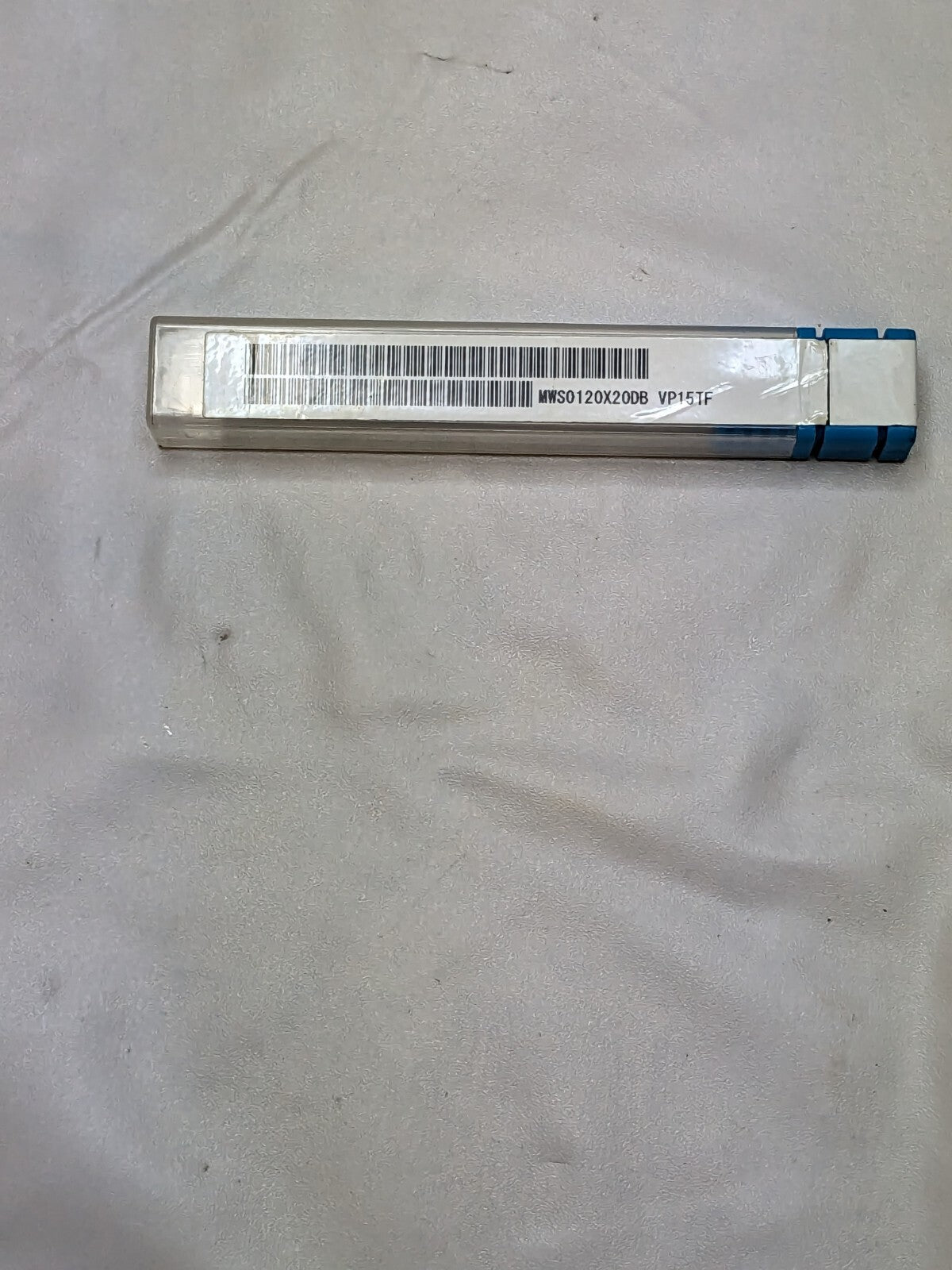

MITSUBISHI Drill MWS0120X20DB VP15TF TiAlN Finish, 2.3701″ OAL, RH 474185

Mitsubishi
Drill

MSRP: $250.00

• Drill Bit Size (mm) 1.20
• Drill Bit Size (Decimal Inch) 0.0472
• Tool Material Carbide
• Flute Length (Decimal Inch) 1.1102
• Flute Length (mm) 28.20
• Coating/Finish TiAlN
• Coolant Through Yes
• Drill Point Angle 135
• Cutting Direction Right Hand
• Maximum Drilling Depth (mm) 24.35
• Maximum Drilling Depth (Decimal Inch) 0.9587
• Number Of Flutes 2
• Series MWS
• Overall Length (Decimal Inch) 2.3701
• Overall Length (mm) 60.2000
• Flute Type Helical
• Shank Type Cylindrical
• Point Type X-Thinning
• Tool Application Very Small Hole Drilling; Deep Hole Drilling
• Web Thinning X-Thinned
• Web Configuration Parallel
• Primary Workpiece Material Steel
• Primary Workpiece Material Code P
• Secondary Workpiece Material Brass; Hard Material; Austenitic Stainless Steel; Titanium; Superalloys & Titanium; Magnesium; Copper; Steels; Hardened Steel; Soft Metal; Special Alloy; Stainless Steels; Carbon Steel; Tool Steel; Special Alloys; Steel; Bronze Alloy; Iron Alloy; High Temperature Alloys; Alloy Steel; Cast Iron; Nickel; Copper Alloy; Nickel Alloy; Titanium Alloy; Hardened Materials
• Secondary Workpiece Material Code S; M
• Standards ISO
• Shank Diameter (Decimal Inch) 0.1181
• Shank Diameter (mm) 3.0000
• Shank Length (Decimal Inch) 1.1417
• Shank Length (mm) 29.000
• Flute By Diameter Ratio 20xD
• Drill Bit Grade High Precision; High Performance
• Spiral Type Spiral Flute
• UNSPSC Code 23241600

This item is new and in the original sealed package. SOLD AS IS.

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
