M.A. Ford Carbide Square End Mill 1/2" Dia 5/8" LOC 13850010NF

M.A. Ford
Carbide Square End Mill

MSRP: $255.00

• Mill Diameter (Decimal Inch): 0.5000
• Mill Diameter (Inch): 1/2
• Number Of Flutes: 3
• End Mill Material: Solid Carbide
• Length of Cut (Decimal Inch): 0.6250
• Length of Cut (Inch): 5/8
• Shank Diameter (Decimal Inch): 0.5000
• Shank Diameter (Inch): 1/2
• Overall Length (Decimal Inch): 4.0000
• Overall Length (Inch): 4
• Single Or Double End: Single
• Coating/Finish Family: TiB2
• Centercutting: Yes
• Cutting Direction: Right Hand
• Flute Direction: Right Hand
• Extended Reach: Yes
• Coolant Through: No
• Helix Angle: 36
• Primary Workpiece Material: Aluminum & Non-Ferrous
• Primary Workpiece Material Code: N
• Coating/Finish: Fordlube
• Variable Helix: No
• Variable Index: No
• Chipbreaker: No
• Flute Type: Spiral
• Shank Type: Straight-Cylindrical
• Material Grade: Micrograin
• Neck Length (Decimal Inch): 2.1250
• Reach Length (Decimal Inch): 2.3800
• Length Of Cut Range (Decimal Inch): 0.6000 - 0.7000
• Mill Diameter Tolerance: +0.0000 to -0.0005 in
• Shank Diameter Tolerance: h6
• Series: 138N
• System Of Measurement: Fractional Inch
• UNSPSC Code: 27112803

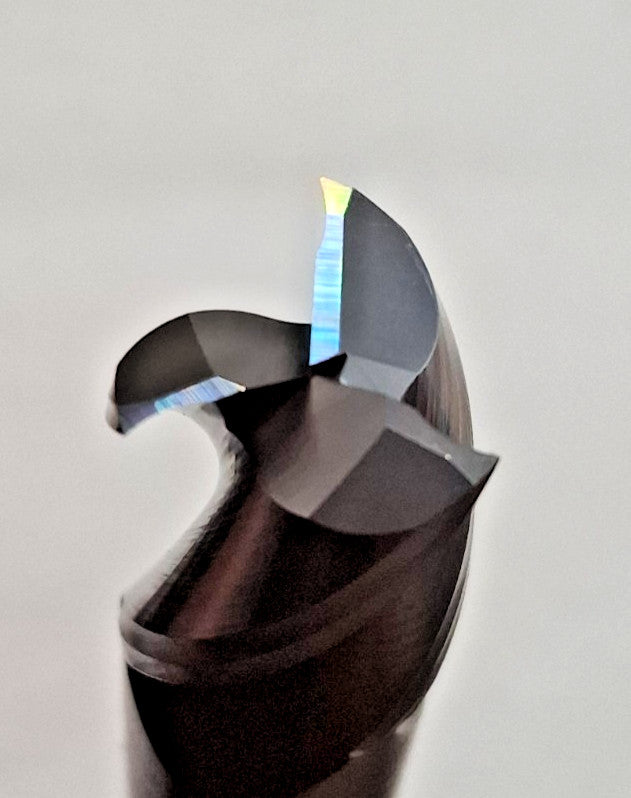

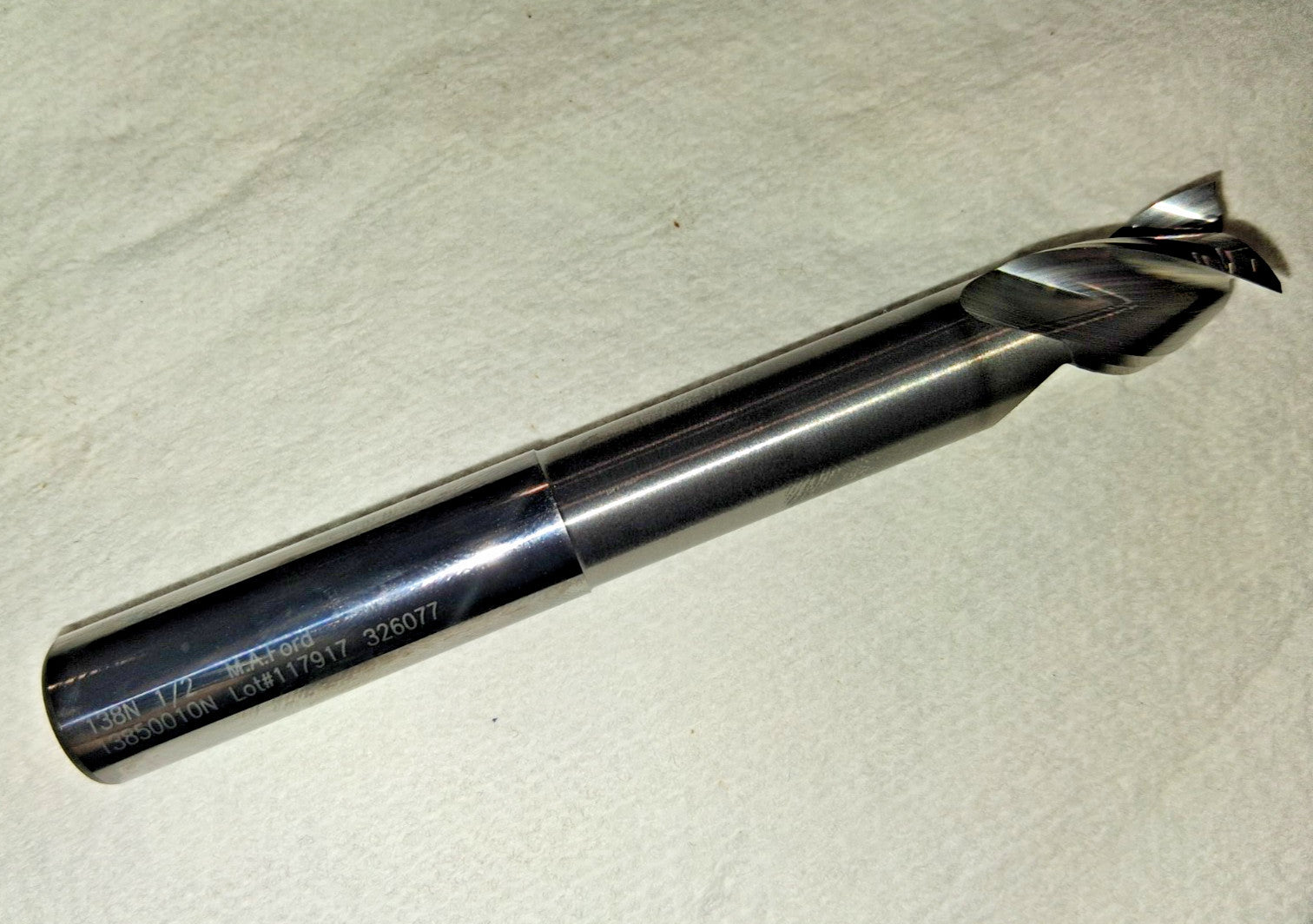

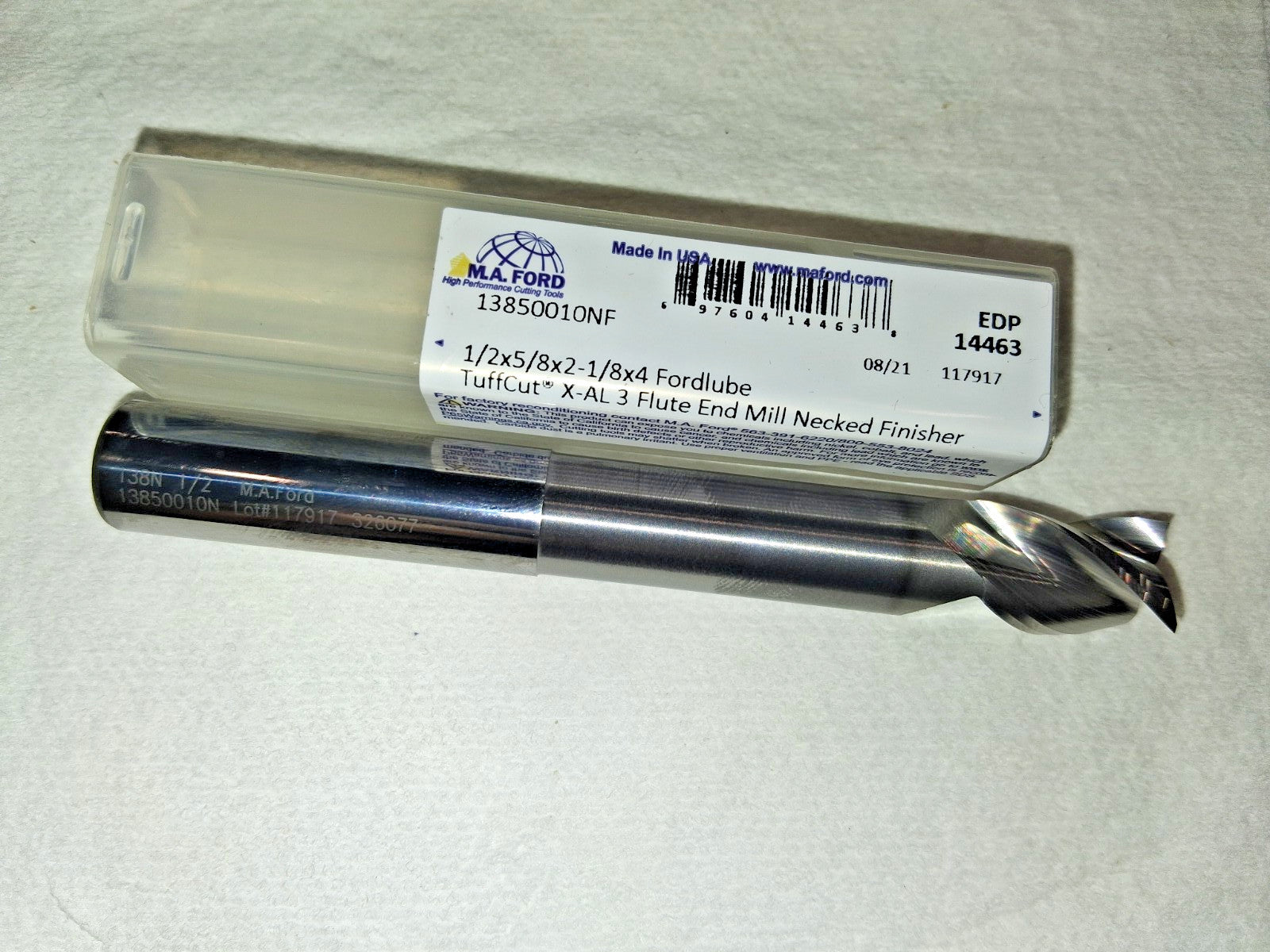

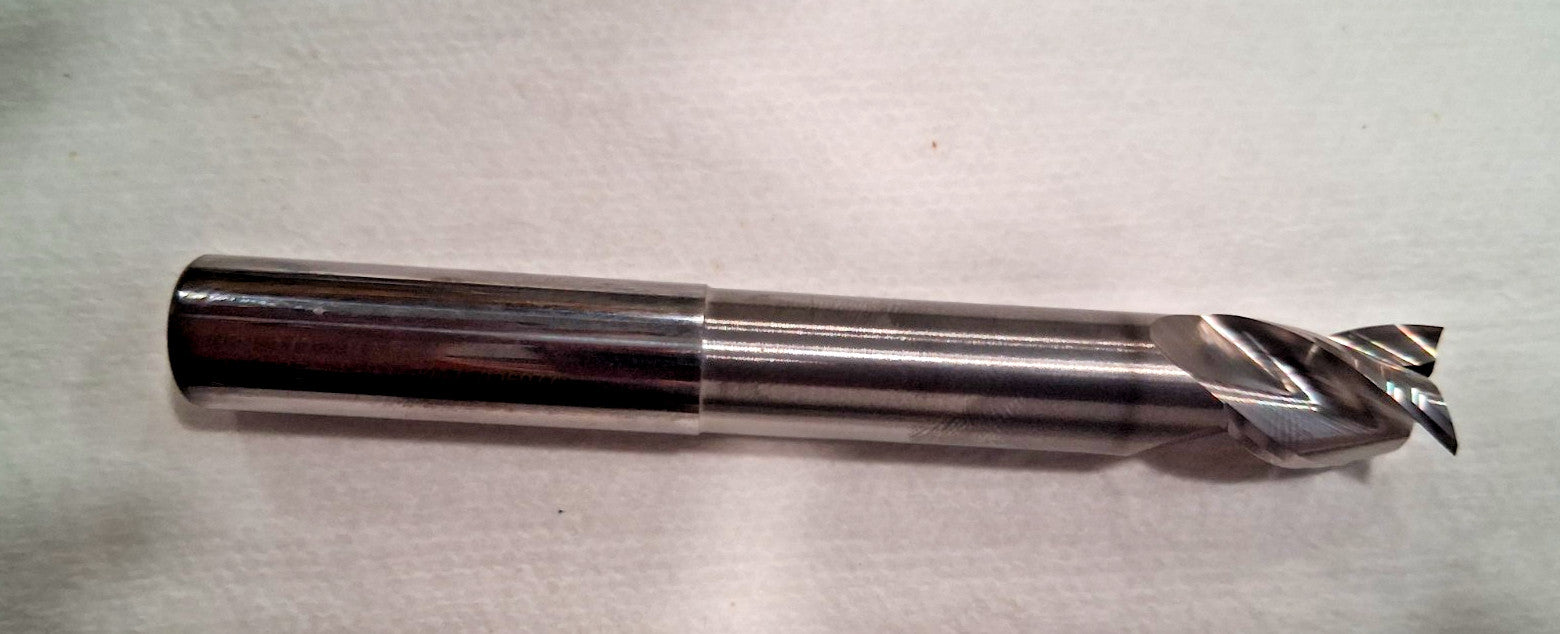

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
