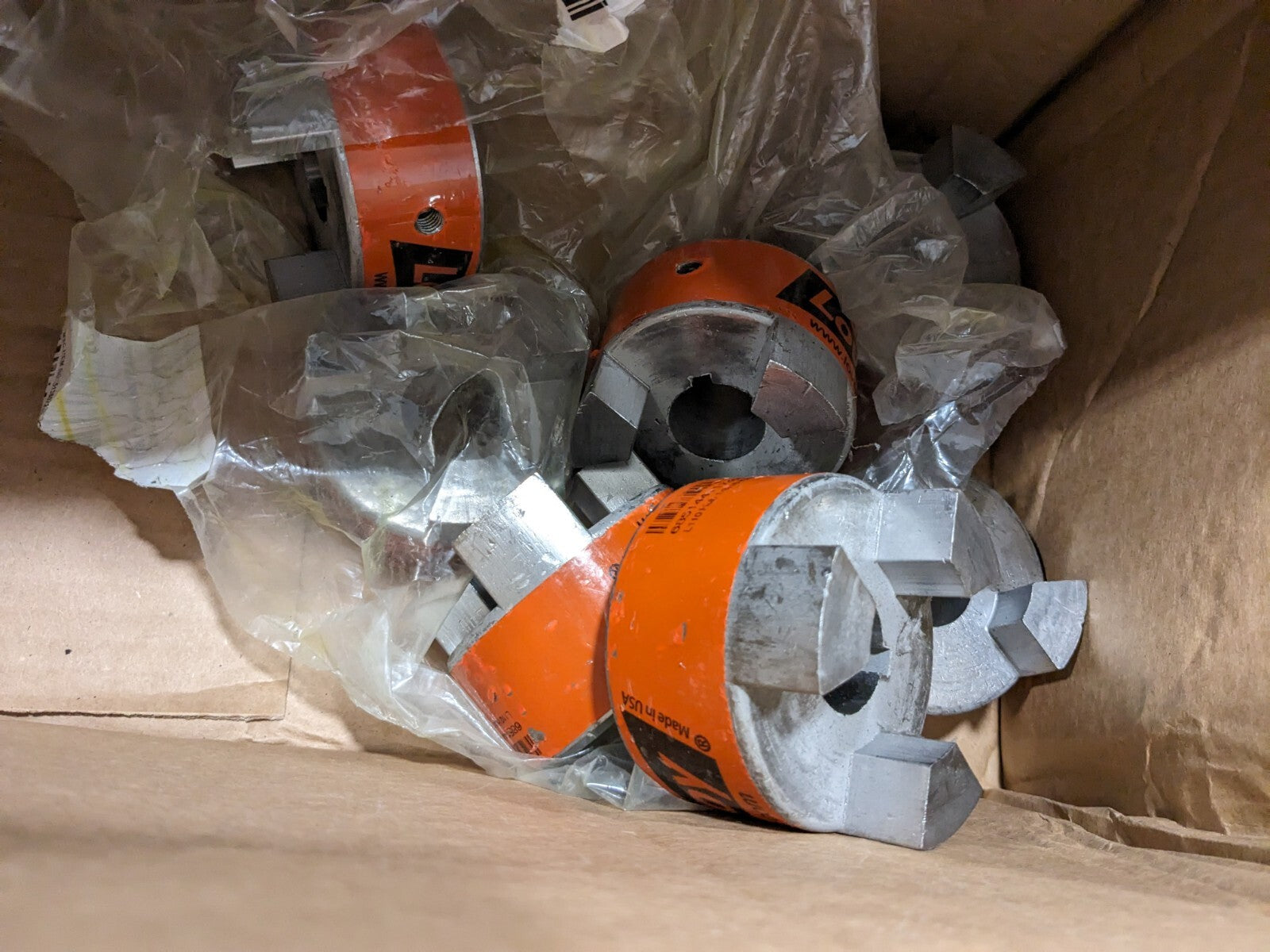

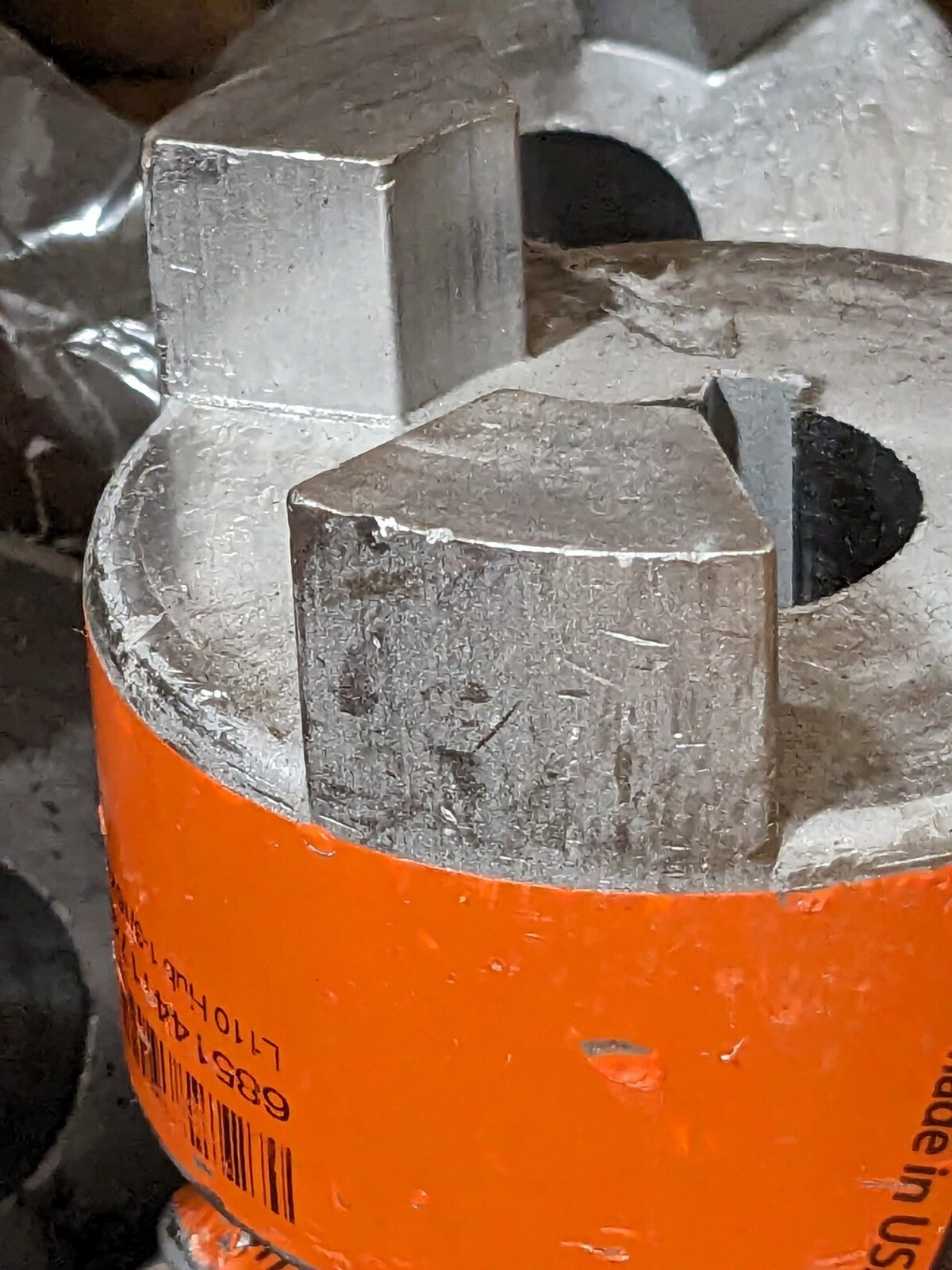

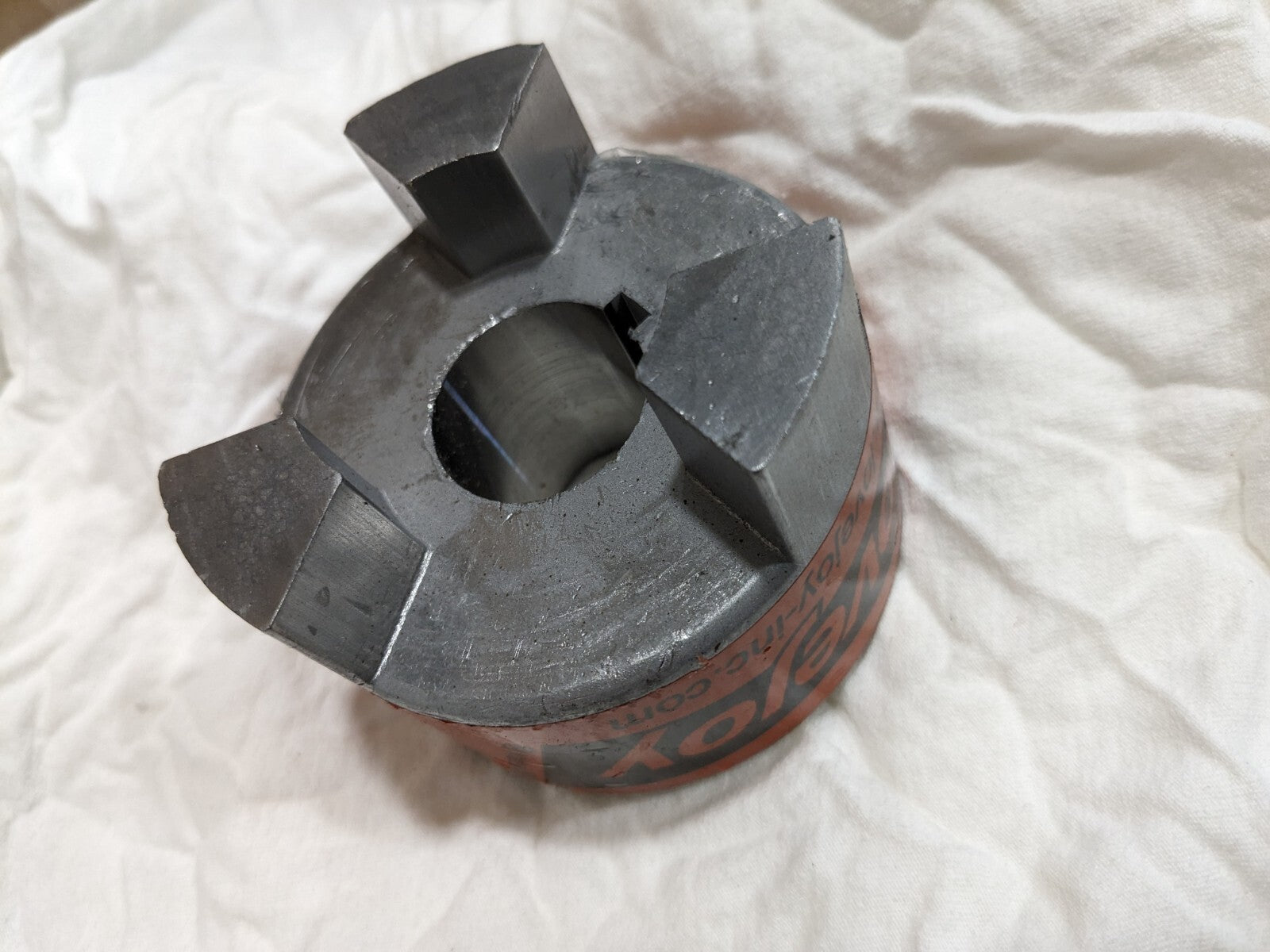

LOVEJOY 68514411742 Jaw Coupling Hubs 7ct 68514411742

LOVEJOY 68514411742 Jaw Coupling Hubs 7ct 68514411742

MSRP: $100

• Item L Type Hub
• # of Jaws 3
• Bore Size 1 3/16"
• Bore Type Bored
• Color Metallic
• Coupling Size L110
• Coupling Type L
• Dimension G 0.88"
• Dimension SL 0.75"
• Dimension T 3/8-16
• Elastomeric Member SOX (NBR) Rubber
• HP Rating @ 100 RPM 1.26hp
• HP Rating @ 1200 RPM 15.12hp
• HP Rating @ 1800 RPM 23hp
• HP Rating @ 3600 RPM 45.36 hp
• Hub Length 2.56"
• Hub Style 1
• Keyway with Keyway
• Keyway Depth 1/4" x 1/8"
• Keyway Size 1/4" x 1/8"
• Keyway Width 1/4" x 1/8"
• Length through Bore 1.68"
• Material Sintered Iron
• Max. Bore 1.625"
• Max. Speed 5000 rpm
• Min. Bore 0.625"
• Nominal Torque 792 in.-lbs.
• Number of Jaws 3
• Outside Dia. 3.32"
• Overall Length 4.22"
• Rated HP at 1,200 rpm 15.12 hp
• Rated HP at 1,800 rpm 23 hp
• Rated HP at 100 rpm 1.26 hp
• System of Measurement Imperial
• Thread Dia. 3/8"-16
• Threads Per Inch 3/8"-16

(Description).

Please review photos, comes as shown.
