KYOCERA WNMG432AH KW10 Carbide Turning Insert qty 10 TWE64432

KYOCERA

WNMG432AH KW10 Carbide Turning Insert qty 10 TWE64432
MSRP: $140

• Insert Style WNMG
• Insert Shape Code W
• Insert Size Code 432
• Insert Shape Trigon
• Coating/Finish Uncoated
• Manufacturer Grade KW10
• Corner Radius (Inch) 1/32
• Corner Radius (Decimal Inch) 0.0313
• Insert Material Solid Carbide
• Hole Diameter (Decimal Inch) 0.1500
• Inscribed Circle (Inch) 1/2
• Inscribed Circle (Decimal Inch) 0.5000
• Insert Holding Method Pin; Clamp
• Insert Hand Neutral
• Insert Thickness (Inch) 3/16
• Insert Thickness (Decimal Inch) 0.1875
• Clearance Code N
• Tolerance Code M
• Included Angle 80.0
• Relief Angle 0
• Series ISOI
• Coating Process Uncoated
• Rake Negative
• Number Of Cutting Edges 6
• Primary Workpiece Material Non-Ferrous Metal; Titanium Alloy
• Primary Workpiece Material Code S; N
• Secondary Workpiece Material Cast Iron
• Secondary Workpiece Material Code K
• Ansi Code WNMG432AHKW10
• Iso Code WNMG080408AH
• Standards ISO; ANSI
• Material Grade C3
• Chip Breaker AH

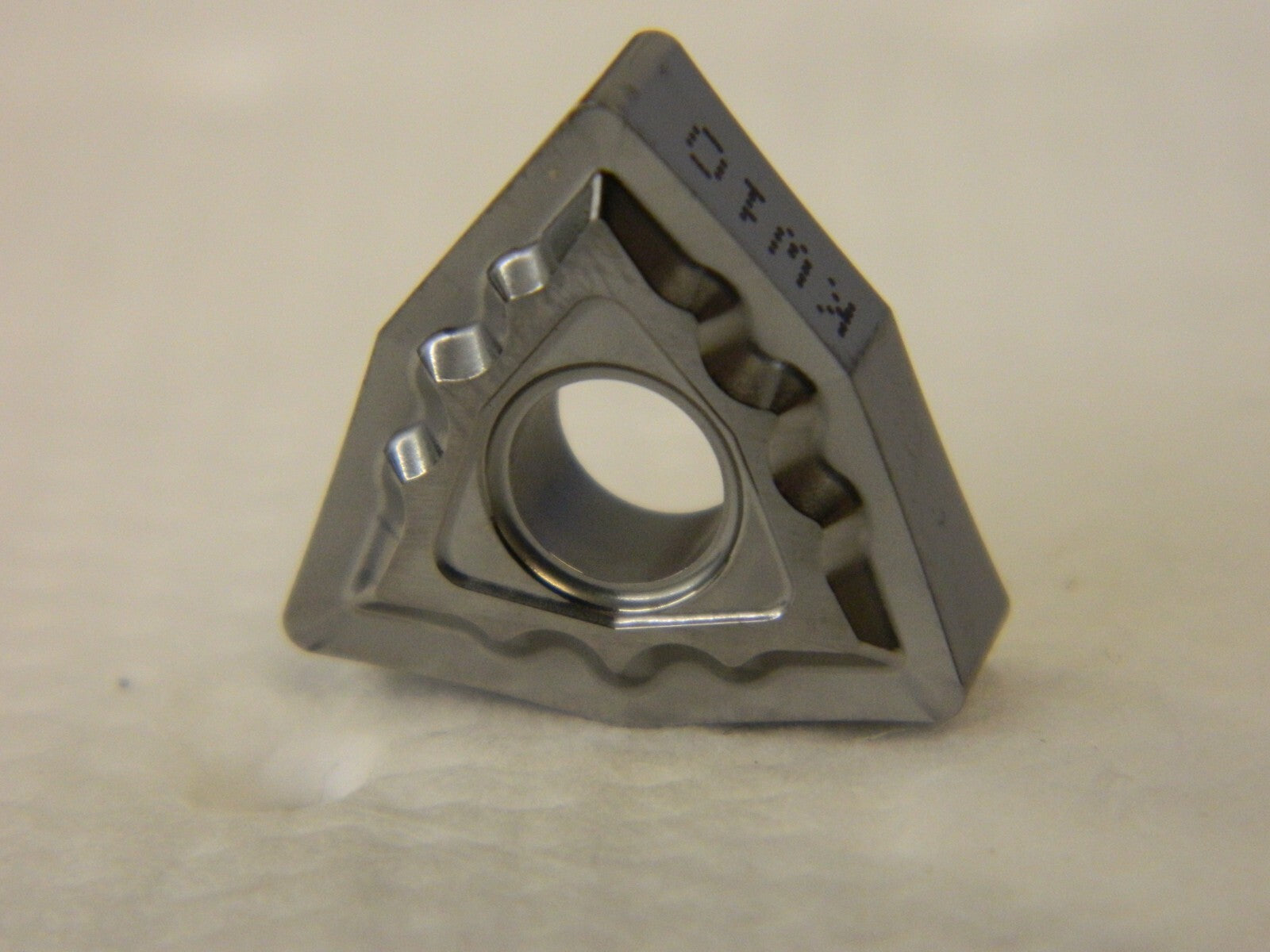

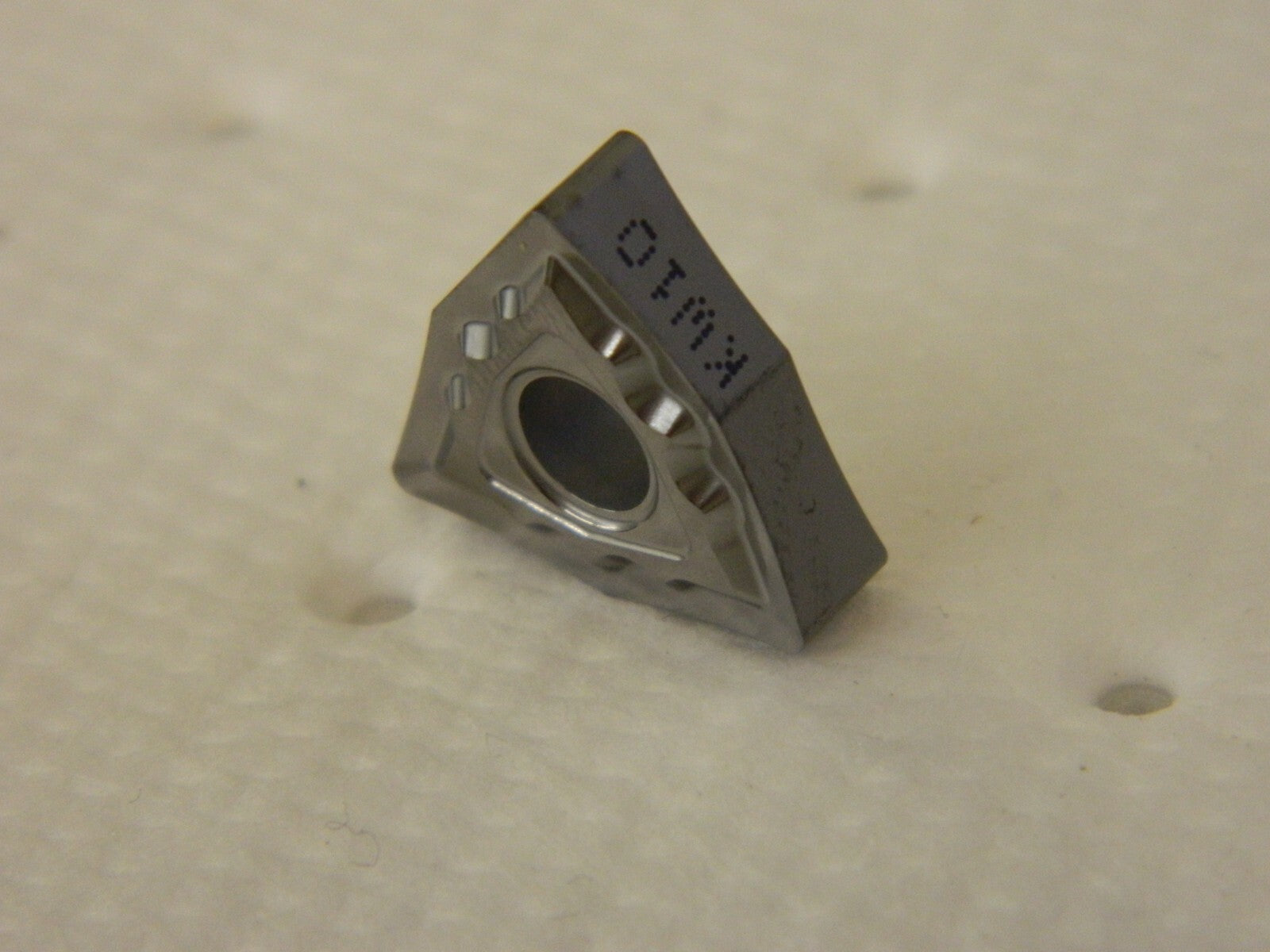

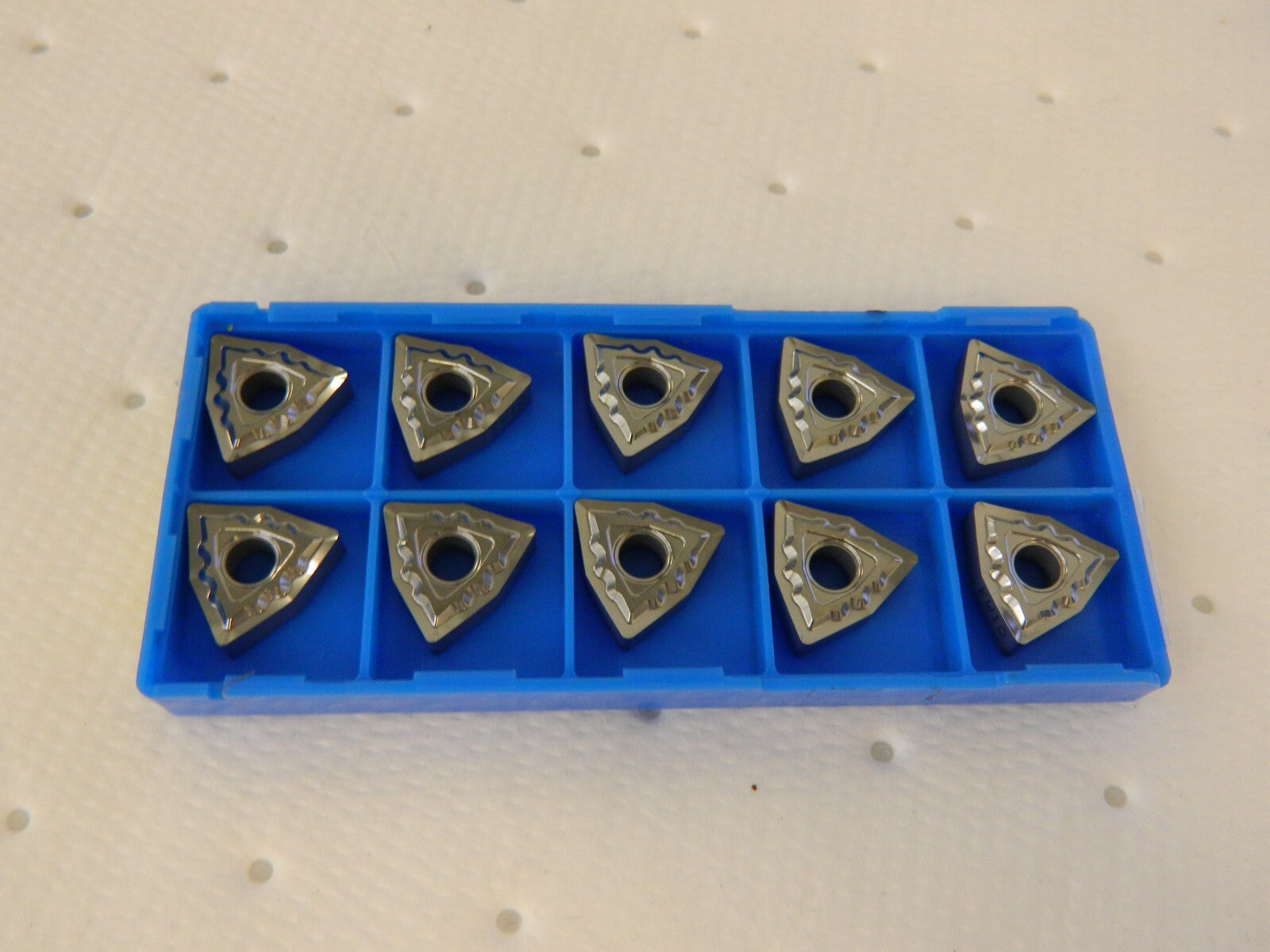

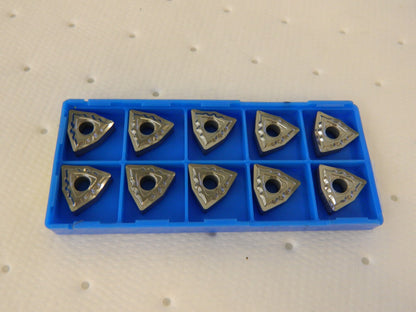

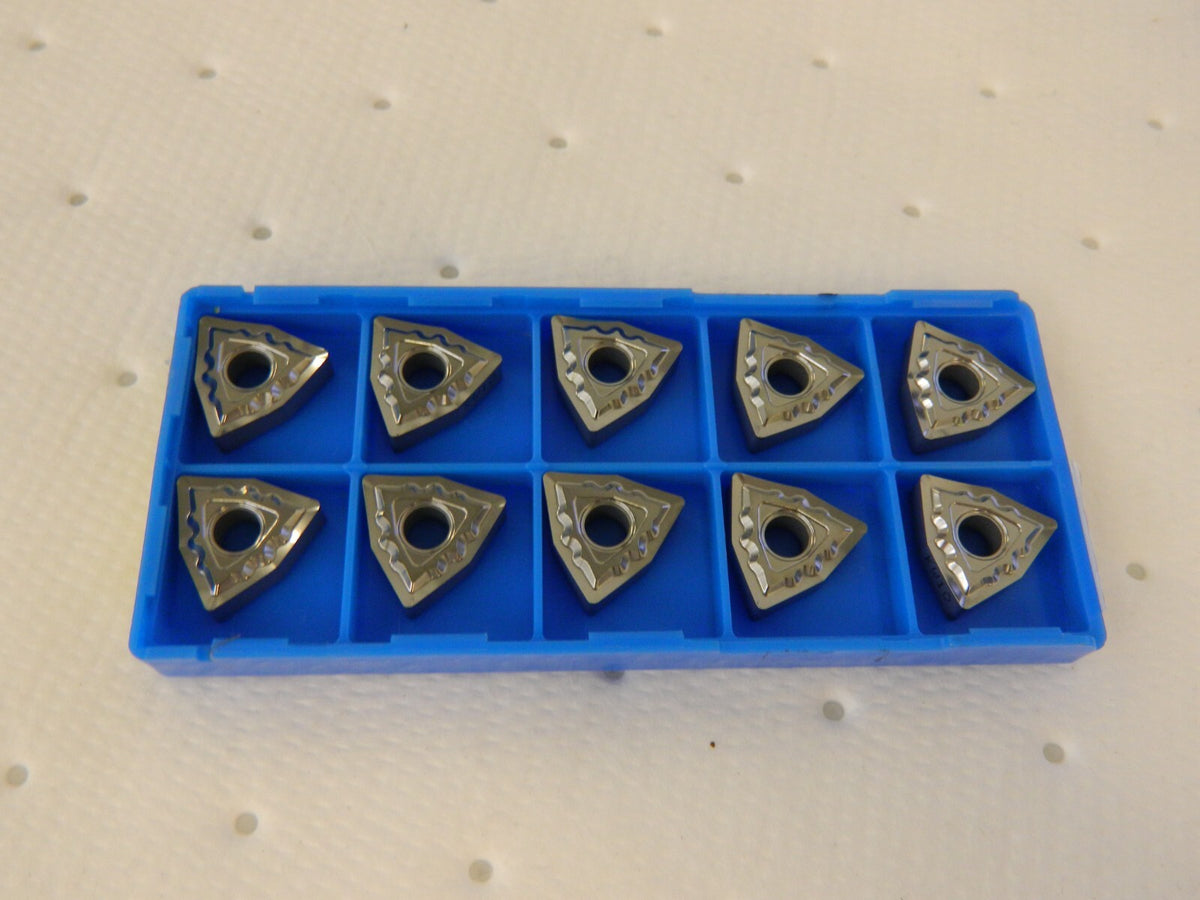

 Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
