KYOCERA Turning Inserts qty 10: SCMT32.52HQ TN60, Cermet TSJ01060

KYOCERA Turning Inserts qty 10: SCMT32.52HQ TN60, Cermet TSJ01060

MSRP: $100

• Insert Style SCMT
• Insert Size Code 3252
• Insert Shape Square
• Included Angle 90
• Inscribed Circle (Decimal Inch) 0.3750
• Corner Radius (Decimal Inch) 0.0313
• Insert Material Cermet
• Manufacturer Grade TN60
• Coating/Finish TiCN; NbC
• Relief Angle 7
• Wiper Edge No
• Insert Thickness (Decimal Inch) 0.1563
• Insert Hand Neutral
• Number Of Cutting Edges 4
• Insert Shape Code S
• Corner Radius (Inch) 1/32
• Hole Diameter (Decimal Inch) 0.1732
• Maximum Depth of Cut (Decimal Inch) 0.1250
• Inscribed Circle (Inch) 3/8
• Insert Holding Method Screw
• Width (Inch) 3/8
• Insert Thickness (Inch) 5/32
• Clearance Code C
• Tolerance Code M
• Series ISOI
• Coating Process Uncoated
• Length Range (Decimal Inch) 0.3000 - 0.4000
• Rake Positive
• Insert Length (Inch) 3/8
• Insert Length (Decimal Inch) 0.3750
• Primary Workpiece Material Steel
• Primary Workpiece Material Code P
• Iso Code SCMT09T308HQ
• Standards ISO; ANSI
• Manufacturers Catalog Number TSJ01060
• Material Grade P01; P10; P20
• UNSPSC Code 23242105
• Coating Classification Uncoated
• Chip Breaker HQ
• Rake Angle 15
• Cutting Edge Style Honed
• Industry Standard Number SCMT3252HQTN60
• Width (Decimal Inch - 4 Decimals) 0.375
• Width (Mm - 2 Decimals) 9.53
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application

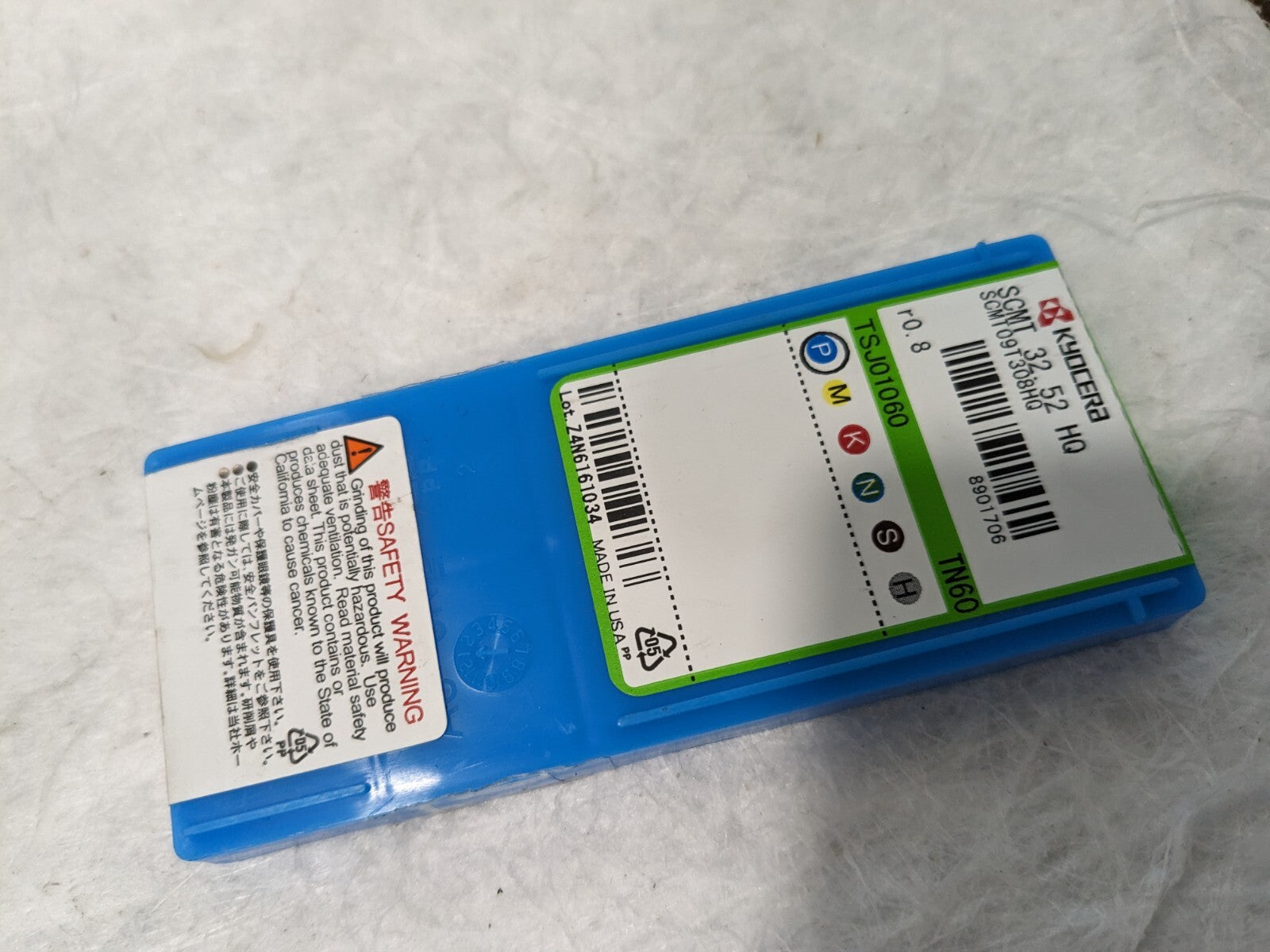

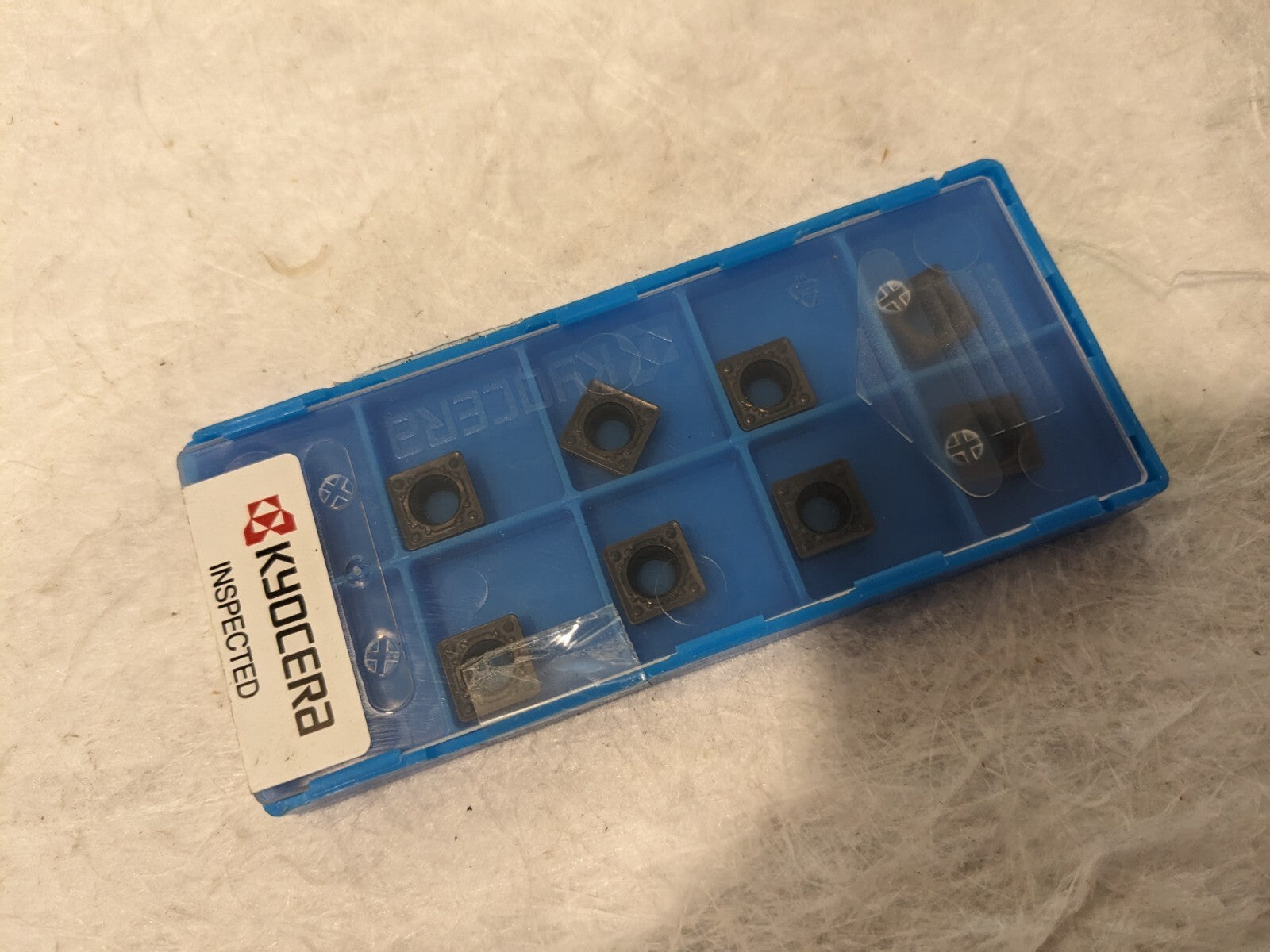

 Please review photos, comes as shown.
