KYOCERA Turning Inserts 8ct ABS15R4015 TC60 Cermet TSB01656

KYOCERA Turning Inserts 8ct ABS15R4015 TC60 Cermet TSB01656

MSRP: $250

• Insert Style ABS
• Insert Size Code 15-4015
• Insert Shape Irregular
• Included Angle 75
• Inscribed Circle (Decimal Inch) 0.2760
• Corner Radius (Decimal Inch) 0.0590
• Corner Radius (mm) 0.15
• Insert Material Cermet
• Manufacturer Grade TC60
• Coating/Finish NbC
• Relief Angle 15
• Wiper Edge No
• Insert Thickness 3.97
• Insert Thickness (Decimal Inch) 0.1563
• Insert Hand Right Hand
• Number Of Cutting Edges 2
• Insert Shape Code A
• Hole Diameter (Mm) ( - 0 Decimals) 3.00
• Hole Diameter (Decimal Inch) 0.1181
• Maximum Depth of Cut (mm) 4.20
• Maximum Depth of Cut (Decimal Inch) 0.1650
• Insert Holding Method Screw
• Insert Thickness (Inch) 5/32
• Clearance Code B
• Tolerance Code S
• Series APBT
• Coating Process Uncoated
• Length Range (Decimal Inch) 0.6000 - 0.6500
• Rake Positive
• Insert Length (Decimal Inch) 0.6063
• Insert Length (mm) 15.40
• Primary Workpiece Material Steel
• Primary Workpiece Material Code P
• Secondary Workpiece Material Stainless Steel
• Secondary Workpiece Material Code M
• Iso Code ABS15R4015
• Standards ISO; ANSI
• Manufacturers Catalog Number TSB01656
• Material Grade M20; M10; P10; P20
• UNSPSC Code 23242105
• Lead Angle 30
• Coating Classification Uncoated
• Chip Breaker Common
• Cutting Edge Style Honed
• Industry Standard Number ABS15R4015TC60
• Width (Decimal Inch - 4 Decimals) 0.2756
• Multi-Use Tool No
• Full Radius No
• Multi-Use Application Back Turning

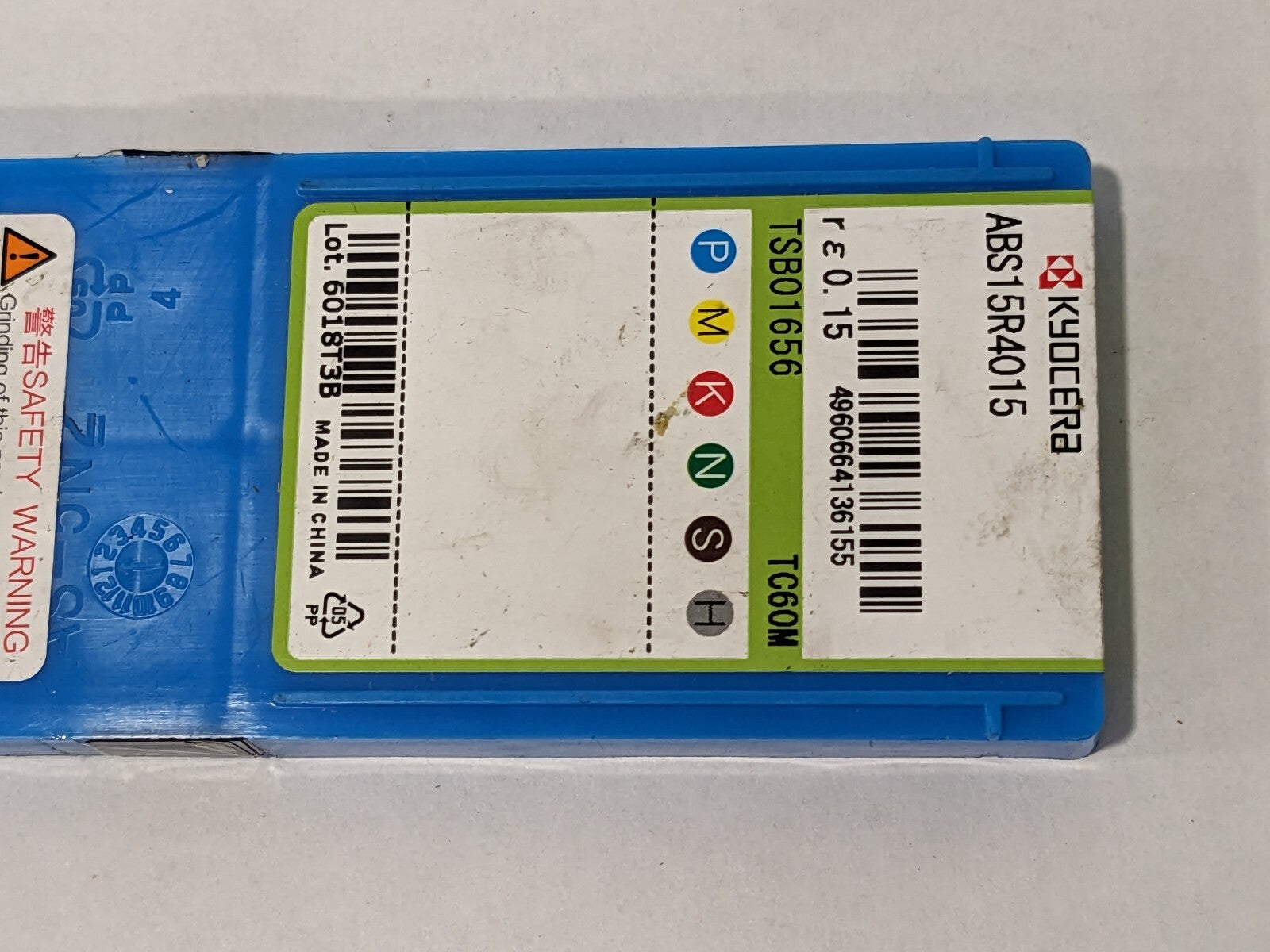

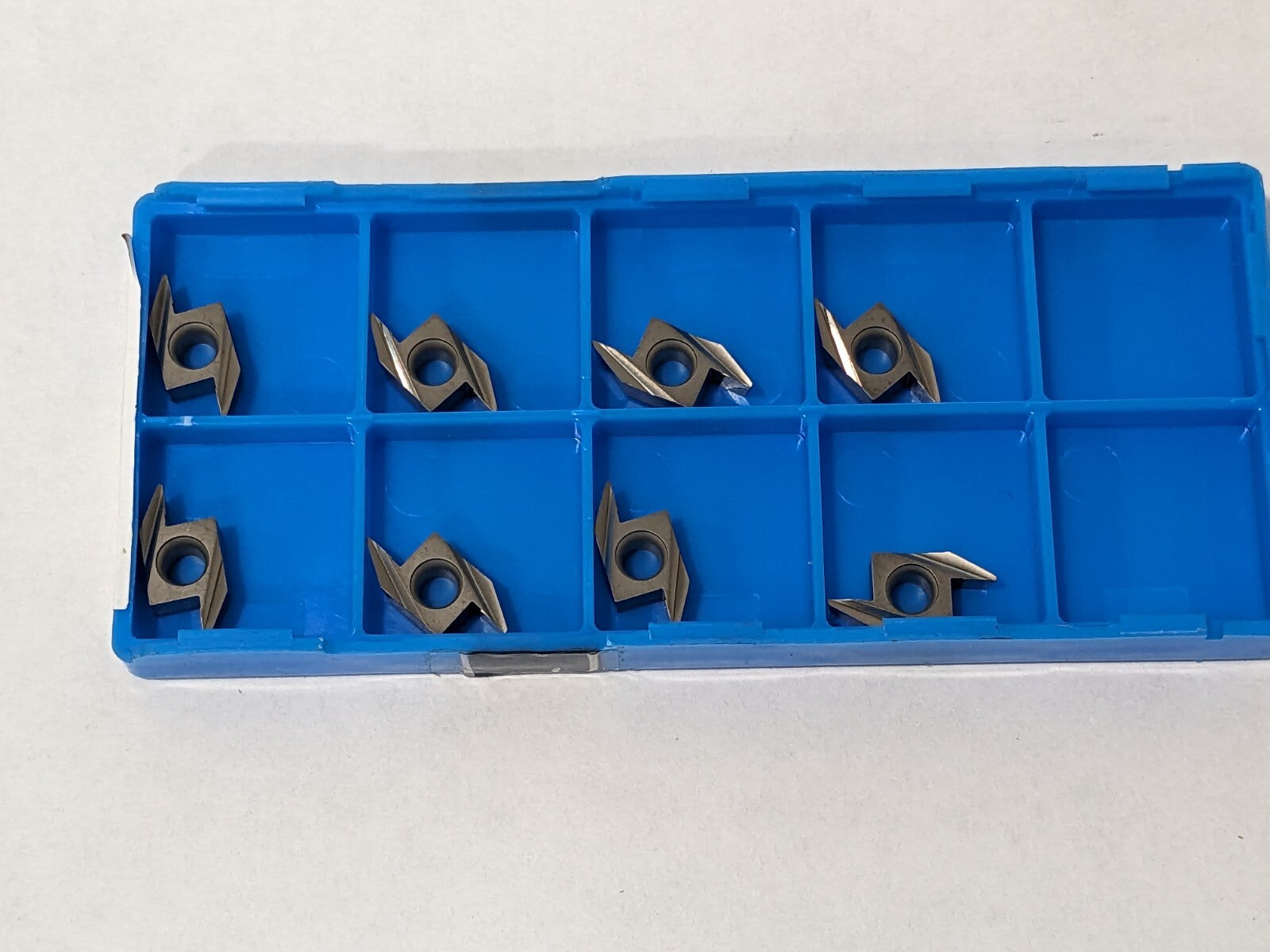

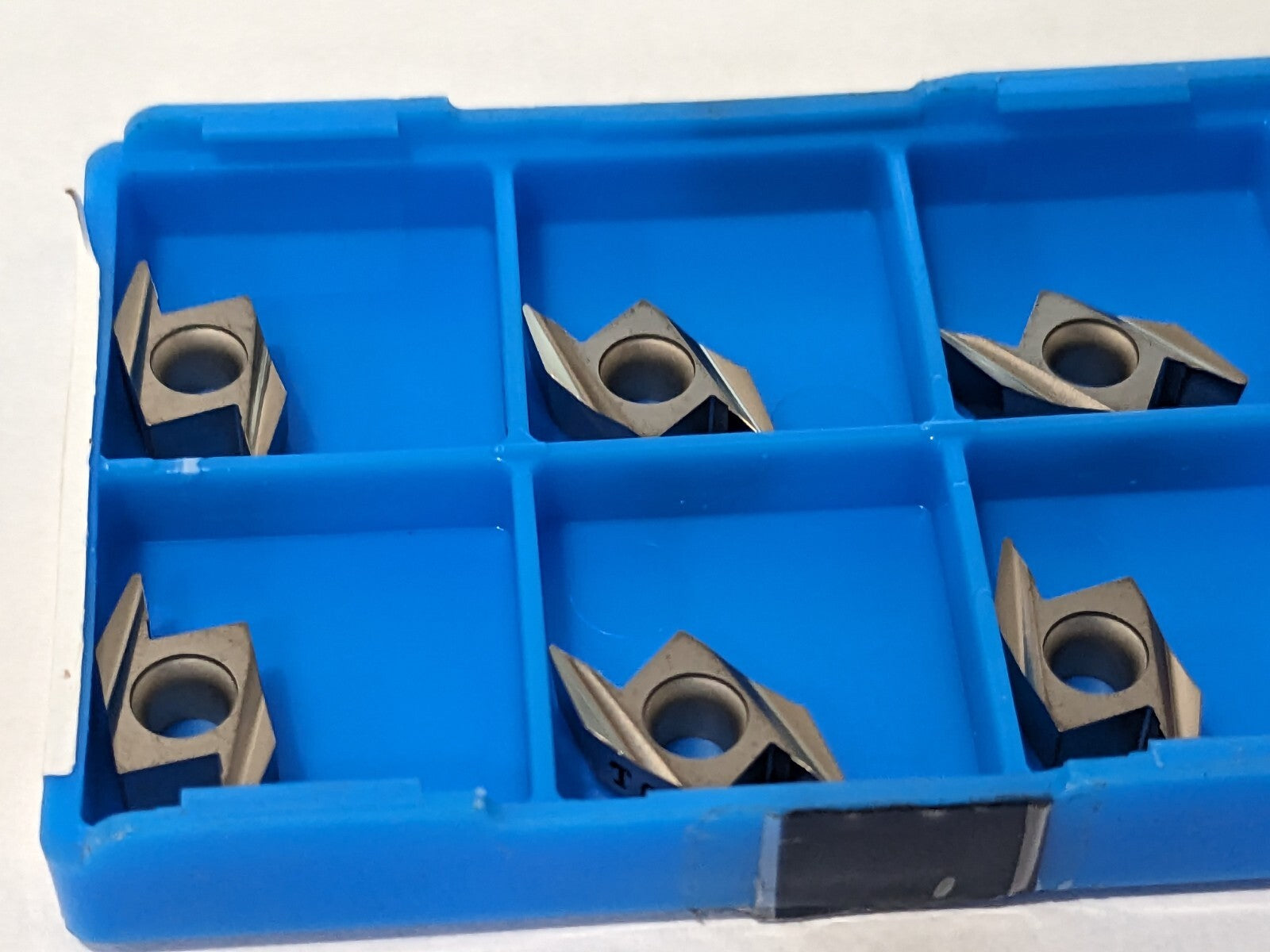

 Please review photos, comes as shown.
