KYOCERA Turning Inserts 7ct DNGA433T00825 A65 Ceramic TCR00971
KYOCERA Turning Inserts 7ct DNGA433T00825 A65 Ceramic TCR00971
Regular price
$97.90 USD
Regular price
$200.00 USD
Sale price
$97.90 USD
Shipping calculated at checkout.
Couldn't load pickup availability
KYOCERA Turning Inserts 7ct DNGA433T00825 A65 Ceramic TCR00971
MSRP: $200
Insert Style DNGA
Insert Size Code 433
Insert Shape Diamond
Included Angle 55
Inscribed Circle (Decimal Inch) 0.5000
Corner Radius (Decimal Inch) 0.0469
Insert Material Ceramic
Manufacturer Grade A65
Coating/Finish Al2O3; TiC
Relief Angle 0
Wiper Edge No
Insert Thickness (Decimal Inch) 0.1875
Insert Hand Neutral
Number Of Cutting Edges 4
Insert Shape Code D
Corner Radius (Inch) 3/64
Hole Diameter (Mm) ( - 0 Decimals) 5.16
Hole Diameter (Decimal Inch) 0.2032
Maximum Depth of Cut (Decimal Inch) 0.3940
Inscribed Circle (Inch) 1/2
Insert Holding Method Pin; Clamp
Width (Inch) 1/2
Insert Thickness (Inch) 3/16
Clearance Code N
Tolerance Code G
Series ISOI
Coating Process Uncoated
Length Range (Decimal Inch) 0.7000 - 10.0000
Rake Negative
Insert Length (Decimal Inch) 1.1820
Insert Length (mm) 15.00
Primary Workpiece Material Hard Material; Cast Iron
Primary Workpiece Material Code H; K
Secondary Workpiece Material Hard Material
Secondary Workpiece Material Code H
Iso Code DNGA150412T02025
Standards ISO; ANSI
Manufacturers Catalog Number TCR00971
Material Grade H10; H01; K10; K01
UNSPSC Code 23242105
Coating Classification Uncoated
Industry Standard Number DNGA433T00825A65
Width (Decimal Inch - 4 Decimals) 0.5
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Copying; Boring

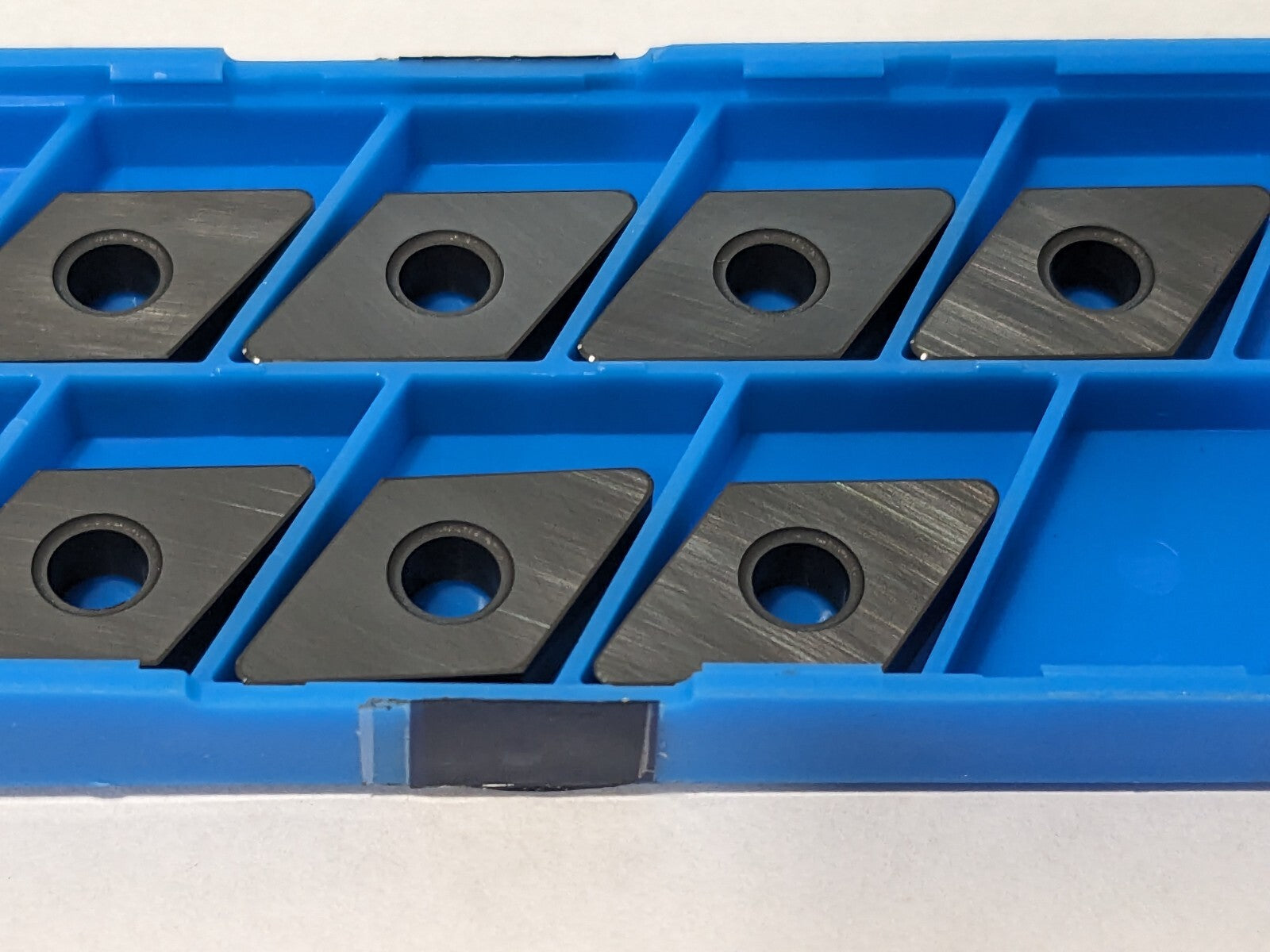

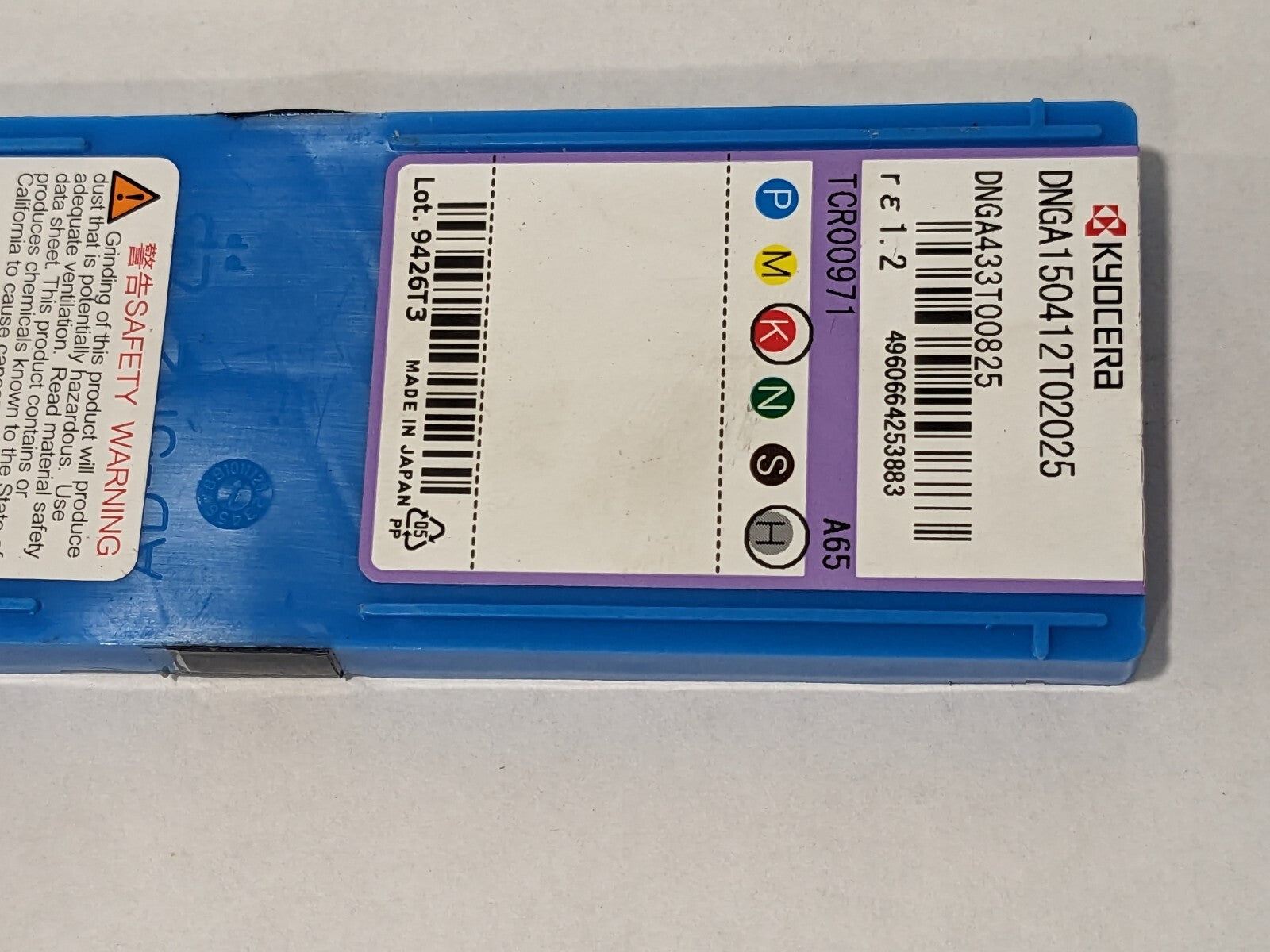

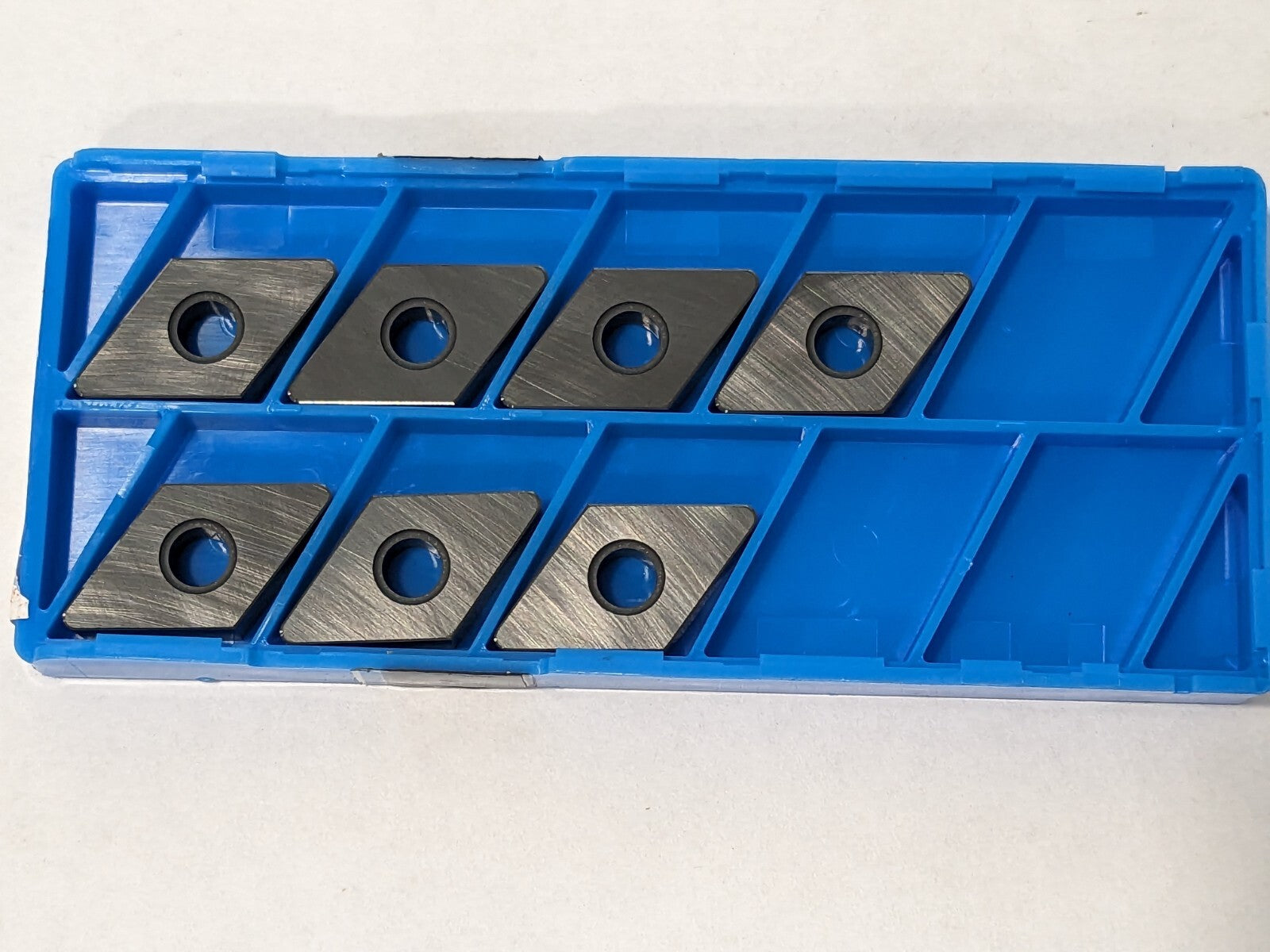

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
HS5095
