KYOCERA Turning Inserts 7ct CNMG433HQ TN60 Cermet TSJ00335

KYOCERA Turning Inserts 7ct CNMG433HQ TN60 Cermet TSJ00335

MSRP: $100

• Insert Style CNMG
• Insert Size Code 433
• Insert Shape Diamond
• Included Angle 80
• Inscribed Circle (Decimal Inch) 0.5000
• Corner Radius (Decimal Inch) 0.0469
• Insert Material Cermet
• Manufacturer Grade TN60
• Coating/Finish TiCN; NbC
• Relief Angle 0
• Wiper Edge No
• Insert Thickness (Decimal Inch) 0.1875
• Insert Hand Neutral
• Number Of Cutting Edges 4
• Insert Shape Code C
• Corner Radius (Inch) 3/64
• Hole Diameter (Decimal Inch) 0.2032
• Maximum Depth of Cut (Decimal Inch) 0.1667
• Inscribed Circle (Inch) 1/2
• Insert Holding Method Pin; Clamp
• Width (Inch) 1/2
• Insert Thickness (Inch) 3/16
• Clearance Code N
• Tolerance Code M
• Series ISOI
• Coating Process Uncoated
• Length Range (Decimal Inch) 0.5000 - 0.6000
• Rake Negative
• Insert Length (Inch) 1/2
• Insert Length (Decimal Inch) 0.5000
• Primary Workpiece Material Steel
• Primary Workpiece Material Code P
• Secondary Workpiece Material Stainless Steel
• Secondary Workpiece Material Code M
• Iso Code CNMG120412HQ
• Standards ISO; ANSI
• Manufacturers Catalog Number TSJ00335
• Material Grade P01; P10; P20
• UNSPSC Code 23242105
• Coating Classification Uncoated
• Chip Breaker HQ
• Rake Angle -15
• Cutting Edge Style Honed
• Industry Standard Number CNMG433HQTN60
• Width (Decimal Inch - 4 Decimals) 0.5
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application External Turning; Chamfering; Facing; Internal Facing; Boring

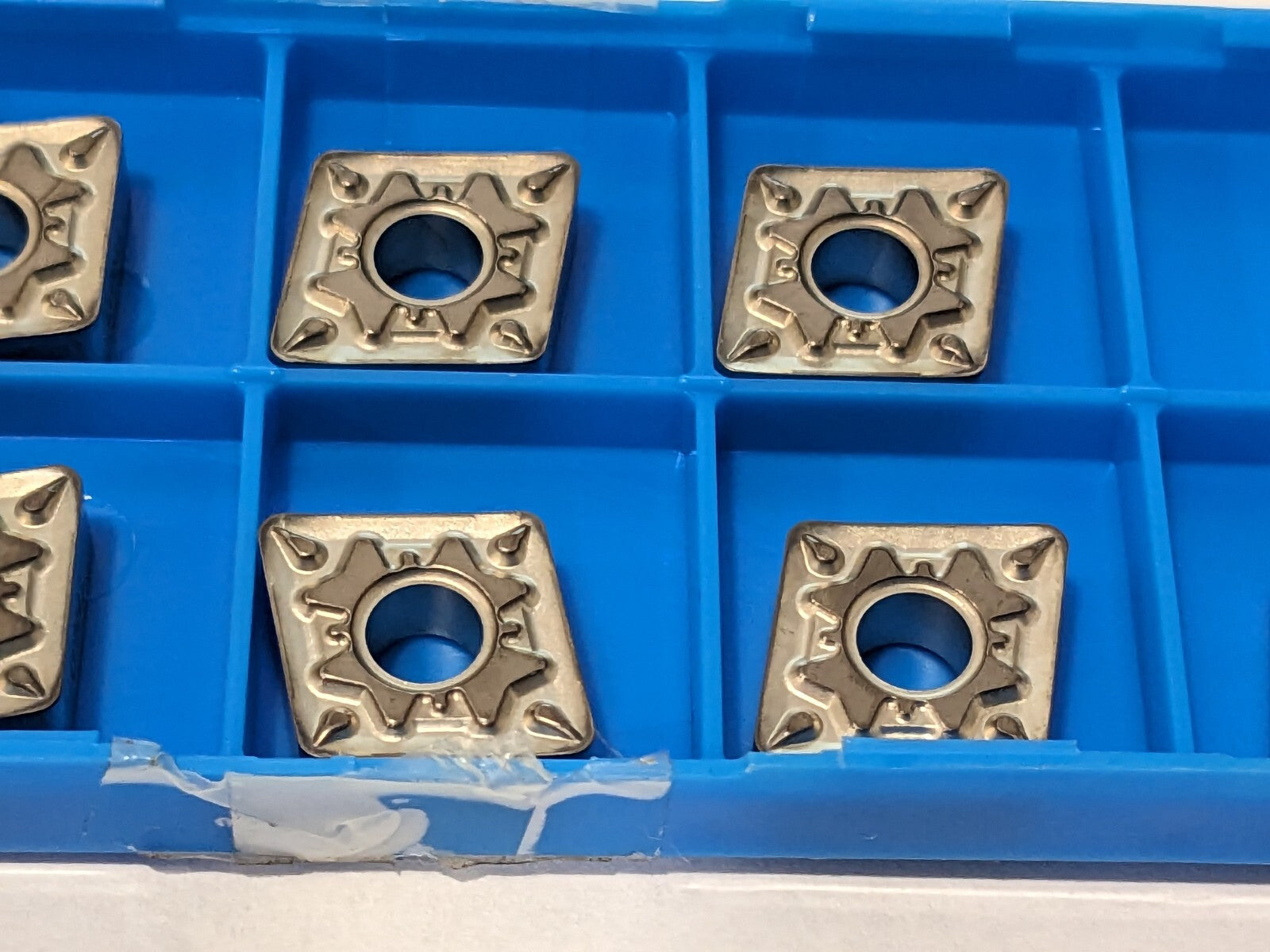

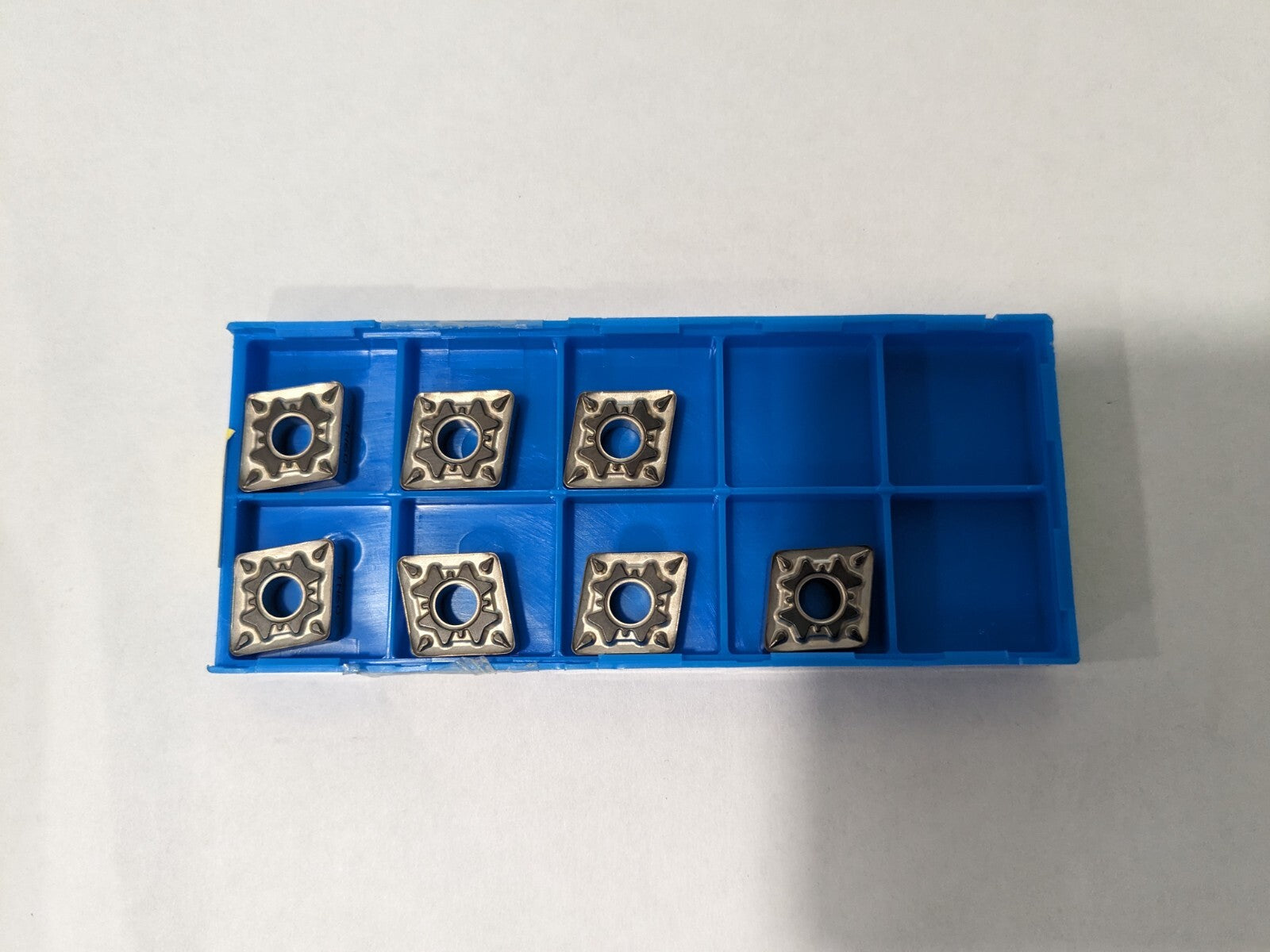

Please review photos, comes as shown.
