KYOCERA Turning Inserts 5pk : DNMG433GS PV90, Cermet TKZ00862

KYOCERA Turning Inserts 5pk : DNMG433GS PV90, Cermet TKZ00862

MSRP: $110

• Insert Style DNMG
• Insert Size Code 433
• Insert Shape Diamond 55°
• Included Angle 55
• Inscribed Circle (Decimal Inch) 0.5000
• Corner Radius (Decimal Inch) 0.0469
• Insert Material Cermet
• Manufacturer Grade PV90
• Coating/Finish TiN
• Relief Angle 0
• Wiper Edge No
• Insert Thickness (Decimal Inch) 0.1875
• Insert Hand Neutral
• Number Of Cutting Edges 4
• Insert Shape Code D
• Corner Radius (Inch) 3/64
• Hole Diameter (Decimal Inch) 0.2032
• Maximum Depth of Cut (Decimal Inch) 0.3940
• Inscribed Circle (Inch) 1/2
• Insert Holding Method Pin; Clamp
• Width (Inch) 1/2
• Insert Thickness (Inch) 3/16
• Clearance Code N
• Tolerance Code M
• Series ISOI
• Coating Process Uncoated
• Length Range (Decimal Inch) 0.7000 - 10.0000
• Rake Negative
• Insert Length (Decimal Inch) 1.1820
• Primary Workpiece Material Stainless Steel; Steel
• Primary Workpiece Material Code P; M
• Secondary Workpiece Material Stainless Steel
• Iso Code DNMG150412GS
• Standards ISO; ANSI
• Manufacturers Catalog Number TKZ00862
• Material Grade P01; M20; M10; P10; P20; M01
• UNSPSC Code 23242105
• Coating Classification Uncoated
• Chip Breaker GS
• Rake Angle -8
• Cutting Edge Style Chamfered & Honed
• Industry Standard Number DNMG433GSPV90
• Width (Decimal Inch - 4 Decimals) 0.5
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application External Turning; Copying; Boring

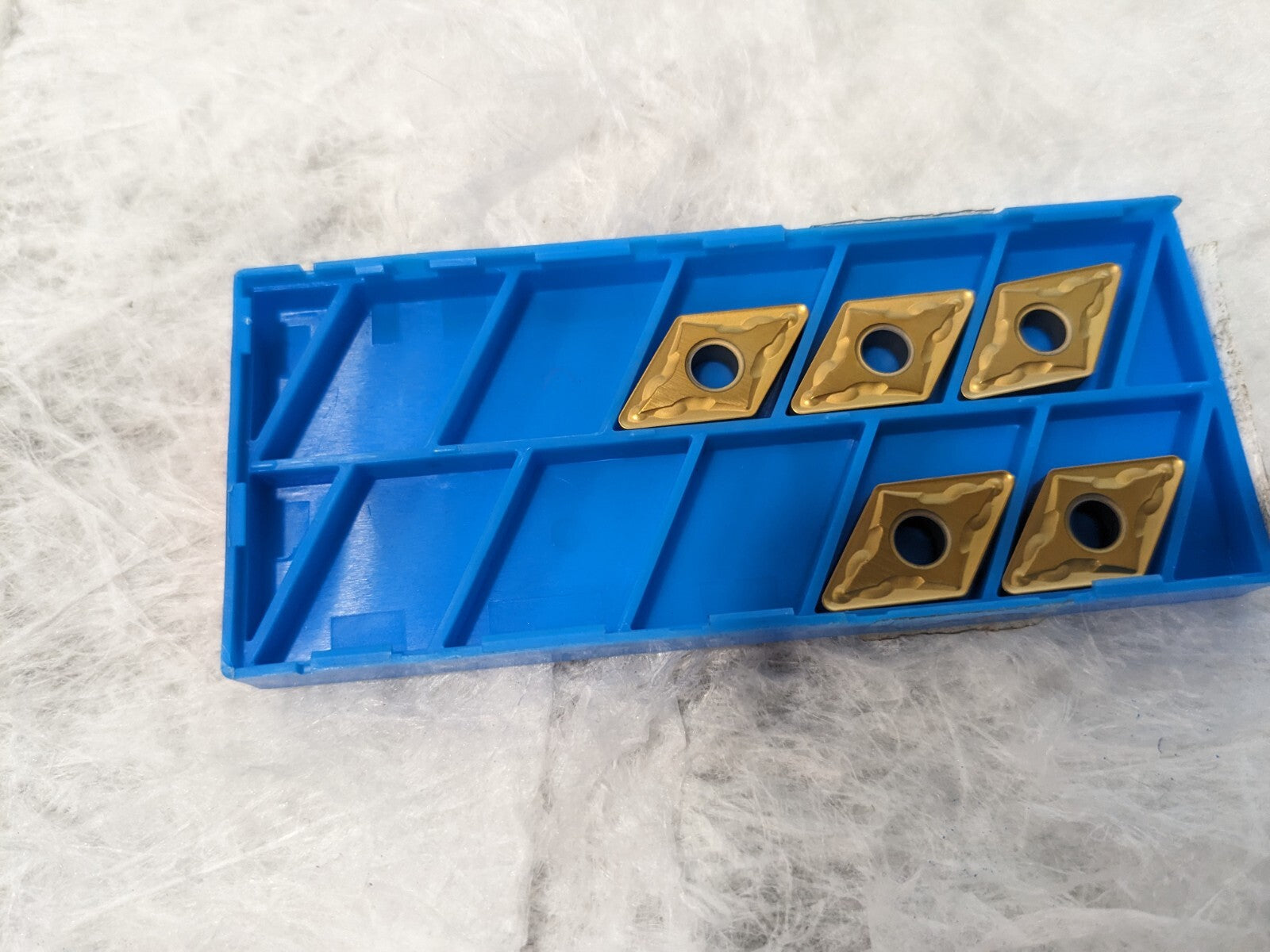

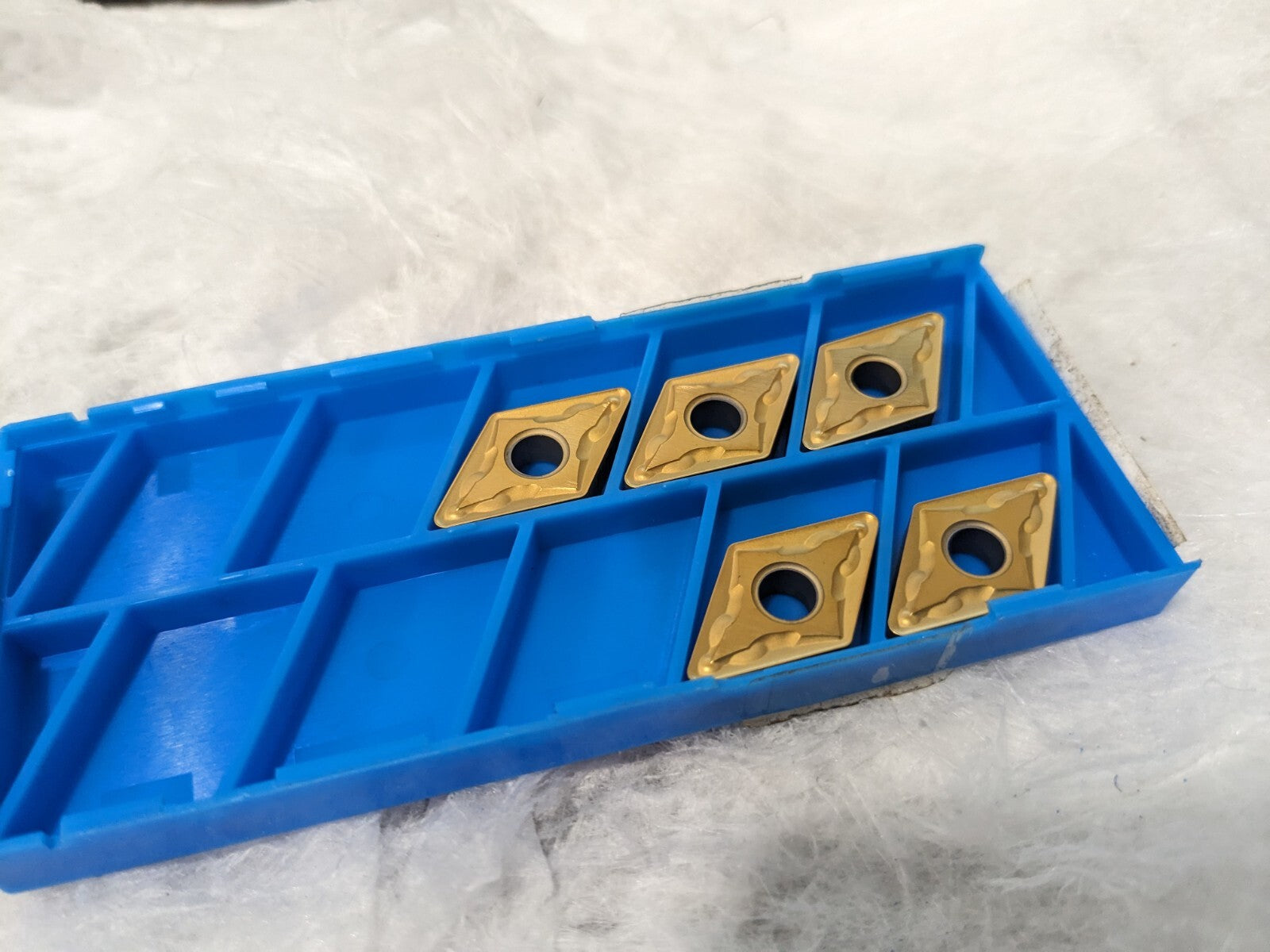

Please review photos, comes as shown.
