KYOCERA Turning Inserts 10pk: VBGT2202MRY PR1225, Solid Carbide TKE07463
KYOCERA Turning Inserts 10pk: VBGT2202MRY PR1225, Solid Carbide TKE07463
Regular price
$117.48 USD
Regular price
$240.00 USD
Sale price
$117.48 USD
Shipping calculated at checkout.
Couldn't load pickup availability
KYOCERA Turning Inserts 10pk: VBGT2202MRY PR1225, Solid Carbide TKE07463
MSRP: $240
Insert Style VBGT
Insert Size Code 2202
Insert Shape Diamond 35°
Included Angle 35
Inscribed Circle (Decimal Inch) 0.2500
Corner Radius (Decimal Inch) 0.0040
Insert Material Carbide
Manufacturer Grade PR1225
Coating/Finish MEGACOAT
Relief Angle 5
Wiper Edge No
Insert Thickness 3.17
Insert Thickness (Decimal Inch) 0.1250
Insert Hand Right Hand
Number Of Cutting Edges 2
Insert Shape Code V
Corner Radius (Inch) 1/256
Hole Diameter (Mm) ( - 0 Decimals) 2.79
Hole Diameter (Decimal Inch) 0.1102
Maximum Depth of Cut (Decimal Inch) 0.2907
Inscribed Circle (Inch) 1/4
Inscribed Circle (mm) 6.35
Insert Holding Method Screw
Width (Inch) 1/4
Insert Thickness (Inch) 1/8
Clearance Code B
Tolerance Code G
Series ISOI
Coating Process PVD
Length Range (Decimal Inch) 0.7000 - 10.0000
Rake Positive
Insert Length (Decimal Inch) 0.8720
Primary Workpiece Material Stainless Steel
Primary Workpiece Material Code M
Secondary Workpiece Material Steel
Secondary Workpiece Material Code P
Iso Code VBGT110301MR-Y
Standards ISO; ANSI
Manufacturers Catalog Number TKE07463
Material Grade M40; M20; M30; P30; M10; P10; P20
UNSPSC Code 23242105
Coating Classification PVD
Chip Breaker Y
Rake Angle 14
Cutting Edge Style Honed
Industry Standard Number VBGT2202MRYPR1225
Width (Decimal Inch - 4 Decimals) 0.25
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Back Boring; Facing; Copying; Profiling; Undercutting; Internal Facing
(Description).

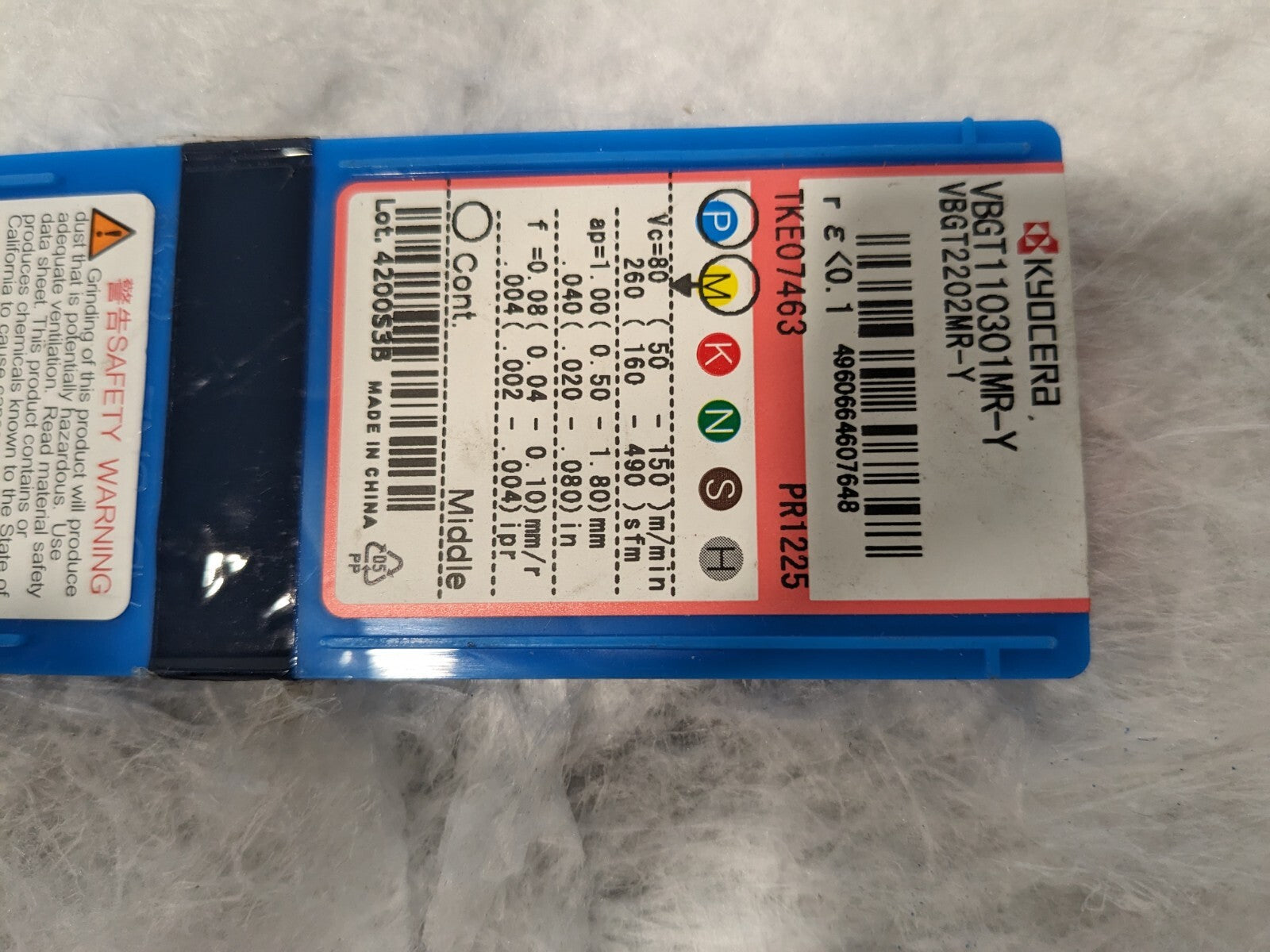

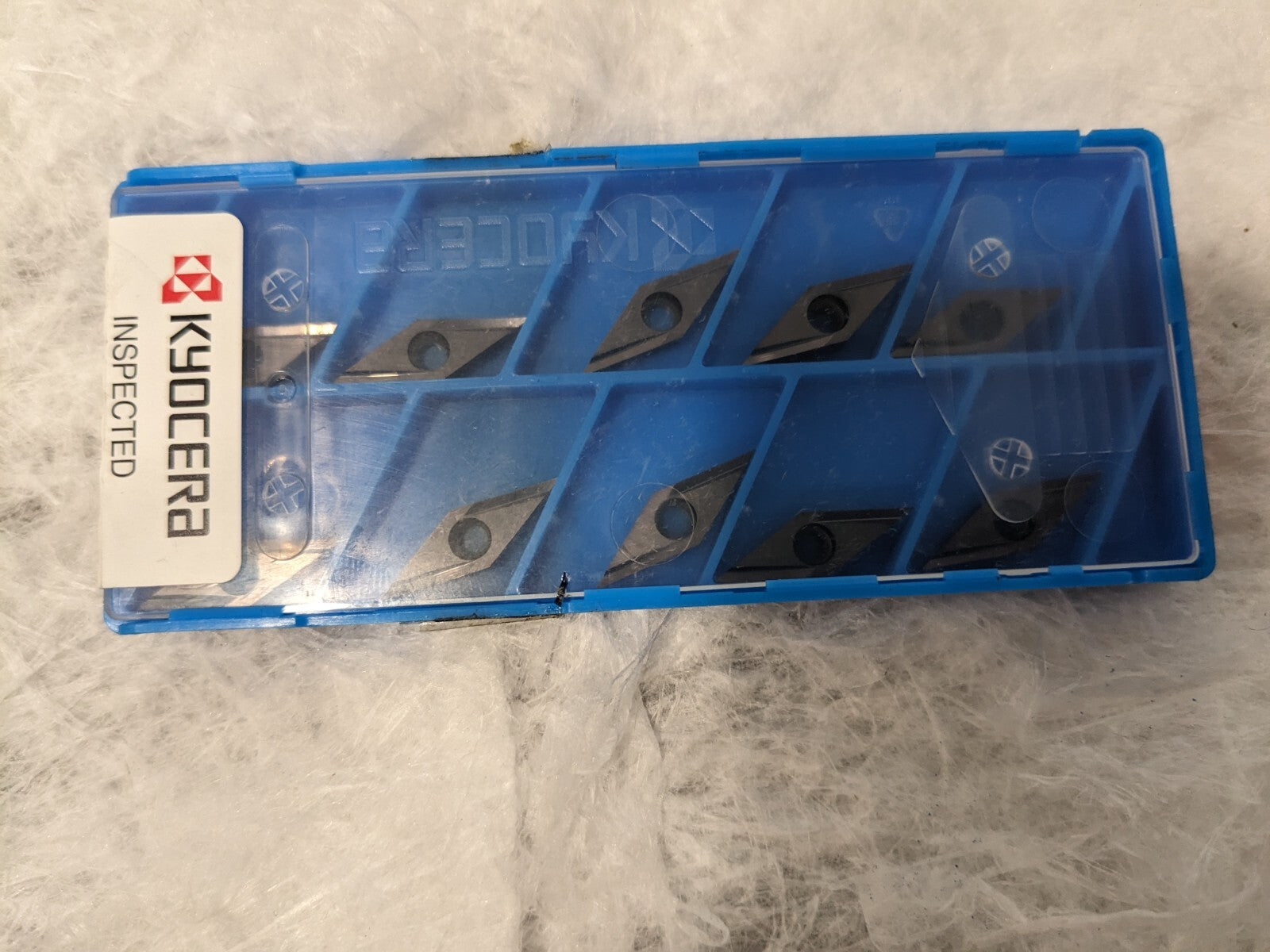

Please review photos, comes as shown.
