KYOCERA Turning Inserts 10ct WNMG432GP PV720 Cermet TLD08587
KYOCERA Turning Inserts 10ct WNMG432GP PV720 Cermet TLD08587
Regular price
$73.42 USD
Regular price
$150.00 USD
Sale price
$73.42 USD
Shipping calculated at checkout.
Couldn't load pickup availability
KYOCERA Turning Inserts 10ct WNMG432GP PV720 Cermet TLD08587
MSRP: $150
Insert Style WNMG
Insert Size Code 432
Insert Shape Trigon
Included Angle 80
Inscribed Circle (Decimal Inch) 0.5000
Corner Radius (Decimal Inch) 0.0313
Corner Radius (mm) 0.79
Insert Material Cermet
Manufacturer Grade PV720
Coating/Finish TiCN
Relief Angle 0
Wiper Edge No
Insert Thickness 4.76
Insert Thickness (Decimal Inch) 0.1875
Insert Hand Neutral
Number Of Cutting Edges 6
Insert Shape Code W
Corner Radius (Inch) 1/32
Hole Diameter (Mm) ( - 0 Decimals) 5.16
Hole Diameter (Decimal Inch) 0.2032
Maximum Depth of Cut (Decimal Inch) 0.2280
Inscribed Circle (Inch) 1/2
Inscribed Circle (mm) 12.70
Insert Holding Method Pin; Clamp
Insert Thickness (Inch) 3/16
Clearance Code N
Tolerance Code M
Series ISOI
Coating Process PVD
Length Range (Decimal Inch) 0.6500 - 0.7000
Rake Negative
Insert Length (Decimal Inch) 0.6840
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Secondary Workpiece Material Stainless Steel
Secondary Workpiece Material Code M
Iso Code WNMG080408GP
Standards ISO; ANSI
Manufacturers Catalog Number TLD08587
Material Grade P01; P10; P20
UNSPSC Code 23242105
Coating Classification PVD
Chip Breaker GP
Rake Angle -10
Cutting Edge Style Honed
Industry Standard Number WNMG432GPPV720
Width (Decimal Inch - 4 Decimals) 0.684
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Chamfering; Facing; Internal Facing; Boring

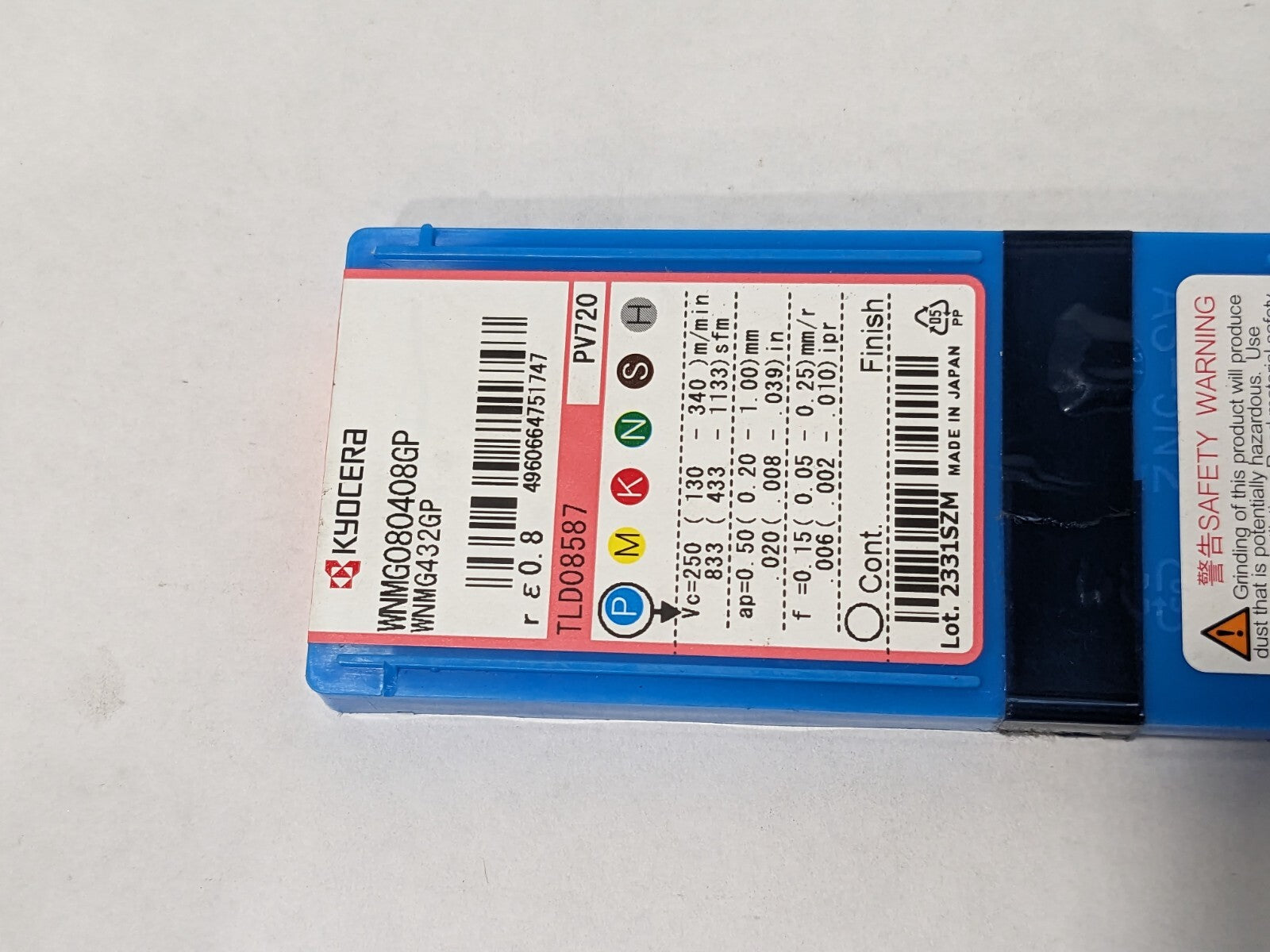

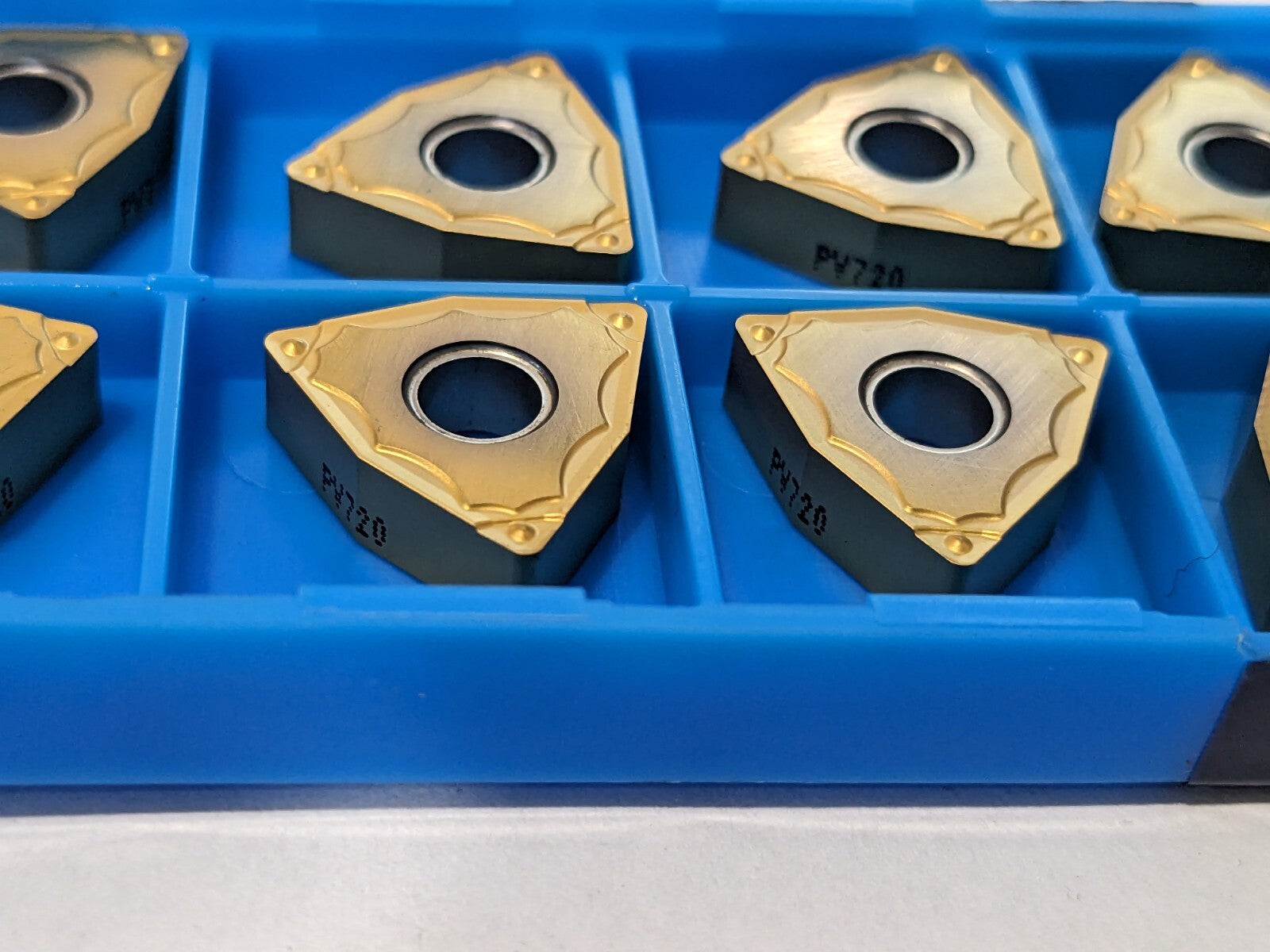

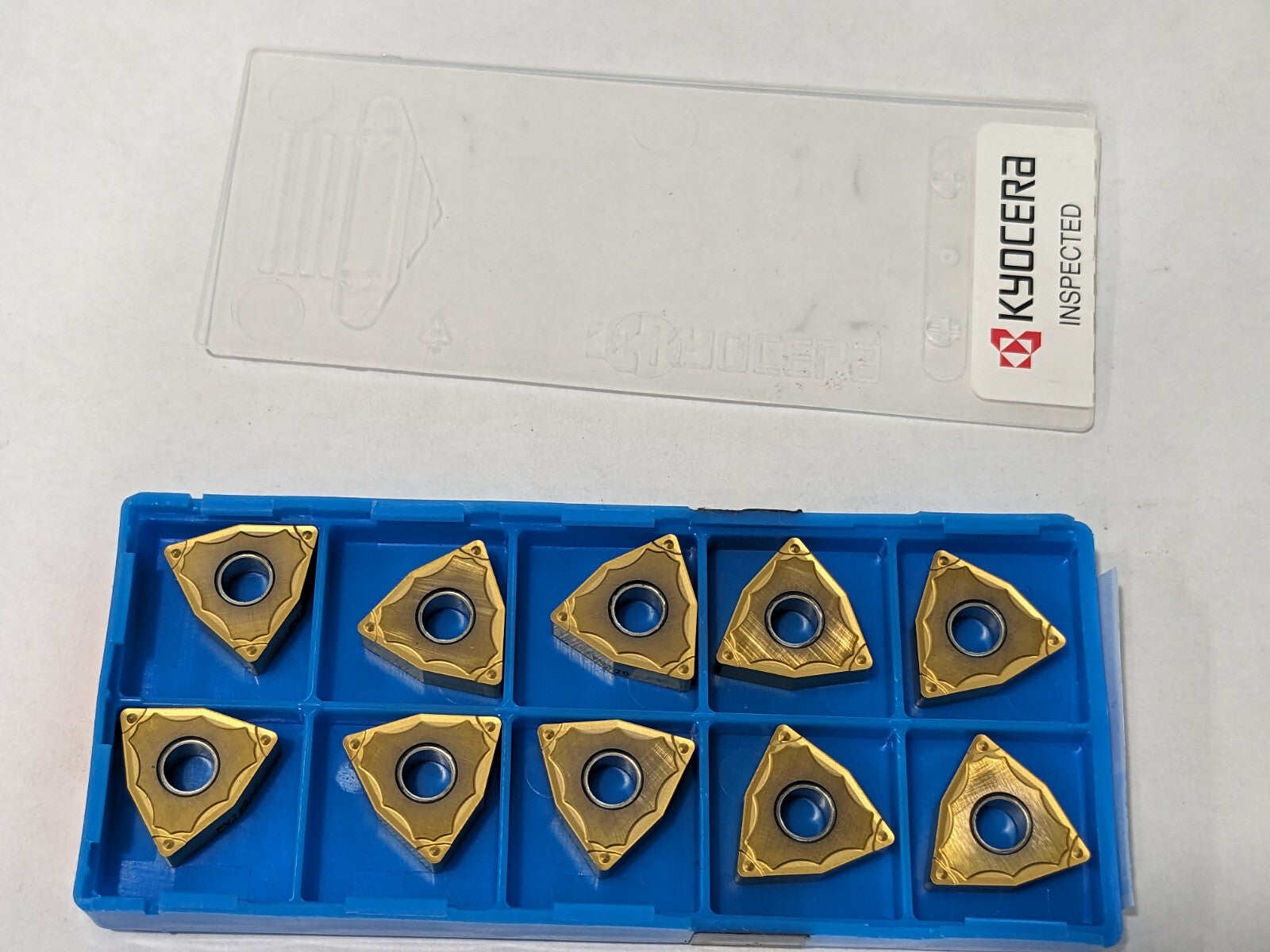

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
