KYOCERA Turning Inserts 10ct WBGT1211LF TN60 Cermet 80 ° Trigon TSJ03720

KYOCERA Turning Inserts 10ct WBGT1211LF TN60 Cermet 80 ° Trigon TSJ03720

MSRP: $220

• Insert Style WBGT
• Insert Size Code 1211
• Insert Shape Trigon 80°
• Included Angle 80
• Inscribed Circle (Decimal Inch) 0.1563
• Corner Radius (Decimal Inch) 0.0156
• Insert Material Cermet
• Manufacturer Grade TN60
• Coating/Finish TiCN; NbC
• Relief Angle 5
• Wiper Edge No
• Insert Thickness (Decimal Inch) 0.0625
• Insert Hand Left Hand
• Number Of Cutting Edges 3
• Insert Shape Code W
• Corner Radius (Inch) 1/64
• Hole Diameter (Decimal Inch) 0.0906
• Maximum Depth of Cut (Decimal Inch) 0.1313
• Inscribed Circle (Inch) 5/32
• Insert Holding Method Screw
• Insert Thickness (Inch) 1/16
• Clearance Code B
• Tolerance Code G
• Series ISOI
• Coating Process Uncoated
• Length Range (Decimal Inch) 0.3000 - 0.4000
• Rake Positive
• Insert Length (Decimal Inch) 0.3940
• Primary Workpiece Material Steel
• Primary Workpiece Material Code P
• Secondary Workpiece Material Stainless Steel
• Iso Code WBGT060104L-F
• Standards ISO; ANSI
• Manufacturers Catalog Number TSJ03720
• Material Grade P01; P10; P20
• UNSPSC Code 23242105
• Coating Classification Uncoated
• Chip Breaker F
• Rake Angle 15
• Cutting Edge Style Sharp
• Industry Standard Number WBGT1211LFTN60
• Width (Decimal Inch - 4 Decimals) 0.394
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Internal Facing; Boring

Enhance your turning experience with these high-quality Kyocera turning inserts. With 10ct WBGT1211LF TN60 cermet material, these inserts offer superior durability and strength. The 80 ° trigon shape ensures precise cuts and an efficient turning process. Made in the United States, these inserts are a reliable tool for any CNC, metalworking, or manufacturing project. Perfect for indexable inserts, toolholding, and workholding, these Kyocera turning inserts are a must-have for any industrial project.

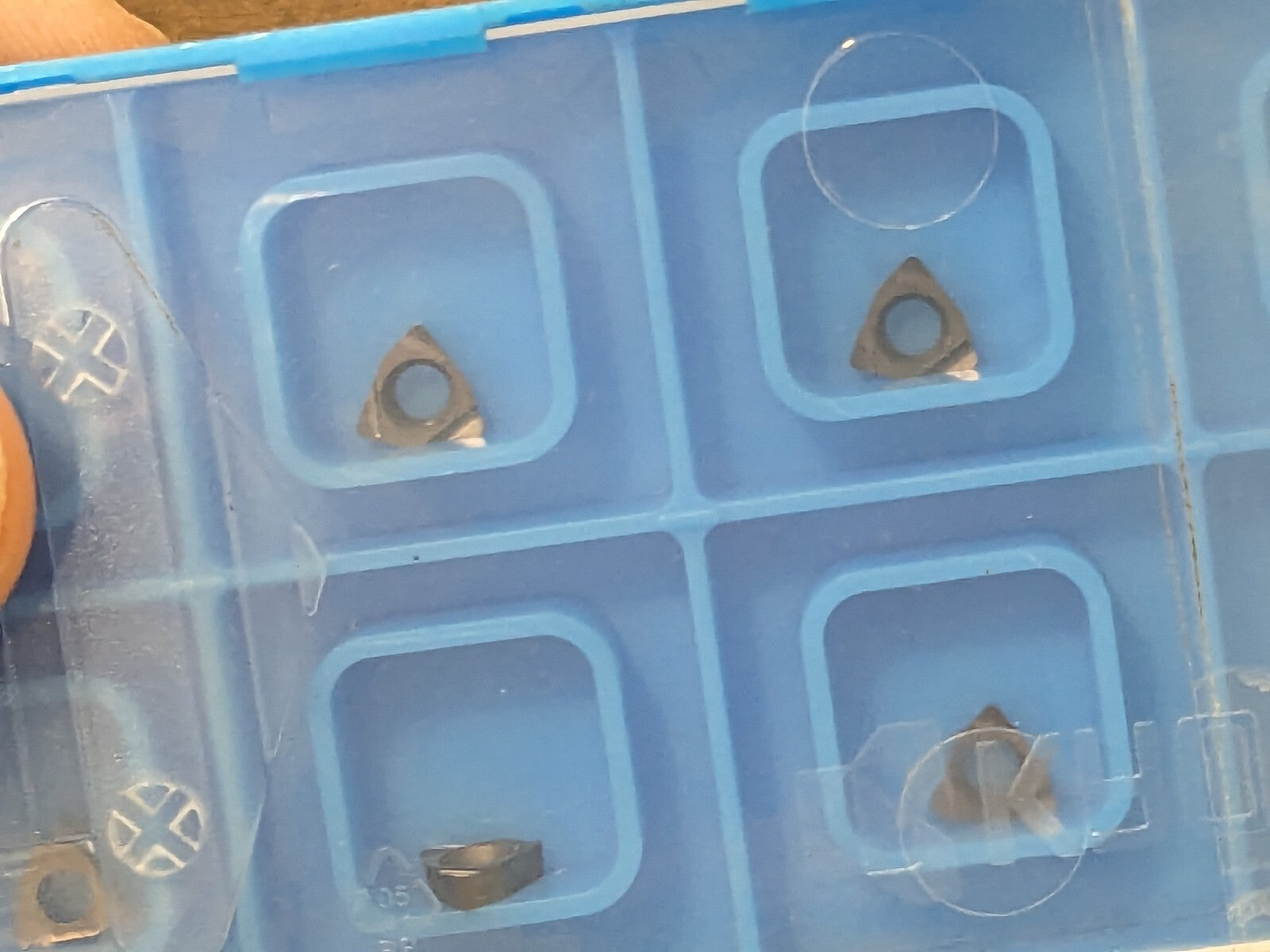

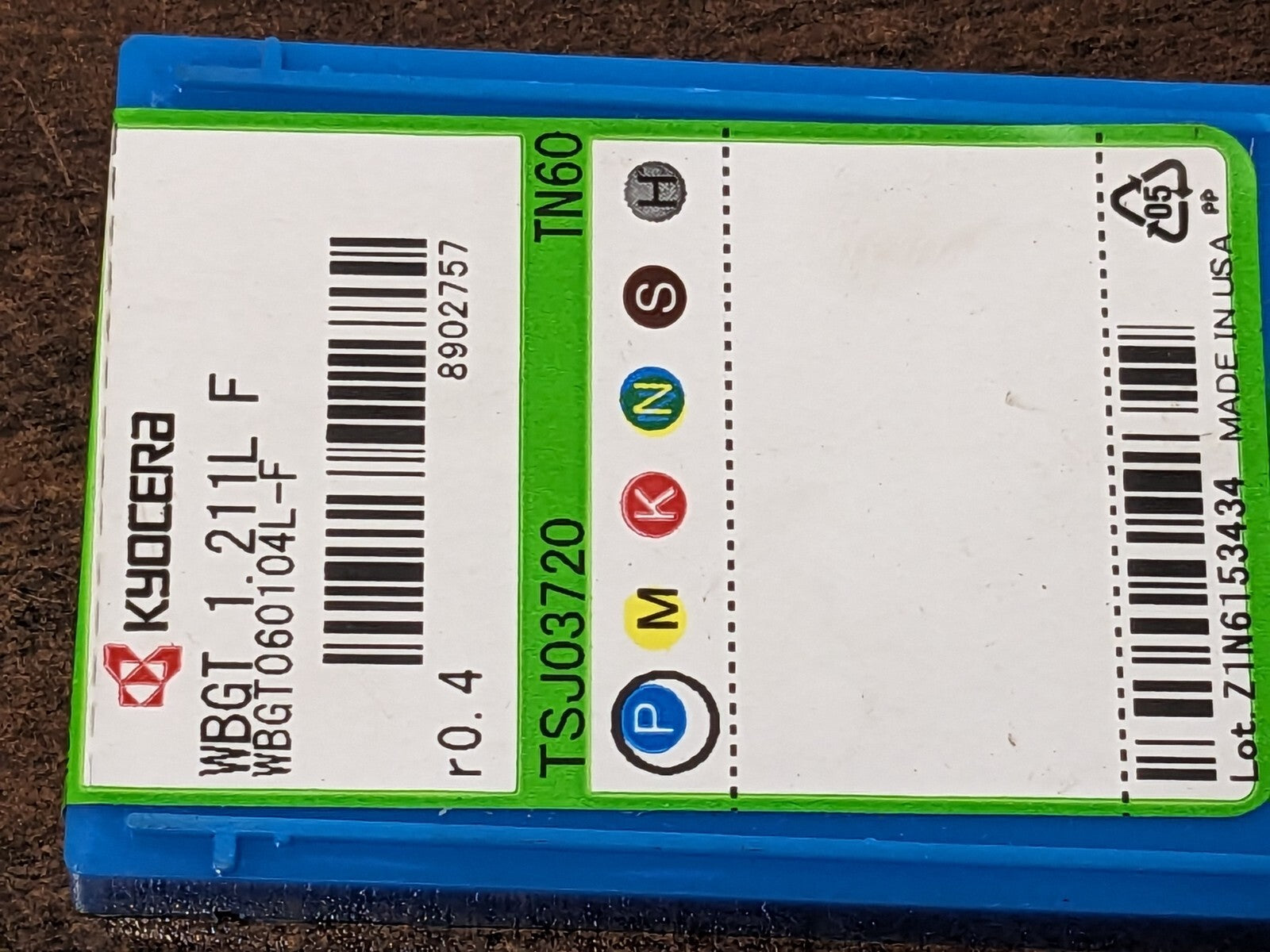

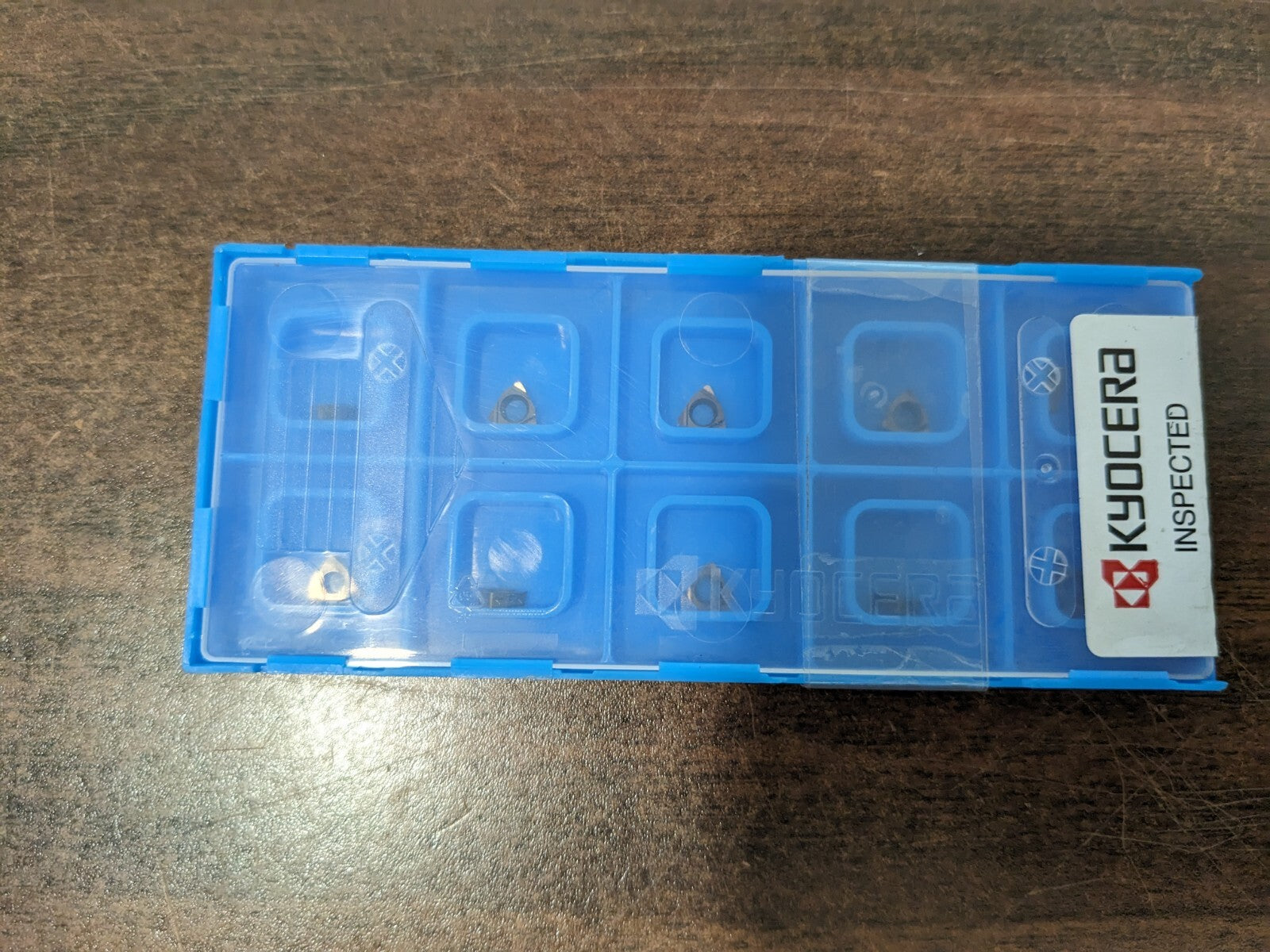

Please review photos, comes as shown.
