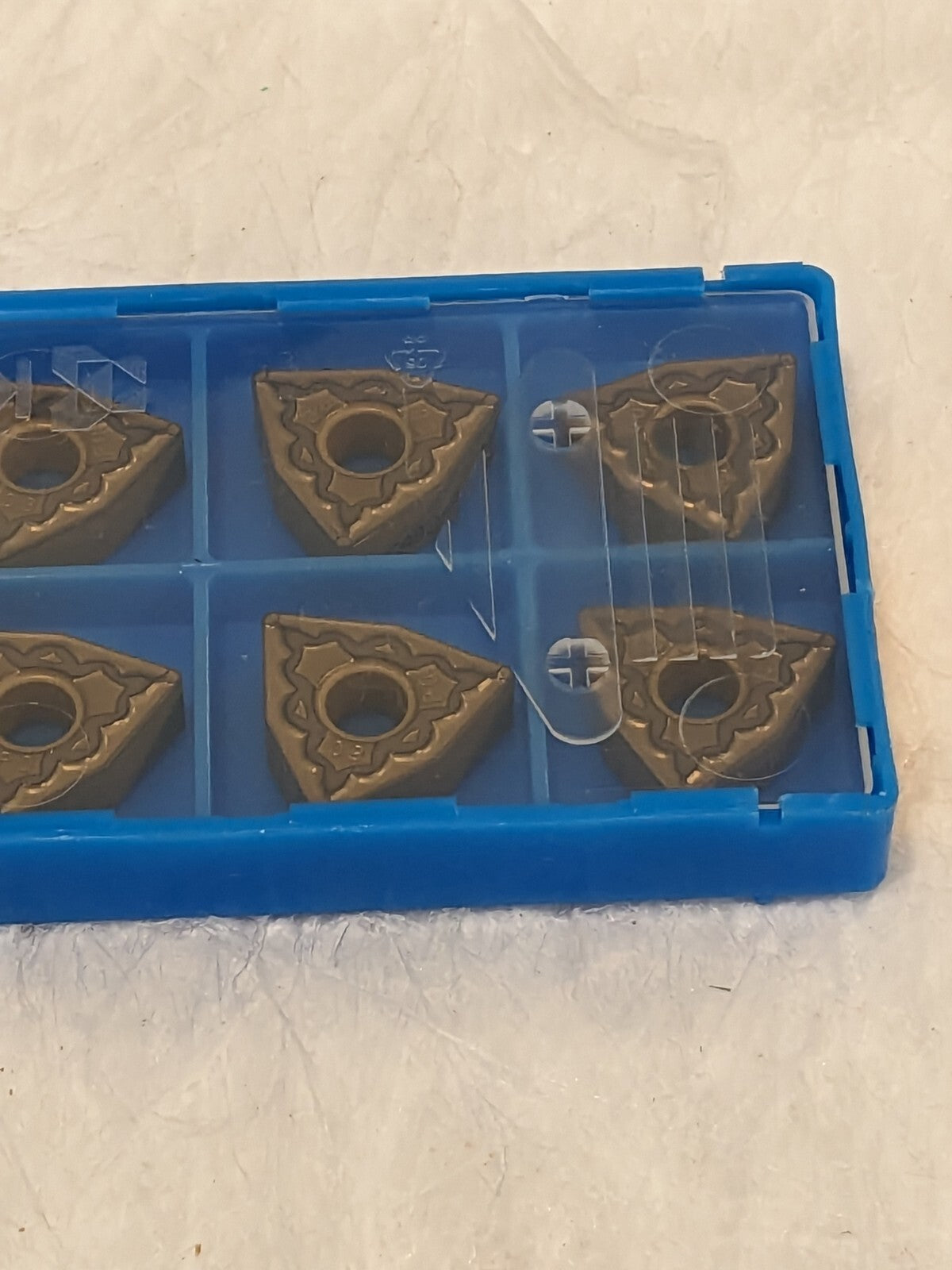

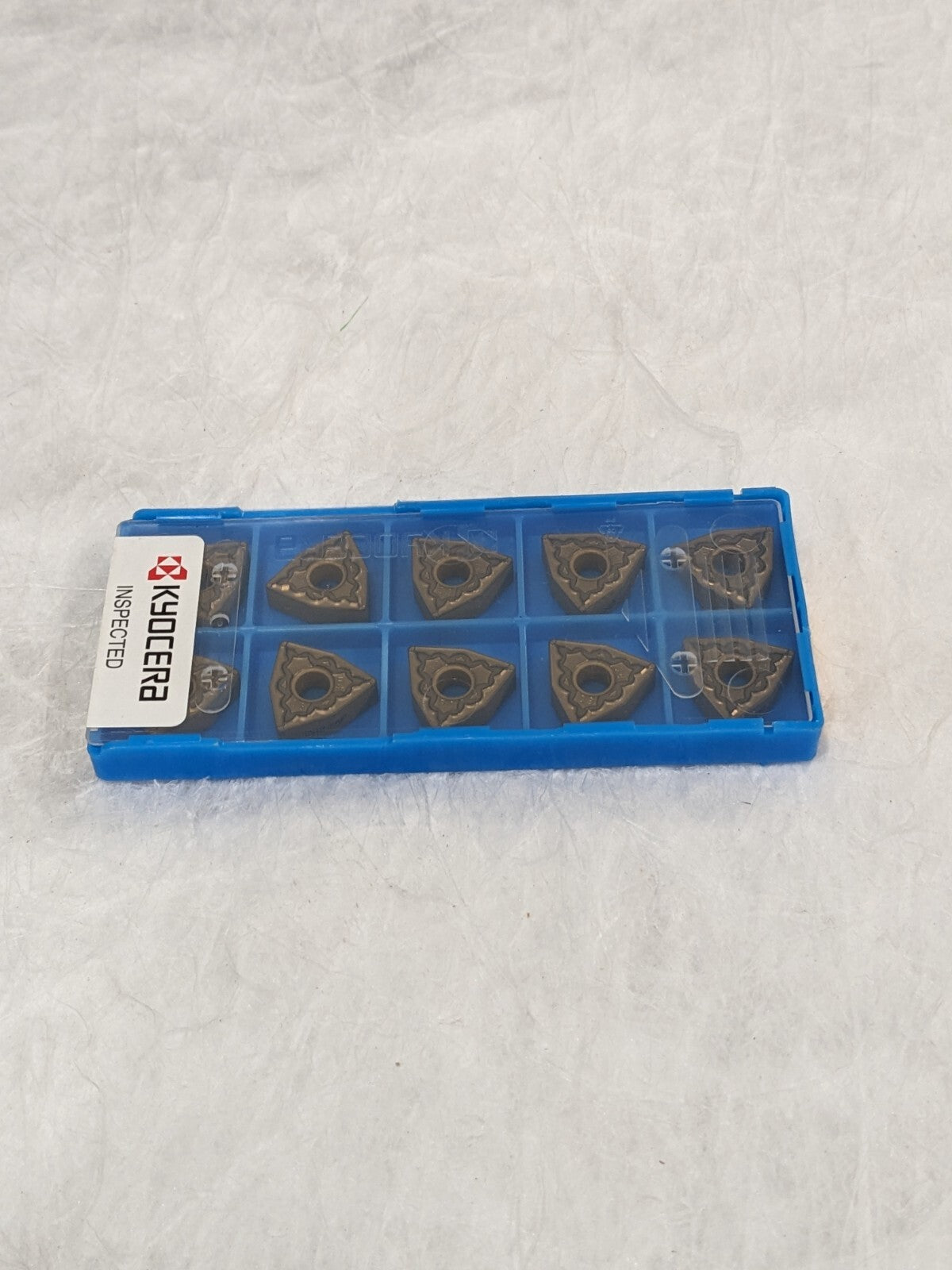

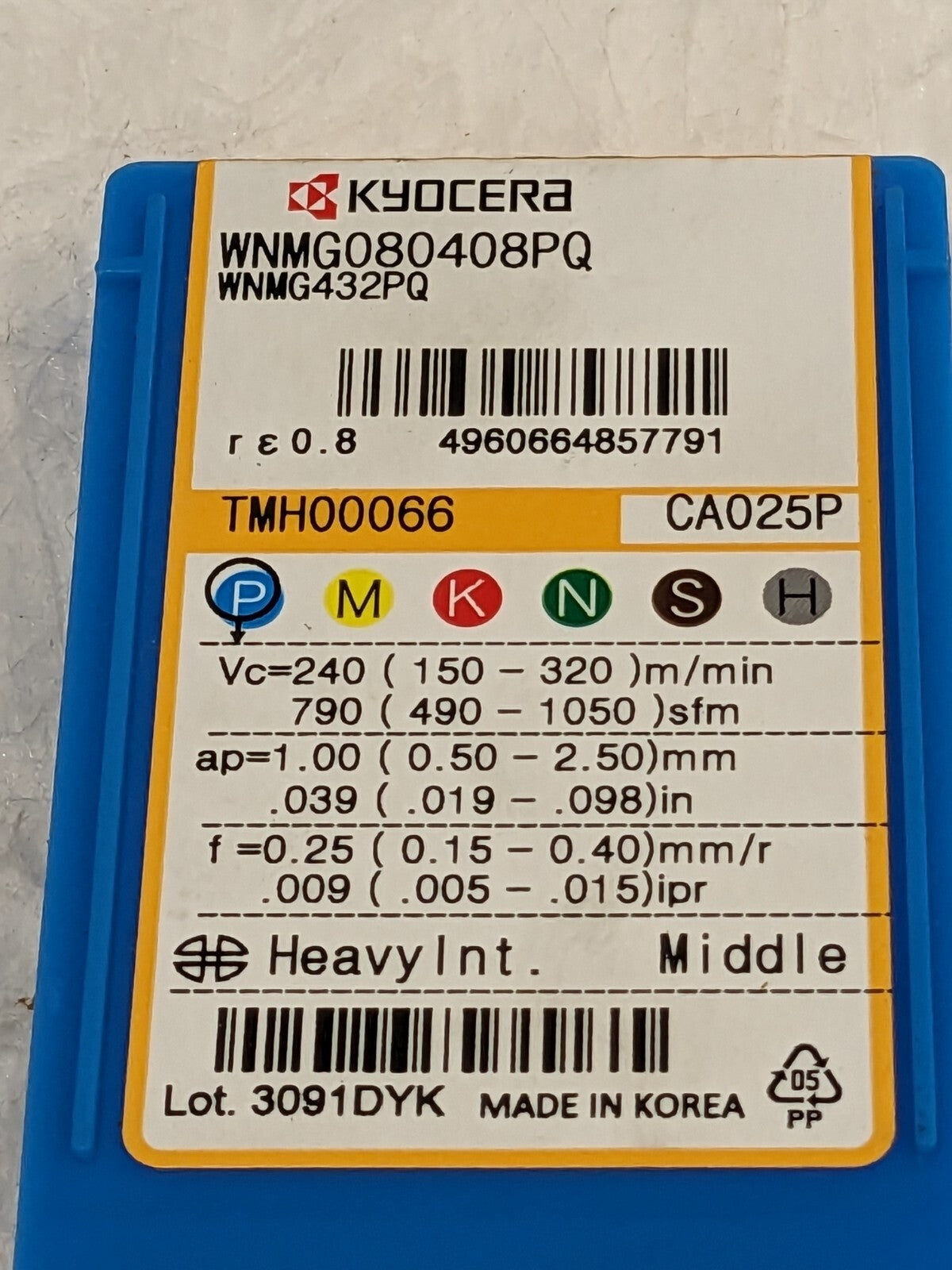

KYOCERA Turning Insert: WNMG432PQCA025P, Carbide Qty 10 TMH00066

Kyocera
1 Lot of 10 Inserts

MSRP: $110.00

• Insert Style WNMG
• Insert Size Code 432
• Insert Shape Trigon
• Included Angle 80
• Inscribed Circle (Decimal Inch) 0.5000
• Corner Radius (Decimal Inch) 0.0313
• Insert Material Carbide
• Manufacturer Grade CA025P
• Coating/Finish TiCN; TiN; Al2O3
• Relief Angle 0
• Wiper Edge No
• Insert Thickness (Decimal Inch) 0.1875
• Insert Hand Neutral
• Number Of Cutting Edges 6
• Insert Shape Code W
• Corner Radius (Inch) 1/32
• Hole Diameter (Decimal Inch) 0.2032
• Maximum Depth of Cut (Decimal Inch) 0.0590
• Inscribed Circle (Inch) 1/2
• Insert Holding Method Pin; Clamp
• Insert Thickness (Inch) 3/16
• Clearance Code N
• Tolerance Code M
• Series ISOI
• Coating Process CVD
• Length Range (Decimal Inch) 0.6500 - 0.7000
• Rake Negative
• Insert Length (Decimal Inch) 0.6840
• Primary Workpiece Material Steel
• Primary Workpiece Material Code P
• Iso Code WNMG080408PQ
• Standards ISO; ANSI
• Manufacturers Catalog Number TMH00066
• Material Grade P30; P40; P10; P20
• UNSPSC Code 23242105
• Coating Classification CVD
• Chip Breaker PQ
• Rake Angle -15
• Cutting Edge Style Chamfered & Honed
• Industry Standard Number WNMG432PQCA025P
• Width (Decimal Inch - 4 Decimals) 0.684
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application External Turning; Chamfering; Facing; Internal Facing; Boring

These items appear to be new and in good condition. SOLD AS IS.

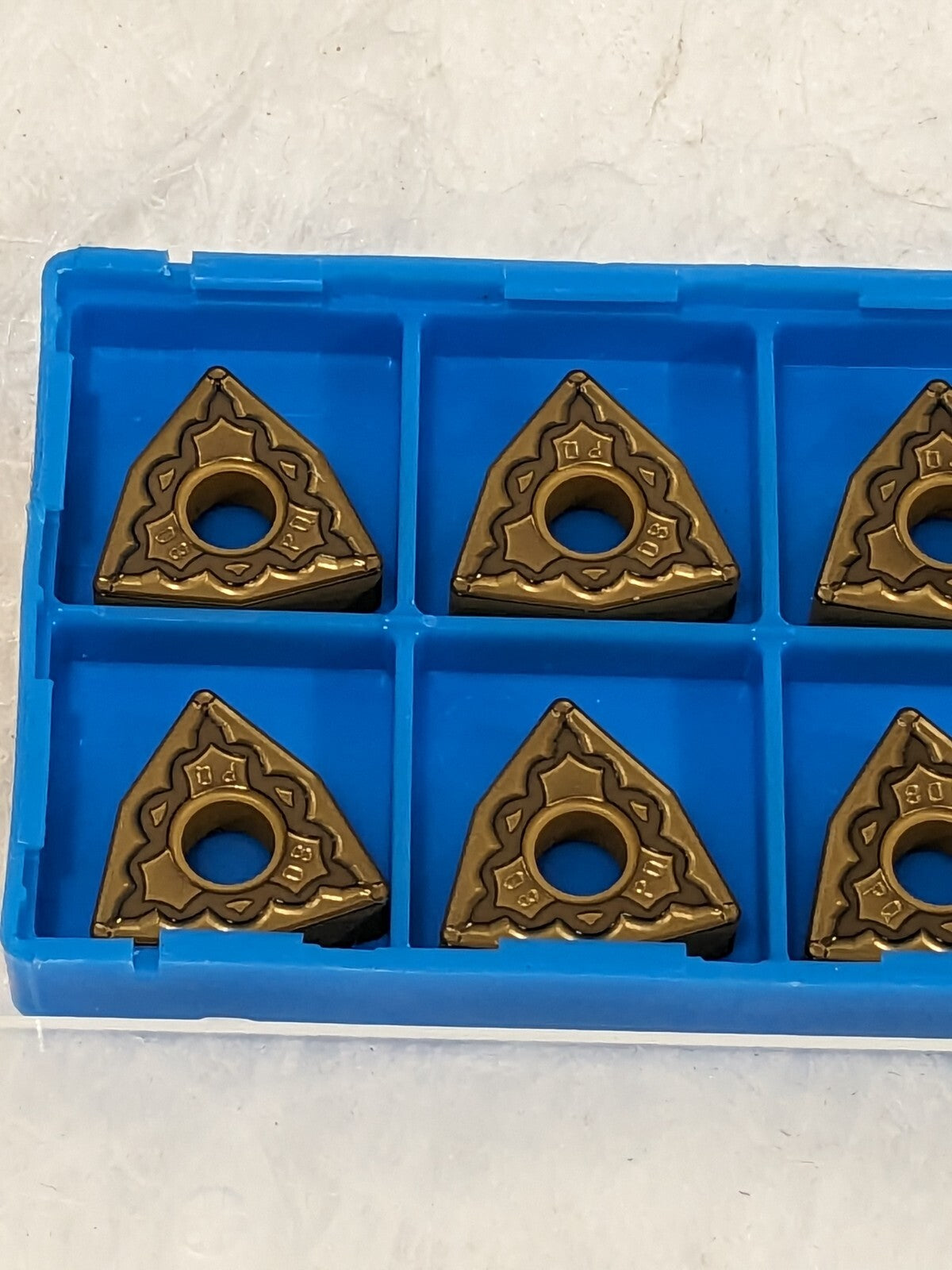

Please review photos, comes as shown.
