KYOCERA Turning Insert: WNMG432MU CA6515, Solid Carbide Qty 10 TJU08637

Kyocera
1 Lot of 10 Inserts

MSRP: $50.00

• Insert Style WNMG
• Insert Shape Code W
• Insert Size Code 432
• Insert Shape Trigon
• Coating/Finish TiCN/Al2O3/TiN
• Manufacturer Grade CA6515
• Corner Radius (Inch) 1/32
• Corner Radius (mm) 0.79
• Corner Radius (Decimal Inch) 0.0313
• Insert Material Solid Carbide
• Hole Diameter (Mm) ( - 0 Decimals) 5.16
• Hole Diameter (Decimal Inch) 0.2030
• Inscribed Circle (Inch) 1/2
• Inscribed Circle (mm) 12.70
• Inscribed Circle (Decimal Inch) 0.5000
• Insert Holding Method Pin; Clamp
• Insert Hand Neutral
• Insert Thickness (Inch) 3/16
• Insert Thickness 4.76
• Insert Thickness (Decimal Inch) 0.1875
• Clearance Code N
• Tolerance Code M
• Included Angle 80.0
• Relief Angle 0
• Series ISOI
• Coating Process CVD
• Rake Negative
• Number Of Cutting Edges 6
• Primary Workpiece Material M
• Primary Workpiece Material Code M
• Secondary Workpiece Material Superalloy
• Secondary Workpiece Material Code S
• Ansi Code WNMG432MUCA6515
• Iso Code WNMG080408MU
• Standards ISO; ANSI
• Manufacturers Catalog Number WNMG432MU CA6515
• Cutting Direction Neutral
• Chip Breaker MU
• Rake Angle 15
• Multi-Use Tool No
• Multi-Use Application Turning

These items are new and in the original sealed package. SOLD AS IS.

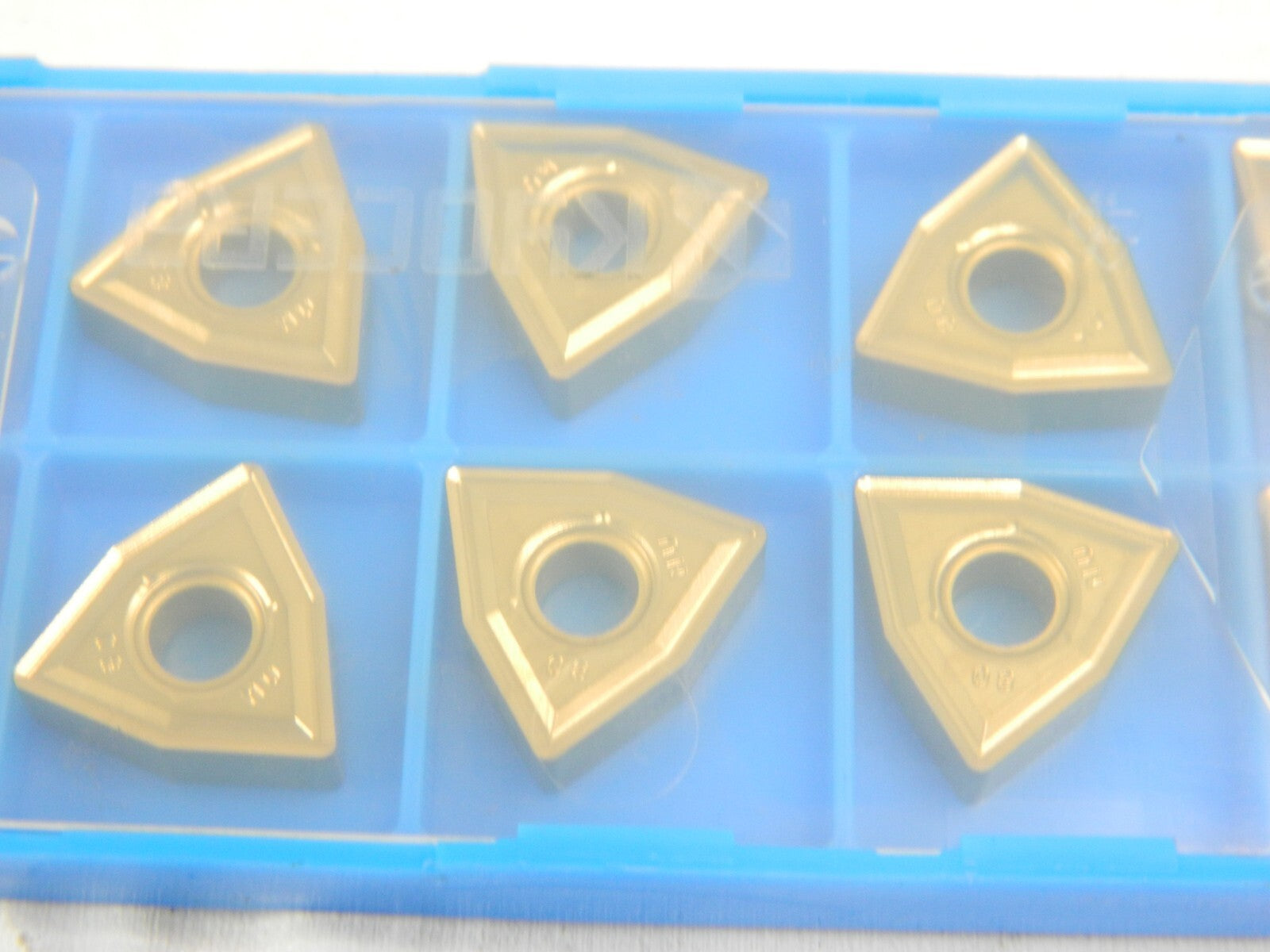

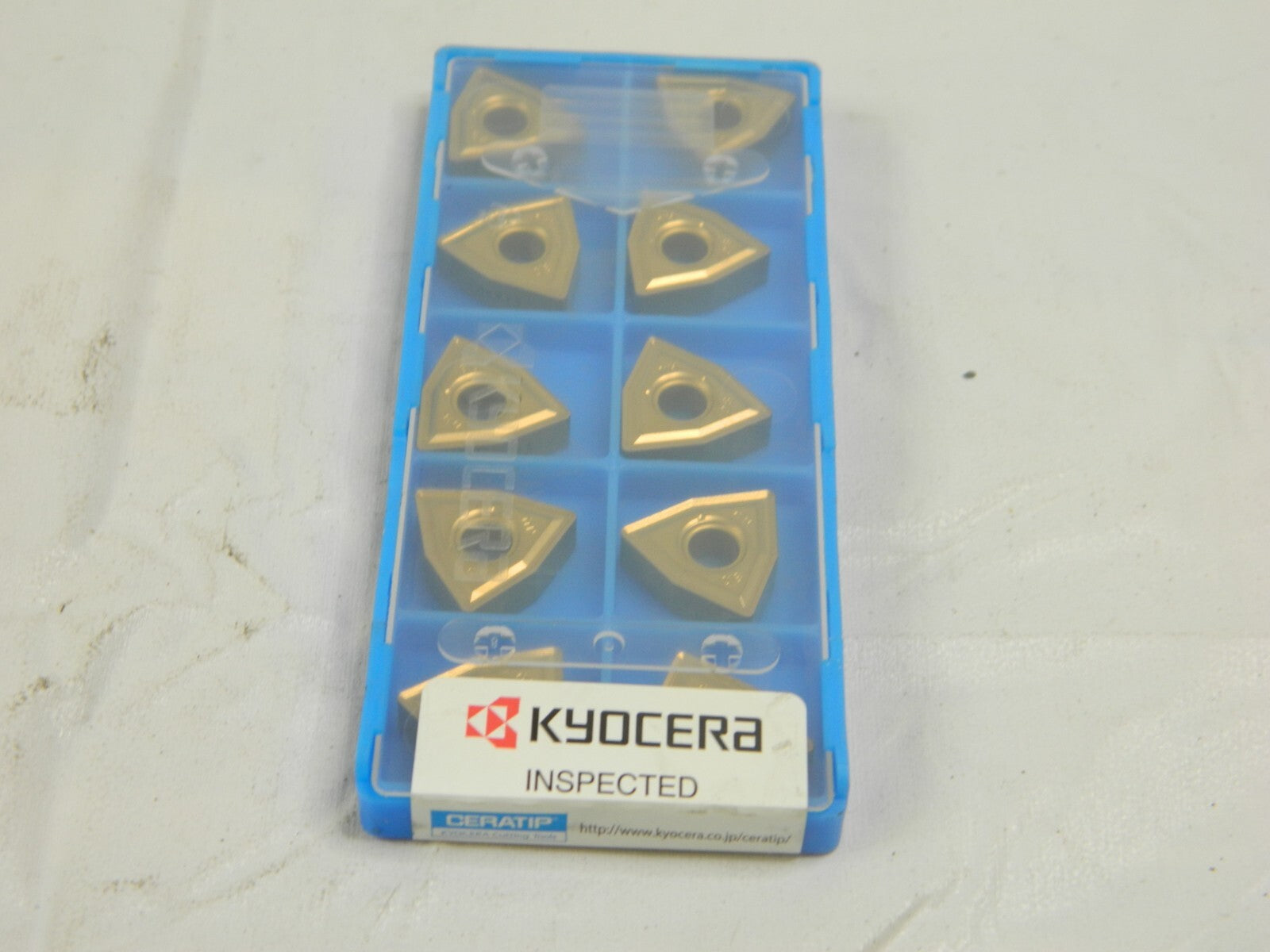

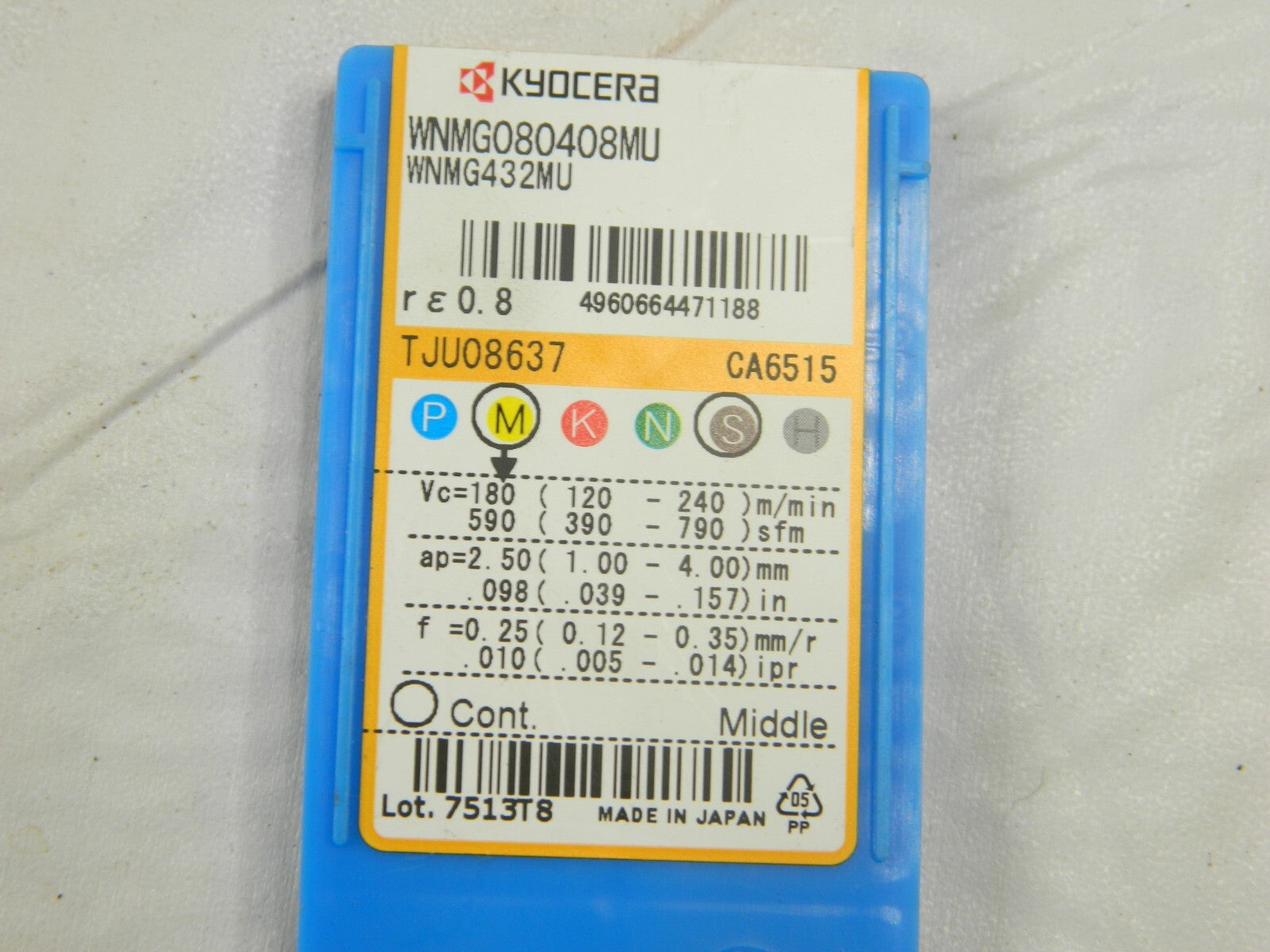

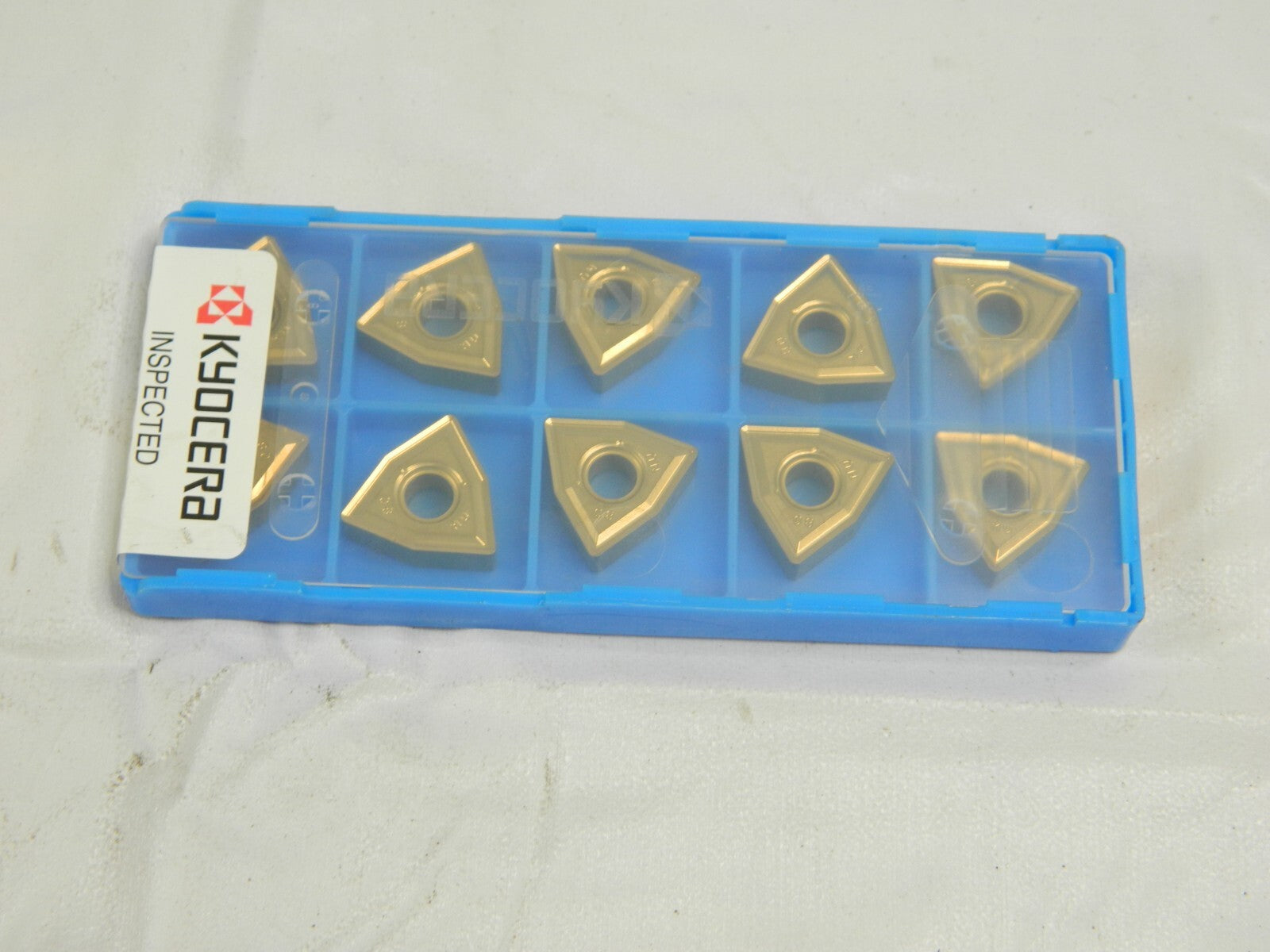

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
