KYOCERA Turning Insert: WNMG332GSCA025P, Solid Carbide Qty 6 TMH00349

Kyocera
1 Lot of 6 Inserts

MSRP: $50.00

• Insert Style WNMG
• Insert Shape Code W
• Insert Size Code 332
• Insert Shape Trigon
• Coating/Finish TiCN/Al2O3/TiN
• Manufacturer Grade CA025P
• Corner Radius (Inch) 1/32
• Insert Material Solid Carbide
• Hole Diameter (Decimal Inch) 0.1500
• Inscribed Circle (Inch) 3/8
• Insert Holding Method Screw
• Insert Hand Neutral
• Insert Thickness (Inch) 3/16
• Clearance Code N
• Tolerance Code M
• Included Angle 80.0
• Relief Angle 0
• Series ISOI
• Coating Process CVD
• Rake Negative
• Number Of Cutting Edges 6
• Primary Workpiece Material P
• Primary Workpiece Material Code P
• Ansi Code WNMG332GSCA025P
• Iso Code WNMG060408GS
• Standards ISO; ANSI
• Manufacturers Catalog Number WNMG332GS CA025P
• Material Grade Micro Columnar
• Chip Breaker GS
• Multi-Use Tool Yes
• Multi-Use Application External Turning; Facing; Internal Facing; Boring

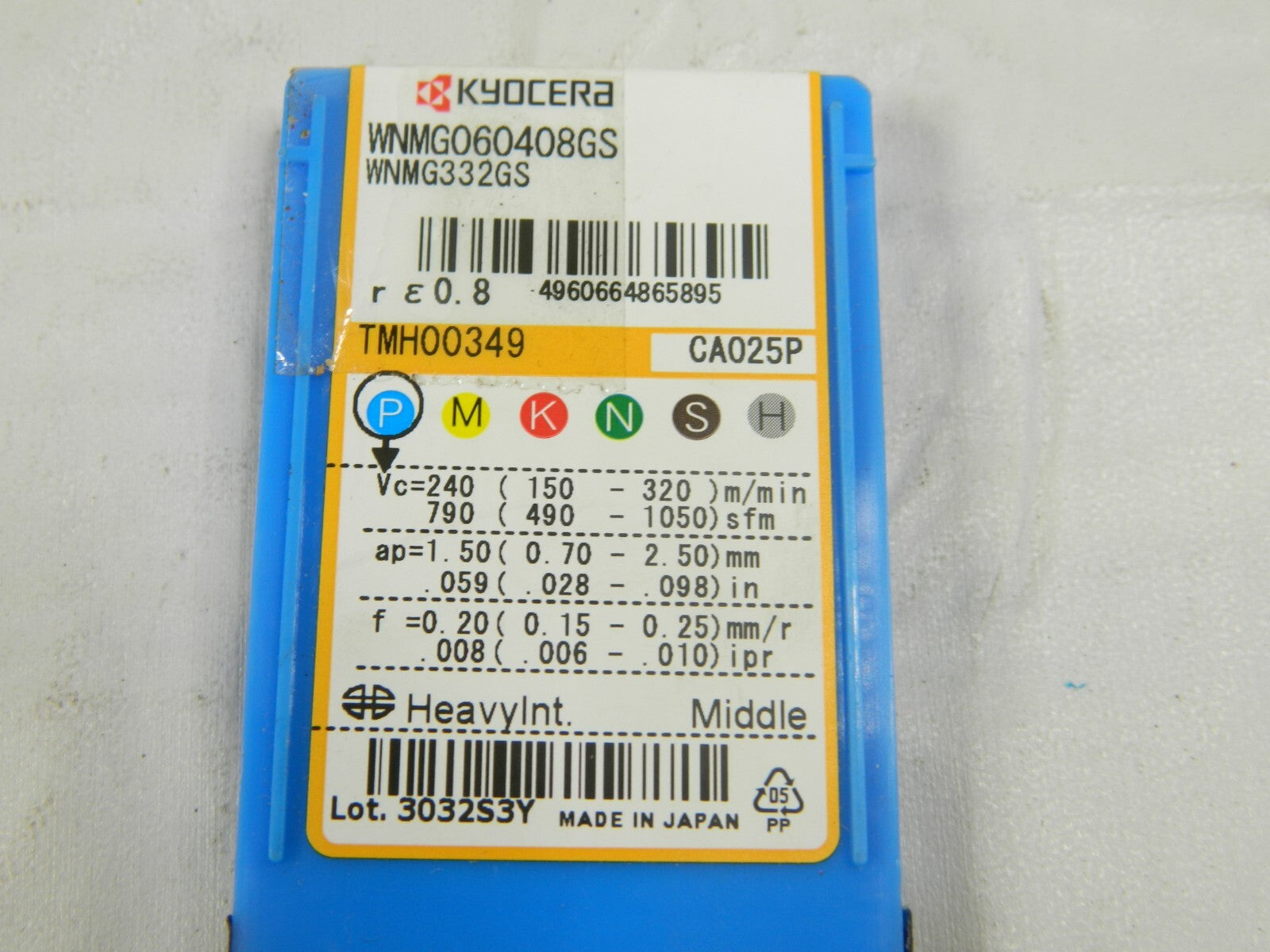

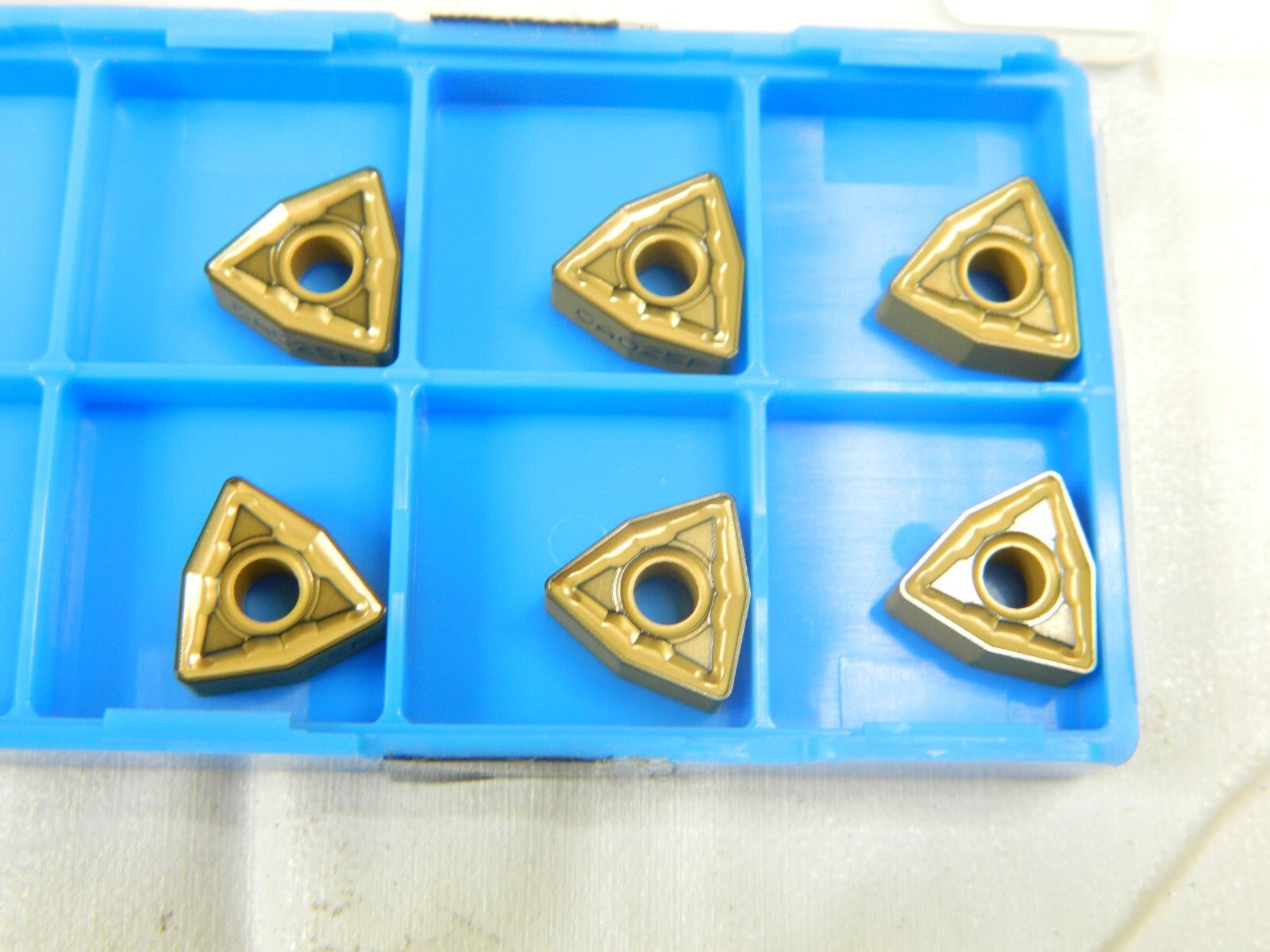

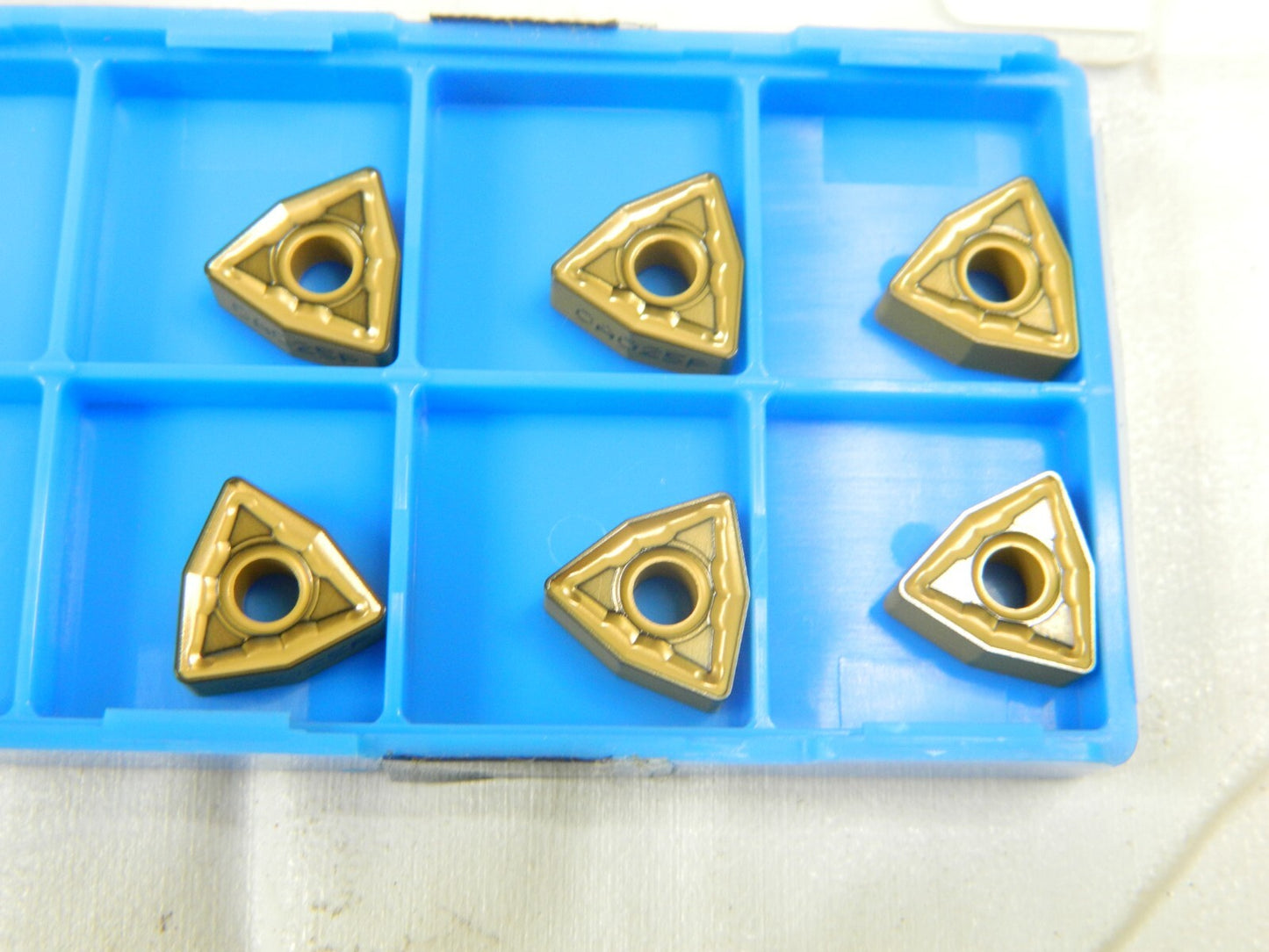

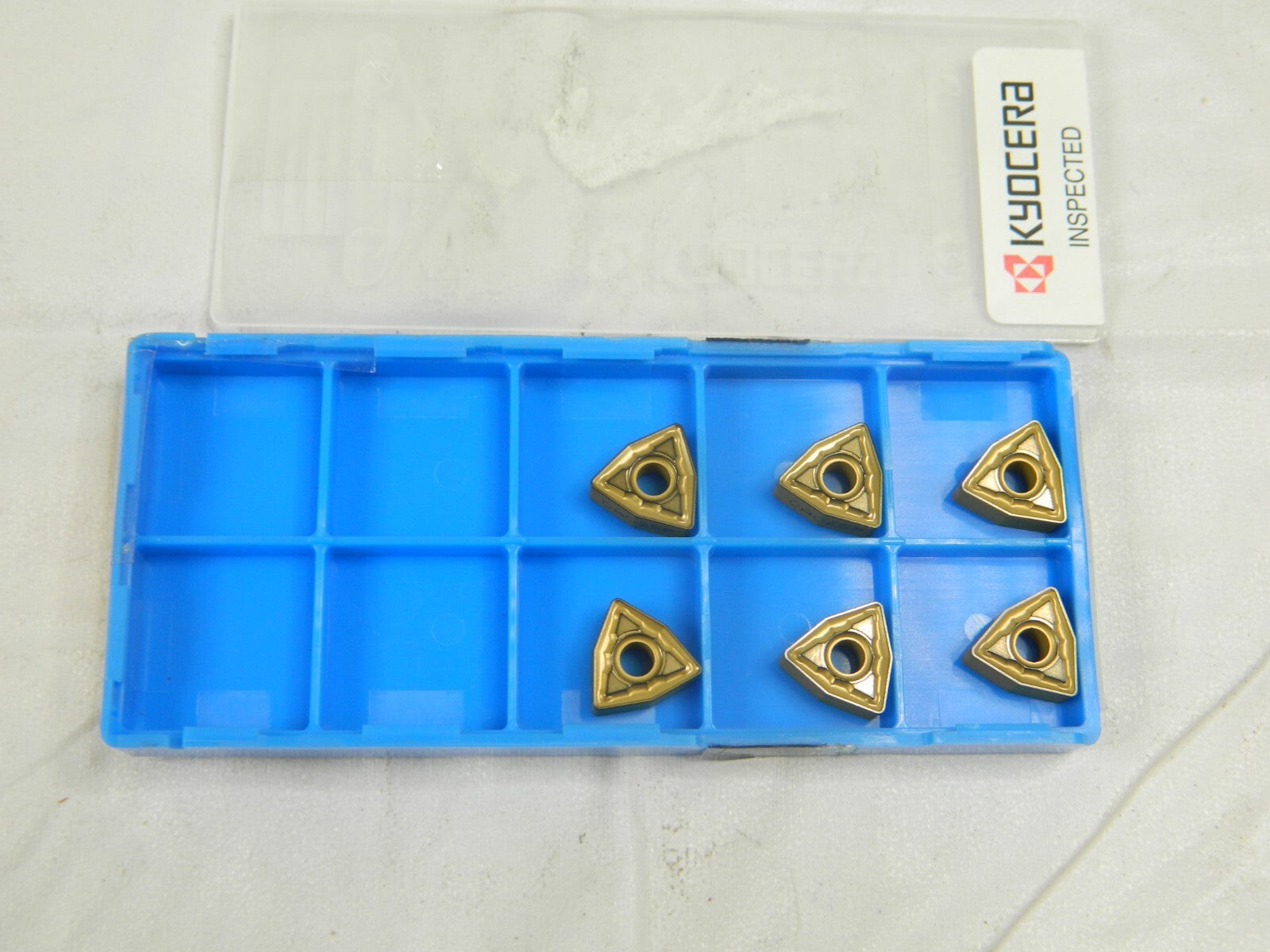

These items appear to be new and in good condition. SOLD AS IS.

Please review photos, comes as shown.
