KYOCERA

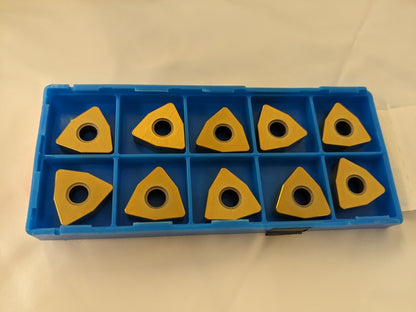

Turning Insert: WNGA433T00625 A66N, Ceramic 10pk TCS61102
MSRP: $200

• Insert Style WNGA
• Insert Size Code 433
• Insert Shape Trigon 80°
• Included Angle 80 degree
• Inscribed Circle (Decimal Inch) 0.5000
• Corner Radius (Decimal Inch) 0.0469
• Corner Radius (mm) 1.19
• Insert Material Ceramic
• Manufacturer Grade A66N
• Coating/Finish Al2O3; TiC
• Relief Angle 0 °
• Wiper Edge No
• Insert Thickness 4.76
• Insert Thickness (Decimal Inch) 0.1875
• Insert Hand Neutral
• Number Of Cutting Edges 6
• Insert Shape Code W
• Corner Radius (Inch) 3/64
• Hole Diameter (Mm) ( - 0 Decimals) 5.16
• Hole Diameter (Decimal Inch) 0.2032
• Maximum Depth of Cut (Decimal Inch) 0.2280
• Inscribed Circle (Inch) 1/2
• Inscribed Circle (mm) 12.70
• Insert Holding Method Pin; Clamp
• Insert Thickness (Inch) 3/16
• Clearance Code N
• Tolerance Code G
• Series ISOI
• Coating Process PVD
• Length Range (Decimal Inch) 0.6500 - 0.7000
• Rake Negative
• Insert Length (Decimal Inch) 0.6840
• Primary Workpiece Material Hard Material
• Primary Workpiece Material Code H
• Iso Code WNGA080412T01525
• Standards ISO; ANSI
• Manufacturers Catalog Number TCS61102
• Material Grade H10; H01
• UNSPSC Code 23242105
• Coating Classification PVD
• Cutting Edge Style Chamfered
• Industry Standard Number WNGA433T00625A66N
• Width (Decimal Inch - 4 Decimals) 0.6840 in
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application External Turning; Chamfering; Facing; Internal Facing; Boring

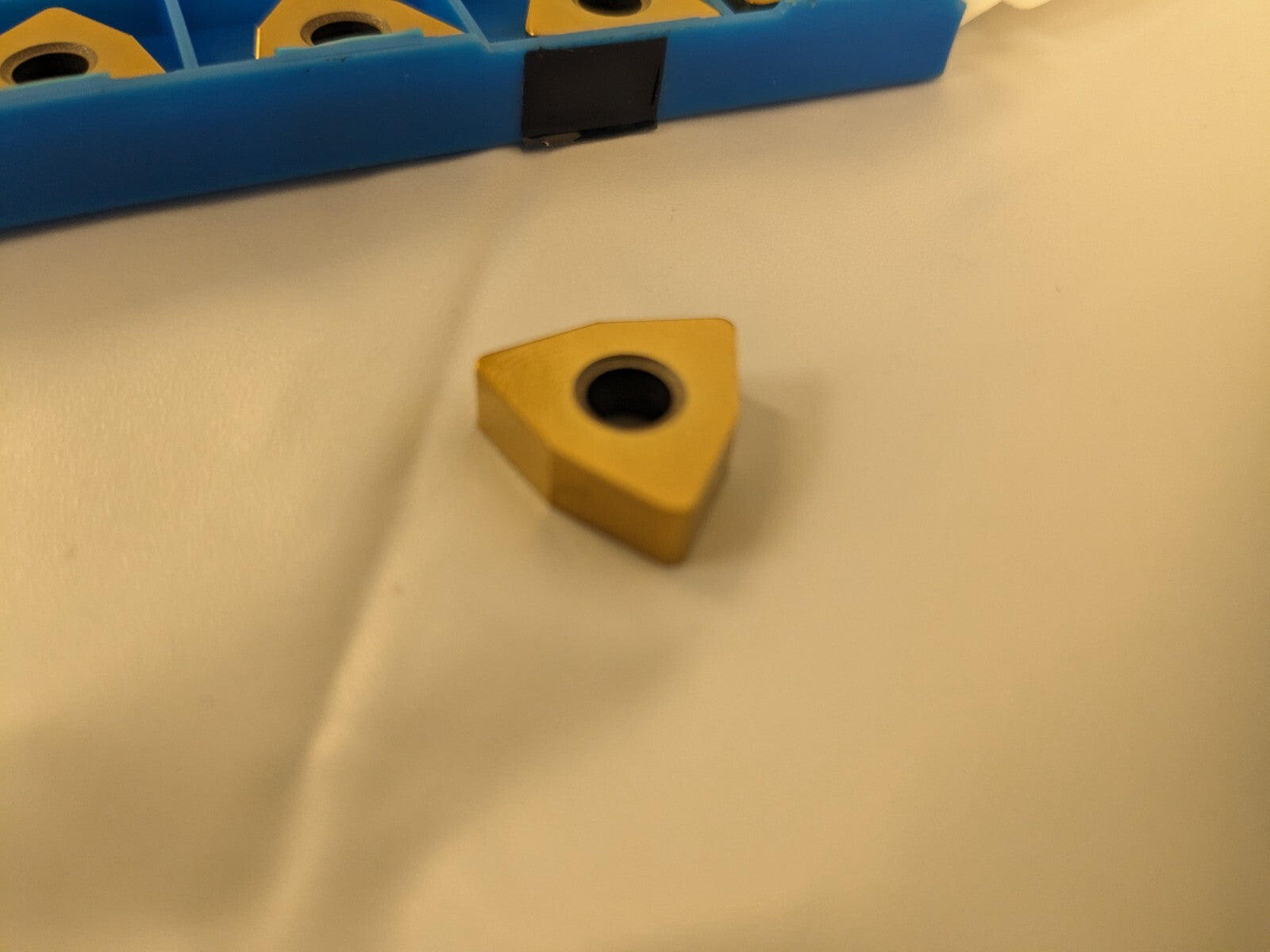

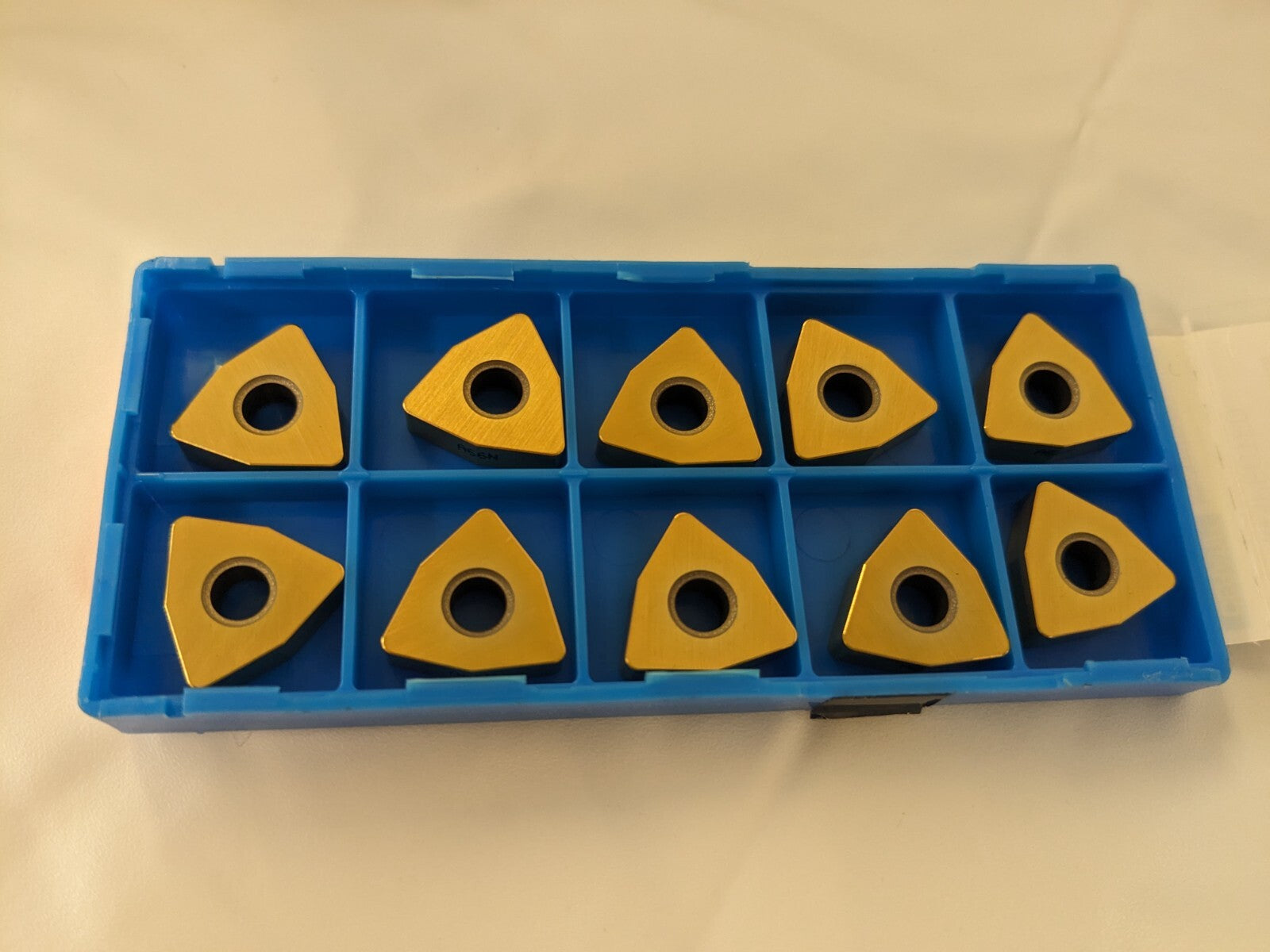

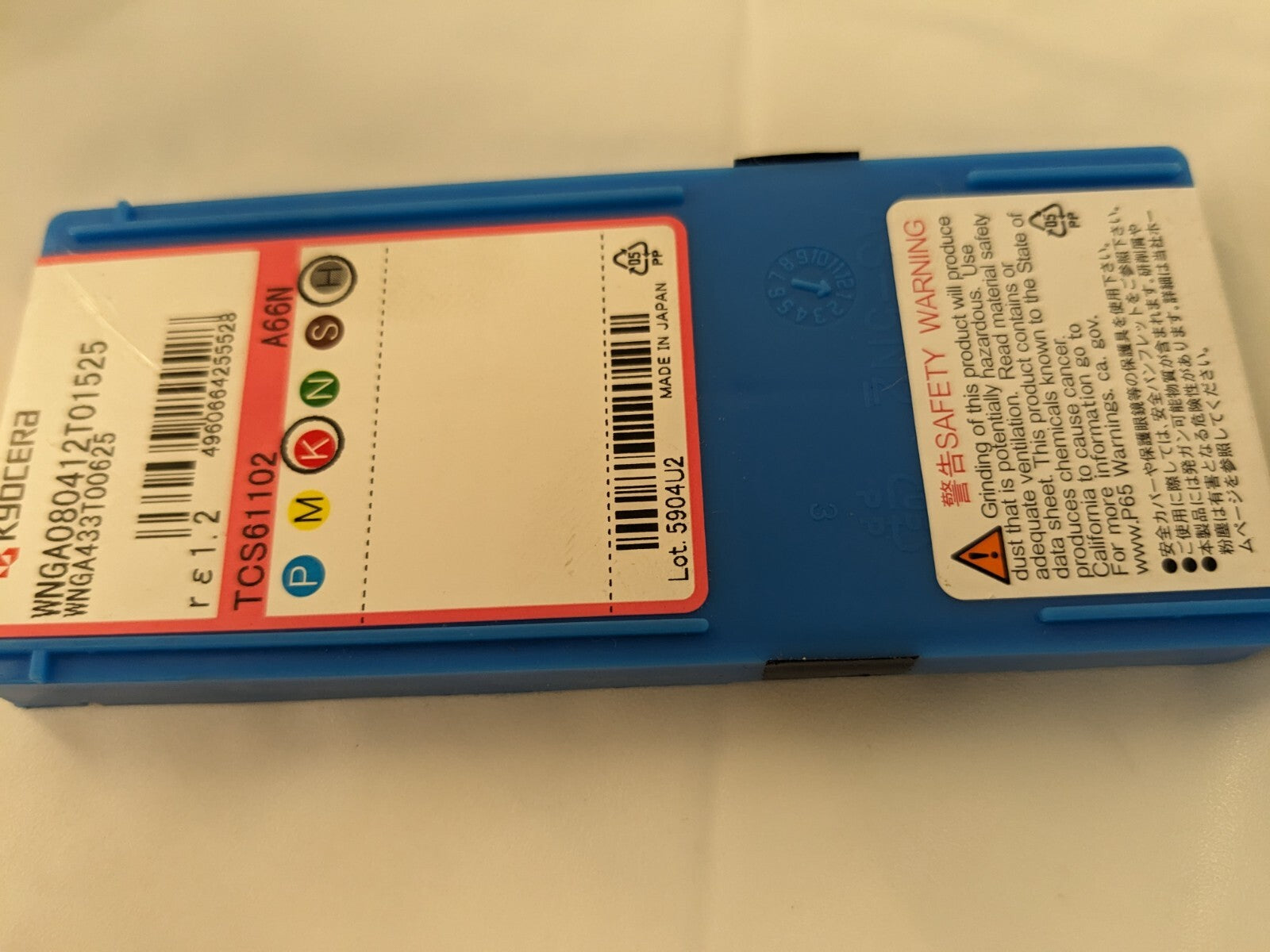

Please review photos, comes as shown.
