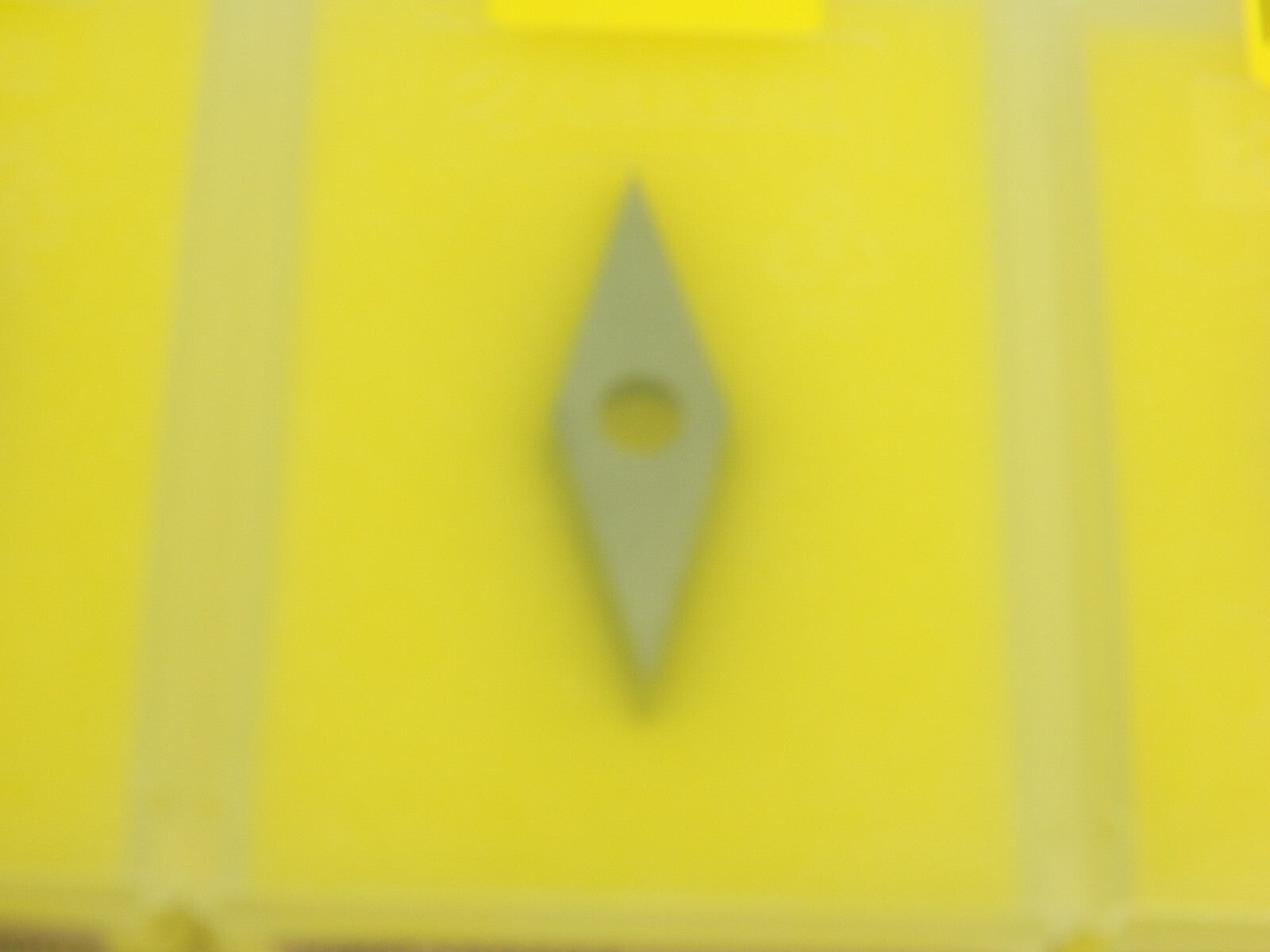

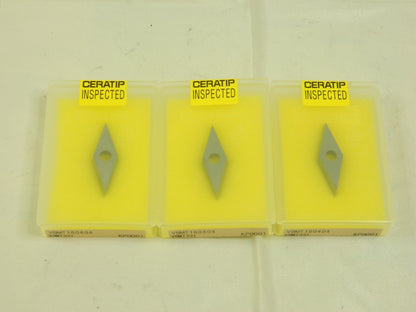

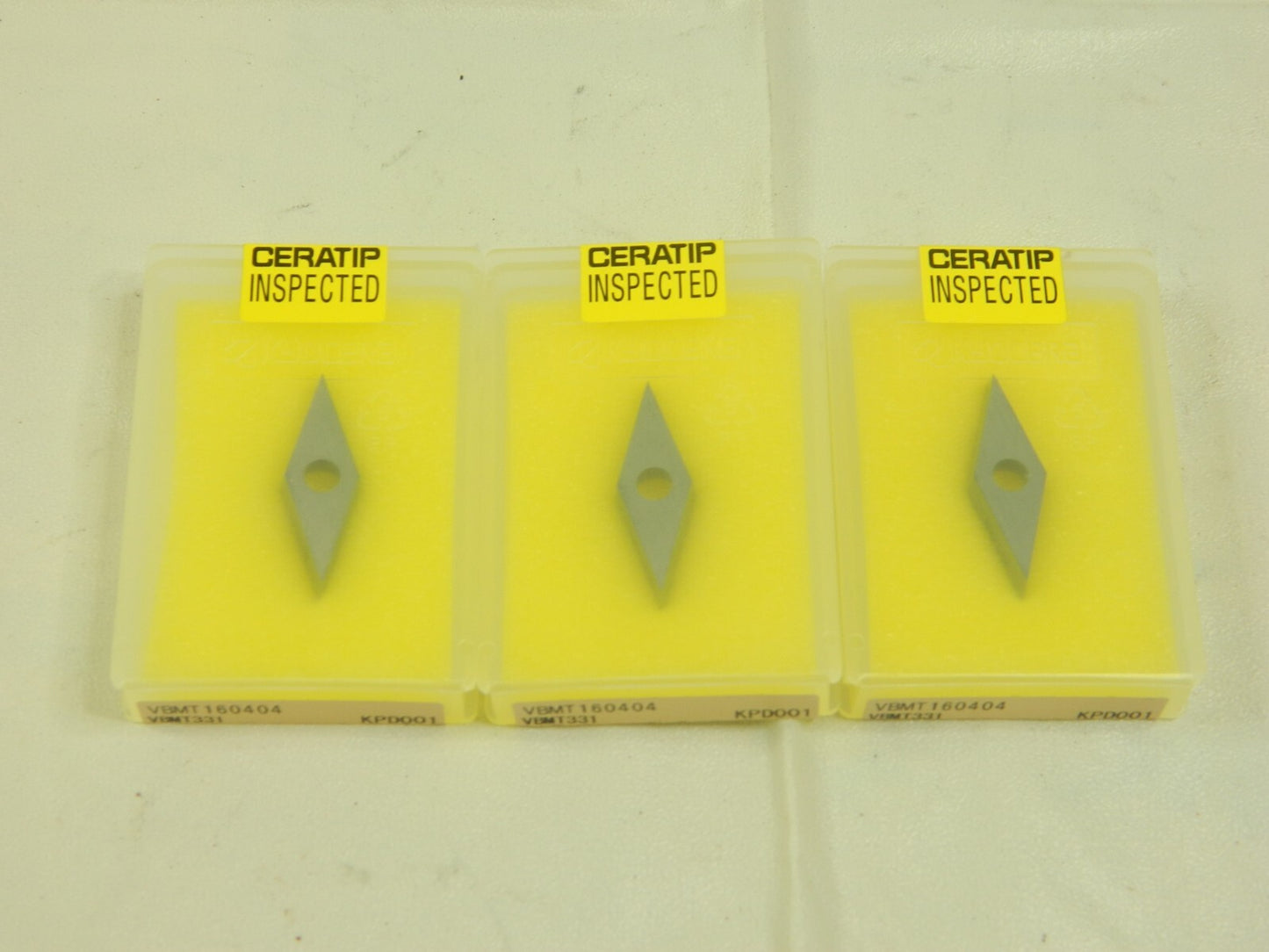

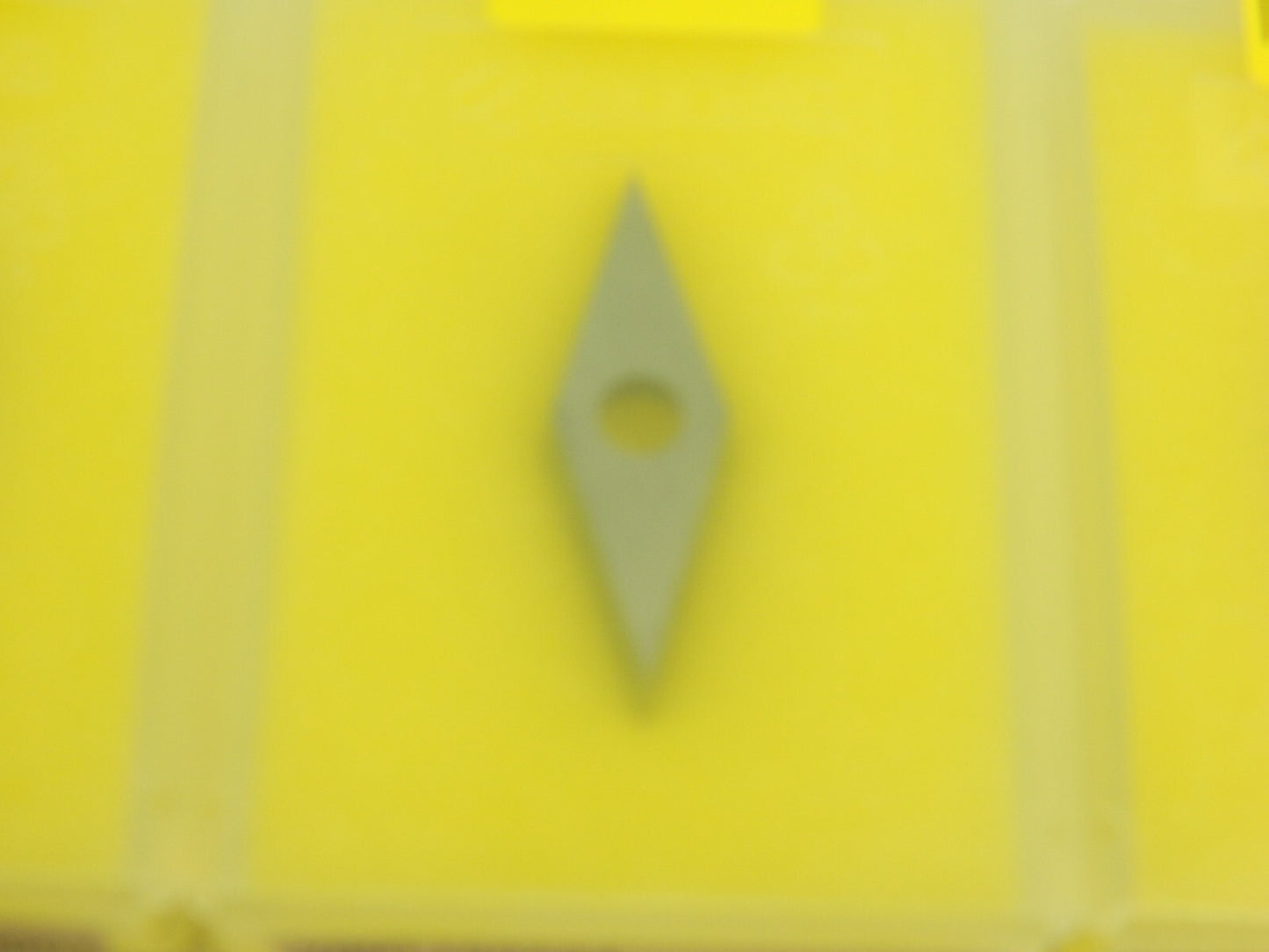

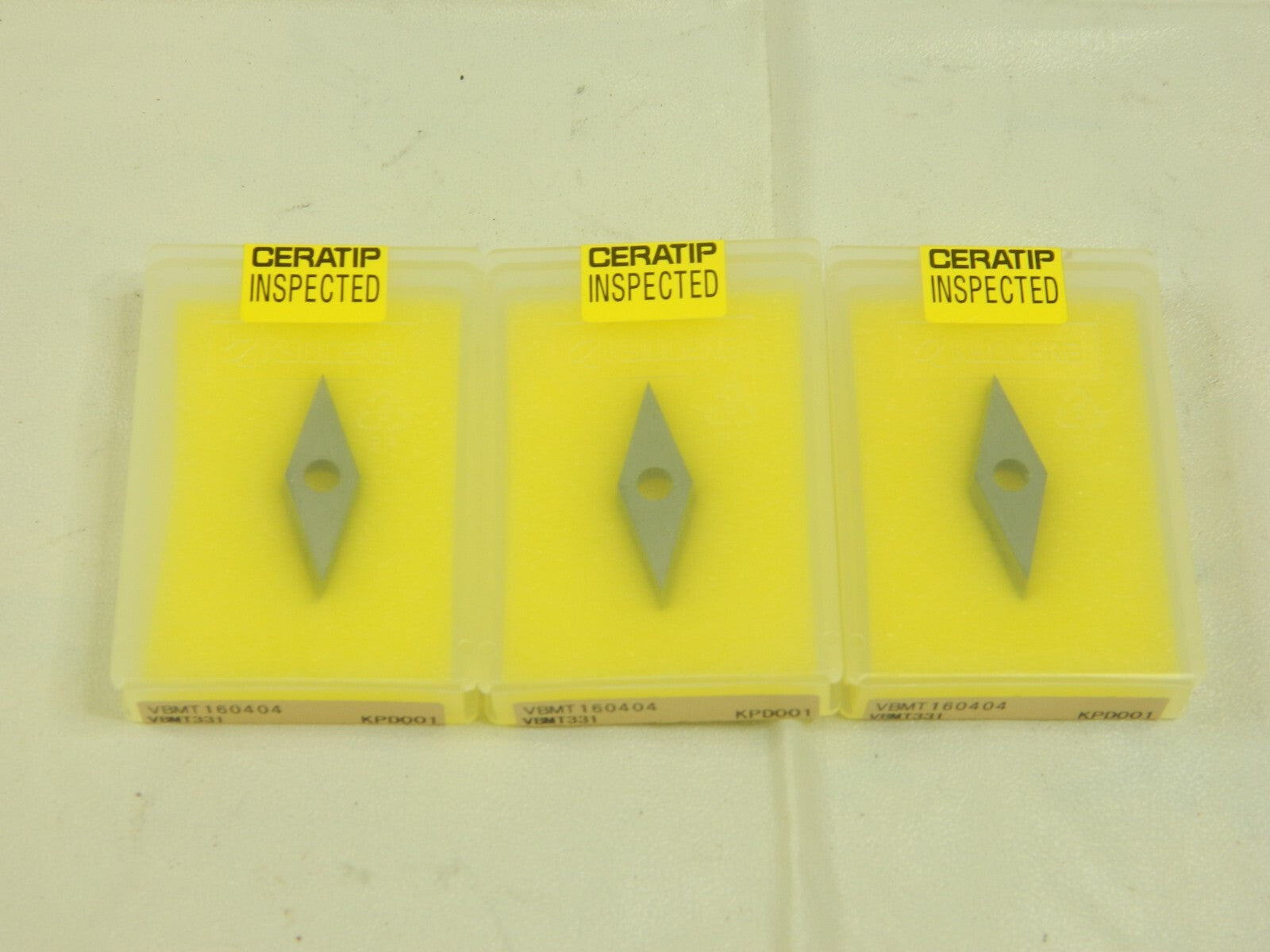

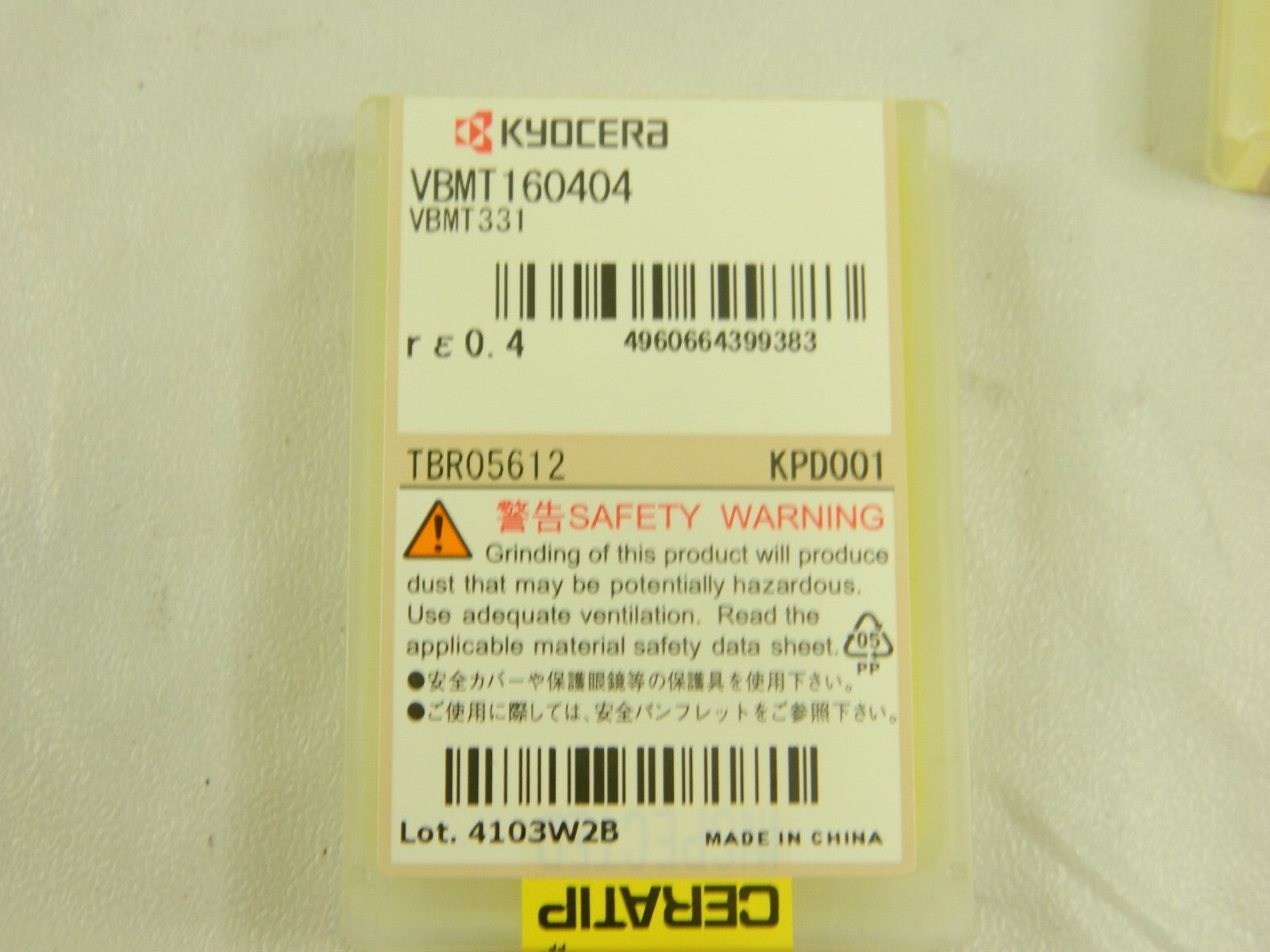

KYOCERA Turning Insert VBMT331 KPD001, Polycrystalline Diamond Qty 3 TBR05612

Kyocera
1 Lot of 3 Turning Inserts

MSRP: $50.00

• Insert Style VBMT
• Insert Shape Code V
• Insert Size Code 331
• Insert Shape Diamond
• Coating/Finish Bright/Uncoated
• Manufacturer Grade KPD001
• Corner Radius (Inch) 1/64
• Corner Radius (mm) 0.40
• Corner Radius (Decimal Inch) 0.0156
• Insert Material Polycrystalline Diamond
• Hole Diameter (Mm) ( - 0 Decimals) 4.39
• Hole Diameter (Decimal Inch) 0.1730
• Inscribed Circle (Inch) 3/8
• Inscribed Circle (Decimal Inch) 0.3750
• Insert Holding Method Screw
• Insert Hand Neutral
• Insert Thickness (Inch) 3/16
• Insert Thickness 4.76
• Insert Thickness (Decimal Inch) 0.1875
• Clearance Code B
• Tolerance Code M
• Included Angle 35.0
• Relief Angle 5
• Series ISOI
• Rake Positive
• Number Of Cutting Edges 1
• Primary Workpiece Material S
• Primary Workpiece Material Code S; N
• Secondary Workpiece Material Superalloy
• Ansi Code VBMT331KPD001
• Iso Code VBMT160404
• Standards ISO; ANSI
• Manufacturers Catalog Number VBMT331 KPD001
• Cutting Direction Neutral
• Material Grade Super Micrograin
• Chip Breaker T
• Rake Angle 10
• Multi-Use Tool No
• Multi-Use Application Turning

These items are new and in the original sealed package. SOLD AS IS.

Please review photos, comes as shown.
