KYOCERA Turning Insert VBMT3305 KPD001 Polycrystalline Diamond TBR05611

KYOCERA Turning Insert VBMT3305 KPD001 Polycrystalline Diamond TBR05611

MSRP: $100

• Insert Style VBMT
• Insert Size Code 3305
• Insert Shape Diamond 35°
• Included Angle 35 degree
• Inscribed Circle (Decimal Inch) 0.3750
• Corner Radius (Decimal Inch) 0.0080
• Insert Material PCD
• Manufacturer Grade KPD001
• Coating/Finish Bright/Uncoated
• Relief Angle 5
• Wiper Edge No
• Insert Thickness (Decimal Inch) 0.1875
• Insert Hand Neutral
• Number Of Cutting Edges 1
• Insert Shape Code V
• Corner Radius (Inch) 1/128
• Hole Diameter (Mm) ( - 0 Decimals) 4.39
• Hole Diameter (Decimal Inch) 0.1732
• Maximum Depth of Cut (Decimal Inch) 0.1181
• Inscribed Circle (Inch) 3/8
• Insert Holding Method Screw
• Width (Inch) 3/8 in
• Insert Thickness (Inch) 3/16
• Clearance Code B
• Tolerance Code M
• Series ISOI
• Coating Process Uncoated
• Length Range (Decimal Inch) 0.7000 - 10.0000
• Rake Positive
• Insert Length (Decimal Inch) 1.3080
• Primary Workpiece Material Non-Ferrous Metal; Superalloys
• Primary Workpiece Material Code S; N
• Secondary Workpiece Material Superalloy
• Iso Code VBMT160402
• Standards ISO; ANSI
• Manufacturers Catalog Number TBR05611
• Material Grade Super Micrograin
• Single or Multi Tipped Single Tipped
• UNSPSC Code 23242105
• Coating Classification Uncoated
• Rake Angle 10
• Industry Standard Number VBMT3305KPD001
• Width (Decimal Inch - 4 Decimals) 0.3750 in
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application External Turning; Back Boring; Facing; Copying; Profiling; Undercutting; Internal Facing
• Tip Length (Decimal Inch) 0.1181

Upgrade your turning performance with the KYOCERA VBMT3305 KPD001 turning insert. Made in Japan with polycrystalline diamond insert material, this unit type insert is perfect for CNC metalworking and manufacturing. Its diamond insert type ensures a durable and precise cutting edge, making it ideal for indexable inserts in workholding and toolholding applications. Trust in the quality of KYOCERA, a brand known for producing high-performance industrial tools.

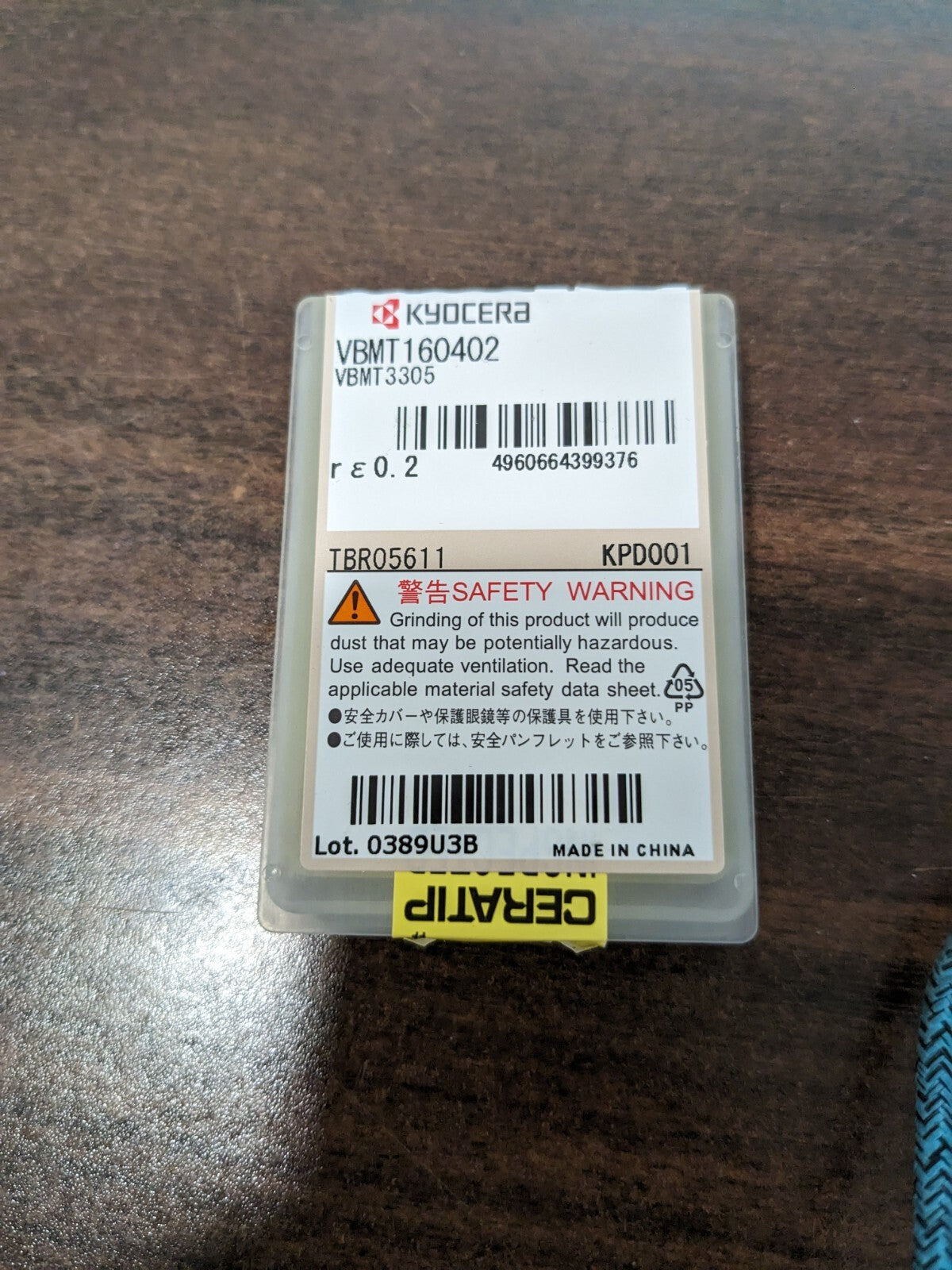

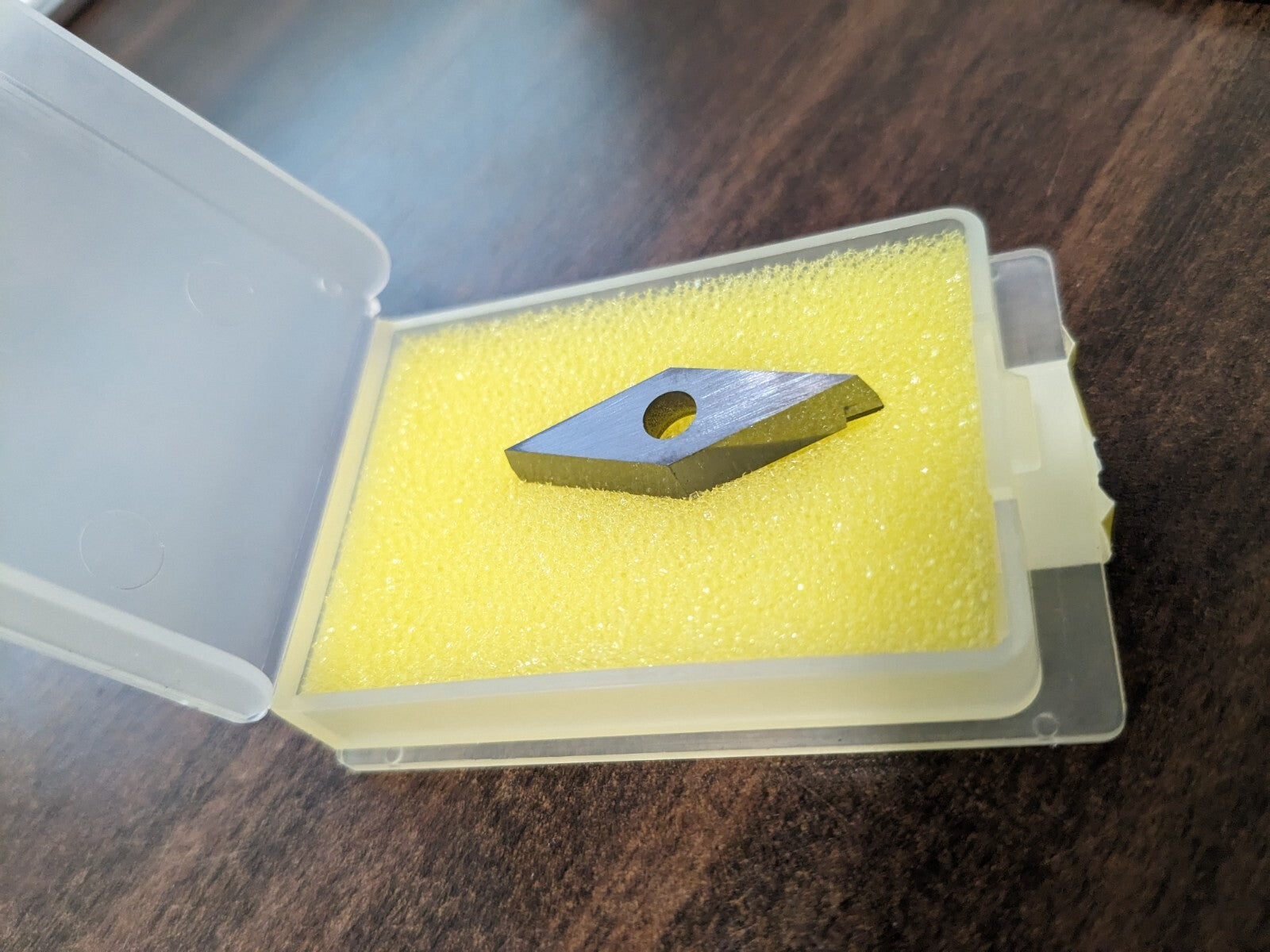

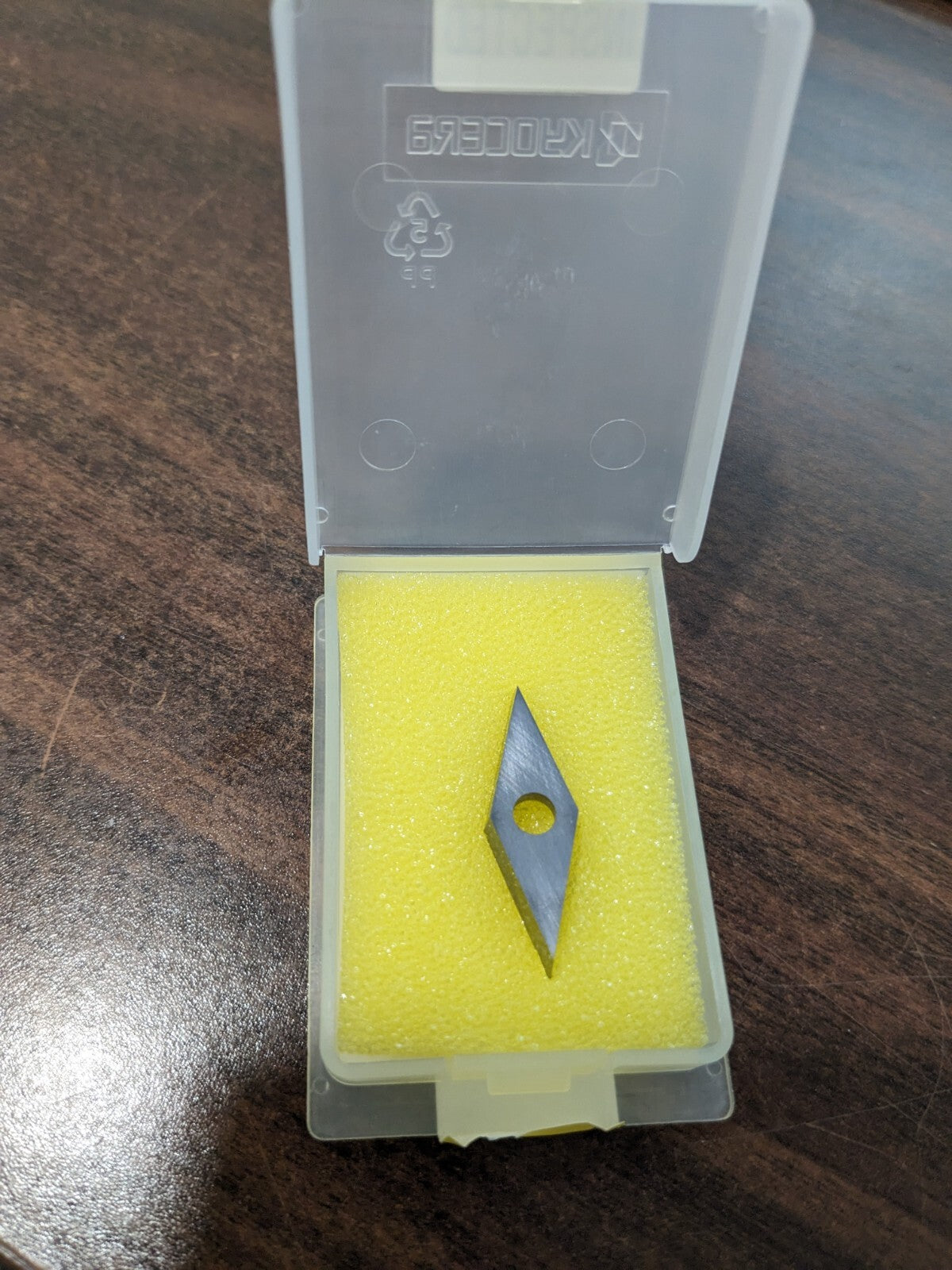

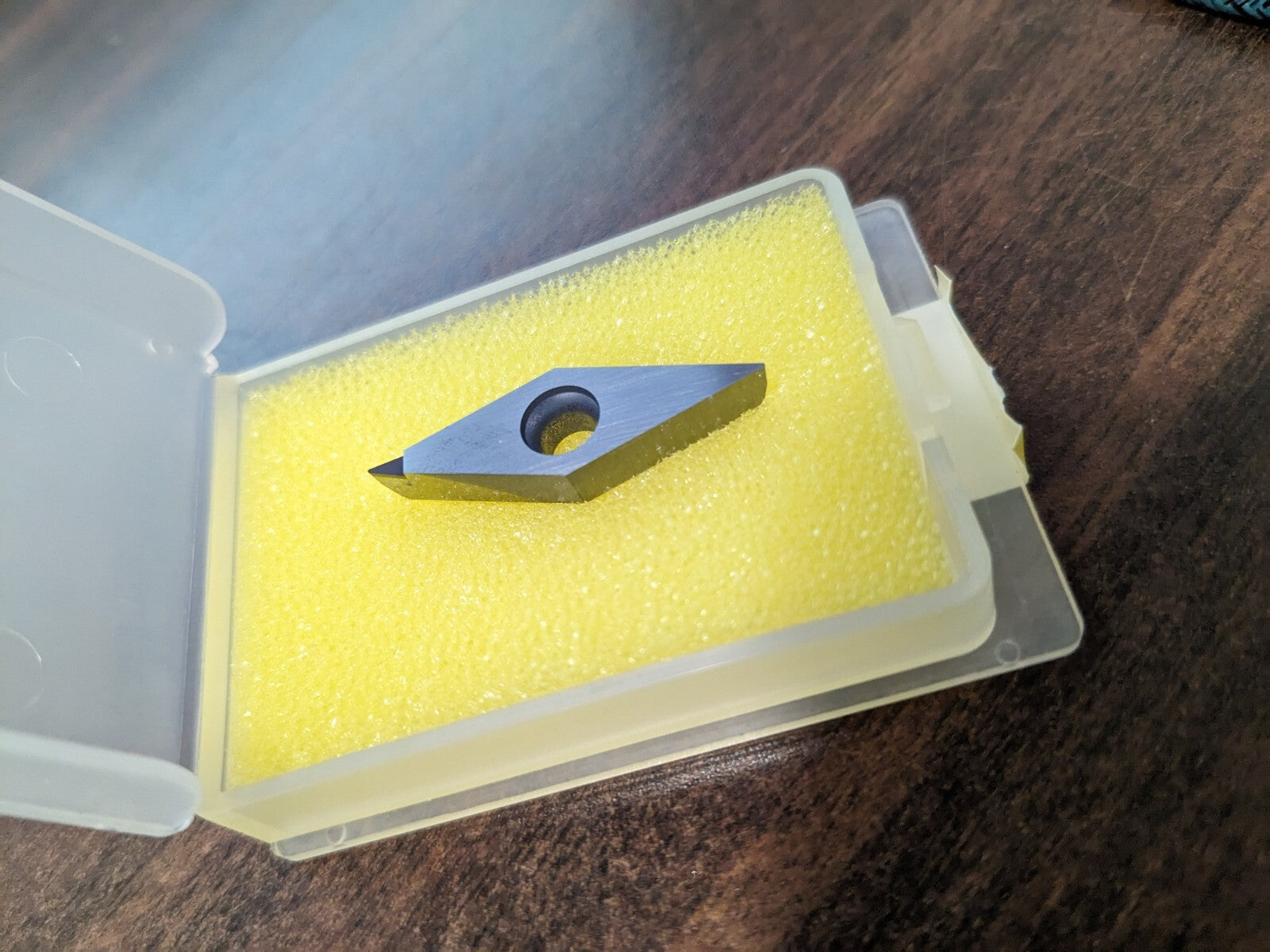

Please review photos, comes as shown.
