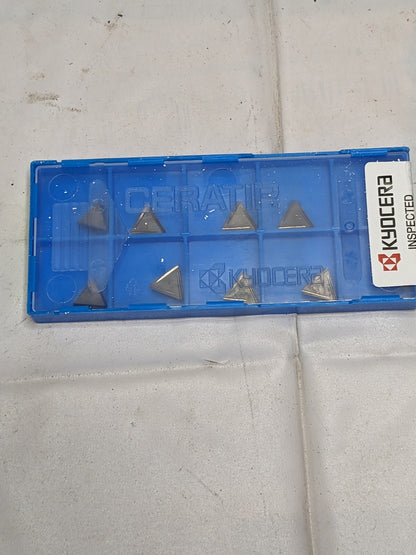

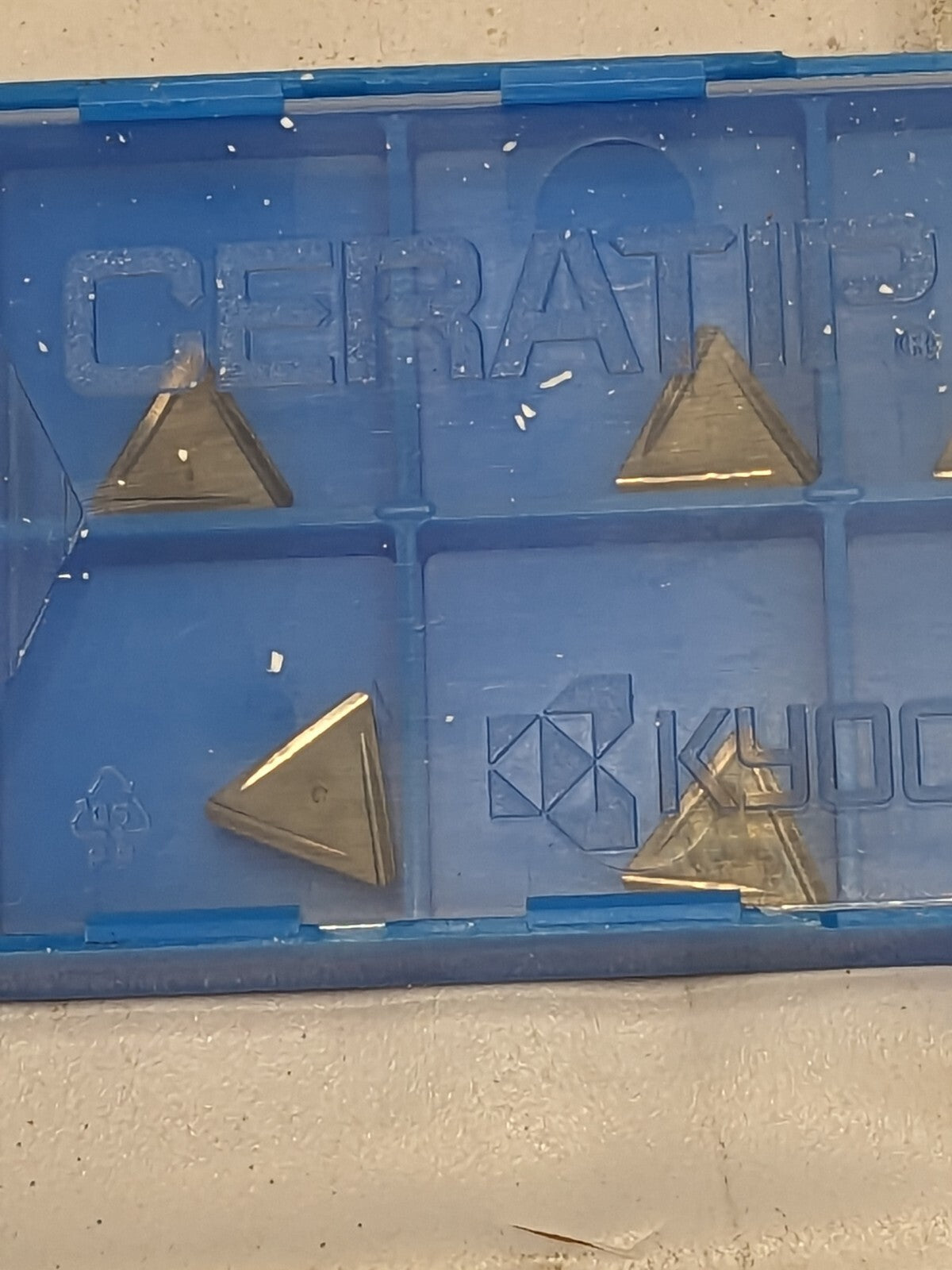

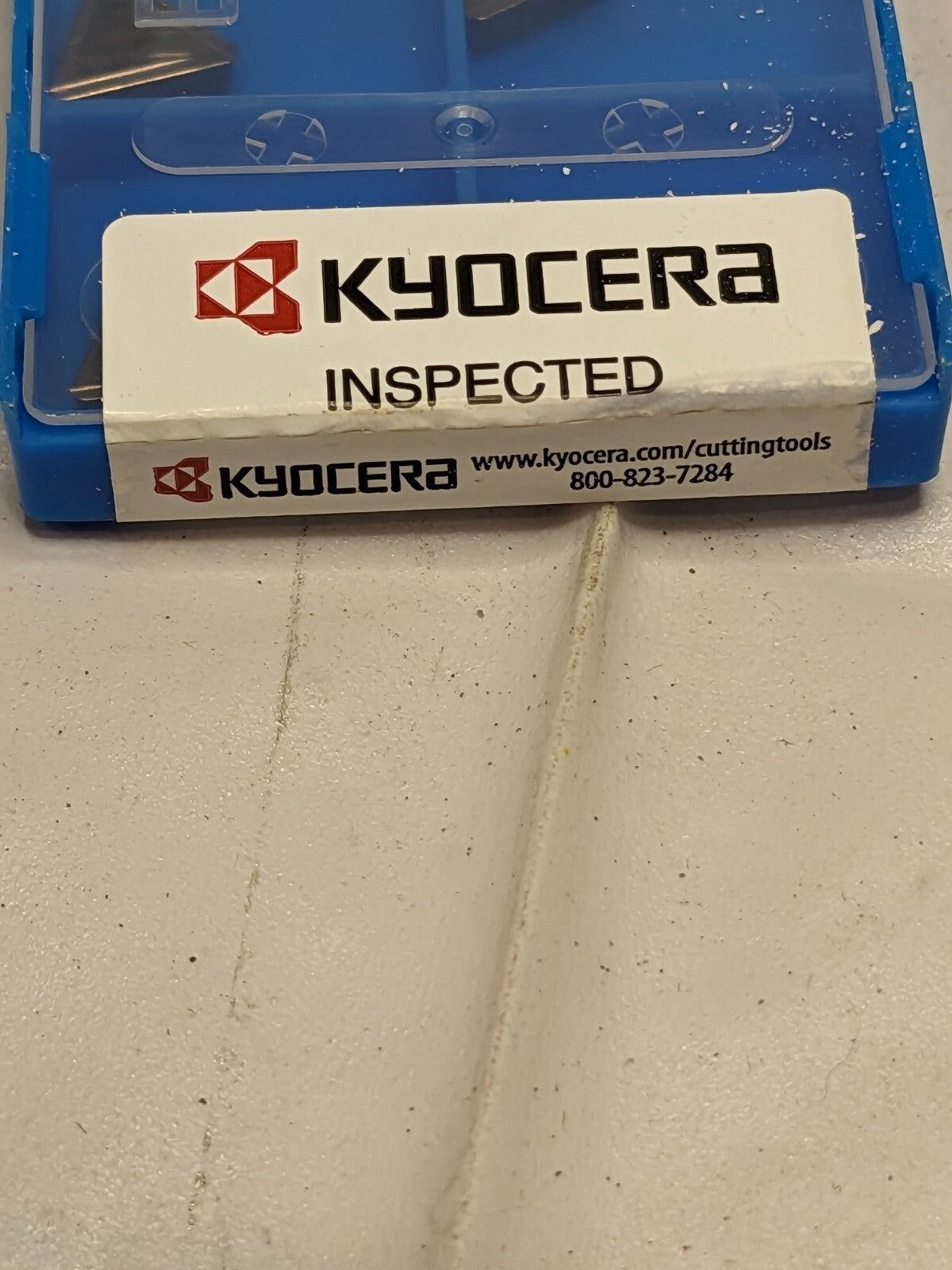

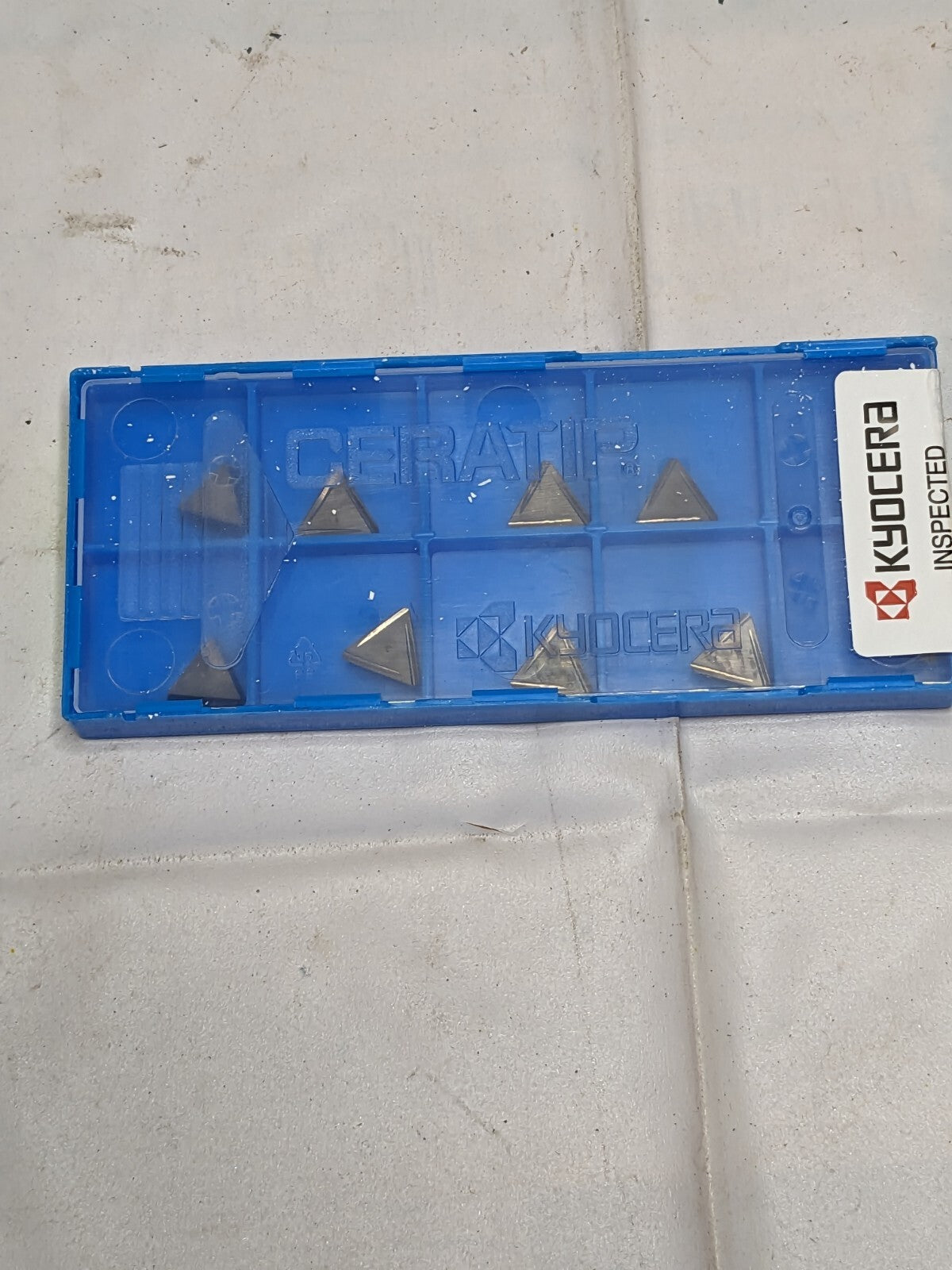

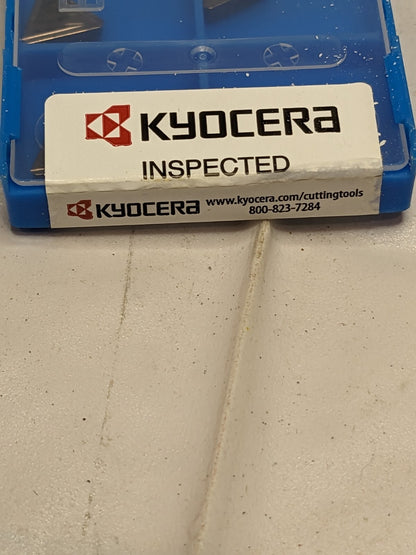

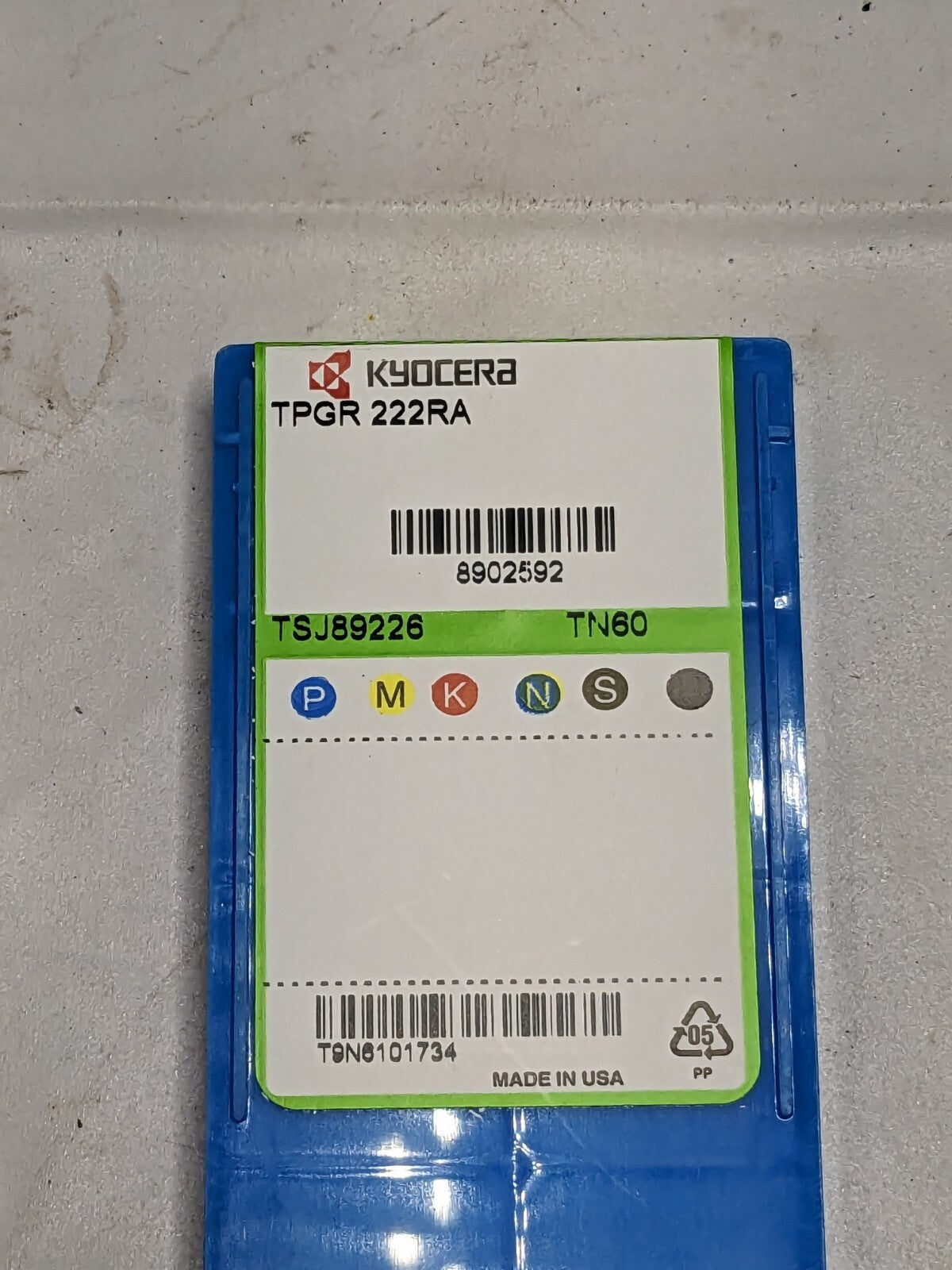

KYOCERA Turning Insert: TPGR222RA TN60, Cermet Qty 10 TSJ89226

Kyocera
1 Lot of 10 Inserts

MSRP: $80.00

• Standards ISO; ANSI
• Number Of Cutting Edges 3
• Wiper Edge No
• Corner Radius (Inch) 1/32
• Coating/Finish TiCN; NbC
• Maximum Depth of Cut (Decimal Inch) 0.0350
• Insert Hand Right Hand
• Manufacturers Catalog Number TSJ89226
• Iso Code TPGR222RA
• Secondary Workpiece Material Stainless Steel
• Primary Workpiece Material Code P
• Insert Material Cermet
• Insert Style TPGR
• Multi-Use Tool Yes
• Insert Shape Code T
• Cutting Edge Style Honed
• Insert Size Code 222
• Width (Decimal Inch - 4 Decimals) 0.8668 in
• Coating Process Uncoated
• Insert Shape Triangle
• Inscribed Circle (Inch) 1/4
• Insert Thickness (Decimal Inch) 0.1250
• Primary Workpiece Material Steel
• Secondary Workpiece Material Code M
• Coating Classification Uncoated
• Inscribed Circle (Decimal Inch) 0.2500
• Chip Breaker A
• Corner Radius (Decimal Inch) 0.0313
• Tolerance Code G
• Rake Angle 17
• Industry Standard Number TPGR222RATN60
• Relief Angle 11 °
• Full Radius No
• Rake Positive
• Series ISOI
• Material Grade P01; P10; P20
• Length Range (Decimal Inch) 0.7000 - 10.0000
• Included Angle 60 degree
• Clearance Code P
• Insert Thickness (Inch) 1/8
• Multi-Use Application External Turning; Back Boring; Copying; Internal Facing; Boring
• Manufacturer Grade TN60
• Insert Length (Decimal Inch) 0.8668
• UNSPSC Code 23242105
• Insert Holding Method Clamp

These items are new and in the original sealed package. SOLD AS IS.

Please review photos, comes as shown.
