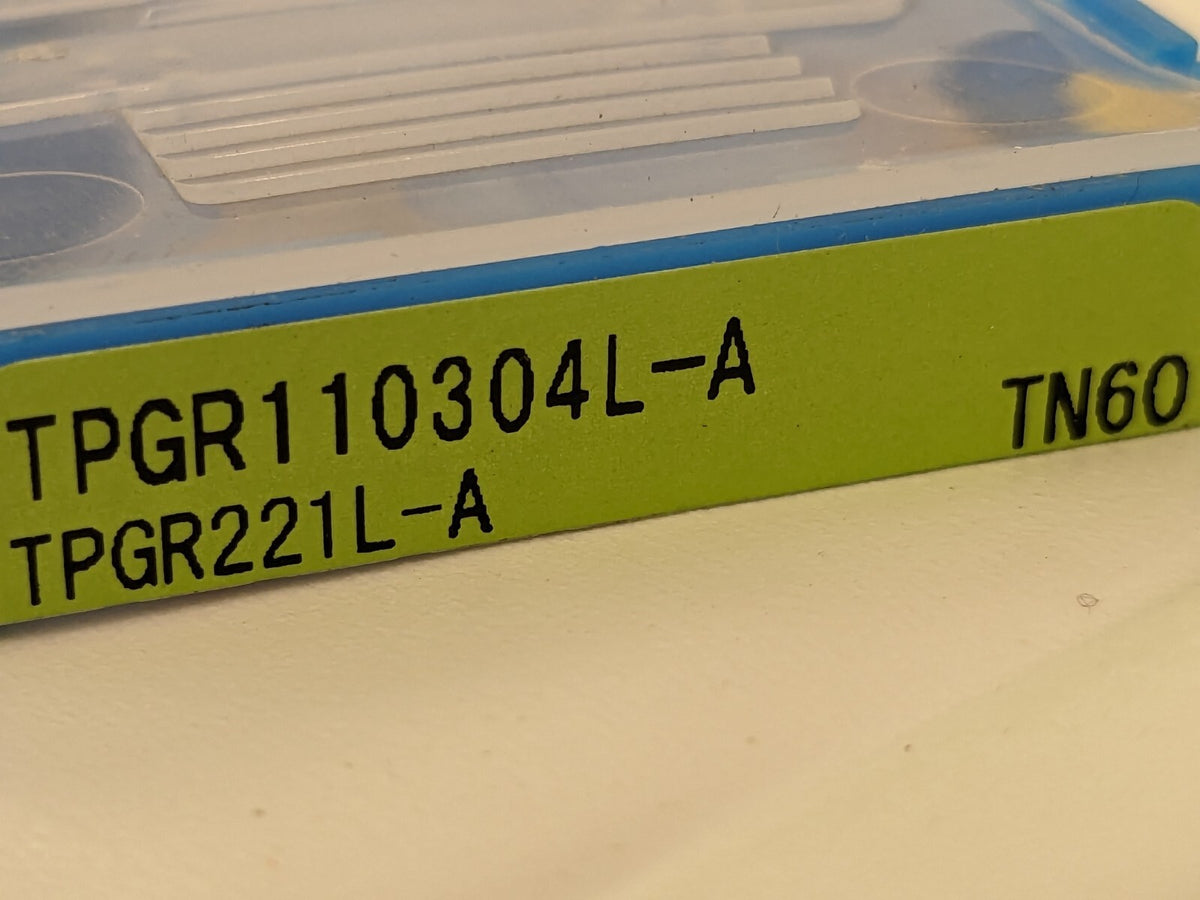

KYOCERA Turning Insert: TPGR221LA TN60, Cermet qty 10 TSJ02720

KYOCERA

 Turning Insert: TPGR221LA TN60, Cermet qty 10 TSJ02720
MSRP: $140

• Insert Style TPGR
• Insert Size Code 221
• Insert Shape Triangle
• Included Angle 60
• Inscribed Circle (Decimal Inch) 0.2500
• Corner Radius (Decimal Inch) 0.0156
• Insert Material Cermet
• Manufacturer Grade TN60
• Coating/Finish TiCN; NbC
• Relief Angle 11
• Insert Thickness (Decimal Inch) 0.1250
• Insert Hand Left Hand
• Number Of Cutting Edges 3
• Insert Shape Code T
• Corner Radius (Inch) 1/64
• Inscribed Circle (Inch) 1/4
• Insert Holding Method Clamp
• Insert Thickness (Inch) 1/8
• Clearance Code P
• Tolerance Code G
• Series ISOI
• Coating Process Uncoated
• Length Range (Decimal Inch) 0.4000 - 0.5000
• Rake Positive
• Insert Length (Decimal Inch) 0.4330
• Primary Workpiece Material Steel
• Primary Workpiece Material Code P
• Secondary Workpiece Material Stainless Steel
• Secondary Workpiece Material Code M
• Iso Code TPGR110304L-A
• Standards ISO; ANSI
• Material Grade C3; C4; C6; C7; C8; C2
• UNSPSC Code 23242105
• Chip Breaker A
• Rake Angle 17

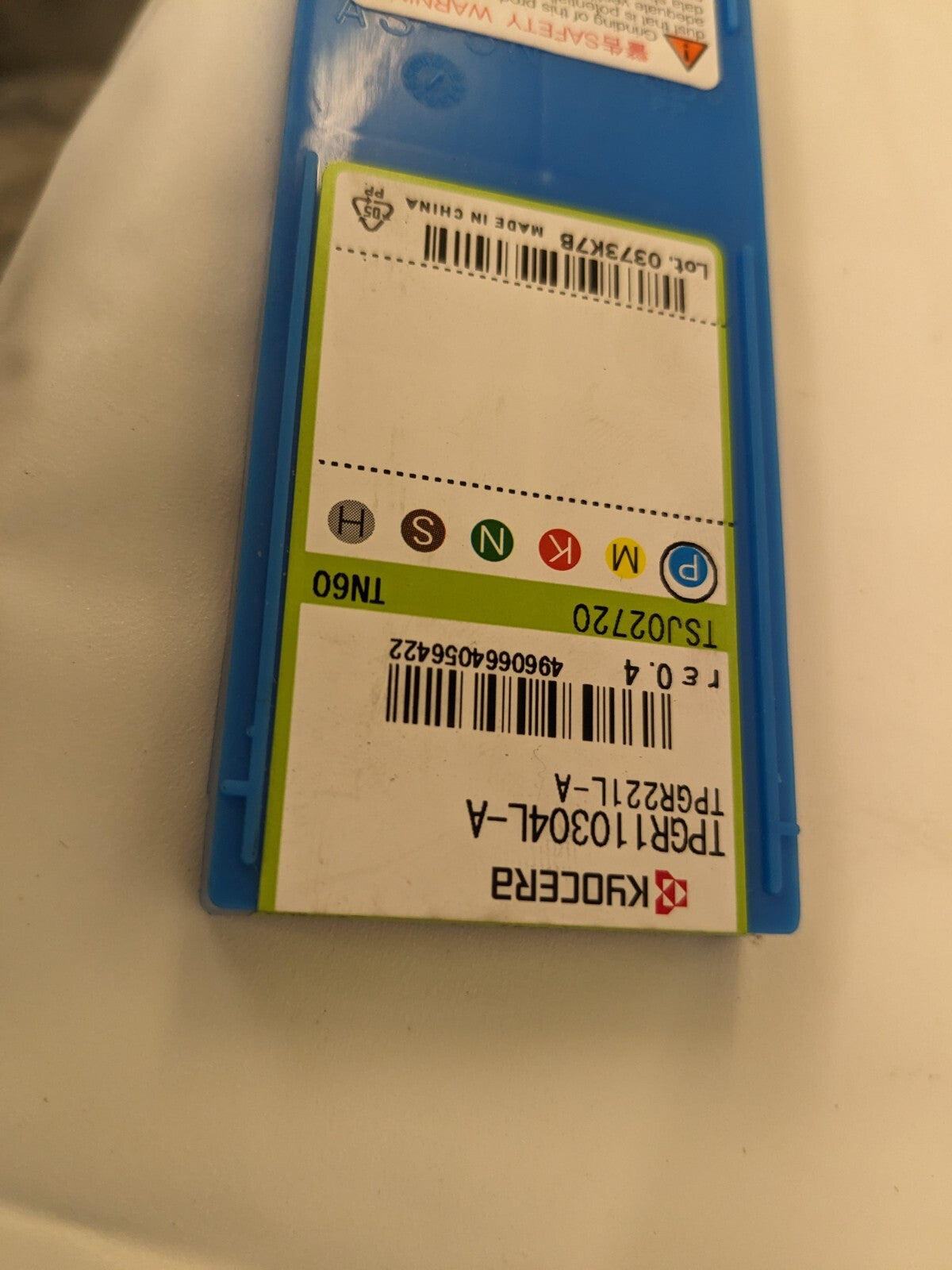

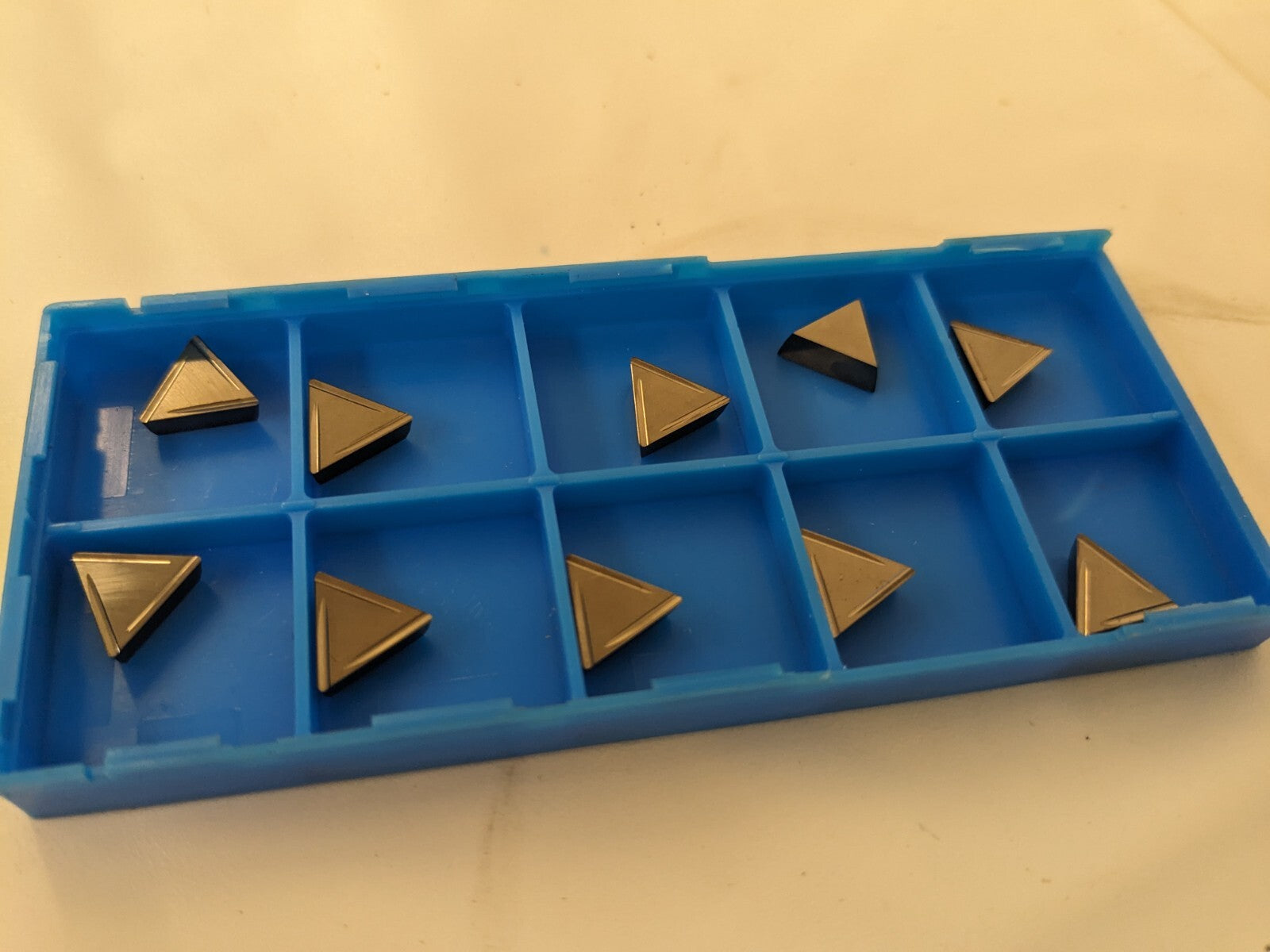

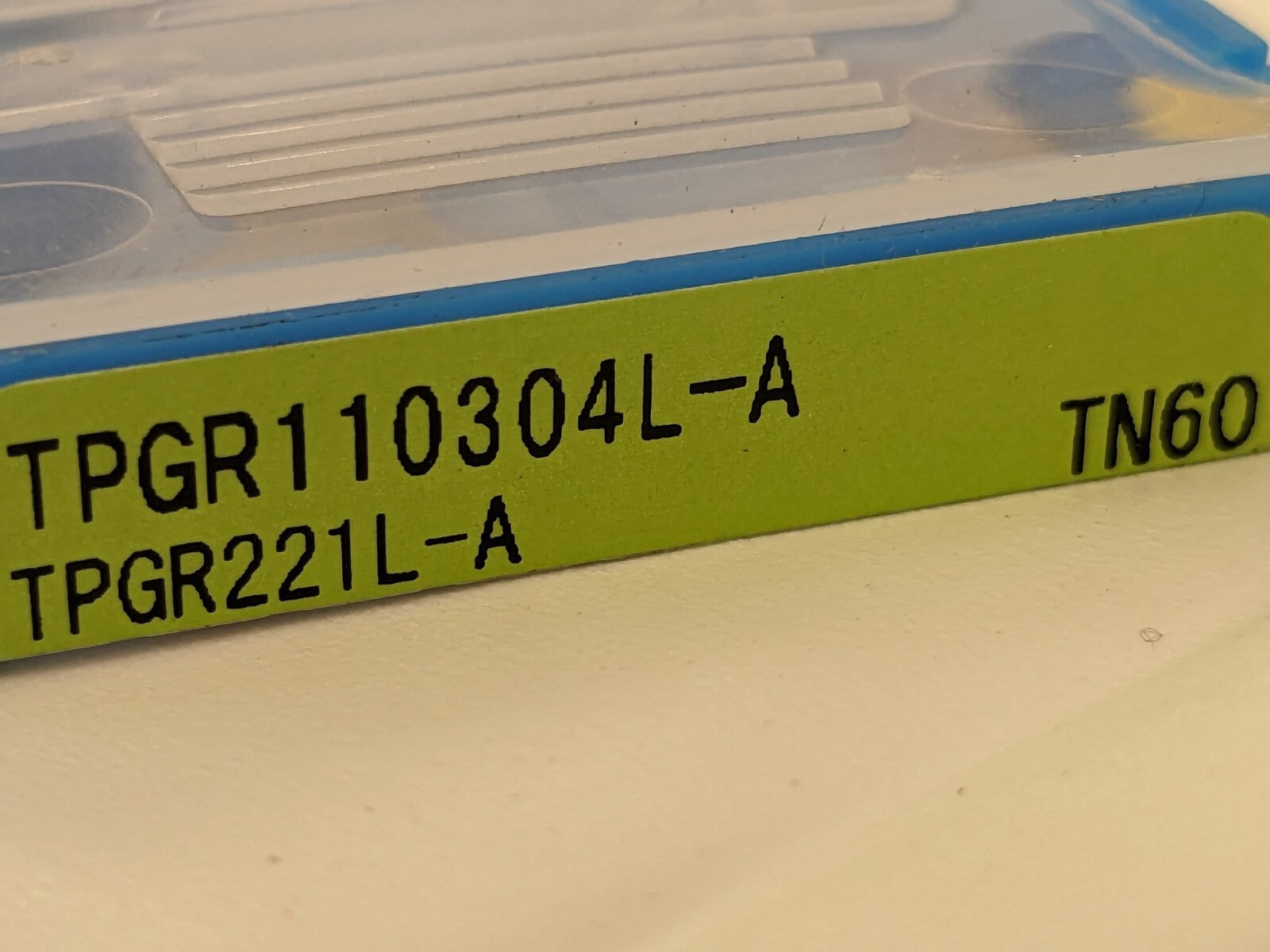

 Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
