KYOCERA Turning Insert: TPG1.81.51 TN60, Cermet Qty 4 TSJ02657

Kyocera
1 Lot of 4 Inserts

MSRP: $40.00

• Insert Style TPG
• Insert Size Code 18151
• Insert Shape Triangle
• Included Angle 60
• Inscribed Circle (Decimal Inch) 0.2188
• Corner Radius (Decimal Inch) 0.0156
• Insert Material Cermet
• Manufacturer Grade TN60
• Coating/Finish TiCN; NbC
• Relief Angle 11
• Wiper Edge No
• Insert Thickness (Decimal Inch) 0.0938
• Insert Hand Neutral
• Number Of Cutting Edges 3
• Insert Shape Code T
• Corner Radius (Inch) 1/64
• Maximum Depth of Cut (Decimal Inch) 0.1182
• Inscribed Circle (Inch) 7/32
• Insert Holding Method Clamp
• Insert Thickness (Inch) 3/32
• Clearance Code P
• Tolerance Code G
• Series ISOI
• Coating Process Uncoated
• Length Range (Decimal Inch) 0.3000 - 0.4000
• Rake Positive
• Insert Length (Decimal Inch) 0.3546
• Primary Workpiece Material Steel
• Primary Workpiece Material Code P
• Iso Code TPGN090204
• Standards ISO; ANSI
• Manufacturers Catalog Number TSJ02657
• Material Grade P01; P10; P20
• UNSPSC Code 23242105
• Coating Classification Uncoated
• Industry Standard Number TPG18151TN60
• Width (Decimal Inch - 4 Decimals) 0.3546
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application External Turning; Chamfering; Facing; Boring

These items appear to be new and in good condition. SOLD AS IS.

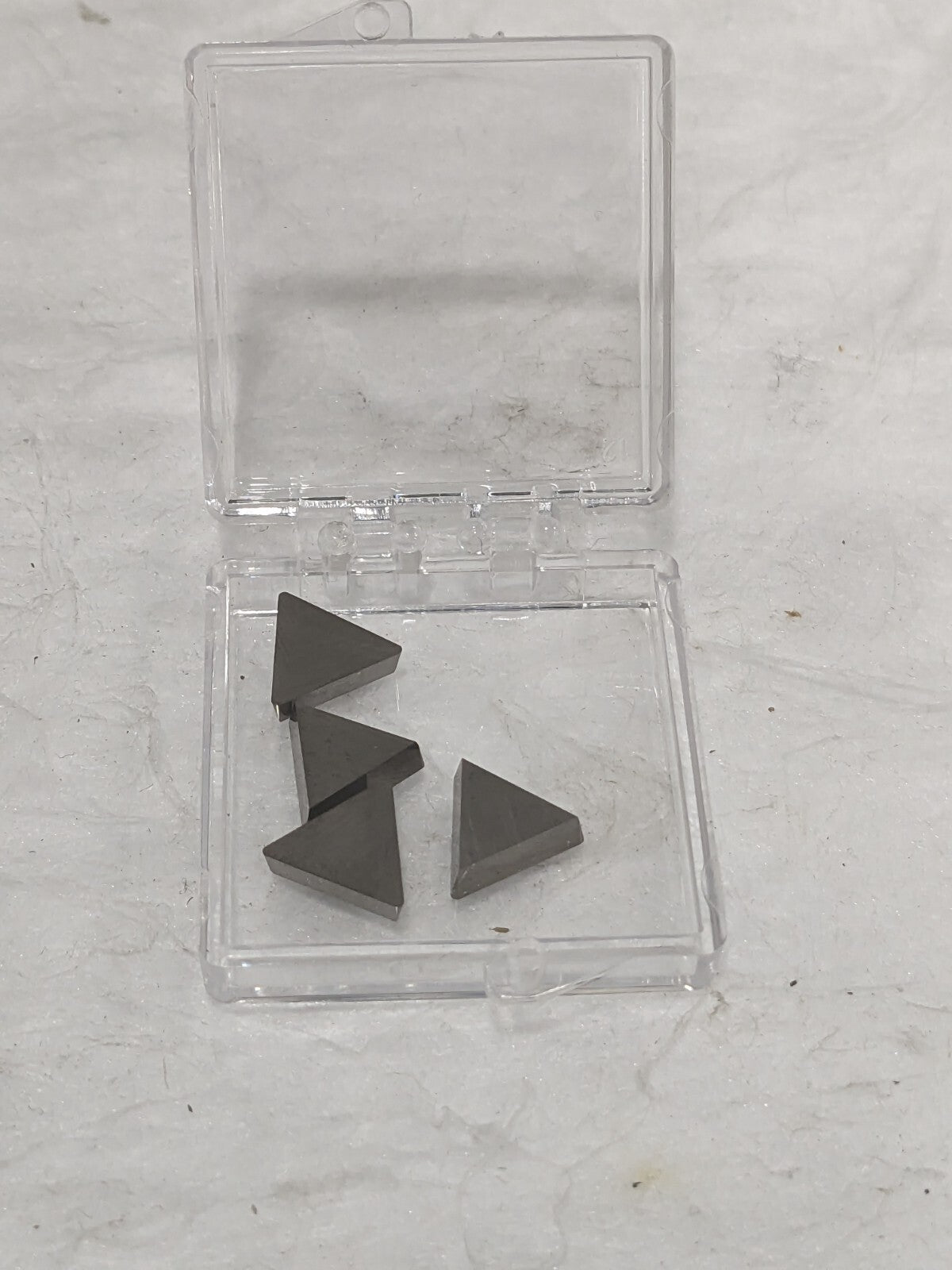

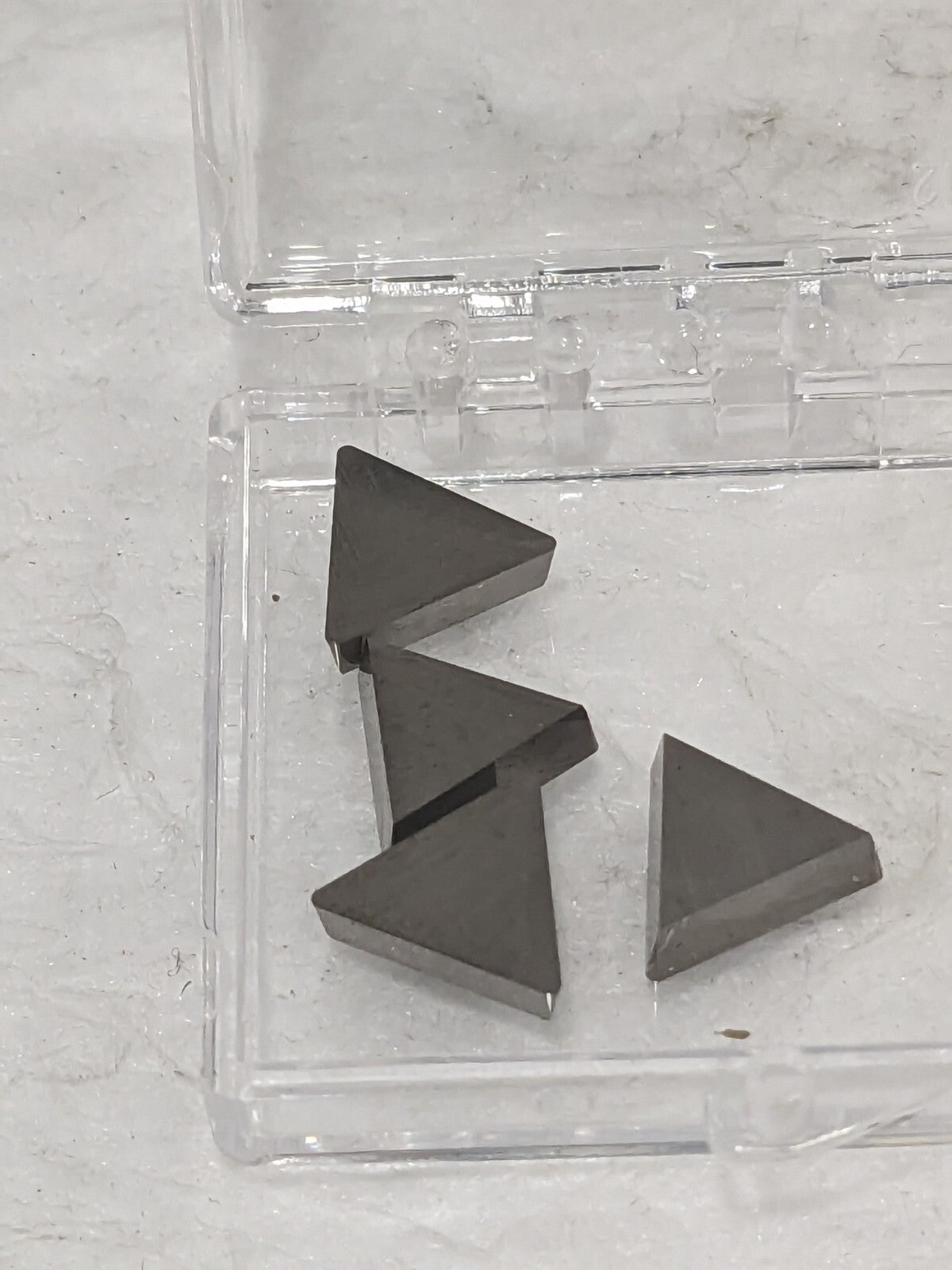

Please review photos, comes as shown.
