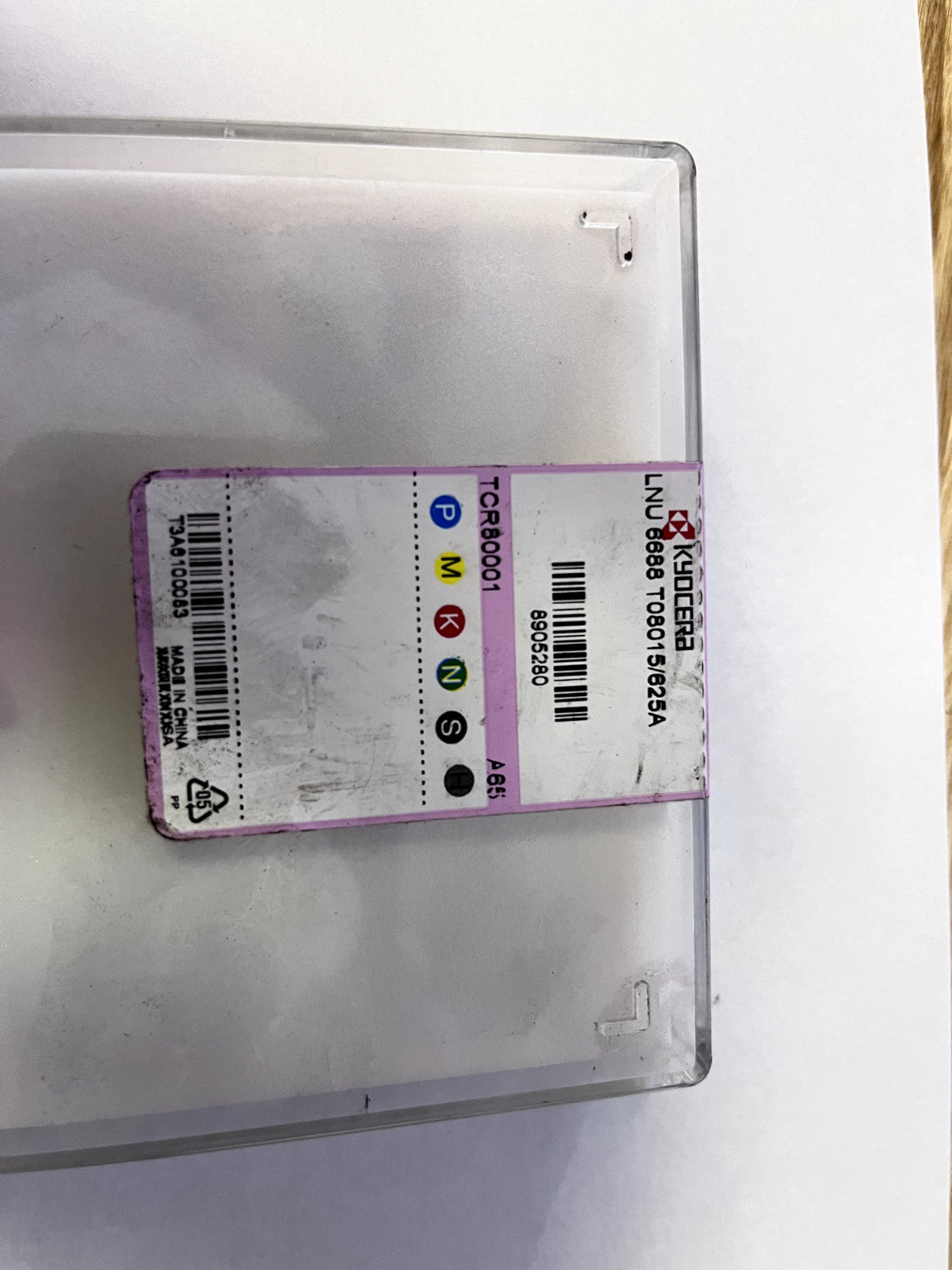

KYOCERA Turning Insert: LNU6688T08015625A A65, Ceramic 8 pack TCR80001
KYOCERA Turning Insert: LNU6688T08015625A A65, Ceramic 8 pack TCR80001
Regular price
$244.75 USD
Regular price
$500.00 USD
Sale price
$244.75 USD
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND Kyocera
Item
MSRP: $500.00
- specs
Insert Style LNU
Insert Size Code 6688
Insert Shape Rectangle
Included Angle 90 degree
Inscribed Circle (Decimal Inch) 0.7500
Corner Radius (Decimal Inch) 0.1250
Insert Material Ceramic
Manufacturer Grade A65
Coating/Finish Al2O3; TiC
Relief Angle 0 °
Wiper Edge No
Insert Thickness (Decimal Inch) 0.5000
Insert Hand Neutral
Number Of Cutting Edges 4
Insert Shape Code L
Corner Radius (Inch) 1/8
Maximum Depth of Cut (Decimal Inch) 0.5000
Inscribed Circle (Inch) 3/4
Insert Holding Method Clamp
Width (Inch) 3/4 in
Insert Thickness (Inch) 1/2
Clearance Code N
Tolerance Code U
Series ISOI
Coating Process Uncoated
Length Range (Decimal Inch) 0.7000 - 10.0000
Rake Negative
Insert Length (Inch) 1-1/2
Insert Length (Decimal Inch) 1.5000
Insert Length (mm) 38.10
Primary Workpiece Material Hard Material; Cast Iron
Primary Workpiece Material Code H; K
Iso Code LNU6688T08015/625A
Standards ISO; ANSI
Manufacturers Catalog Number TCR80001
Material Grade H10; H01; K10; K01
UNSPSC Code 23242105
Coating Classification Uncoated
Industry Standard Number LNU6688T08015625AA65
Width (Decimal Inch - 4 Decimals) 0.7500 in
Multi-Use Tool No
Full Radius No
Multi-Use Application Roll Machining
(Description).

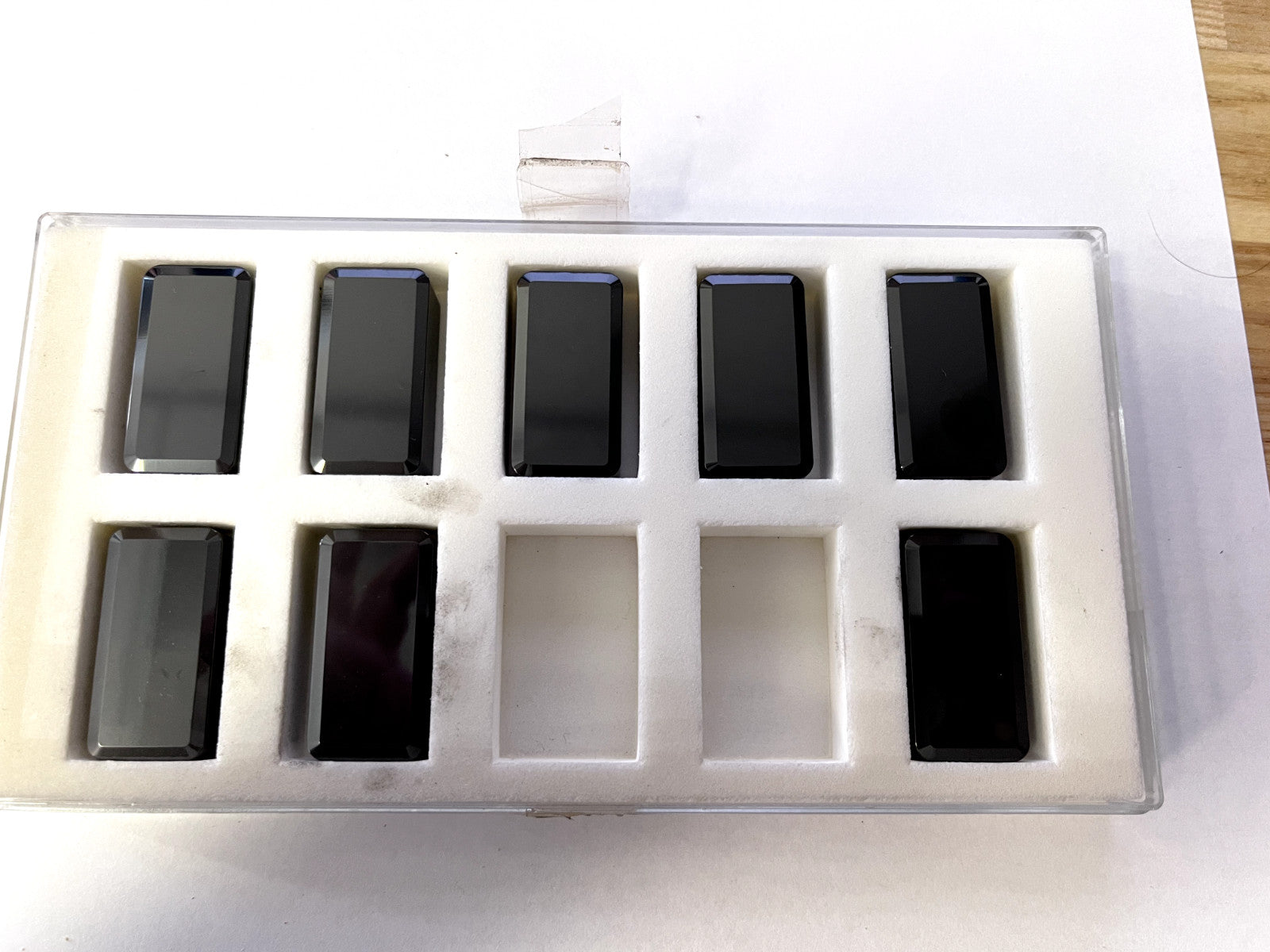

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
