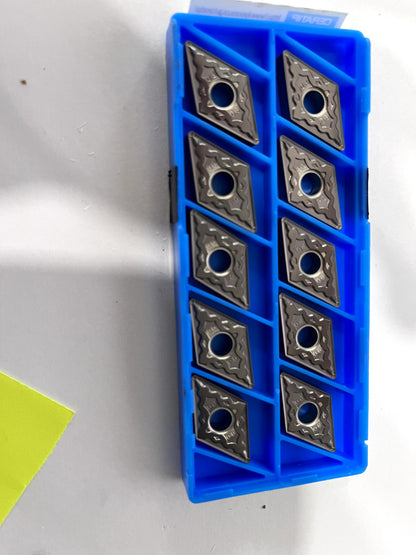

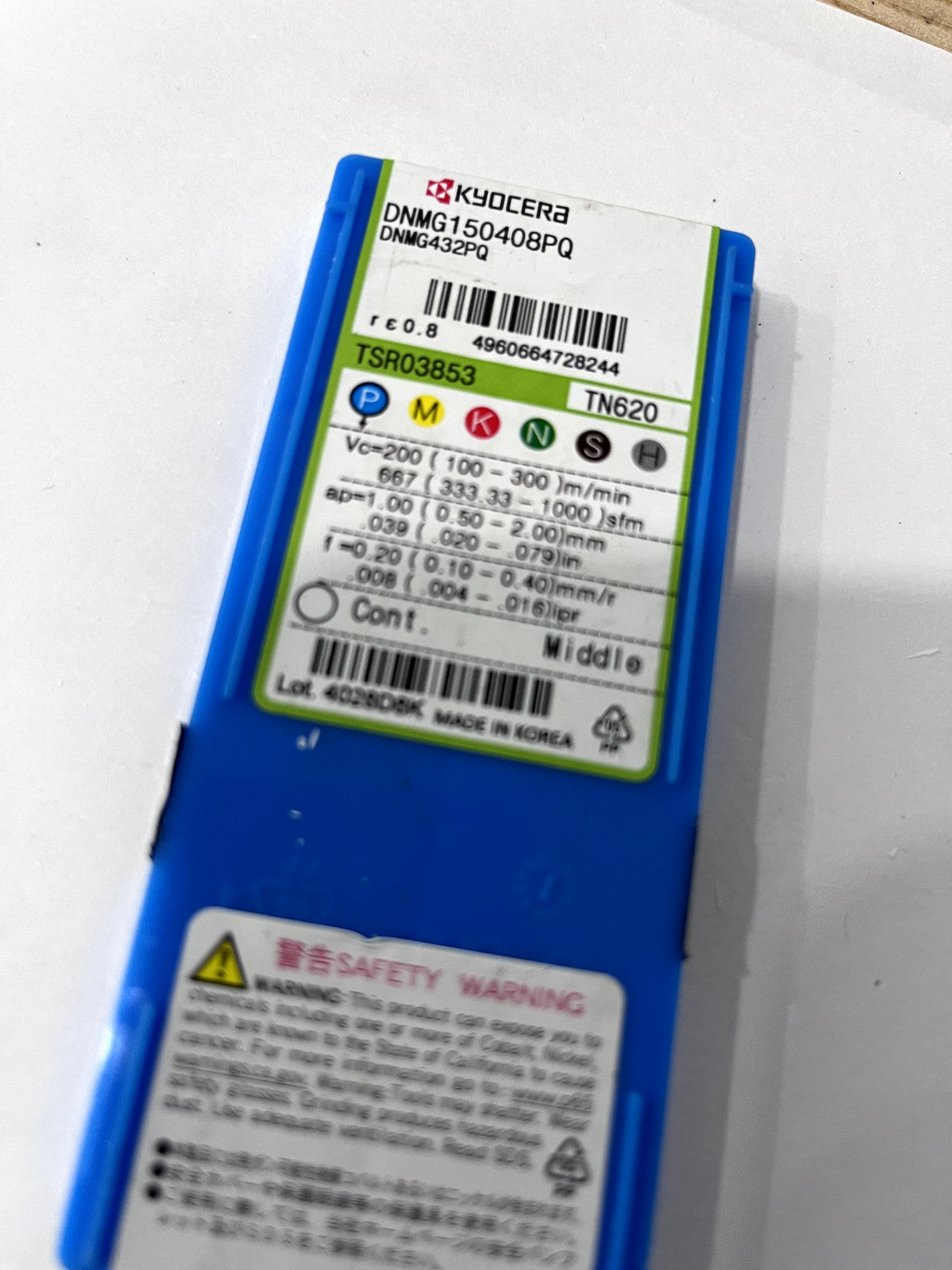

KYOCERA Turning Insert: DNMG432PQ TN620, Cermet qty 10 TSR03853
KYOCERA Turning Insert: DNMG432PQ TN620, Cermet qty 10 TSR03853
Regular price
$110.00 USD
Regular price
$220.00 USD
Sale price
$110.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
KYOCERA Turning Insert: DNMG432PQ TN620, Cermet qty 10 TSR03853
Item Description
BRAND kyocera
Item
MSRP: $ 220.00
- specs
Insert Style DNMG
Insert Size Code 432
Insert Shape Diamond 55°
Included Angle 55
Inscribed Circle (Decimal Inch) 0.5000
Corner Radius (Decimal Inch) 0.0313
Corner Radius (mm) 0.79
Insert Material Cermet
Manufacturer Grade TN620
Coating/Finish TiCN
Relief Angle 0
Wiper Edge No
Insert Thickness 4.76
Insert Thickness (Decimal Inch) 0.1875
Insert Hand Neutral
Number Of Cutting Edges 4
Insert Shape Code D
Corner Radius (Inch) 1/32
Hole Diameter (Mm) ( - 0 Decimals) 5.16
Hole Diameter (Decimal Inch) 0.2032
Maximum Depth of Cut (Decimal Inch) 0.3940
Inscribed Circle (Inch) 1/2
Inscribed Circle (mm) 12.70
Insert Holding Method Pin; Clamp
Width (Inch) 1/2
Insert Thickness (Inch) 3/16
Clearance Code N
Tolerance Code M
Series ISOI
Coating Process Uncoated
Length Range (Decimal Inch) 0.7000 - 10.0000
Rake Negative
Insert Length (Decimal Inch) 1.1820
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Iso Code DNMG150408PQ
Standards ISO; ANSI
Manufacturers Catalog Number TSR03853
Material Grade P01; P10; P20
UNSPSC Code 23242105
Coating Classification Uncoated
Chip Breaker PQ
Rake Angle -15
Cutting Edge Style Chamfered & Honed
Industry Standard Number DNMG432PQTN620
Width (Decimal Inch - 4 Decimals) 0.5
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Copying; Boring
(Description).

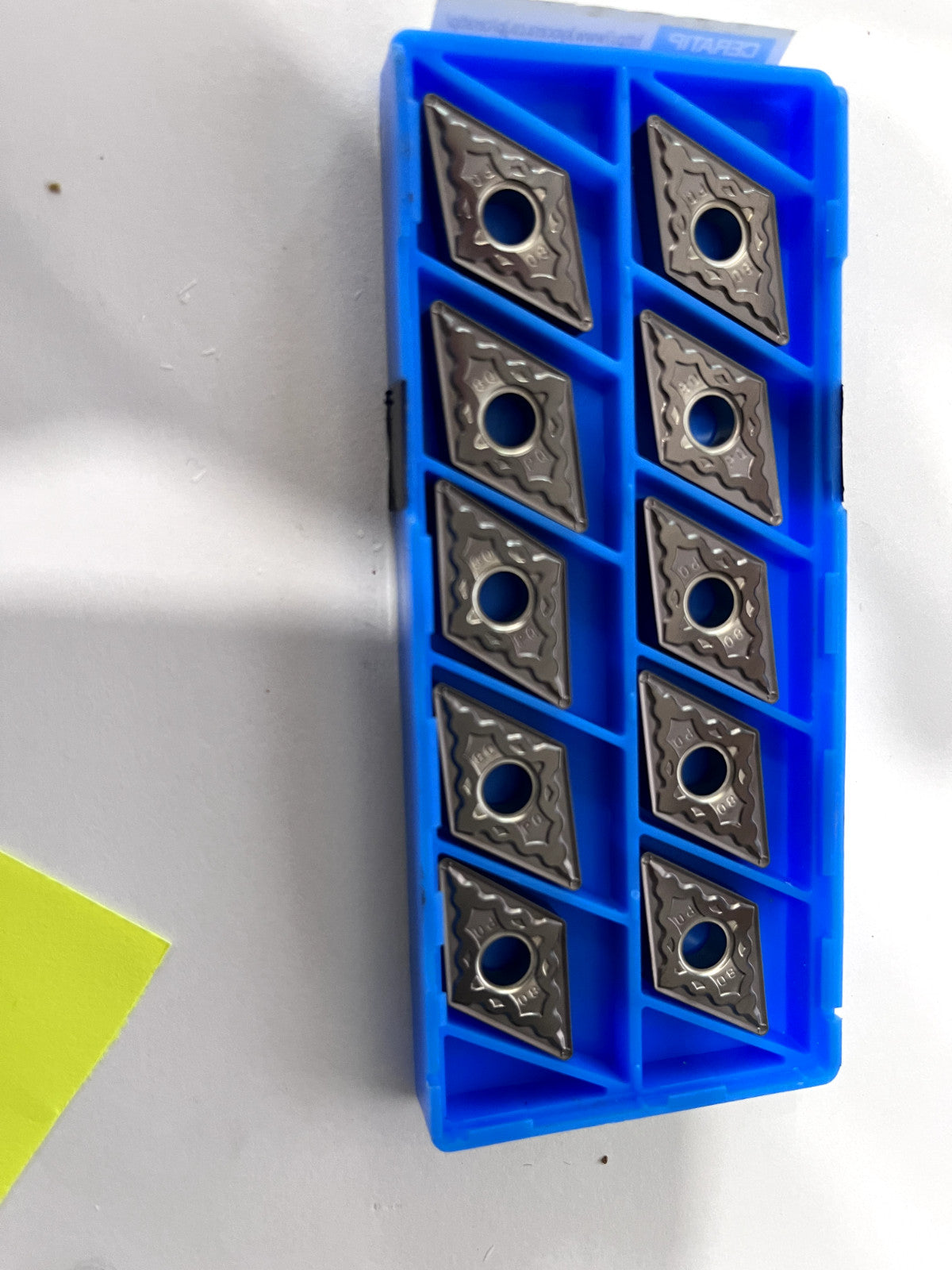

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
