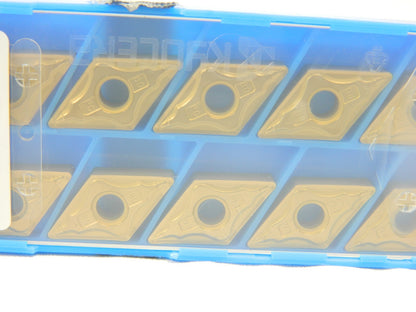

KYOCERA Turning Insert: DNMG432PG CA515, Solid Carbide Qty 10 TAB02187

Kyocera
1 Lot of 10 Inserts

MSRP: $120.00

• Insert Style DNMG
• Insert Shape Code D
• Insert Size Code 432
• Insert Shape Diamond
• Coating/Finish TiCN/Al2O3/TiN
• Manufacturer Grade CA515
• Corner Radius (Inch) 1/32
• Corner Radius (mm) 0.79
• Corner Radius (Decimal Inch) 0.0313
• Insert Material Solid Carbide
• Hole Diameter (Mm) ( - 0 Decimals) 5.16
• Hole Diameter (Decimal Inch) 0.2030
• Inscribed Circle (Inch) 1/2
• Inscribed Circle (mm) 12.70
• Inscribed Circle (Decimal Inch) 0.5000
• Insert Holding Method Pin; Clamp
• Insert Hand Neutral
• Insert Thickness (Inch) 3/16
• Insert Thickness 4.76
• Insert Thickness (Decimal Inch) 0.1875
• Clearance Code N
• Tolerance Code M
• Included Angle 55.0
• Relief Angle 0
• Series ISOI
• Coating Process CVD
• Rake Negative
• Number Of Cutting Edges 4
• Primary Workpiece Material P
• Primary Workpiece Material Code P
• Ansi Code DNMG432PGCA515
• Iso Code DNMG150408PG
• Standards ISO; ANSI
• Manufacturers Catalog Number DNMG432PG CA515
• Cutting Direction Neutral
• Chip Breaker PG
• Rake Angle 15
• Multi-Use Tool No
• Multi-Use Application Turning

These items are new and in the original sealed package. SOLD AS IS.

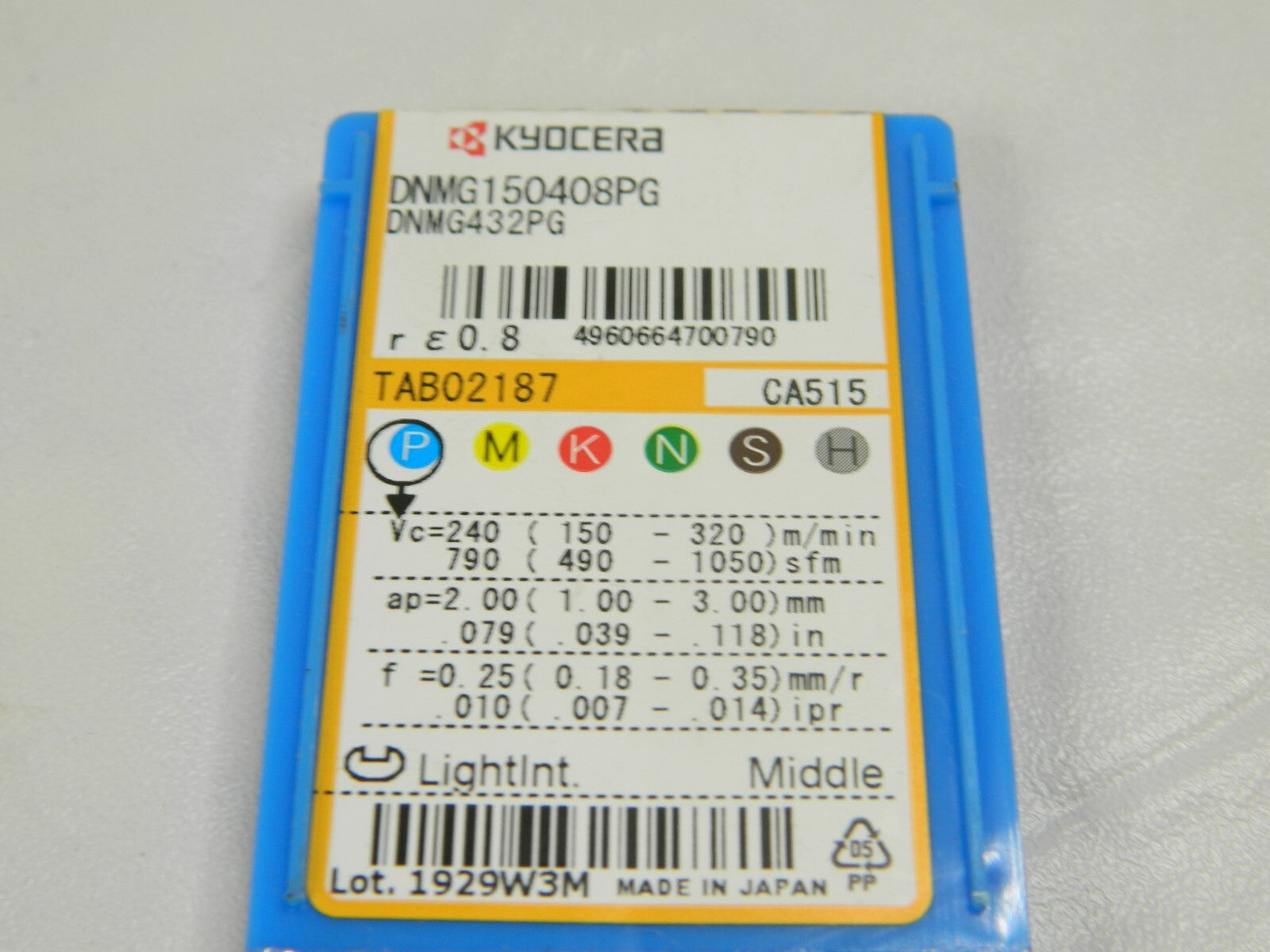

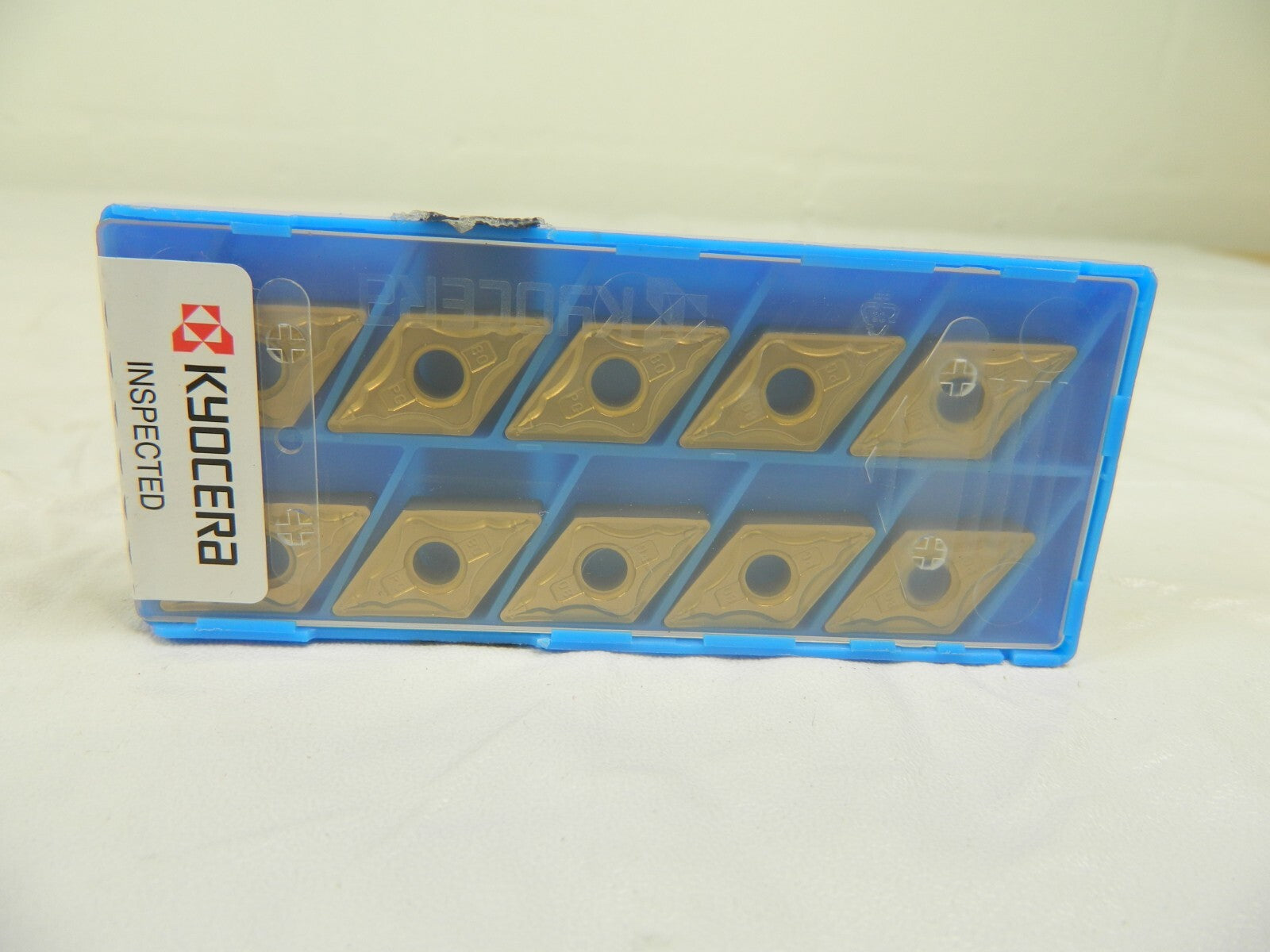

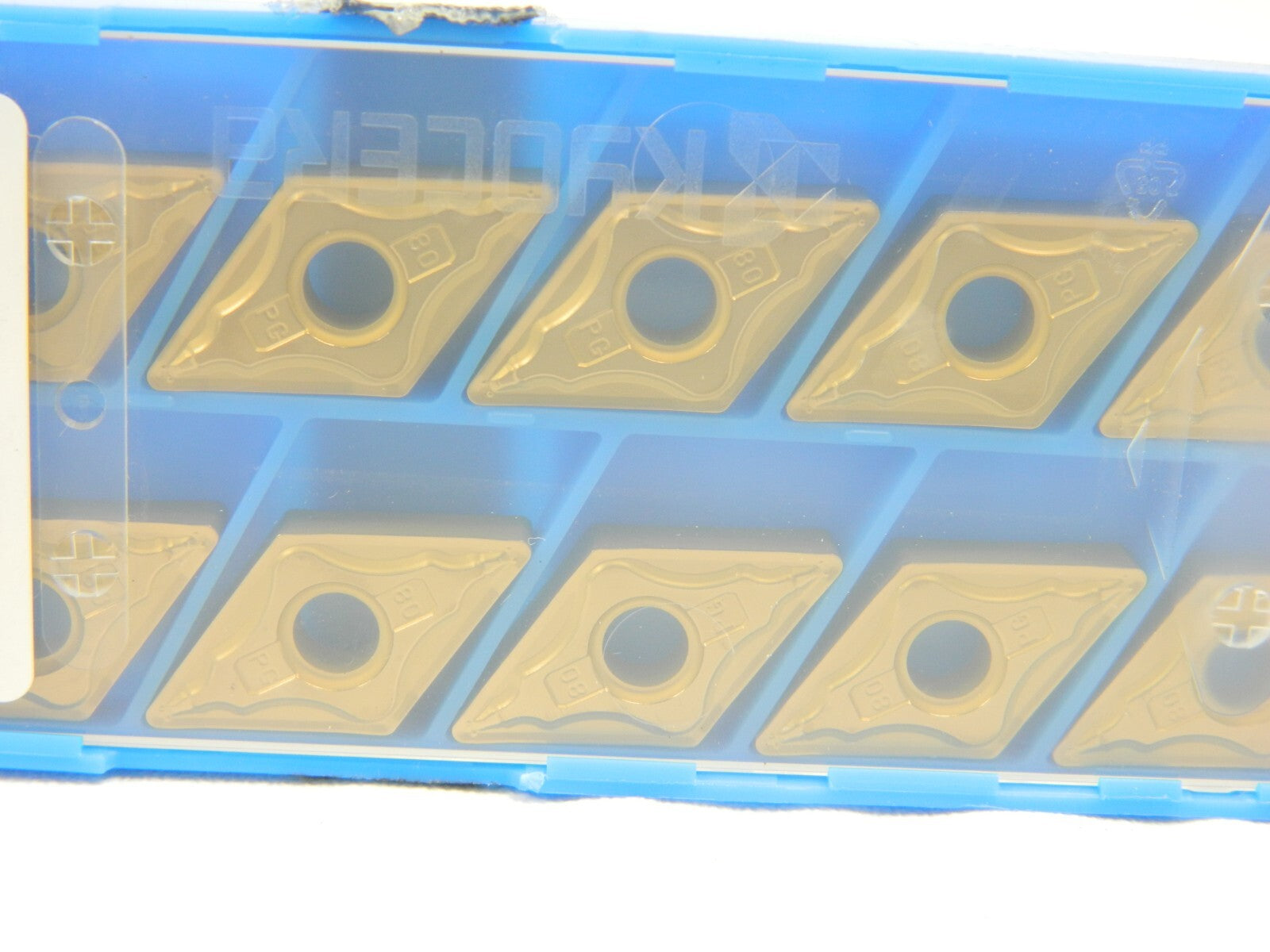

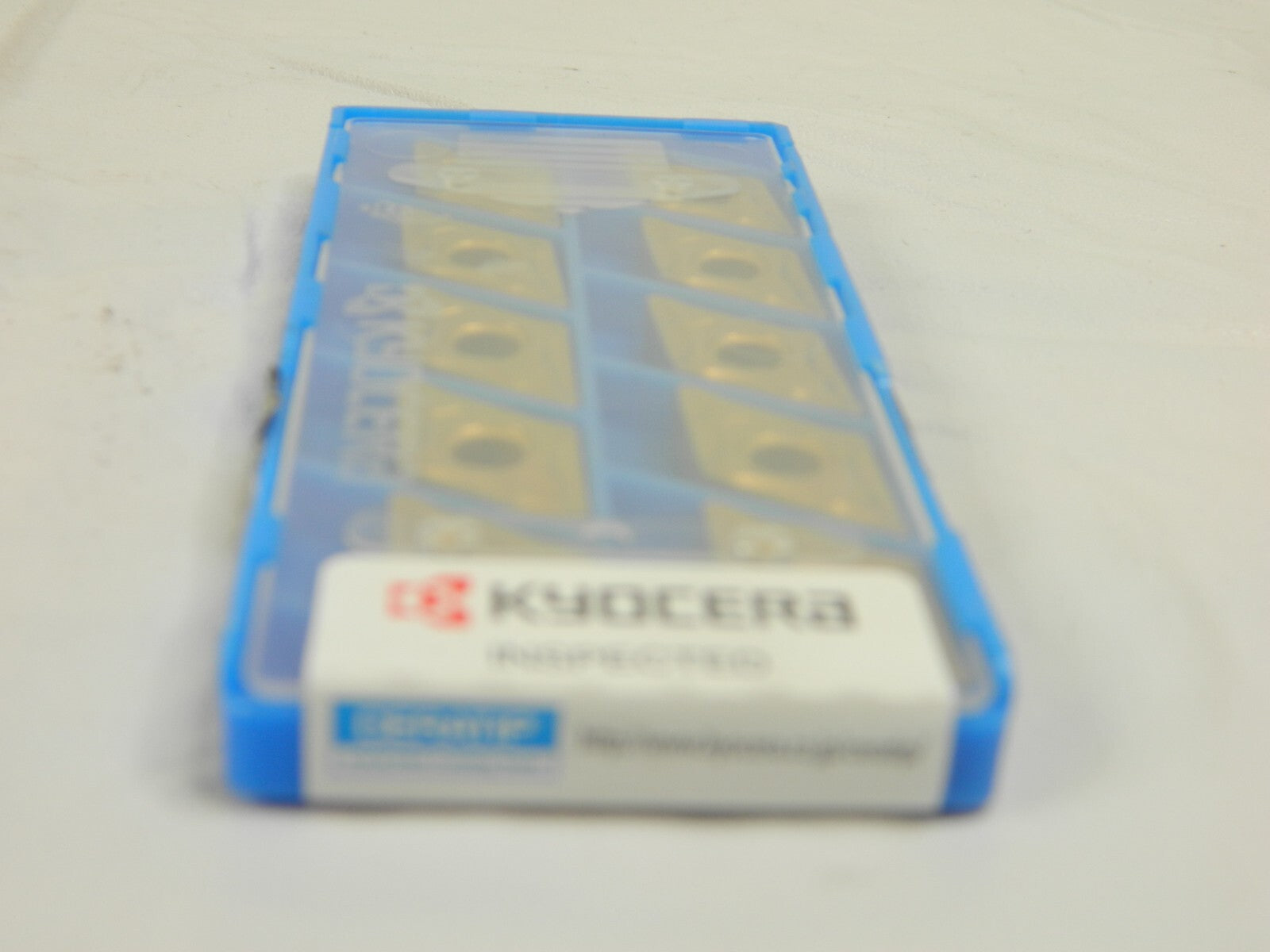

Please review photos, comes as shown.
