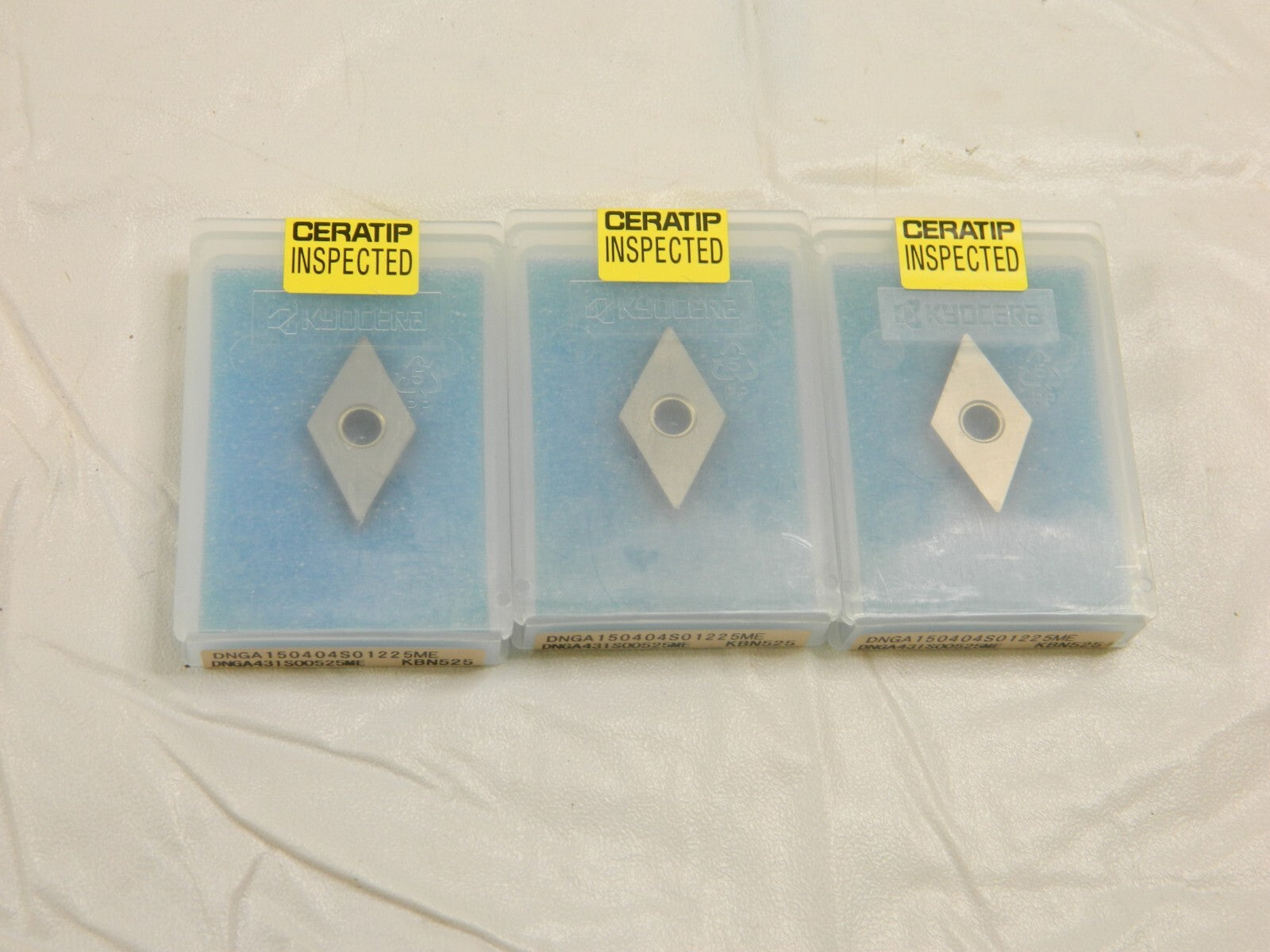

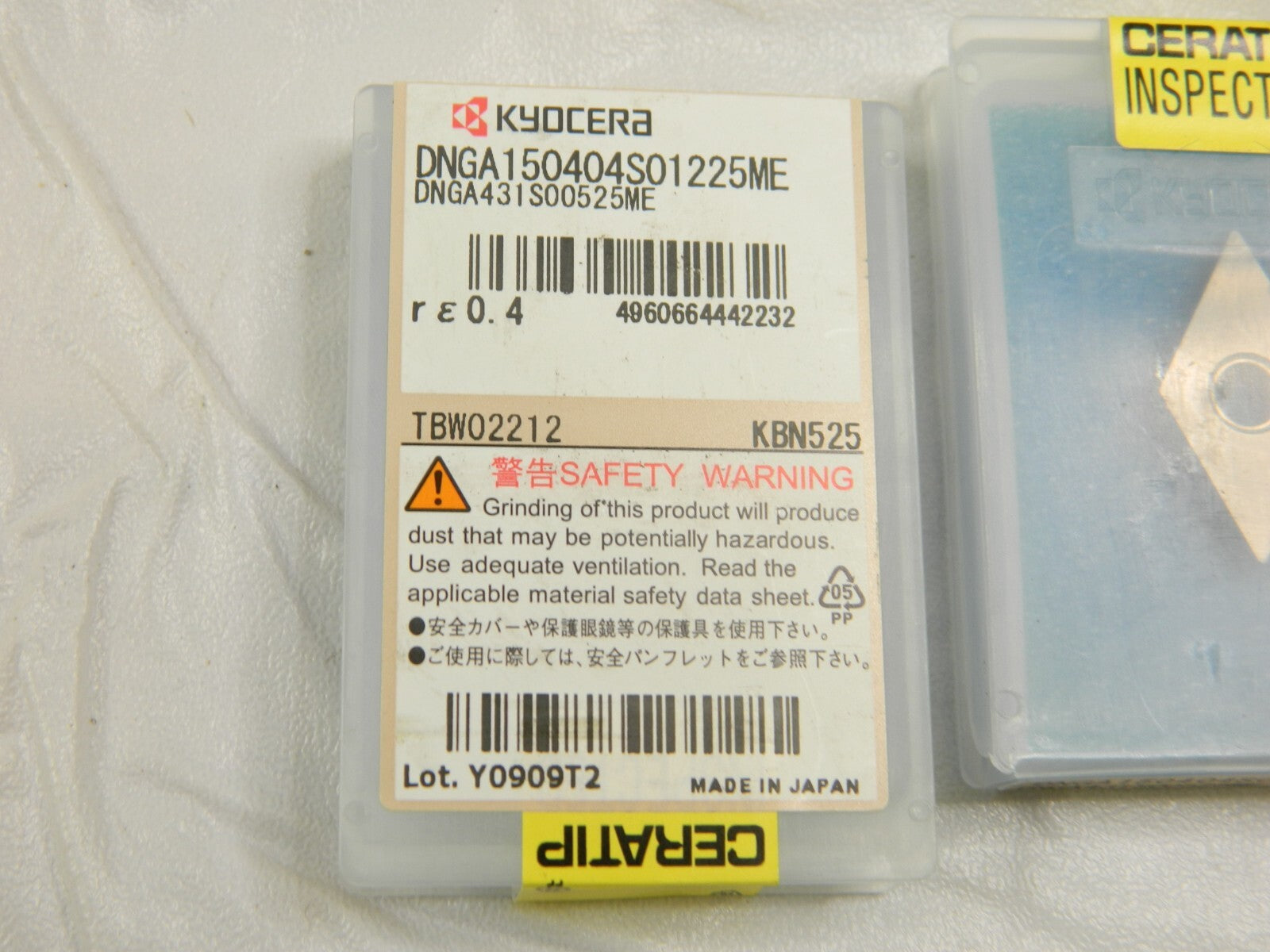

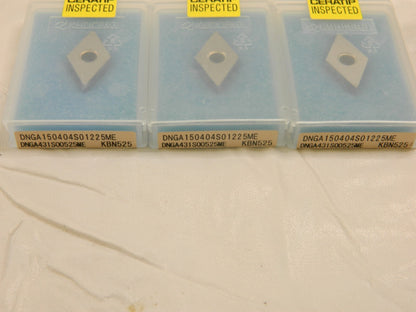

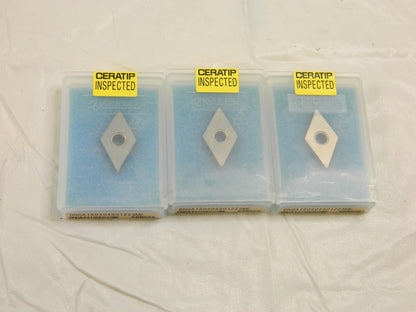

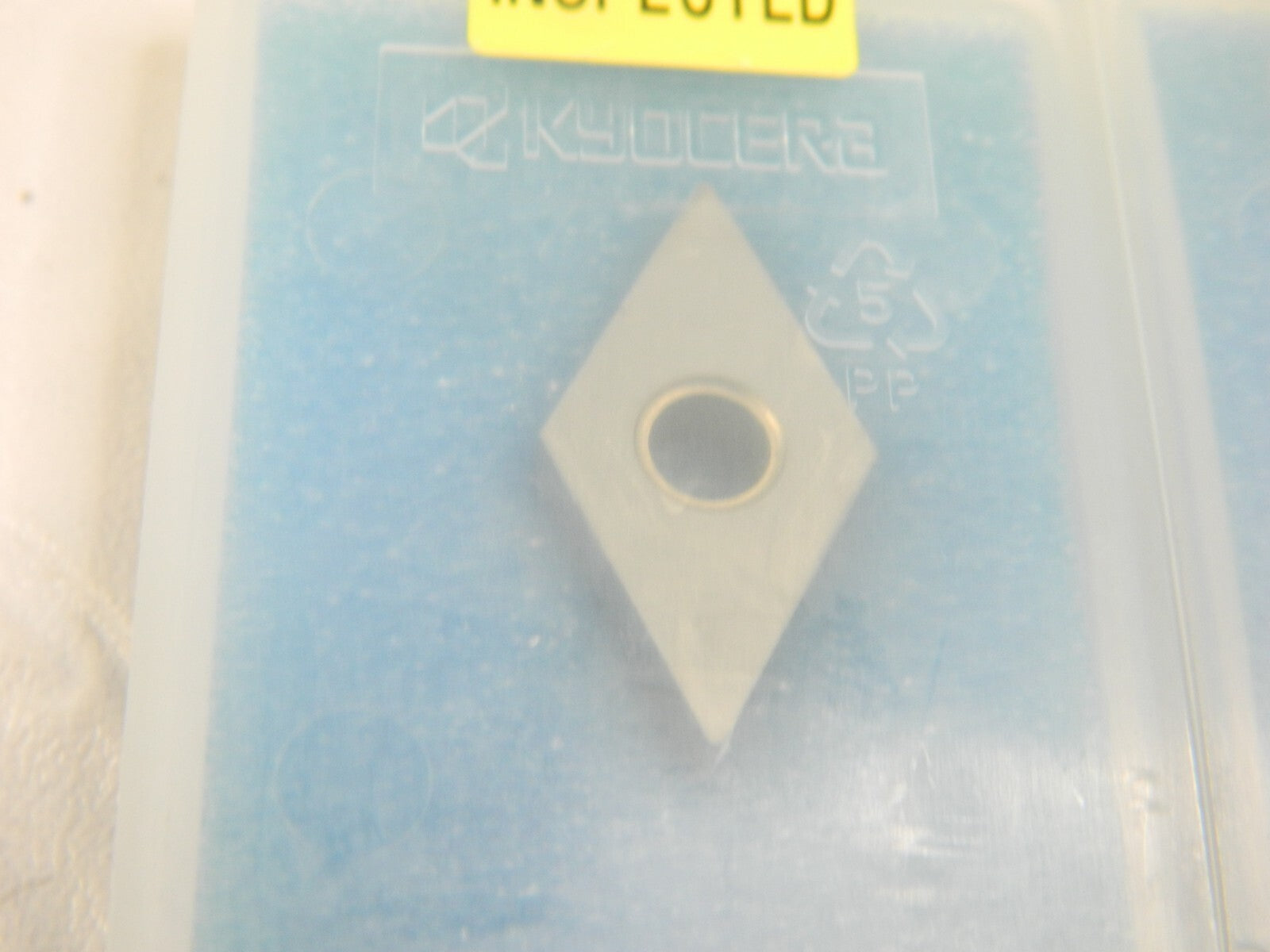

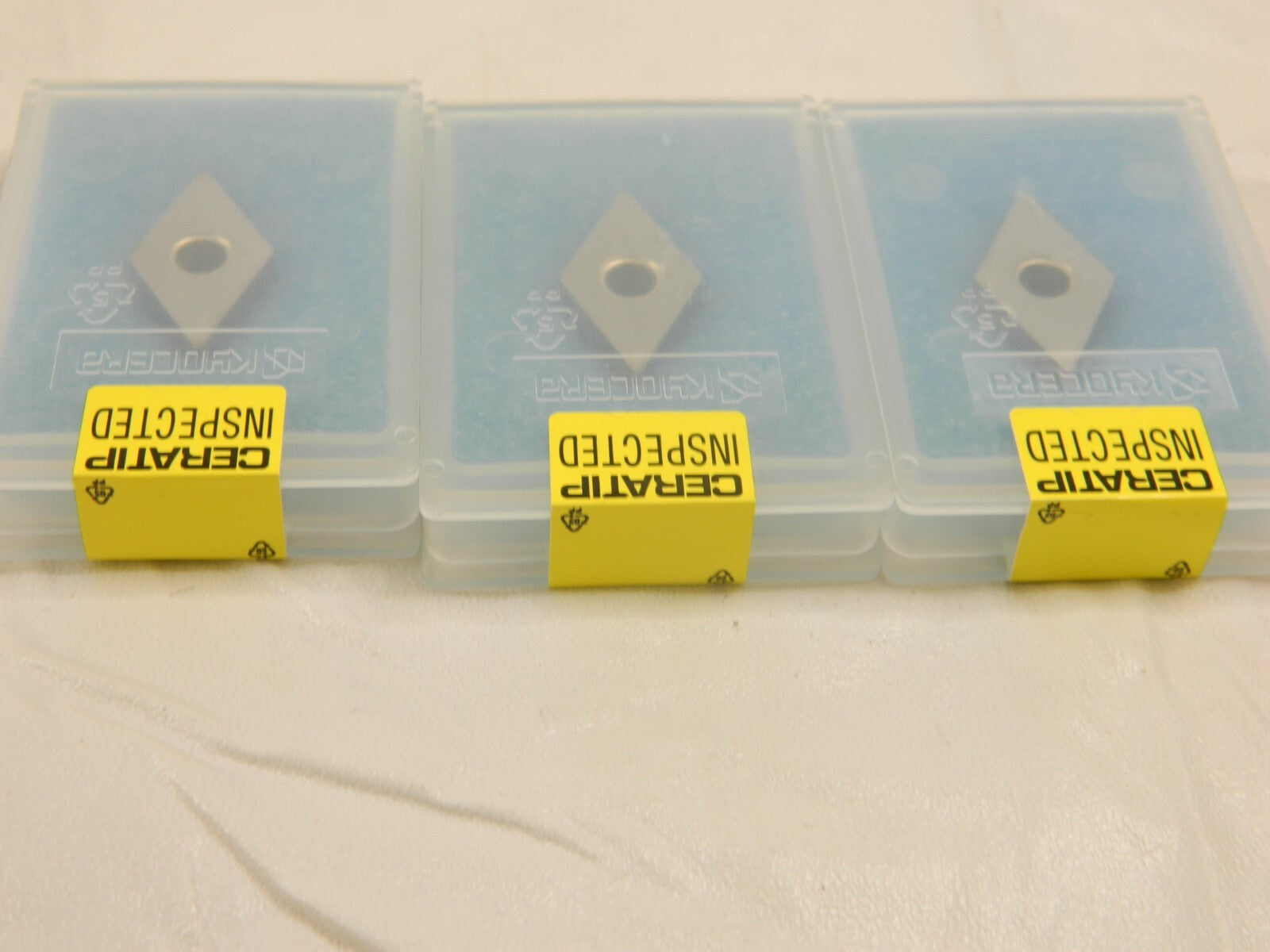

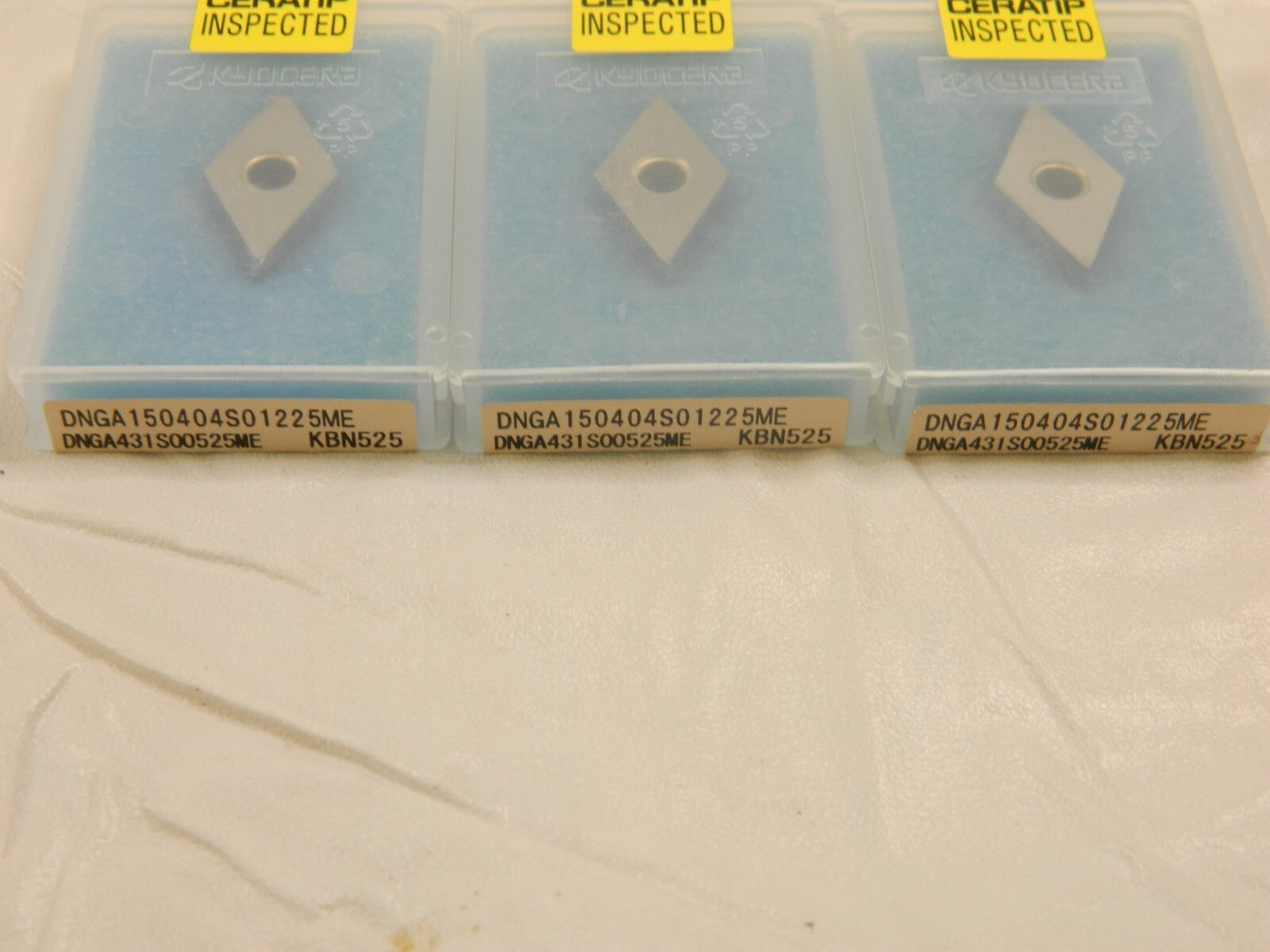

KYOCERA Turning Insert: DNGA431ME KBN525, Cubic Boron Nitride Qty 3 TBW02212

Kyocera
1 Lot of 3 Turning Inserts

MSRP: $50.00

• Insert Style DNGA
• Insert Shape Code D
• Insert Size Code 431
• Insert Shape Diamond
• Coating/Finish Bright/Uncoated
• Manufacturer Grade KBN525
• Corner Radius (Inch) 1/64
• Corner Radius (Decimal Inch) 0.0156
• Insert Material Cubic Boron Nitride
• Hole Diameter (Mm) ( - 0 Decimals) 5.16
• Hole Diameter (Decimal Inch) 0.2031
• Inscribed Circle (Inch) 1/2
• Inscribed Circle (Decimal Inch) 0.5000
• Insert Holding Method Pin; Clamp
• Insert Hand Neutral
• Insert Thickness (Inch) 3/16
• Insert Thickness (Decimal Inch) 0.1875
• Clearance Code N
• Tolerance Code G
• Included Angle 55.0
• Relief Angle 0
• Series ISOI
• Coating Process Uncoated
• Rake Negative
• Number Of Cutting Edges 2
• Primary Workpiece Material Code H
• Ansi Code DNGA431MEKBN525
• Iso Code DNGA150404ME
• Standards ISO; ANSI
• Chip Breaker ME

These items are new and in the sealed original package. SOLD AS IS.

Please review photos, comes as shown.
