KYOCERA Turning Insert: DCMT21.51HQ PV90, Cermet Qty 10 TKZ00601

Kyocera
1 Lot of 10 Inserts

MSRP: $100.00

• Insert Style DCMT
• Insert Size Code 2151
• Insert Shape Diamond 55°
• Included Angle 55
• Inscribed Circle (Decimal Inch) 0.2500
• Corner Radius (Decimal Inch) 0.0156
• Insert Material Cermet
• Manufacturer Grade PV90
• Coating/Finish TiN
• Relief Angle 7
• Wiper Edge No
• Insert Thickness (Decimal Inch) 0.0938
• Insert Hand Neutral
• Number Of Cutting Edges 2
• Insert Shape Code D
• Corner Radius (Inch) 1/64
• Hole Diameter (Decimal Inch) 0.1102
• Maximum Depth of Cut (Decimal Inch) 0.2047
• Inscribed Circle (Inch) 1/4
• Insert Holding Method Screw
• Width (Inch) 1/4
• Insert Thickness (Inch) 3/32
• Clearance Code C
• Tolerance Code M
• Series ISOI
• Coating Process Uncoated
• Length Range (Decimal Inch) 0.6000 - 0.6500
• Rake Positive
• Insert Length (Decimal Inch) 0.6140
• Primary Workpiece Material Stainless Steel; Steel
• Primary Workpiece Material Code P; M
• Iso Code DCMT070204HQ
• Standards ISO; ANSI
• Manufacturers Catalog Number TKZ00601
• Material Grade P01; M20; M10; P10; P20; M01
• UNSPSC Code 23242105
• Coating Classification Uncoated
• Chip Breaker HQ
• Rake Angle 15
• Cutting Edge Style Honed
• Industry Standard Number DCMT2151HQPV90
• Width (Decimal Inch - 4 Decimals) 0.25
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application External Turning; Back Boring; Copying

These items are new and in the original sealed package. SOLD AS IS.

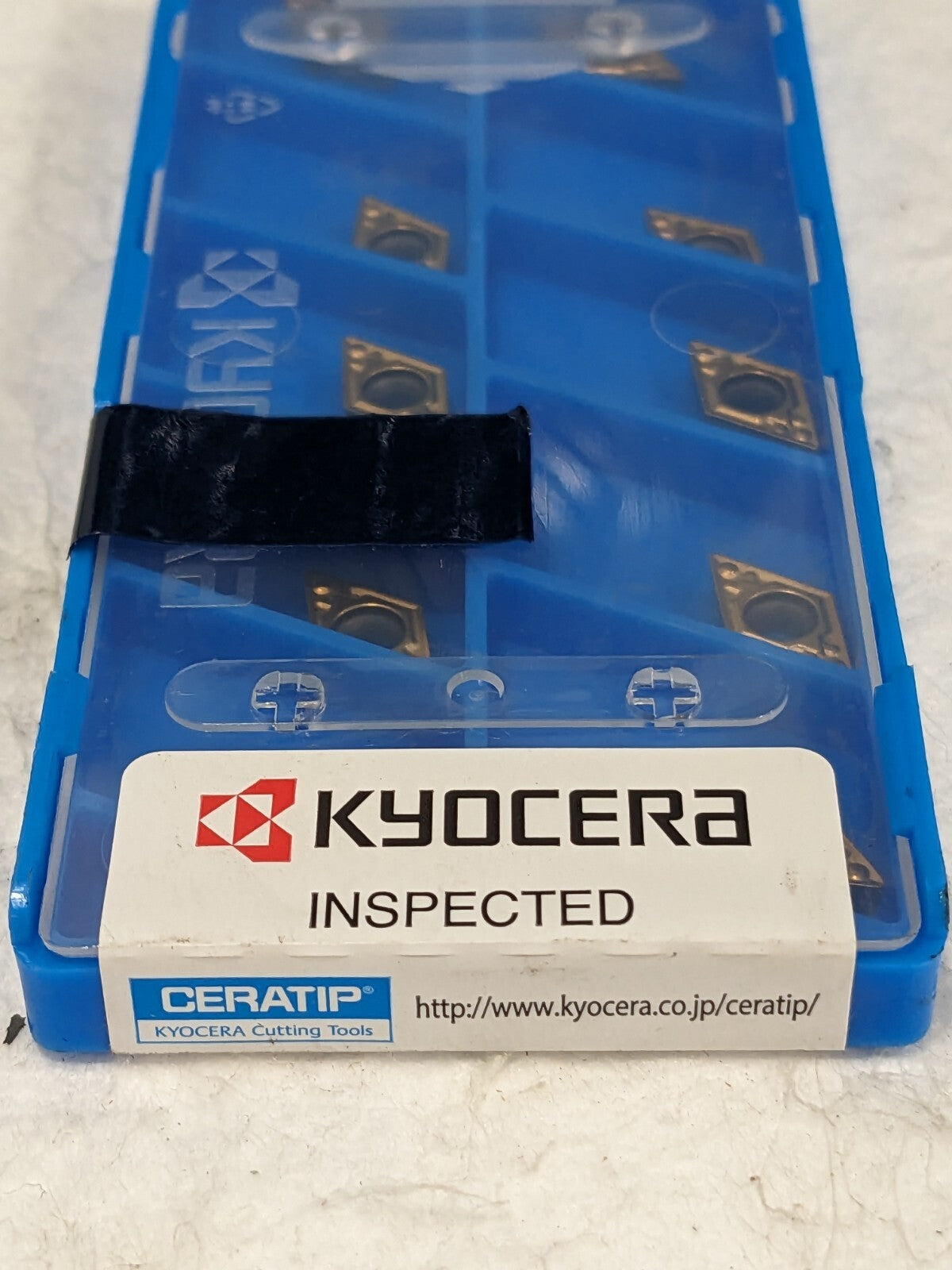

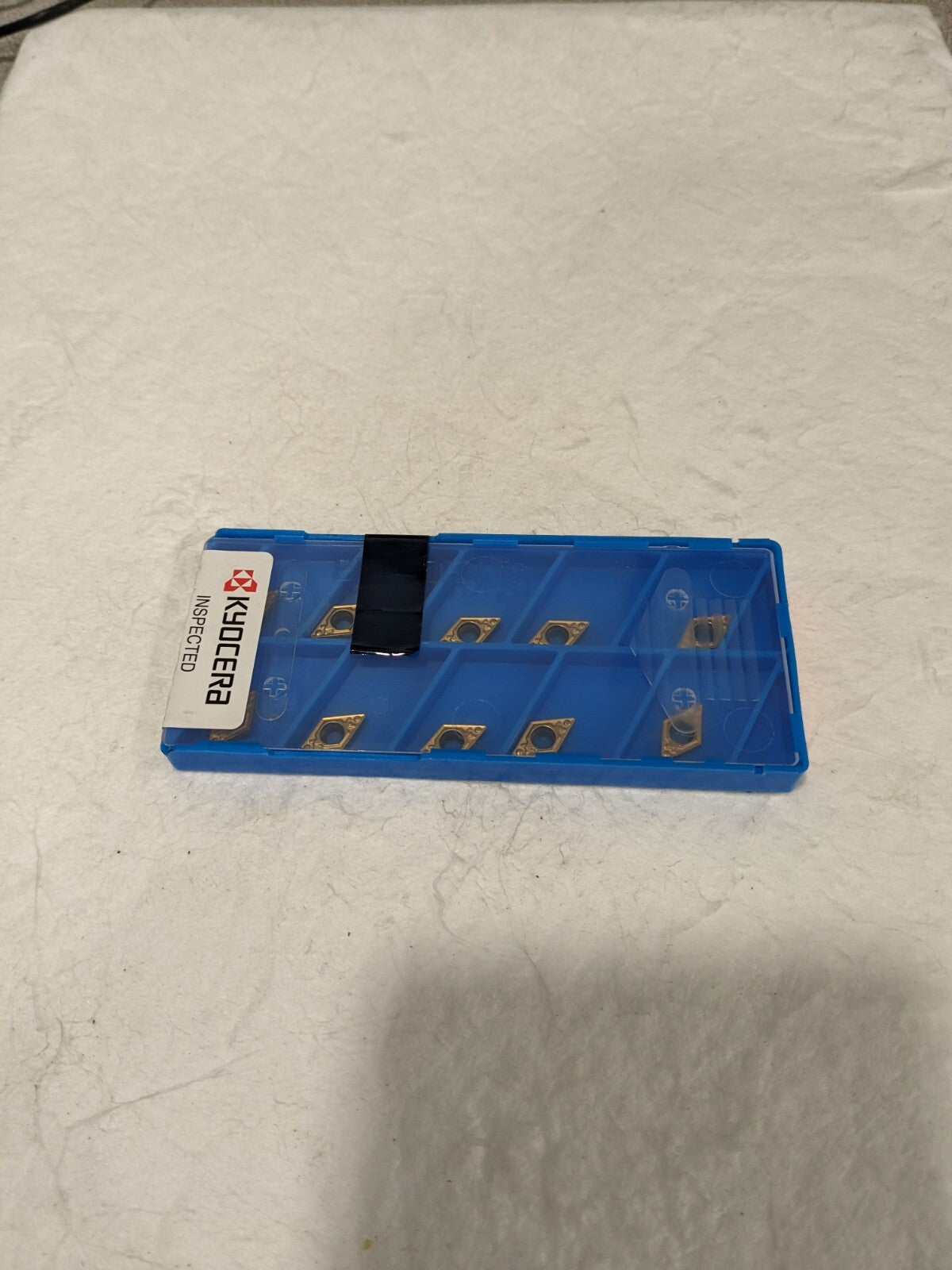

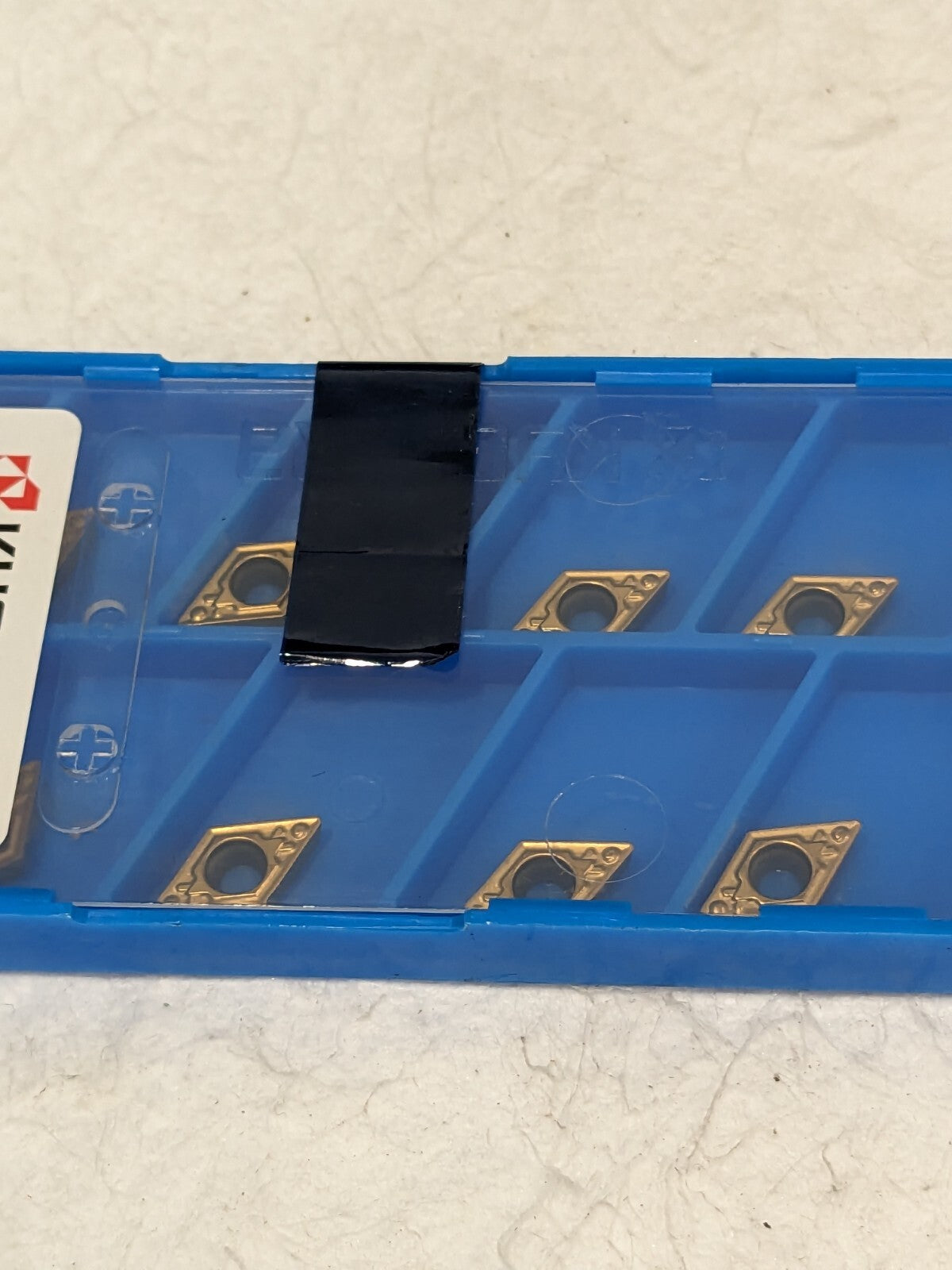

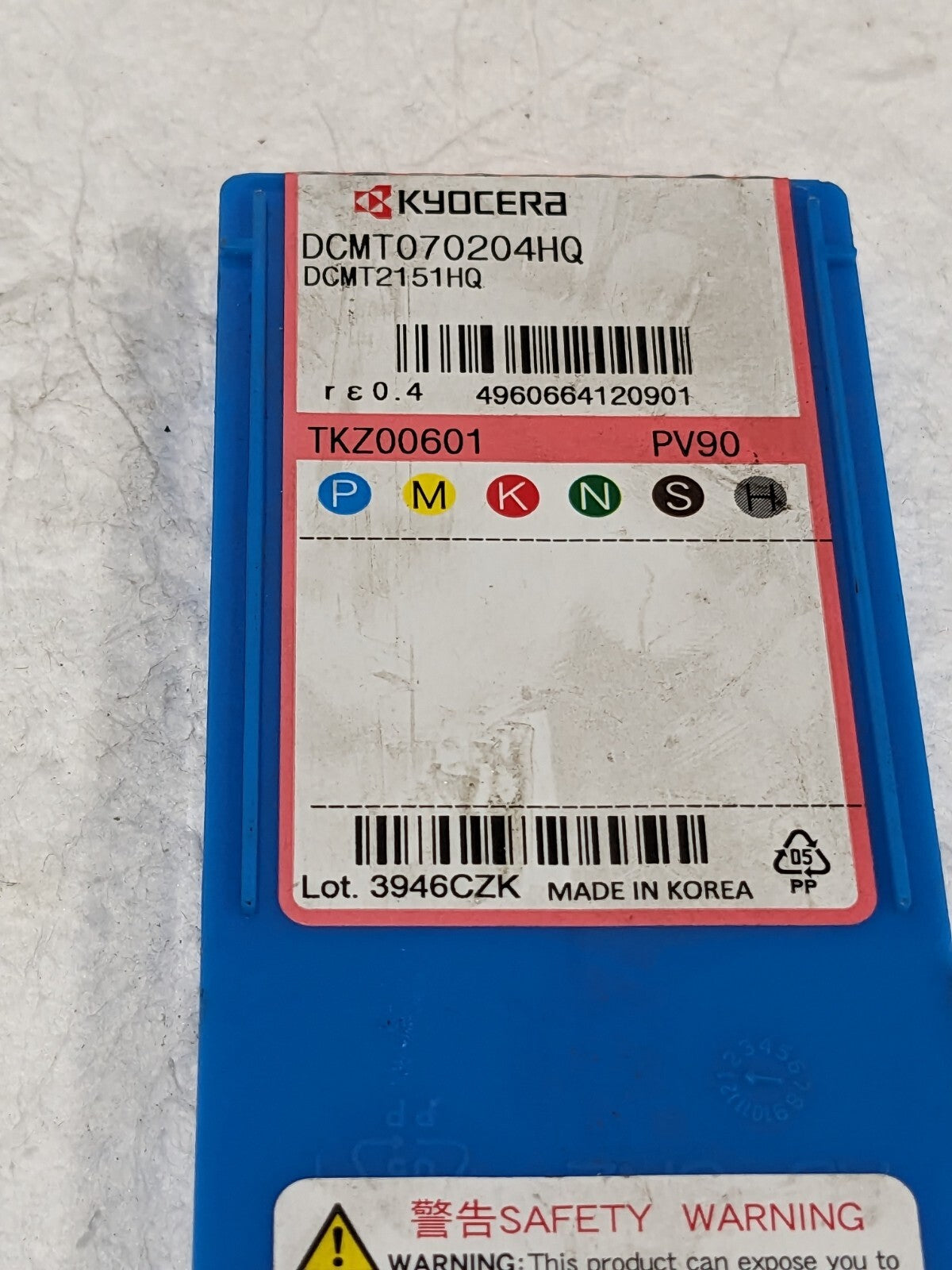

Please review photos, comes as shown.
