KYOCERA Turning Insert: DCMT11T304XQ CCX, Cermet Qty 10 TMJ40058

Kyocera
1 Lot of 10 Inserts

MSRP: $100.00

• Insert Style DCMT
• Insert Size Code 3251
• Insert Shape Diamond
• Included Angle 55
• Inscribed Circle (Decimal Inch) 0.3750
• Corner Radius (Decimal Inch) 0.0156
• Insert Material Cermet
• Manufacturer Grade CCX
• Coating/Finish TiCN; TiN; Al2O3
• Relief Angle 7
• Wiper Edge No
• Insert Thickness (Decimal Inch) 0.1563
• Insert Hand Neutral
• Number Of Cutting Edges 2
• Insert Shape Code D
• Corner Radius (Inch) 1/64
• Hole Diameter (Decimal Inch) 0.1732
• Maximum Depth of Cut (Decimal Inch) 0.3047
• Inscribed Circle (Inch) 3/8
• Insert Holding Method Screw
• Width (Inch) 3/8
• Insert Thickness (Inch) 5/32
• Clearance Code C
• Tolerance Code M
• Series ISOI
• Coating Process CVD
• Length Range (Decimal Inch) 0.7000 - 10.0000
• Rake Positive
• Insert Length (Decimal Inch) 0.9140
• Primary Workpiece Material Steel
• Primary Workpiece Material Code P
• Secondary Workpiece Material Cast Iron
• Secondary Workpiece Material Code K
• Iso Code DCMT11T304XQ
• Manufacturers Catalog Number TMJ40058
• Material Grade K20; K10; K01; P10; P20
• UNSPSC Code 23242105
• Coating Classification CVD
• Chip Breaker XQ
• Rake Angle 7
• Cutting Edge Style Honed
• Industry Standard Number DCMT3251XQCCX
• Width (Decimal Inch - 4 Decimals) 0.375
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application External Turning; Back Boring; Copying

These items are new and in the original sealed package. SOLD AS IS.

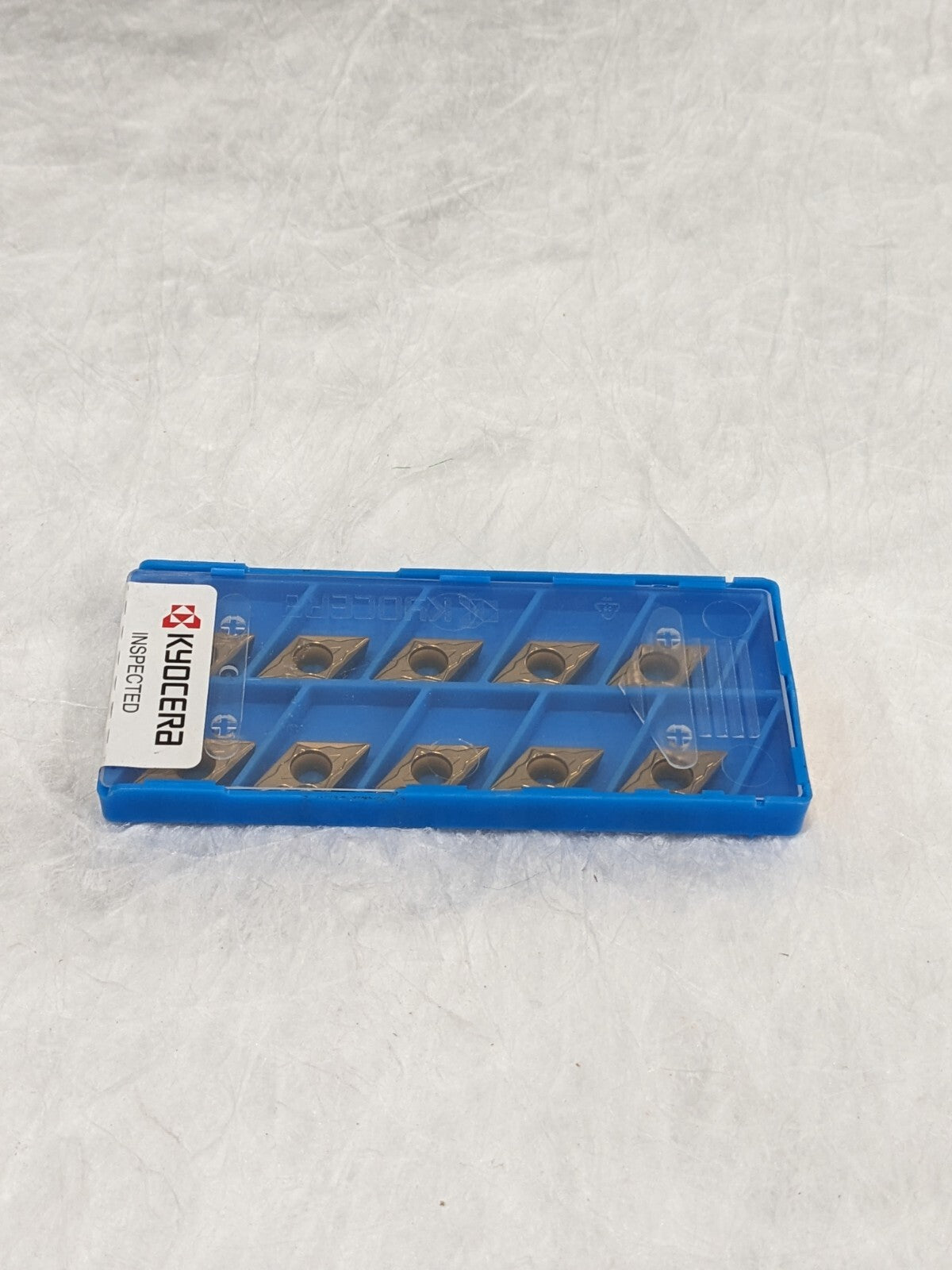

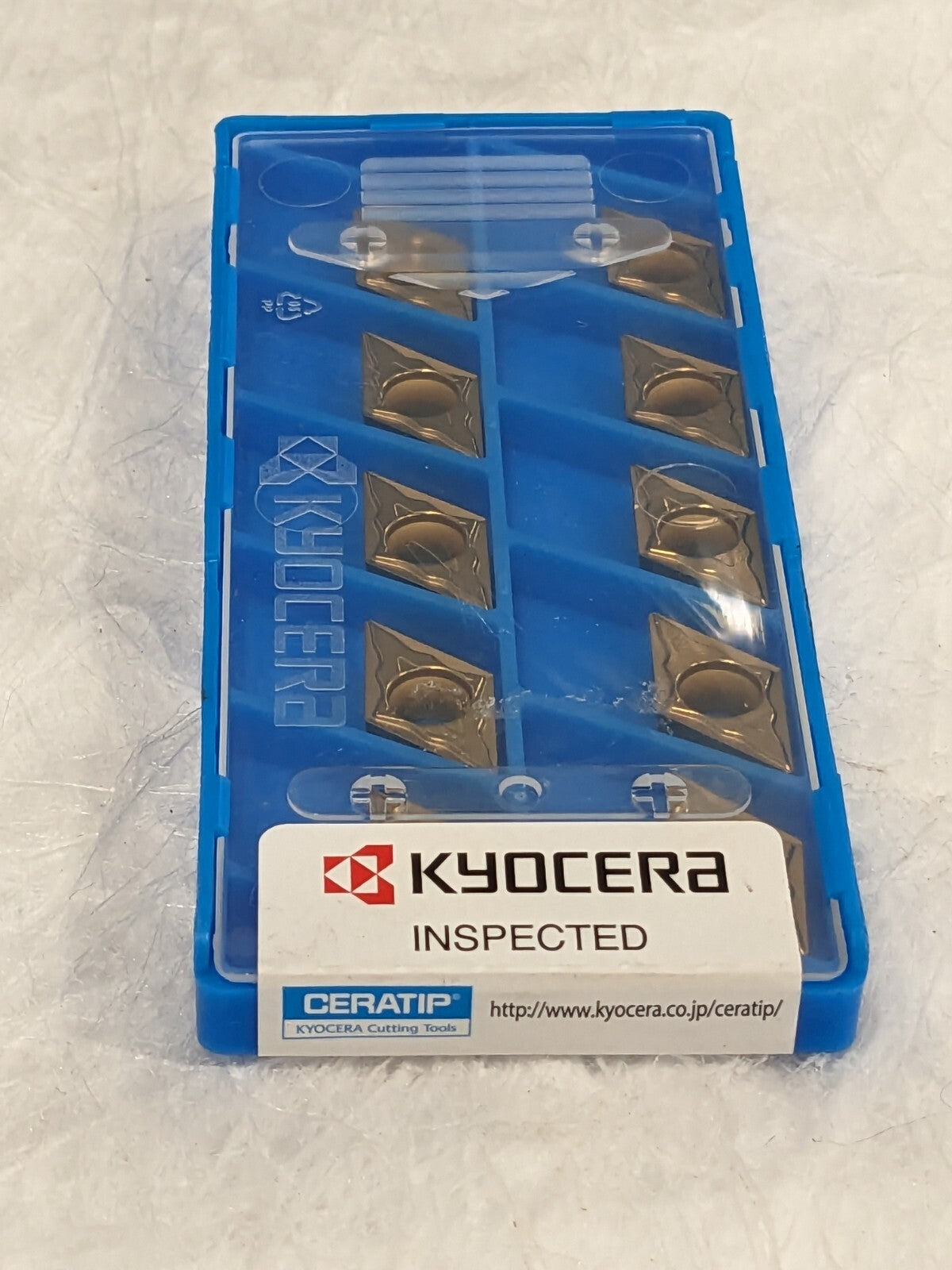

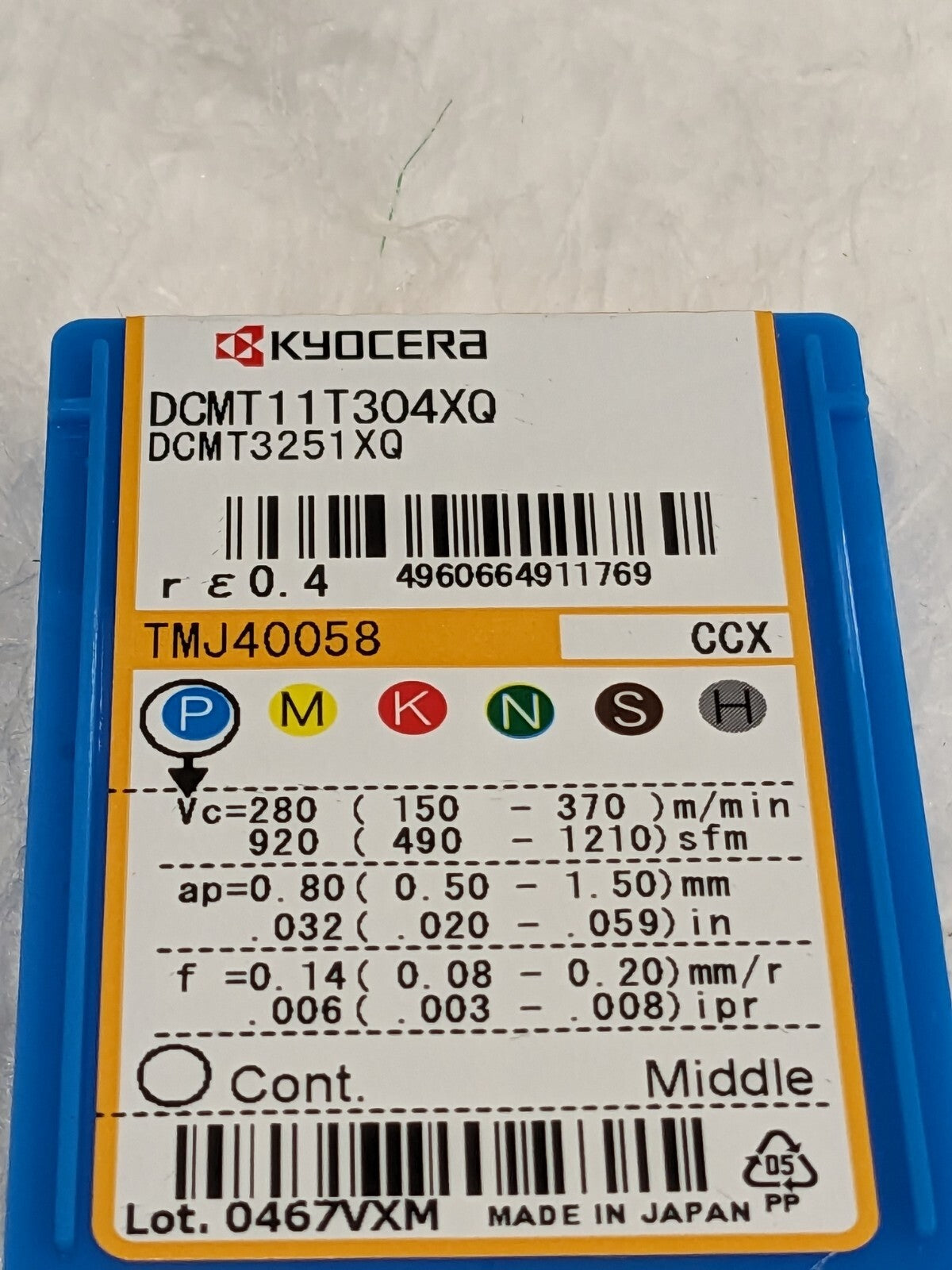

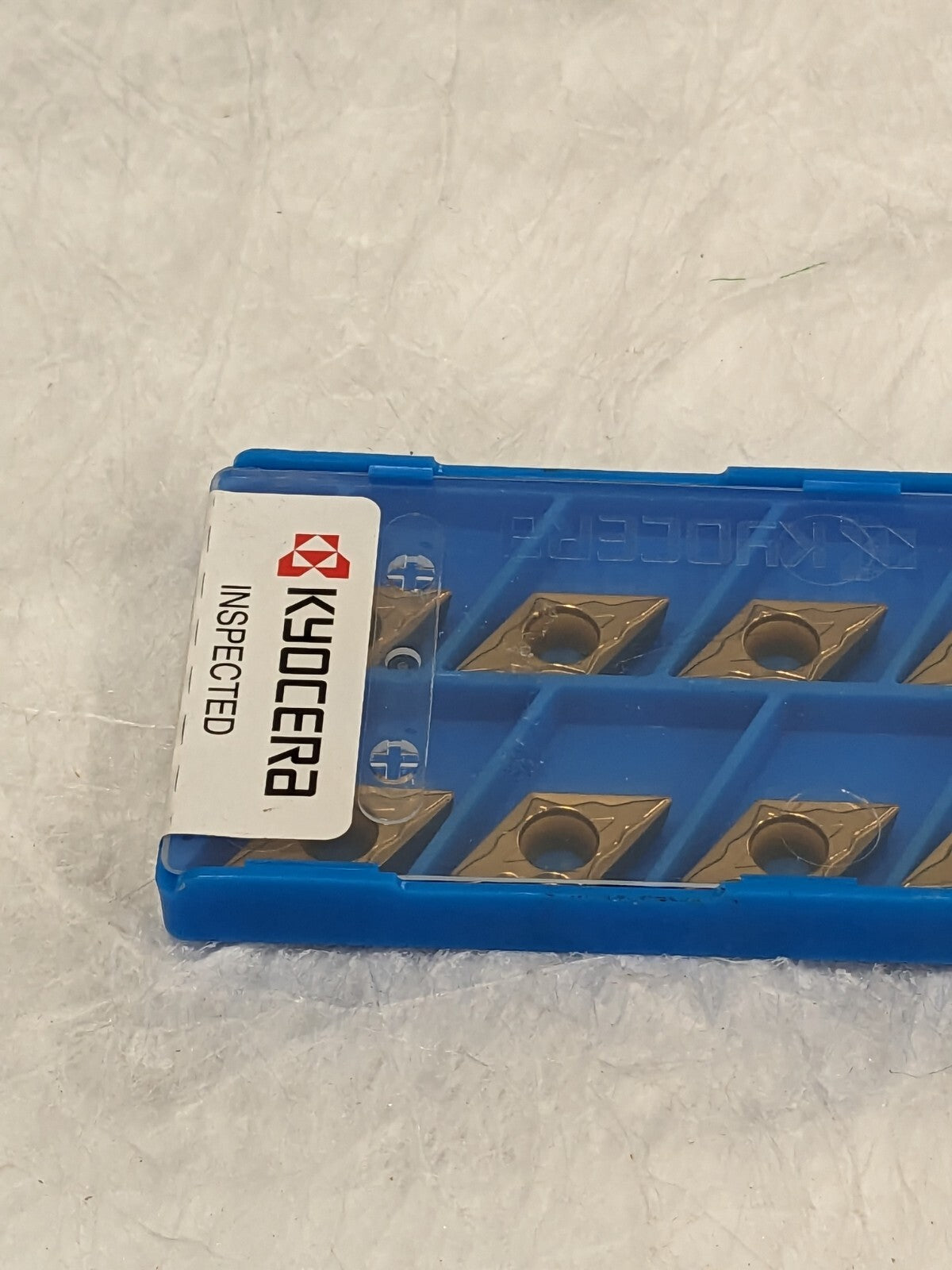

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
