KYOCERA Turning Insert 10pk: WBGT15151RF TN60, Cermet TSJ03770

KYOCERA Turning Insert 10pk: WBGT15151RF TN60, Cermet TSJ03770

MSRP: $180

• Insert Style WBGT
• Insert Size Code 15151
• Insert Shape Trigon 80°
• Included Angle 80
• Inscribed Circle (Decimal Inch) 0.1875
• Corner Radius (Decimal Inch) 0.0156
• Insert Material Cermet
• Manufacturer Grade TN60
• Coating/Finish TiCN; NbC
• Relief Angle 5
• Wiper Edge No
• Insert Thickness (Decimal Inch) 0.0938
• Insert Hand Right Hand
• Number Of Cutting Edges 3
• Insert Shape Code W
• Corner Radius (Inch) 1/64
• Hole Diameter (Decimal Inch) 0.0906
• Maximum Depth of Cut (Decimal Inch) 0.1313
• Inscribed Circle (Inch) 3/16
• Insert Holding Method Screw
• Insert Thickness (Inch) 3/32
• Clearance Code B
• Tolerance Code G
• Series ISOI
• Coating Process Uncoated
• Length Range (Decimal Inch) 0.3000 - 0.4000
• Rake Positive
• Insert Length (Decimal Inch) 0.3940
• Primary Workpiece Material Steel
• Primary Workpiece Material Code P
• Secondary Workpiece Material Stainless Steel
• Iso Code WBGT080204R-F
• Standards ISO; ANSI
• Manufacturers Catalog Number TSJ03770
• Material Grade P01; P10; P20
• UNSPSC Code 23242105
• Coating Classification Uncoated
• Chip Breaker F
• Rake Angle 15
• Cutting Edge Style Sharp
• Industry Standard Number WBGT15151RFTN60
• Width (Decimal Inch - 4 Decimals) 0.394
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Internal Facing; Boring

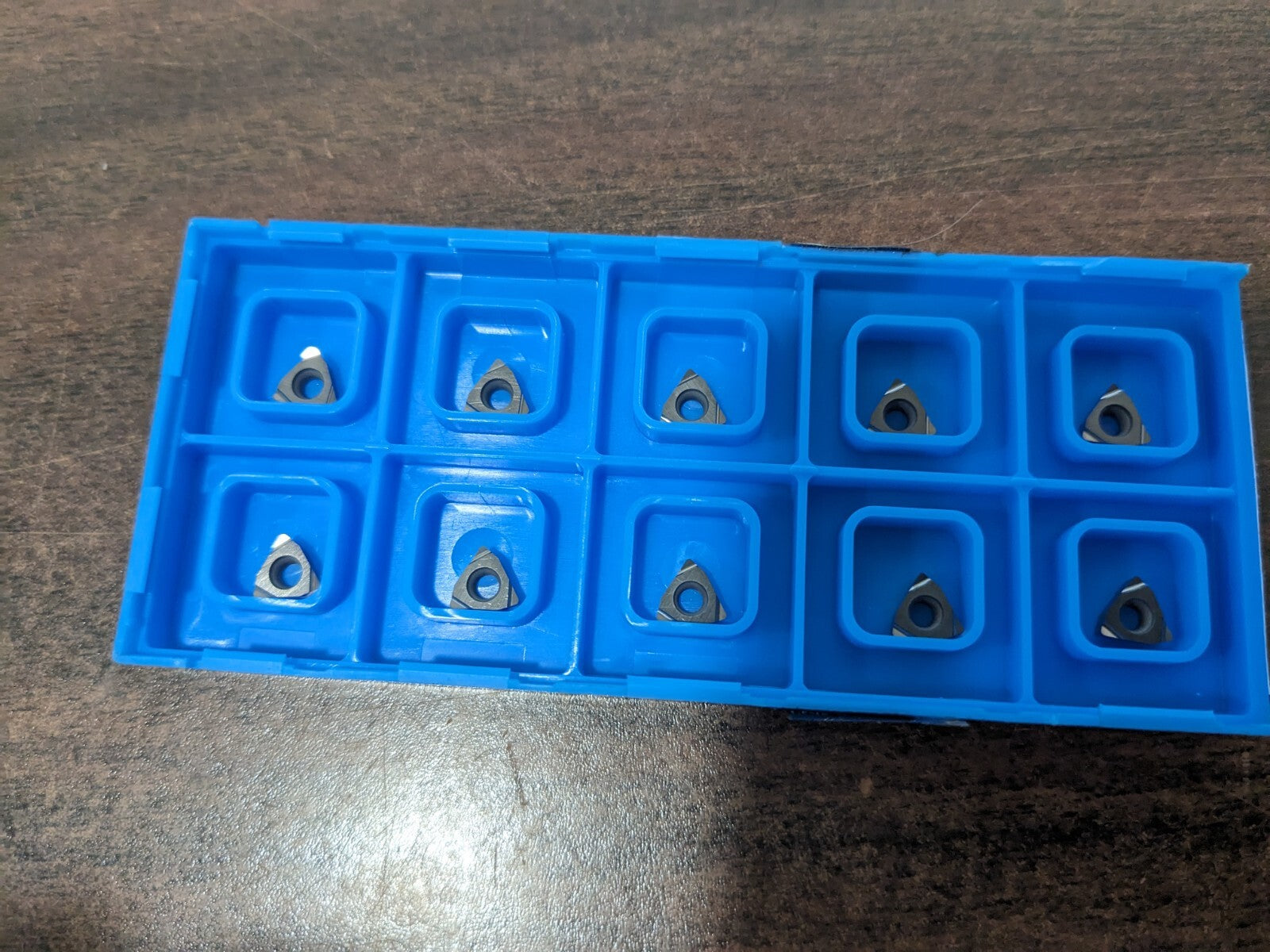

 Please review photos, comes as shown.
